Aluminium Extrusion Press Line - 3 inch (400 UST)
By: Alcircle Pte Ltd| Price | Available on request |
| Category | Extrusion Press |
| Manufacturer | Hydromech |
| Min Order Quantity | 1.00 Unit |
| Place of Origin | Maharashtra, India |
11.11.2026
Description
We have a sale offer for an aluminium extrusion press line – 3 inch.
| Spare Description | Remarks | |

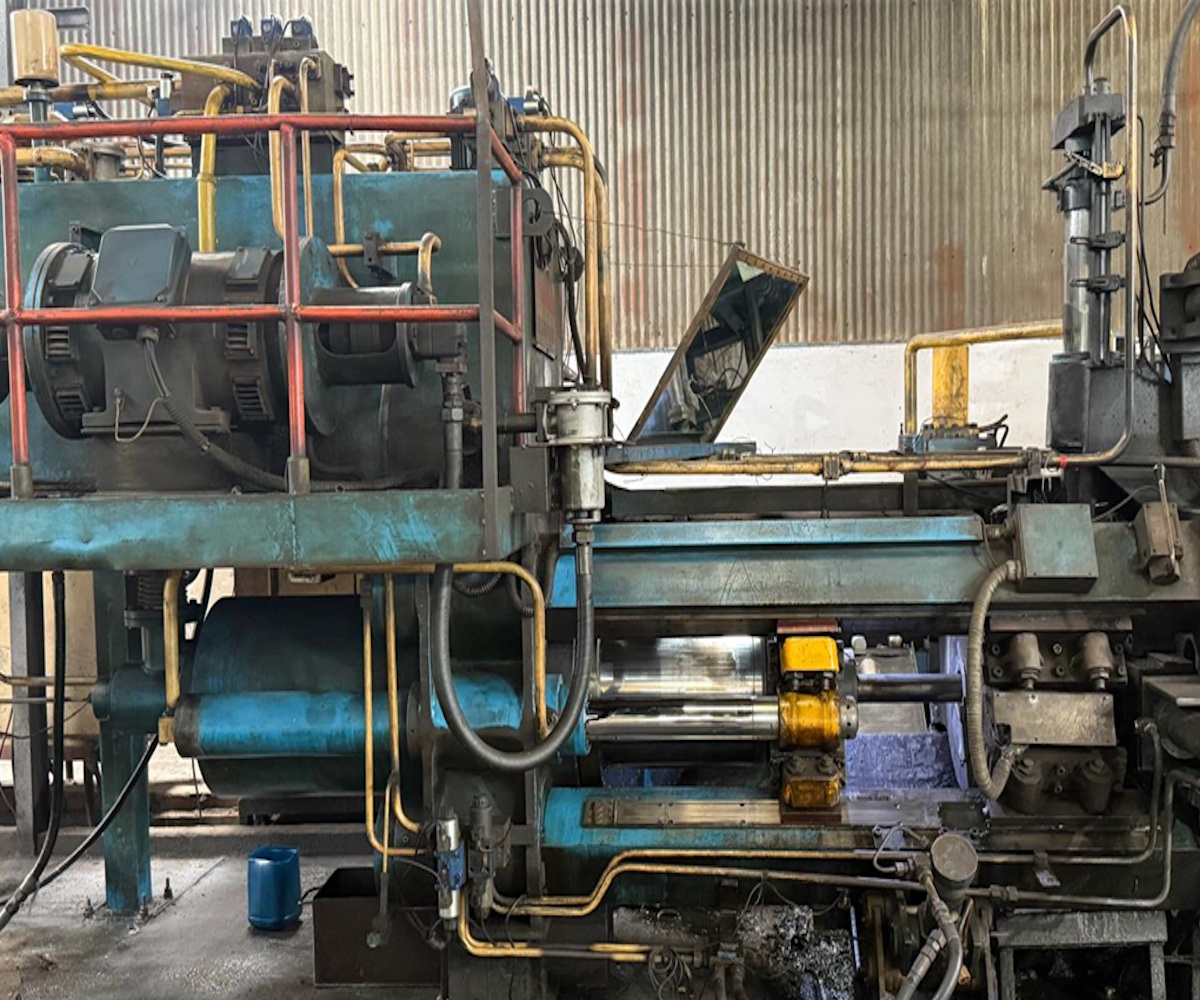

| 400 Al.Extrusion Press | Hydromech (indian make) | Container and stem each 1 spare |
| Pressure upto 230 bar,ab plc | ||
| Billet size 80 mm dia(3") | ||
| Dies | Dies and tooling | |
| Multilog heater | 3 inch china make semi auto | Hourly output - 400 kg |
| Suyue | Daily output - 10 ton | |
| Die heater | China make infrared type heater | Heating time 15 to 20 minutes |
| Size of chamber 200dia *200 long | Total 2 chambers | |
| Speed control motors | ||

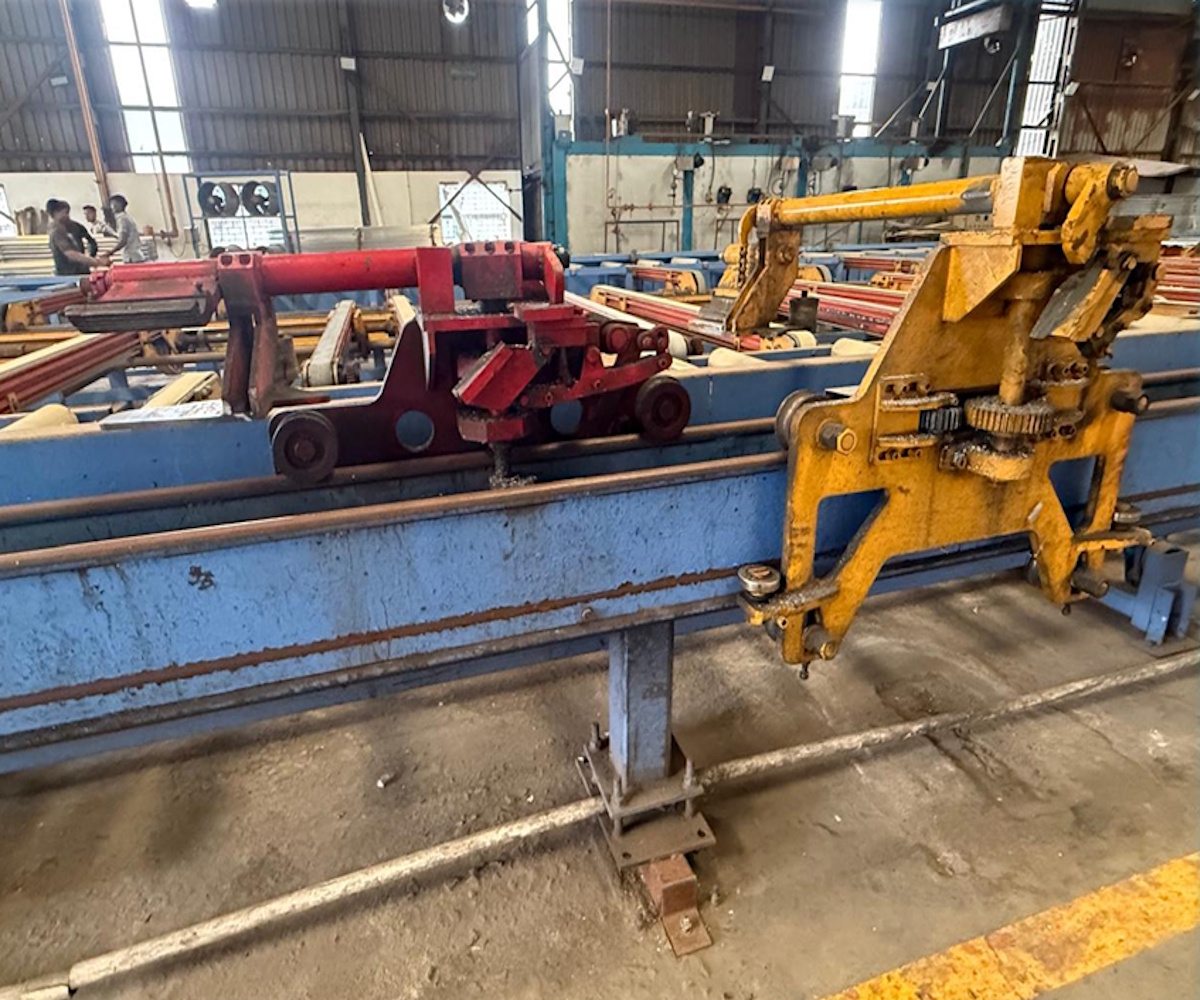

| Puller | Rope type vfd controlled | For multihole sections |
| (china make) | ||

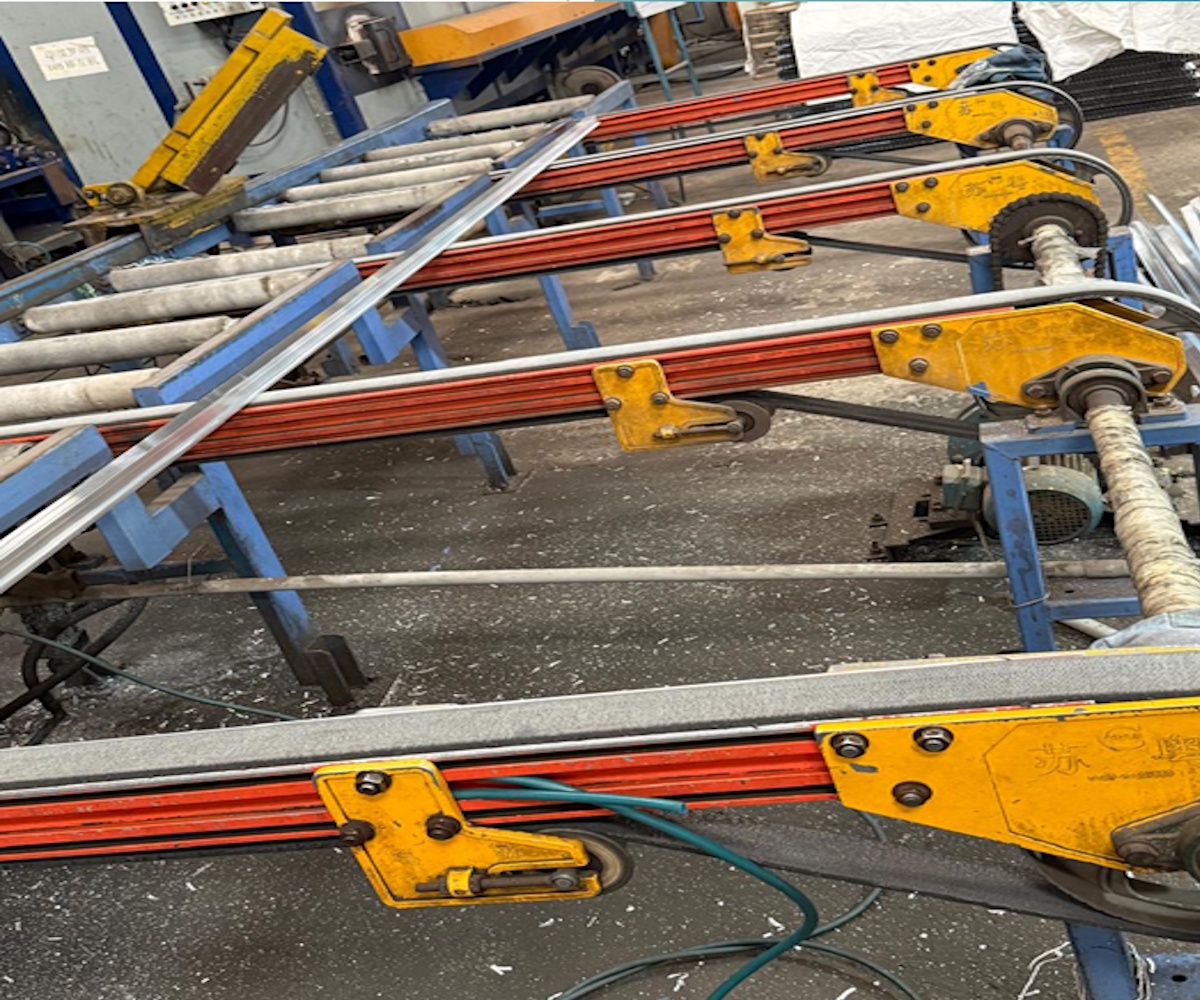

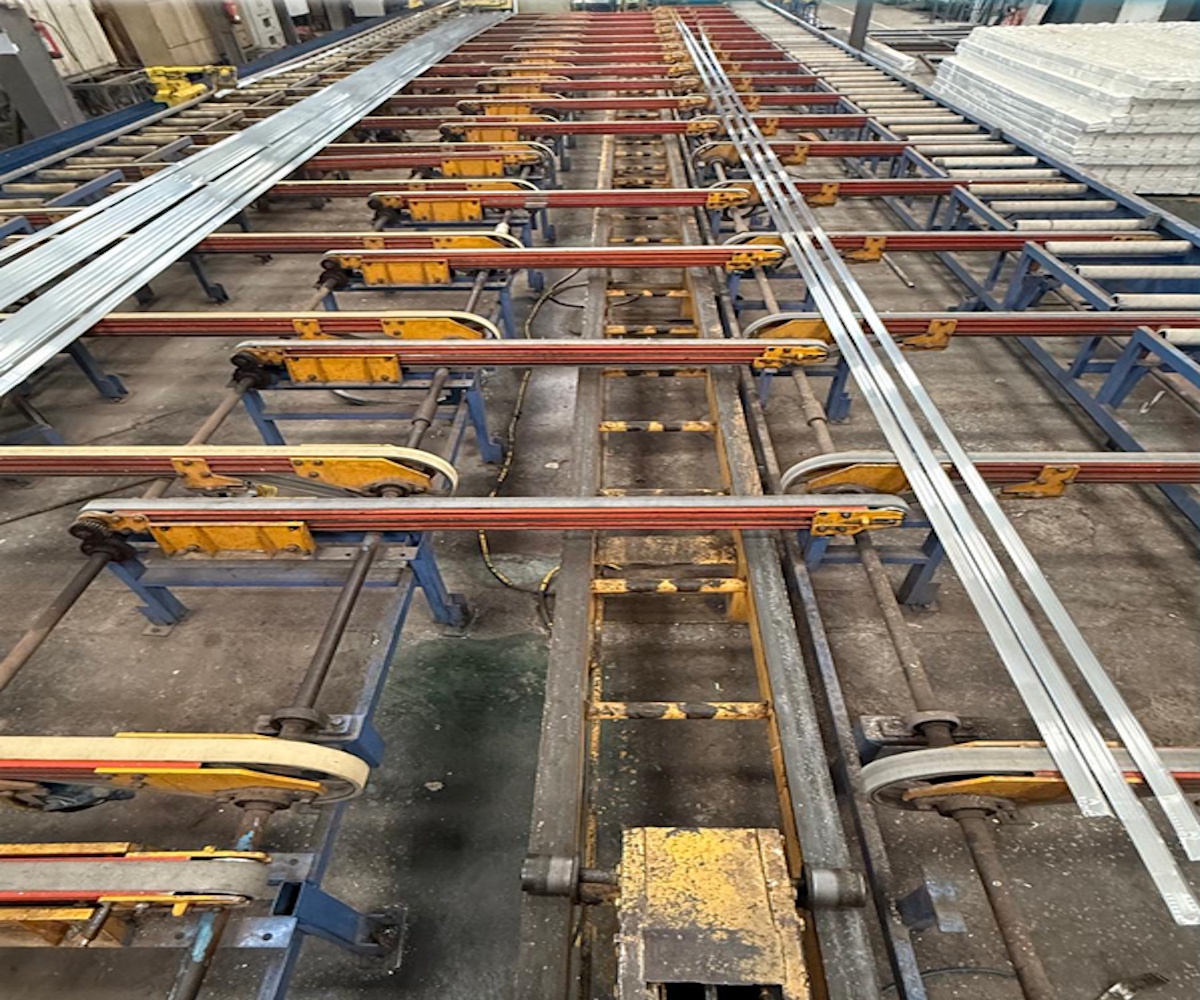

| Handling auto transfer | 4 step conveyors (china make) | Intial (480 *c) belt conveyor |
| 6meters width to 30 meters long | Cooling(280*c)belt conveyor | |
| Storage(280*c) belt conveyor | ||
| Final( 180*c) belt conveyor | ||
| Stretching m/c | 25 ton capacity (china make) | |

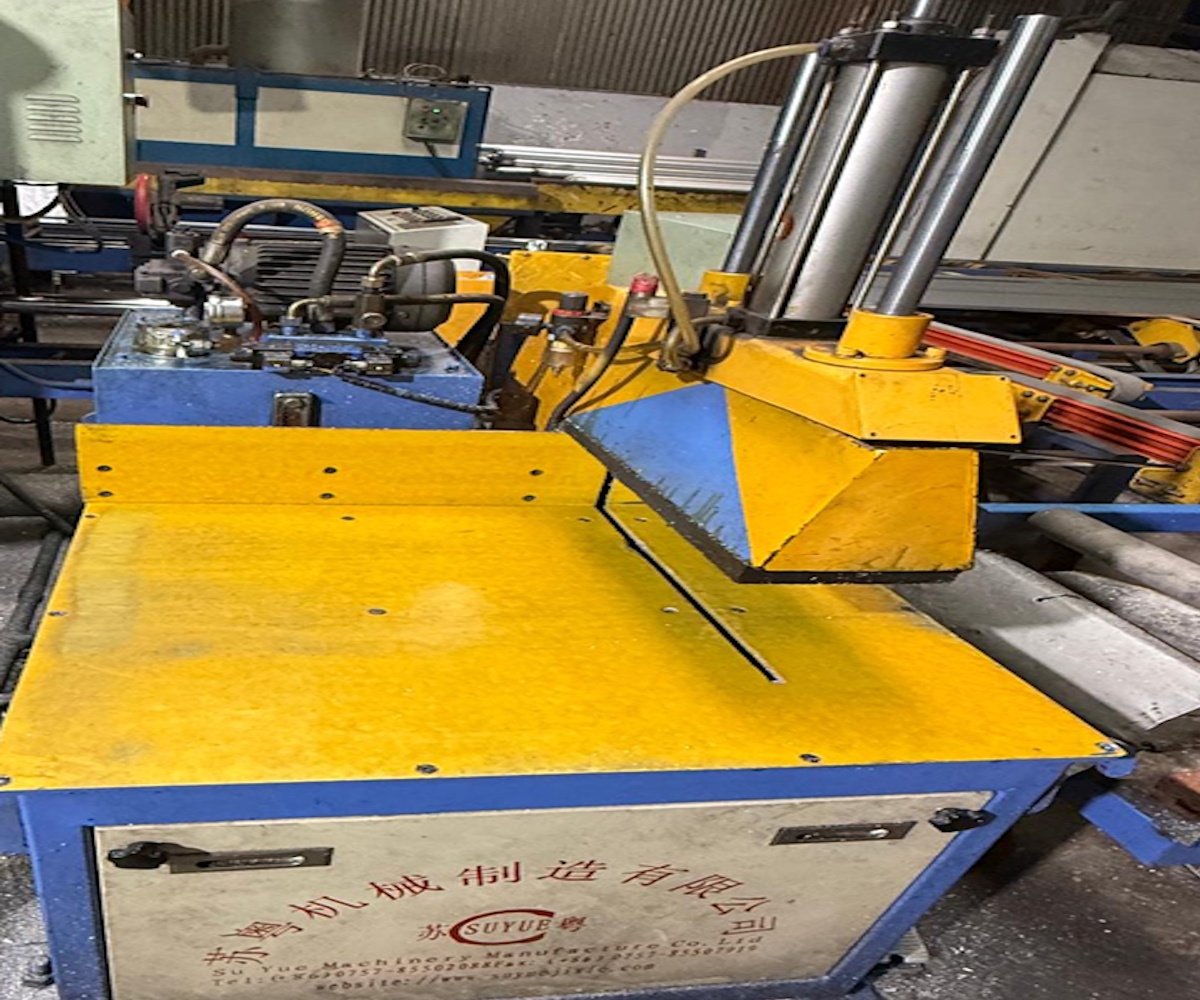

| Finish cutting m/c | Auto saw with chips collector | |
| (china make) | ||
| Q/c table | belt conveyor (china make) |
