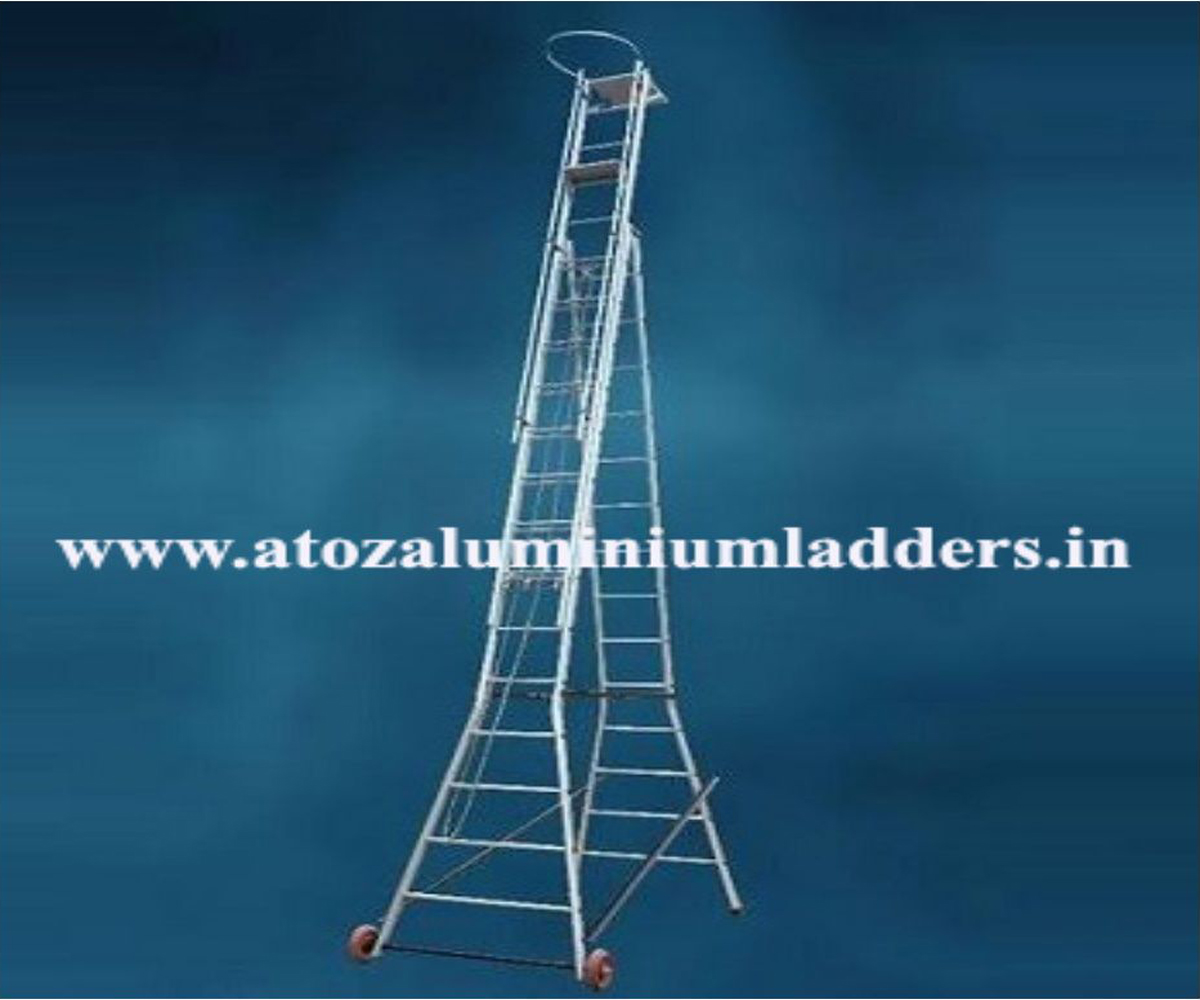

Self Support Extension Ladder with Accessories

Description

• The self support extension ladder is made out of tensile aluminium ‘C’ section 66.6mm X 31.25mm X 3mm thick {approx}
• The steps are made out of non –slip aluminium corrugated fluted pipe 25.4mm dia & 3mm thick.The pipes are riveted at distance of one foot between two steps.
• The ladder has a single sliding movement. A polypropylene rope of 12mm thickness is provided for easy and smooth sliding of the ladder.
• The sliding movement of the ladder is controlled by means gravity pawls and pulley mechanism.
• A platform is fixed at 3’ft from top of the ladder,Hand rail,safety ring,tool tray,Handels and 2nos 8”inches dia fiber wheels are provided.
• The ladder is hinged on both sides by aluminum ‘L’ angle .
• A non skidding thick rubber shoes is provided at the bottom of the ladder
• Available in sizes from 6’ft to 40’ft

● Refer attachment for product specification
