Price | Available on request |
Category | Downstream Products |
Manufacturer | ALUSONG |
Min Order Quantity | 1.00 Piece |
Delivery Lead Time | As per Order |
Place of Origin | China |
Supply Ability | Customization on Requirement |
Packaging Details | Standard Export Packing |
Transportation Details | Road/Ship |
ALUSONG A2 core is a composite panel consisting of two coated aluminium sheets that are laminated to both sides of a non-combustible core. It meets the stringent fire-reaction requirements of the European fire certification EN 13501-1, class A2 while offering an unlimited creative freedom in terms of transformations, applications, designs

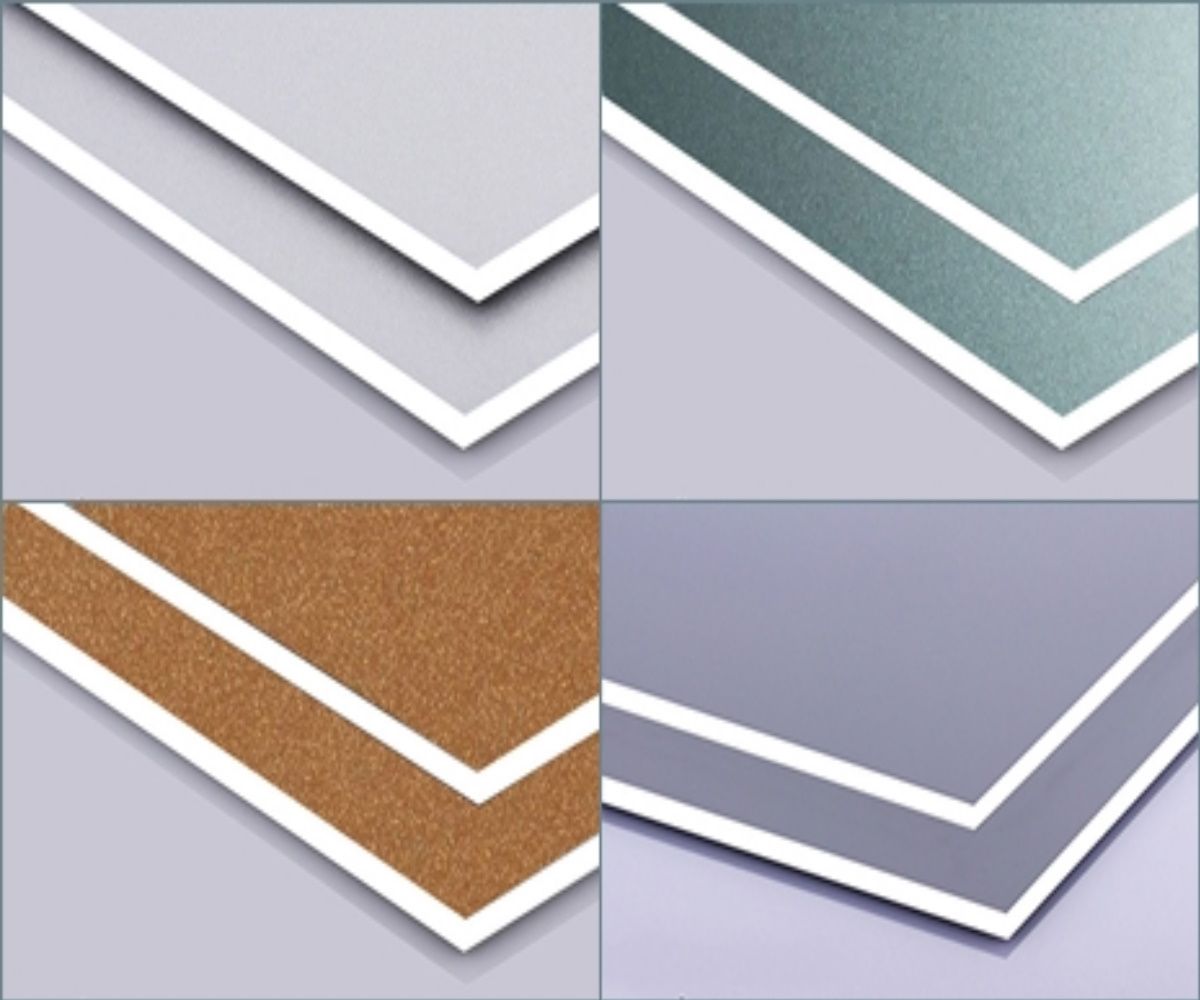

COLORS & SURFACES
ALUSONG A2 core is a composite panel which sandwiched by two layers of aluminum coating skin and non-combustion core. The decorative layer is coated with high performance PVDF system which supplied form KANAR 500 or HYLAR 5000 70% PVDF resin authorized paint company to ensure an excellent exterior durability while offer the more selections. These coating are finished on continuous process coil coating line, which make the color and gloss uniform are better than other coating process available in market.
PRODUCT PROPERTIES
Raw material:
* Base material: High strength aluminum alloy sheet
* PE core material: Non-combustion mineral material A2 grade
* Surface coating: PVDF, Polyester, FEVE, NANO -PVDF, Spectra
* Back coating: Primer coating
Product Properties:
*Safe &Fire Resistant
ALUSONG Fire Resistant Aluminum Composite Panel reaches A2-s1, d0, t0 grade according to the national standard GB 8624-2006, with non-combustible inorganic core material, which will not get fire and then resist fire spread while a building gets fire.
*Environmentally Friendly
It meets the national standard on green and environment protection for construction materials with the characteristics of innocently, no halogen, no smoke, non combustible no poison, odorless, heat-and sound-insulating, etc
*Weather Resistant &Anti-pollution
Coated with PVDF which is composed of HYLR5000 or KYNAR5000.It is good anti-aing for oxygen and light-heat, Strong durability in high and low temperatures, waterproof and moisture proof.
● Refer attachment for product specification
