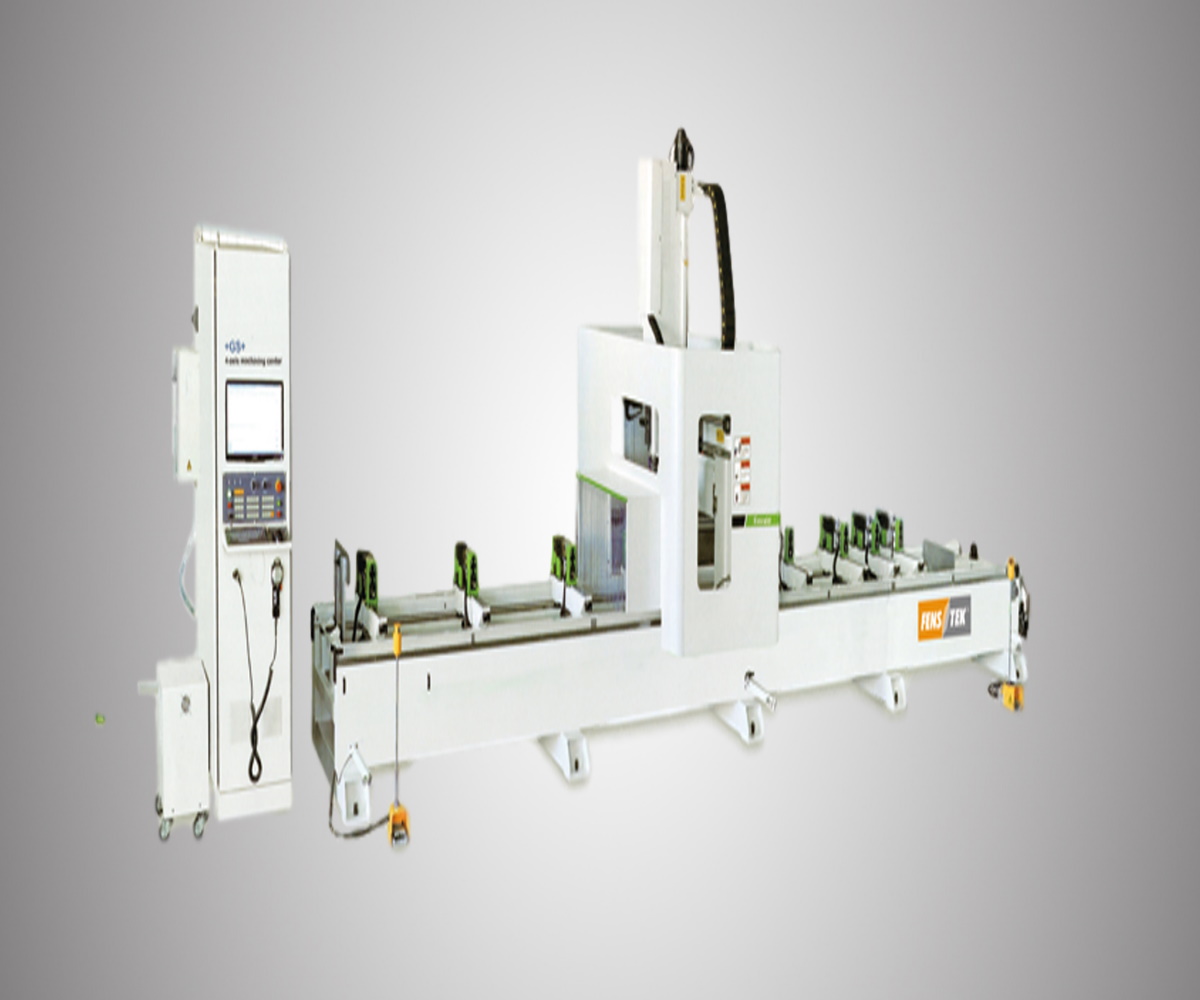

Aluminium Window & Door Four-axis Machining Center-Emerald F260

Description

Features:

1. Aluminum Facade Machining Center Emerald F260 is advanced industrial CNC 4-axis profile machining systems.
2. Suitable for aluminum profile and other light alloys, as well as UPVC profile processing.

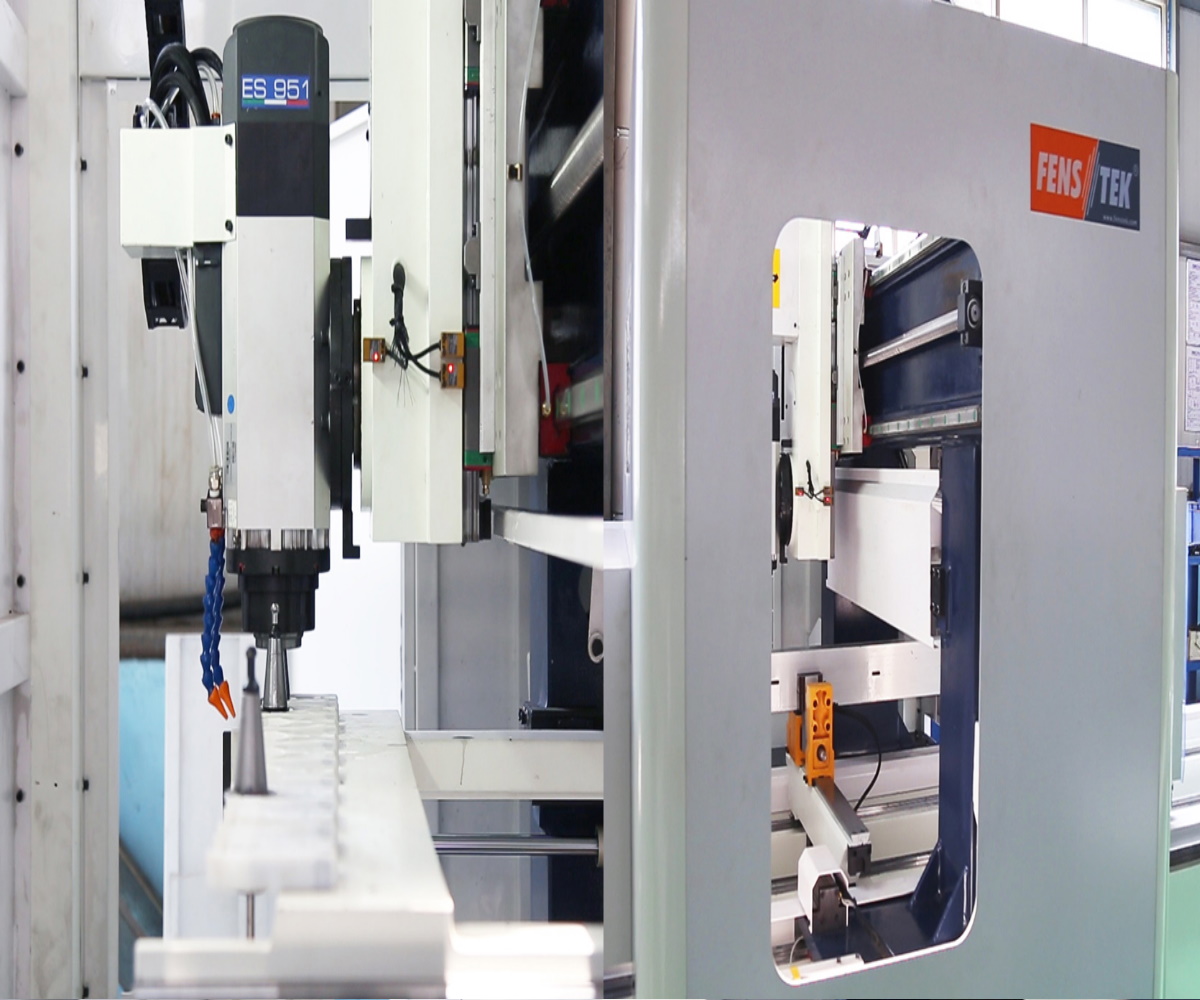

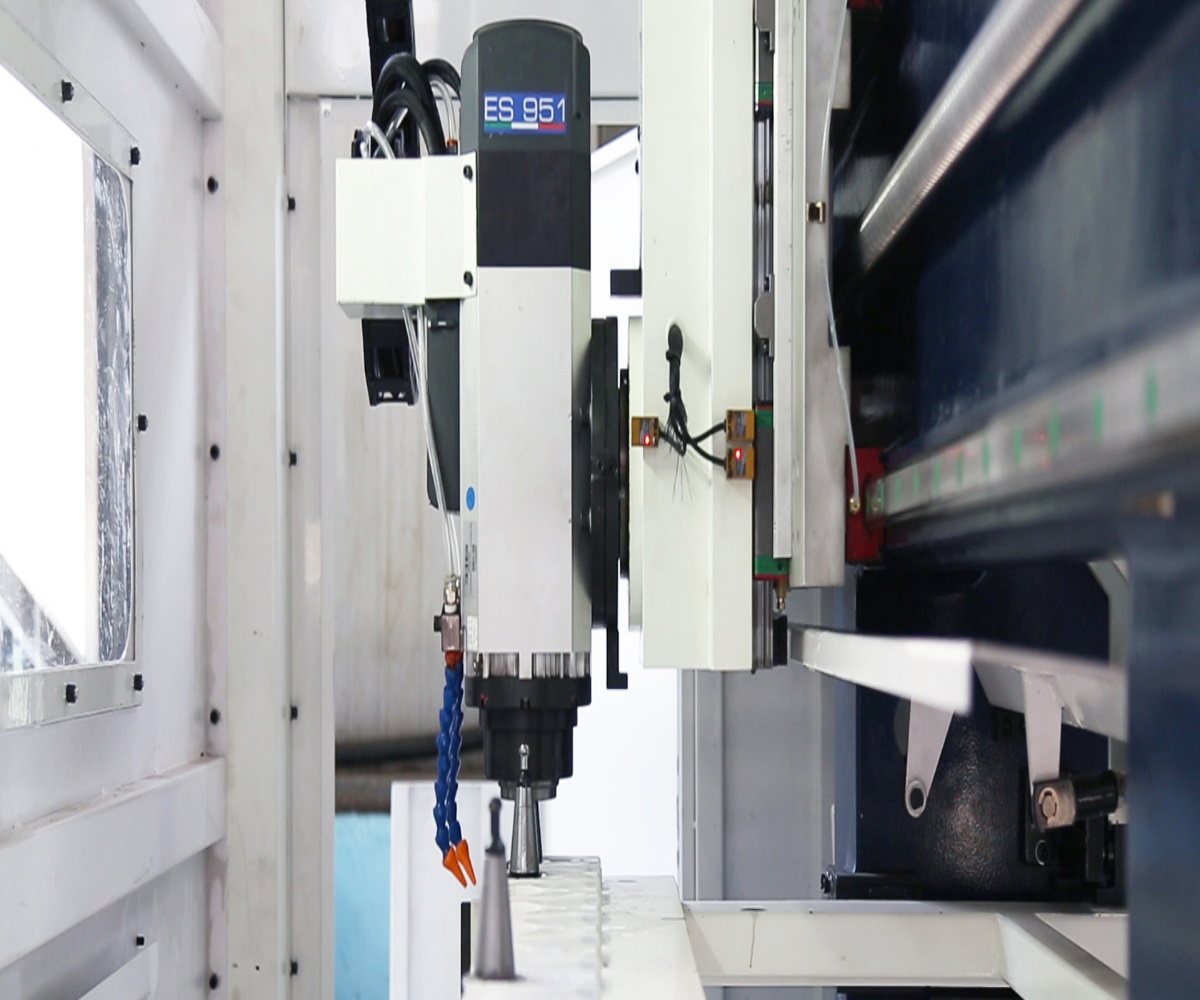

3. The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.
4. The machine completes milling, drilling, flexible tapping, grooving, steel drilling(within 3 mm) and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.
5. Adopts imported high precision linear guide ways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision.
6. High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability.

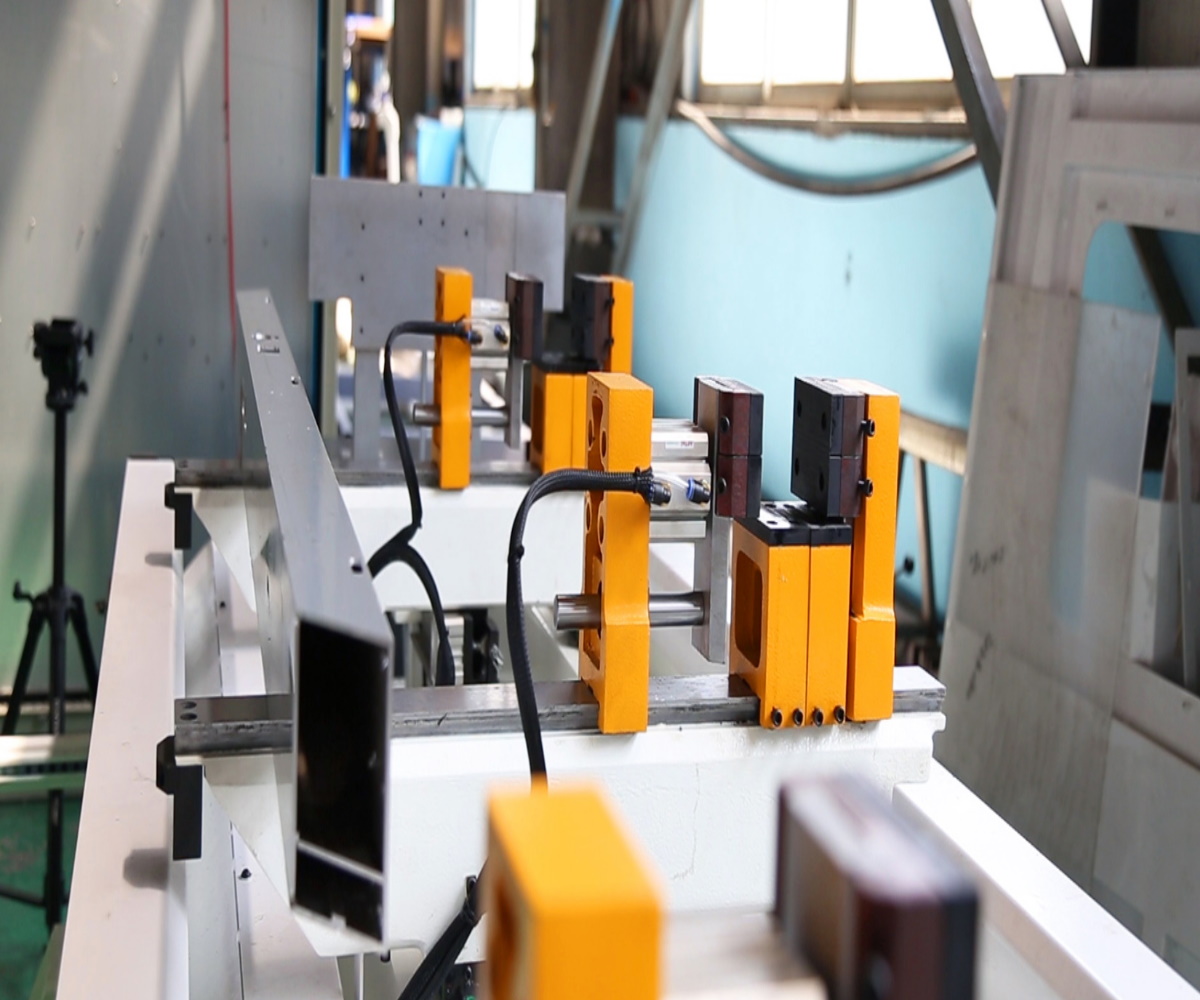

7. Magazine is equipped with 9 tool positions as standard, adjustable pneumatic special fixture to ensure efficient processing.
8. Double working areas for two kinds of profile loading, milling one after another, interactive feeding, non-interference.
9. Multiple safety protection structure to ensure operator safety.
10. Operation system based on the window environment. Friendly interface and remote control for quick trouble shooting.

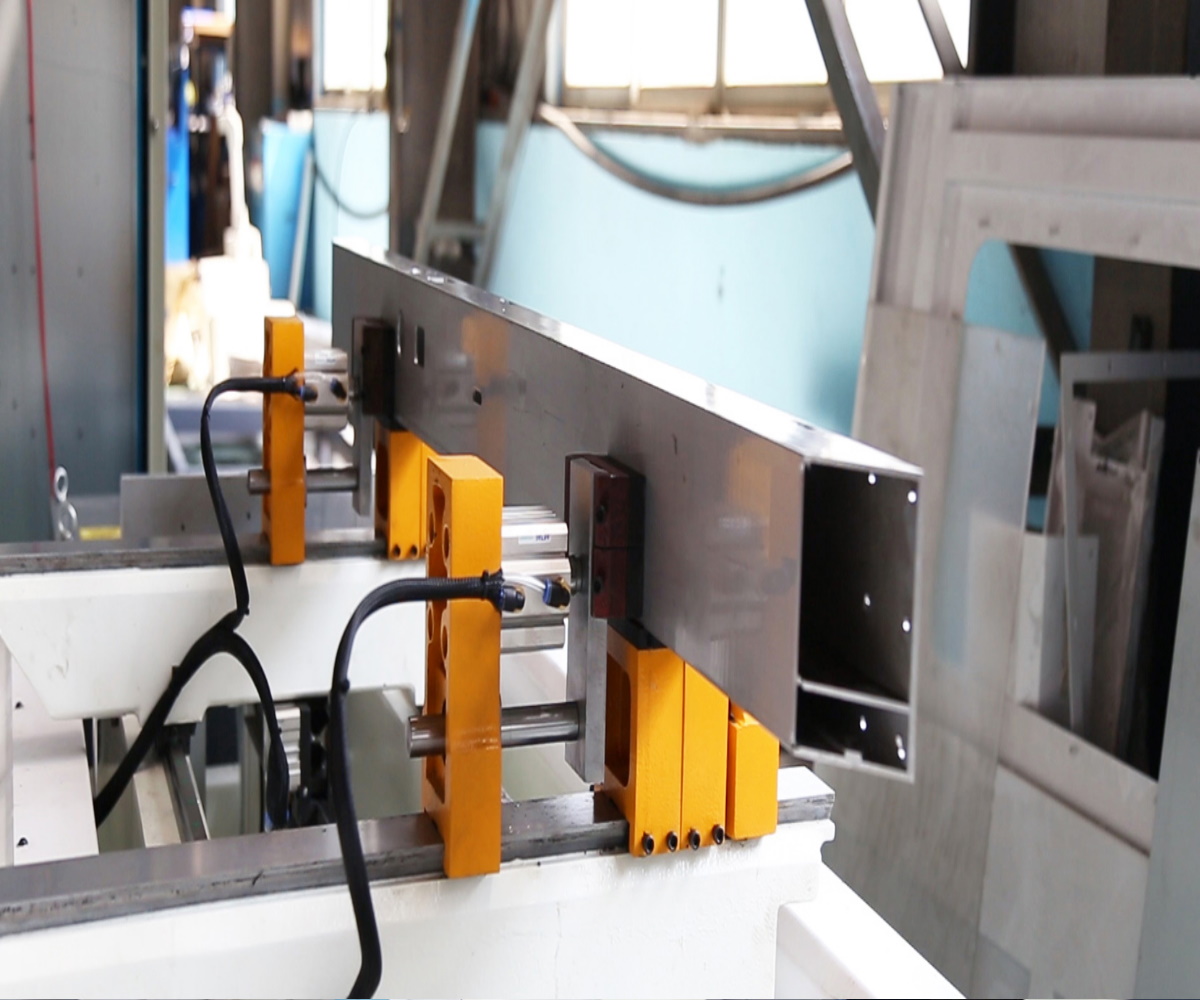

11. Automatic clamp position function.
12. Online with ERP software, can realize scanning code and automatic processing(optional).
13. Gantry Type structure. High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability.
14. UPS & AC is included for protecting operation system.
●Refer attachment for product specification
