Vertical Energy-saving Melting Furnaces of Aluminium Rod Line

Description

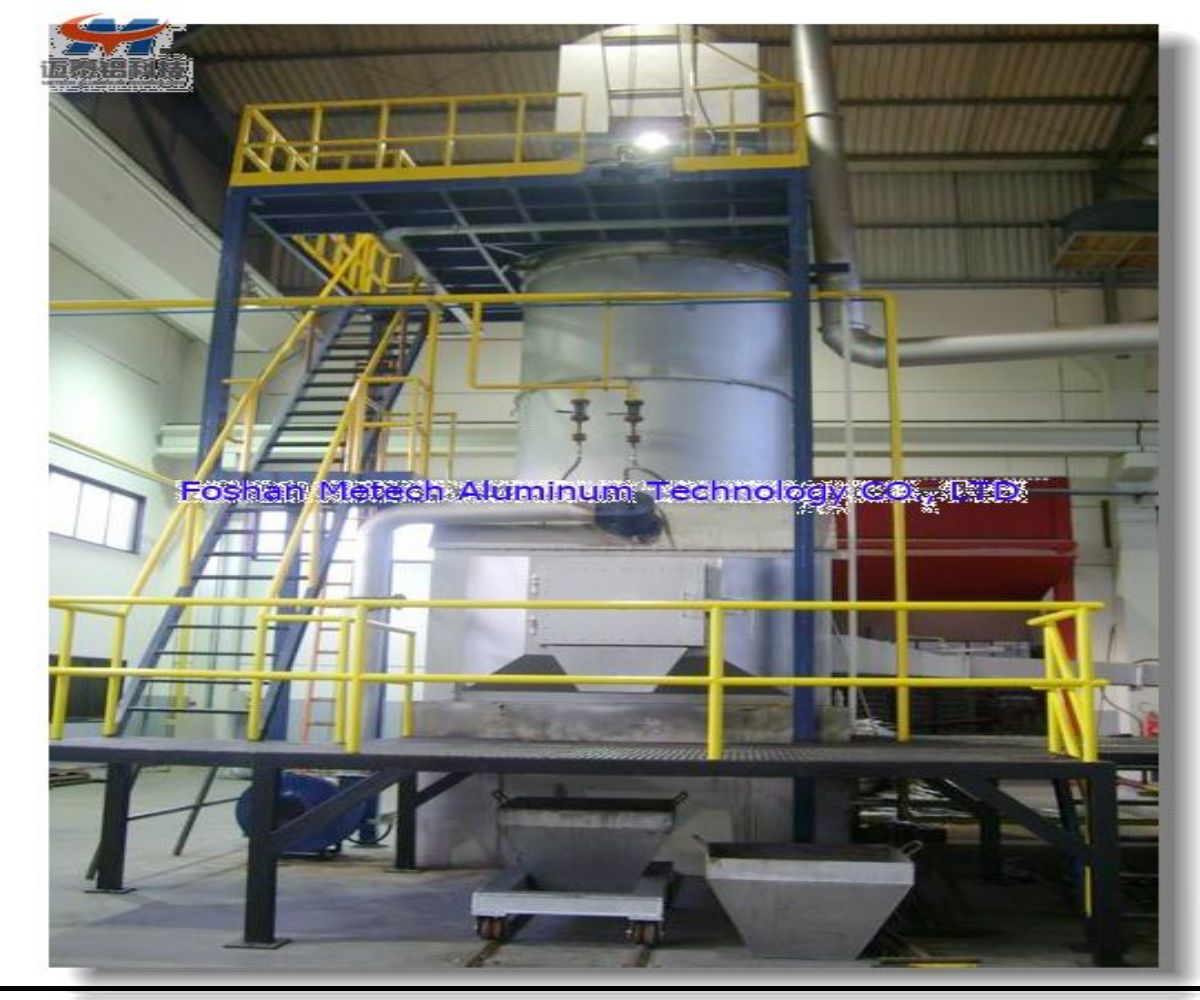

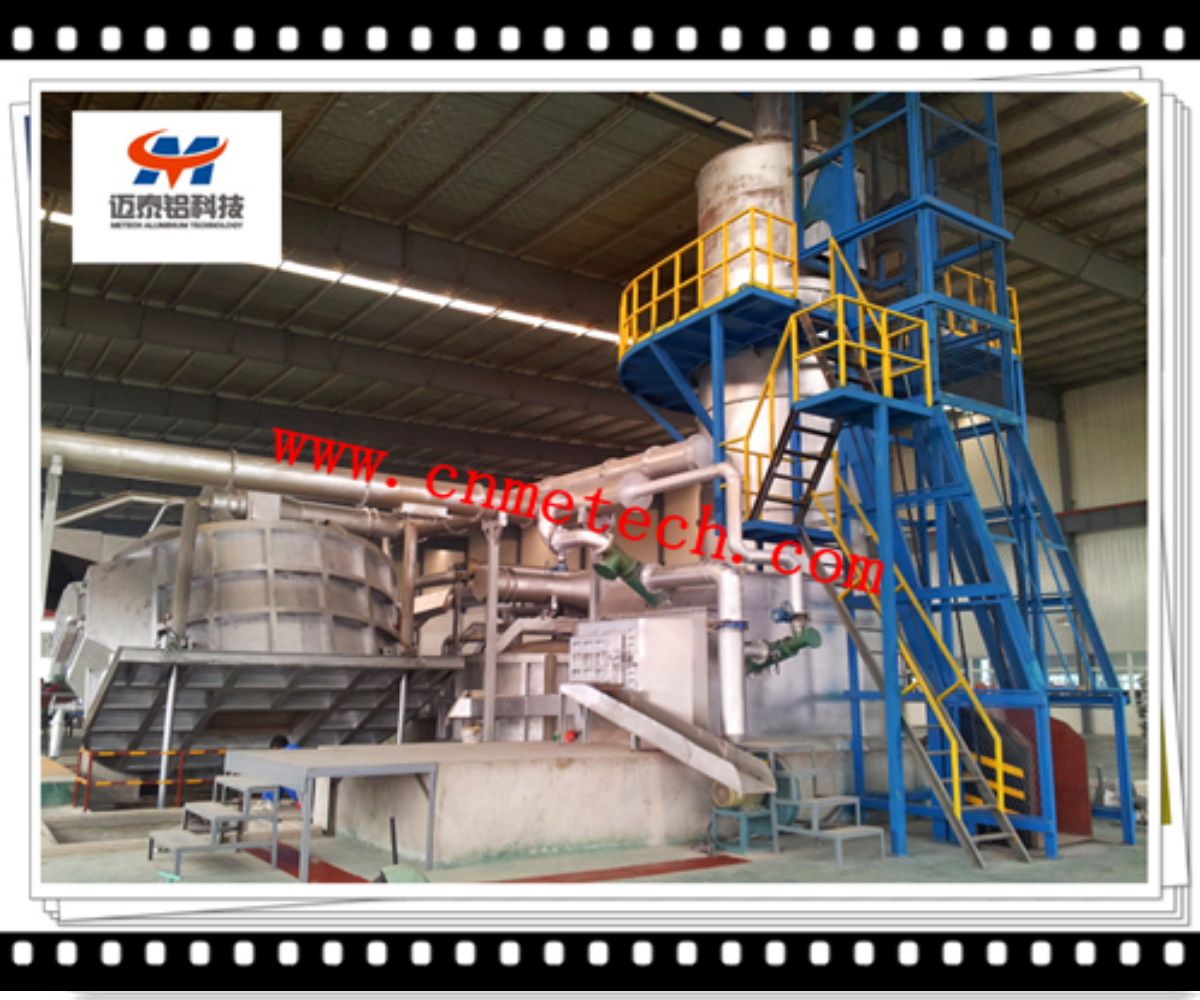

Vertical Energy-saving Melting Furnaces

1.Diameter: 1350mm
2.Smelting Speed :3-7T/h

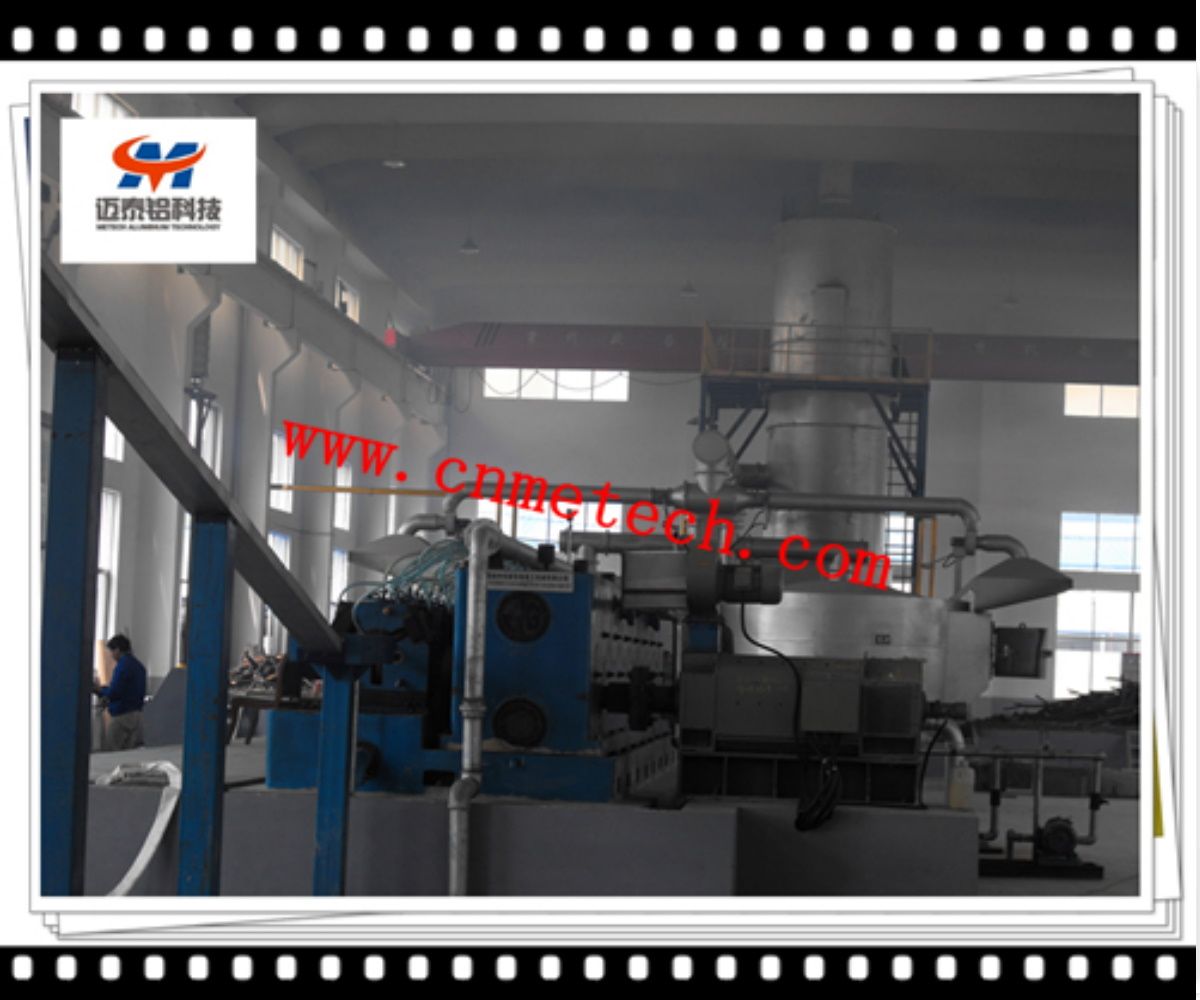

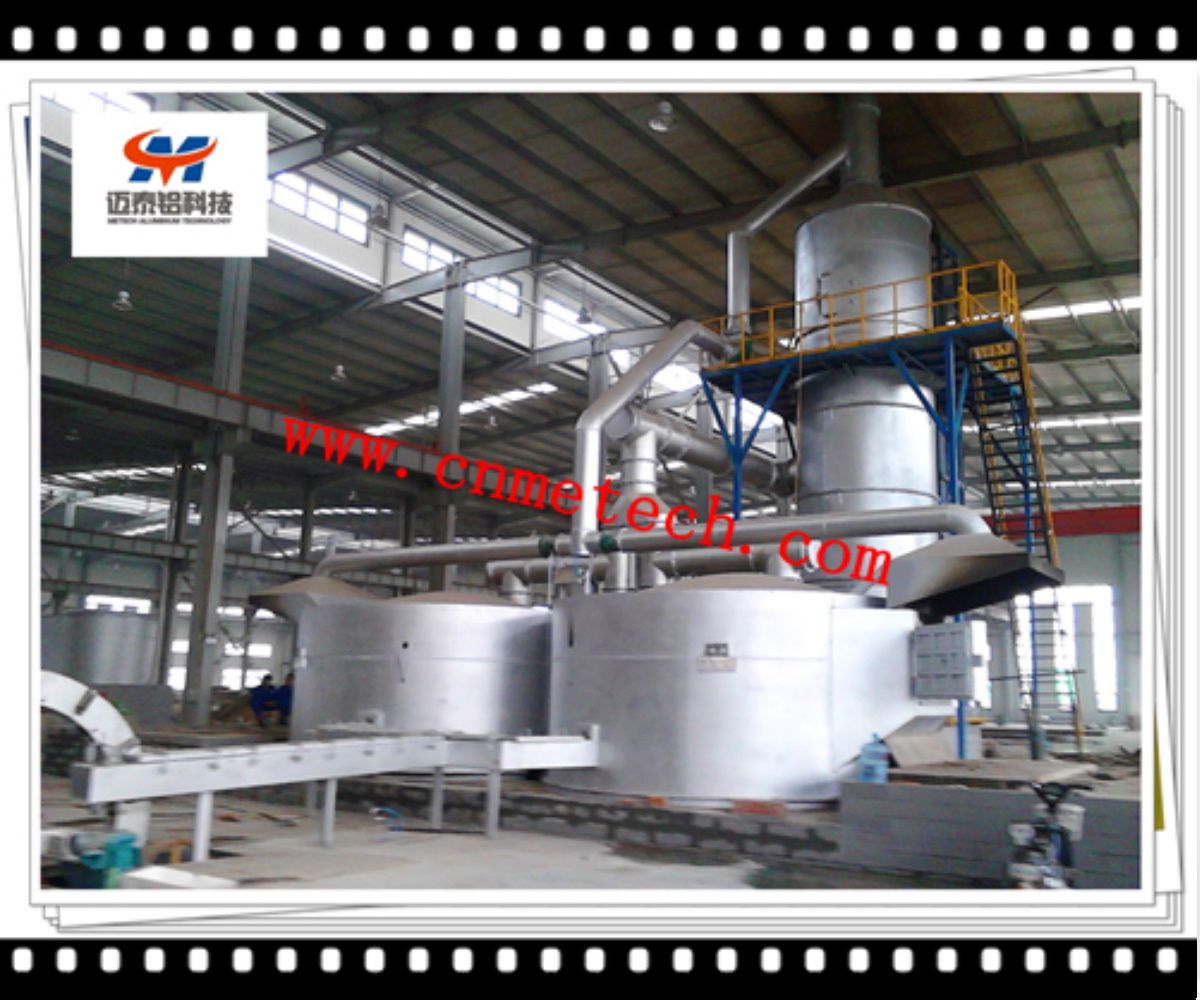

3.Holding furnace: 8-12T stationary or tilting , Circle or rectangular
4.Fuel: oil, natural gas or gas of the gas generator
5.Feeding mode: automatic feeding by the feeding devices
6.Energy consumption: ≤55 x 104Kcal / Nm3
7. Application range: The place that needing continuous supply the aluminum liquid,
such as aluminum rod continuous casting and rolling.

Vertical Energy-saving fast Aluminum Melting Furnace is specially designed for the aluminum &alloy rod continuous casting and rolling line for electirc wire and cable.

Main component of the Aluminum Alloy Rod Continuous Casting and Rolling line:

The Aluminum Rod Continuous Casting and Rolling Line Equipment is composed of the below equipment:
Aluminum Melting Furnace (vertical fast energy saving furnace)+(online degassing and filter system)+ Holding furnace(twin-chamber furnace)+(Permanent magnet stirrer)+

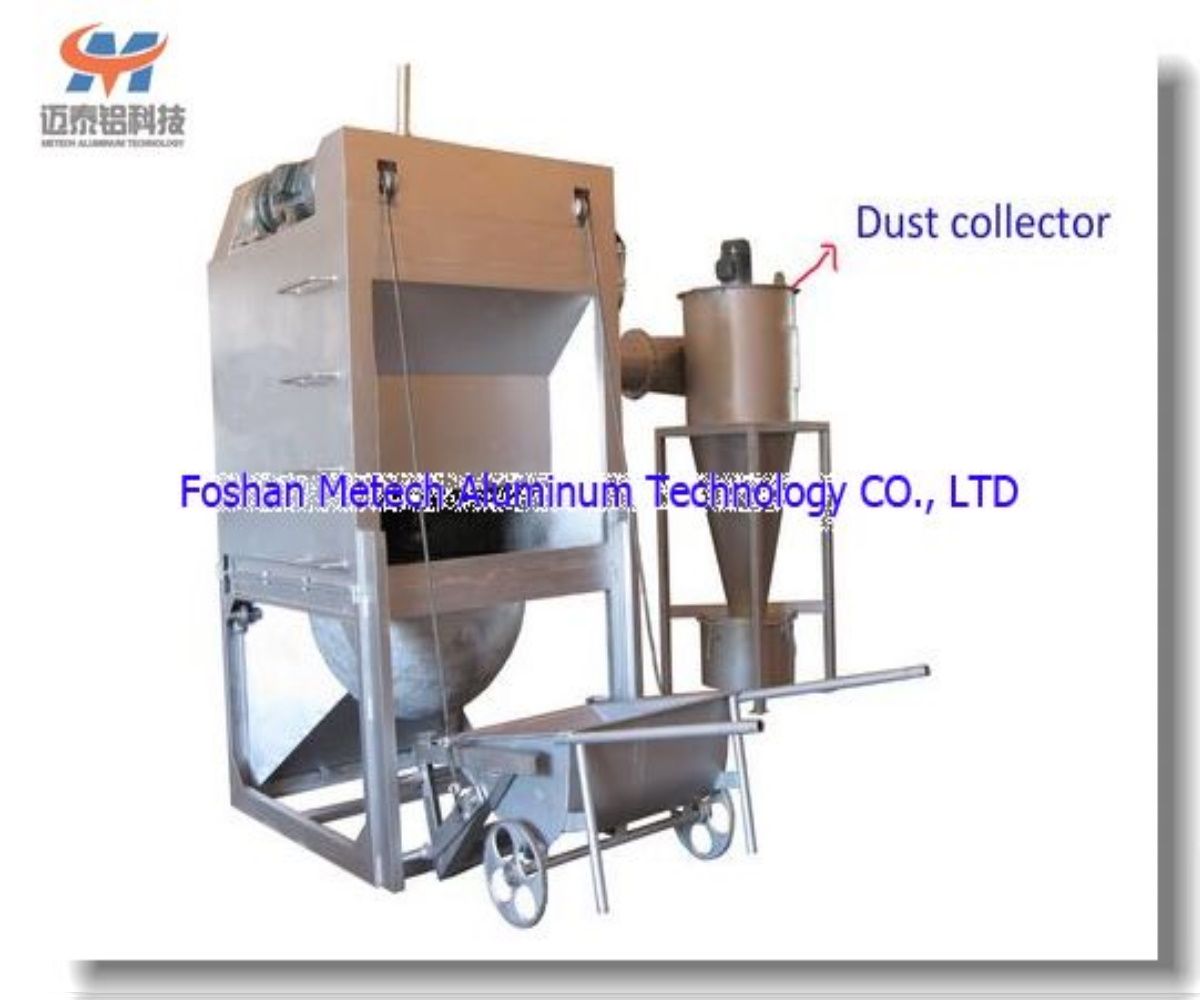

casting machine+shear+(induction heater)+rolling mill+rod quenching device+ rod wire coiler (twin-coiler)+(aluminum dross processing machine)

For the full line equipment of Aluminum or alloy rod Continuous Casting and Rolling Line,
