GAP Level Actuator - GLA

GAP Level Actuator - GLA

By: GAP Engineering SA
Range of movement 0-48mm
Accuracy +/-0.5mm
Power supply 24VDC
Calibration Factory calibrated
Testing Auto test feature
Interchangeability Less than 5 minutes
Category Equipment
Manufacturer GAP Engineering SA
Min Order Quantity 1.00 Unit
Delivery Lead Time As per Order


Customization on Requirement

Standard Export Packing

Road / Ship

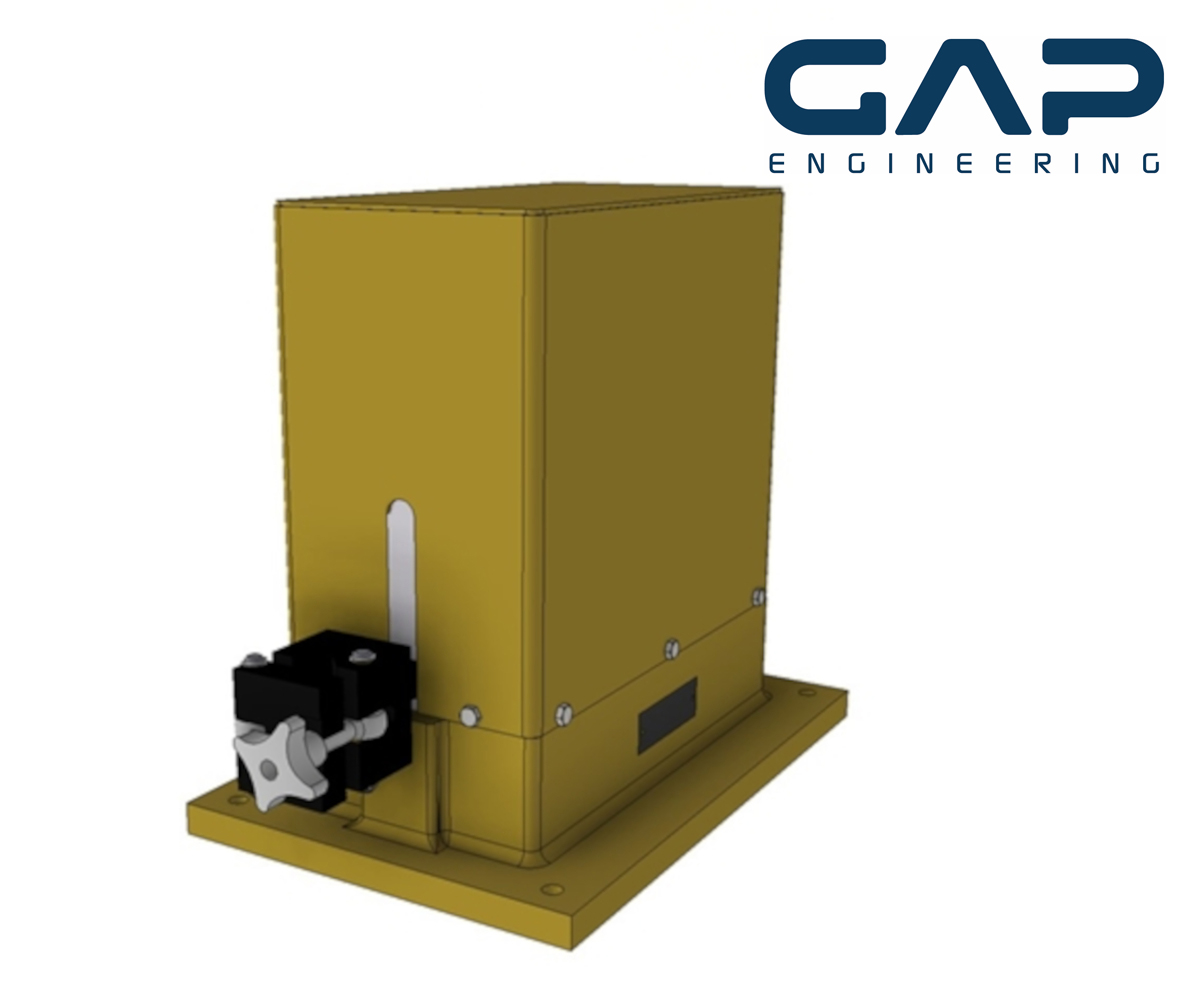

The GAP Level Actuator has been designed to ensure the positioning of the pin in the casting spout and thus regulate very precisely the flow of aluminum in the molds. A pin has to be mounted manually on the GLA’s arm. During the casting process, the automation regulates the position of the pin and thus the flow of metal. In association with the GLS, the GLA guarantee an optimal regulation of the needed metal level in the molds.

● Highly accurate and reliable
● Fast to setup on the machine
● No calibration needed
● Highly resistant elements
