Electrical Melting cum Holding Furnace
  • Electrical Melting cum Holding Furnace
  • Electrical Melting cum Holding Furnace
  • Electrical Melting cum Holding Furnace

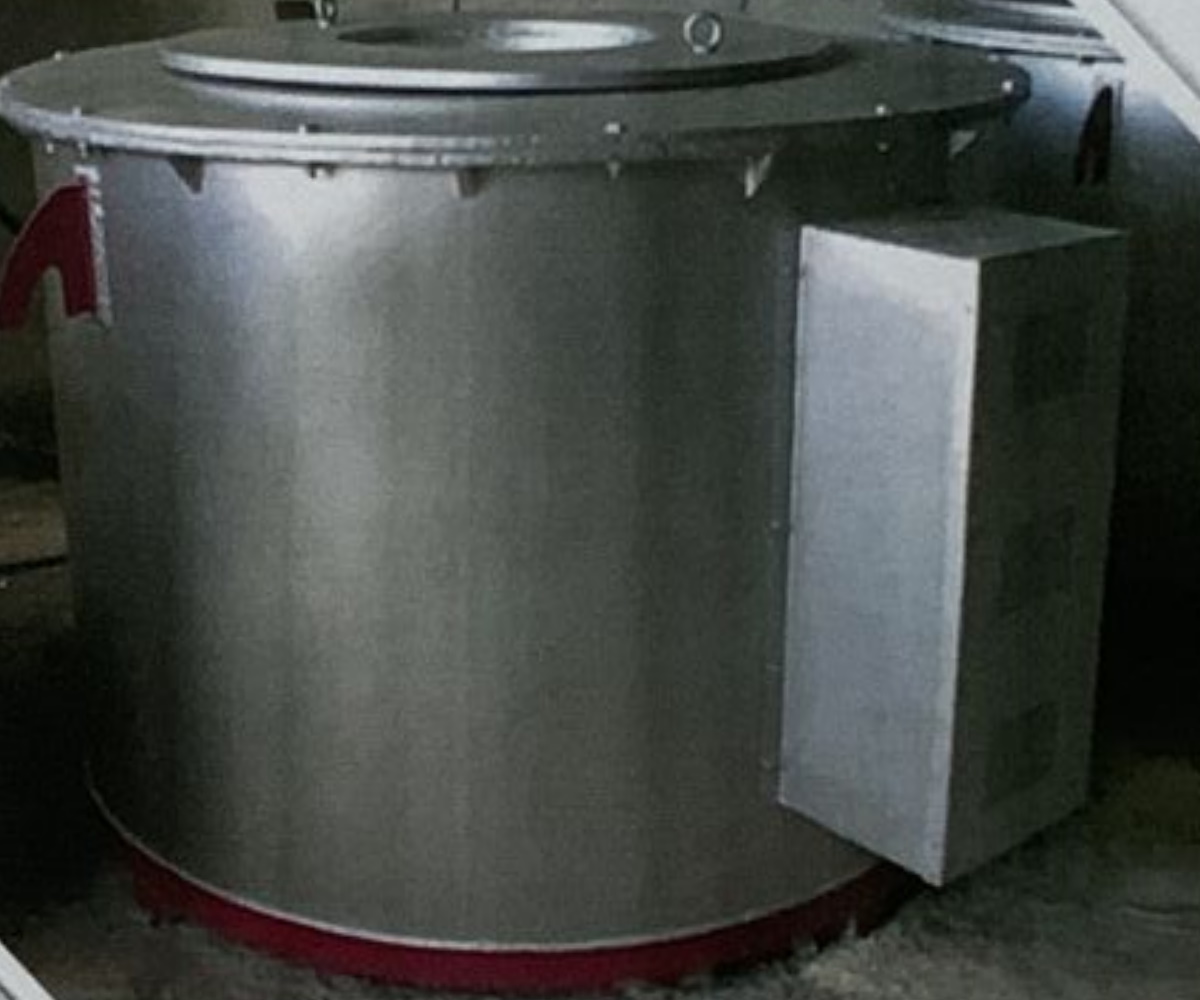

Electrical Melting cum Holding Furnace

By: Genius Engineering Works
Price Available on request
Max Temperature (Degree Celsius) 500-1000
Power (Kw) 18-96
Material Loading Capacity (Kg) 0-500
Melting Material Aluminium
Power Source Electrical, Gas, Diesel
Voltage (V) 415
Frequency (Hz) 50
Holding Capacity (Kg) 50-500
Heating Power (Kw) 18-96
Category Equipment

Genius Engineering Works

1.00 Unit

As per order


Customization on requirement

Standard export packing

Road / Ship



This product is fabricated using the latest design and technology (vertical coil) and raw materials of industrial standard. It is widely used for melting and holding aluminurn. The electrical melting cum holding Furnace offered by us is of the best in standard and quality. We provide this according to the specific requirement of our numerous customers.

Inherent Features

  • Robust MS shell to withstand continuous operation
  • Refractory and insulation of high-quality bricks / ceramic fiber for energy conservation
  • Perfect temperature uniformity in the furnace useful space
  • Temperature control of reputed make & Aesthetic control panel with thyristor / contactor controlled heating system


  • Units Per Kg is 0.5 Units/Kg.
  • Temperature Control of molten aluminum within 3 degrees
  • Crucible life increase
  • Crucible life in an electric furnace is 6 to 8 months approximately
  • Melting losses reduce, due to better temperature control by 8% to 20%
  • Heating elements operating on low surface load for longer elements life and continuous trouble-free furnace operation
  • Reduce rejection of casting, rejection down to 2% with better melting practice
  • No pollution inside the working area, better working conditions, safe, environment-friendly and maintenance-free

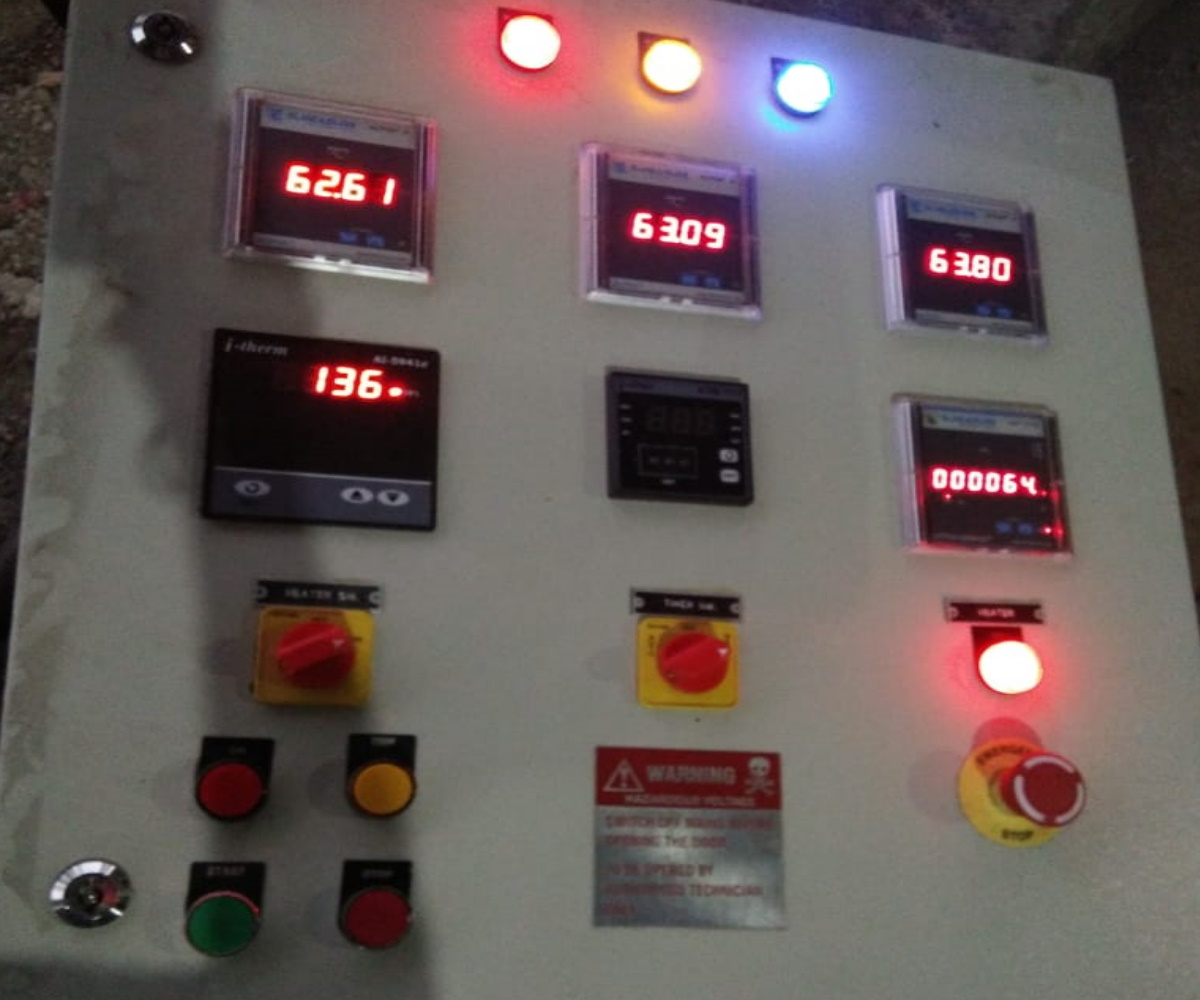

  • Control panel provided with thermocouple and safety temperature controller
  • Better Control system using thyristor panel
