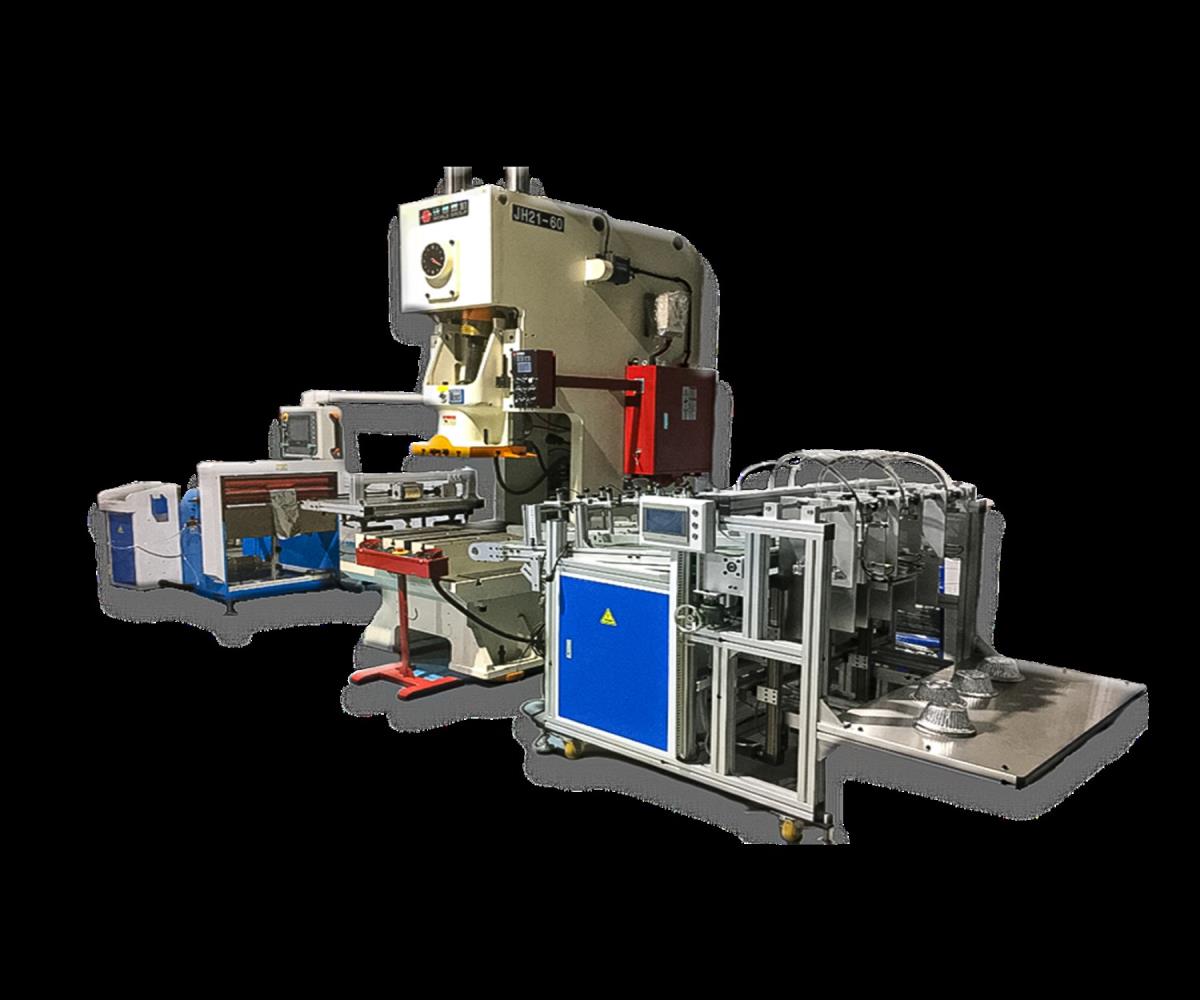

Aluminium Foil Container Making Machine
By: Guangzhou KONIX Machinery Co.,LtdModel | KN-45,KN-60,KN-80 |
Strokes | 40-75 times/min |
Voltage | 3-380V |
Press Dimension | 1.3*2.1*3.3mm |
Expansion Shaft | Ø3 inch/6 inch |
Max.Foil Roll Outer Dia | ≥Ø700mm |
Max.Foil Width | 1300mm |
Length of Strokes | 250/220mm |
Category | Aluminium Consumer Goods Equipment |
Manufacturer | Guangzhou KONIX Machinery |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | 50 |
Place of Origin | China |
Supply Ability | 99 |
Packaging Details | 1000 |
Transportation Details | 1000 |
Description
Production capacity is customized according to the size of container and different specification of machine from 60-300pcs per minute.
45Ton: normally equipped with 2 cavities mould by 100-120pcs/min,about 48k pcs/8 hours
- Brand: KONIX
- Working Table Dimension: 1300*1000mm
- Max.Mould Dimension: 1200*900mm
- Closed Height: 370-450mm
- Slide Area Dimension: 320*145mm 4-Ø18 / 320*245mm 4-Ø18
A. Aluminium Foil Container Making Machine Composition
Auto-lubricated Foil Feeder with Feeding Head Frame
1. Unwind foil
2. Coating foil with oil automatically
3. Feeding Material and detect automatically with Double servo synchronous feeding
4. equipped with planetary reducer, high feeding precision, no bias, more stable.
