Double Cavity Fully Automatic Aluminium Foil Container Making Machine

By: Guangzhou KONIX Machinery Co.,Ltd
Price Available on request
Max. coil outside Diameter Ф800mm
Max. coil width 700mm
Coil Inner Diameter ф76mm (3 inch)
Feeding Speed 0-30M/min
Feeding Length 20-9999mm
Feeding Tolerance +/-0.1mm
Body dimensions 1400*1300*1100mm
length controller dimensions 700*900*800mm
Category Equipment
Manufacturer Guangzhou KONIX Machinery Co.,Ltd
Min Order Quantity 1.00 Unit(Trial Order)
Delivery Lead Time 50
Price $1.00
Place of Origin China
Supply Ability 99
Packaging Details 99
Transportation Details 99
18.03.2026
Description

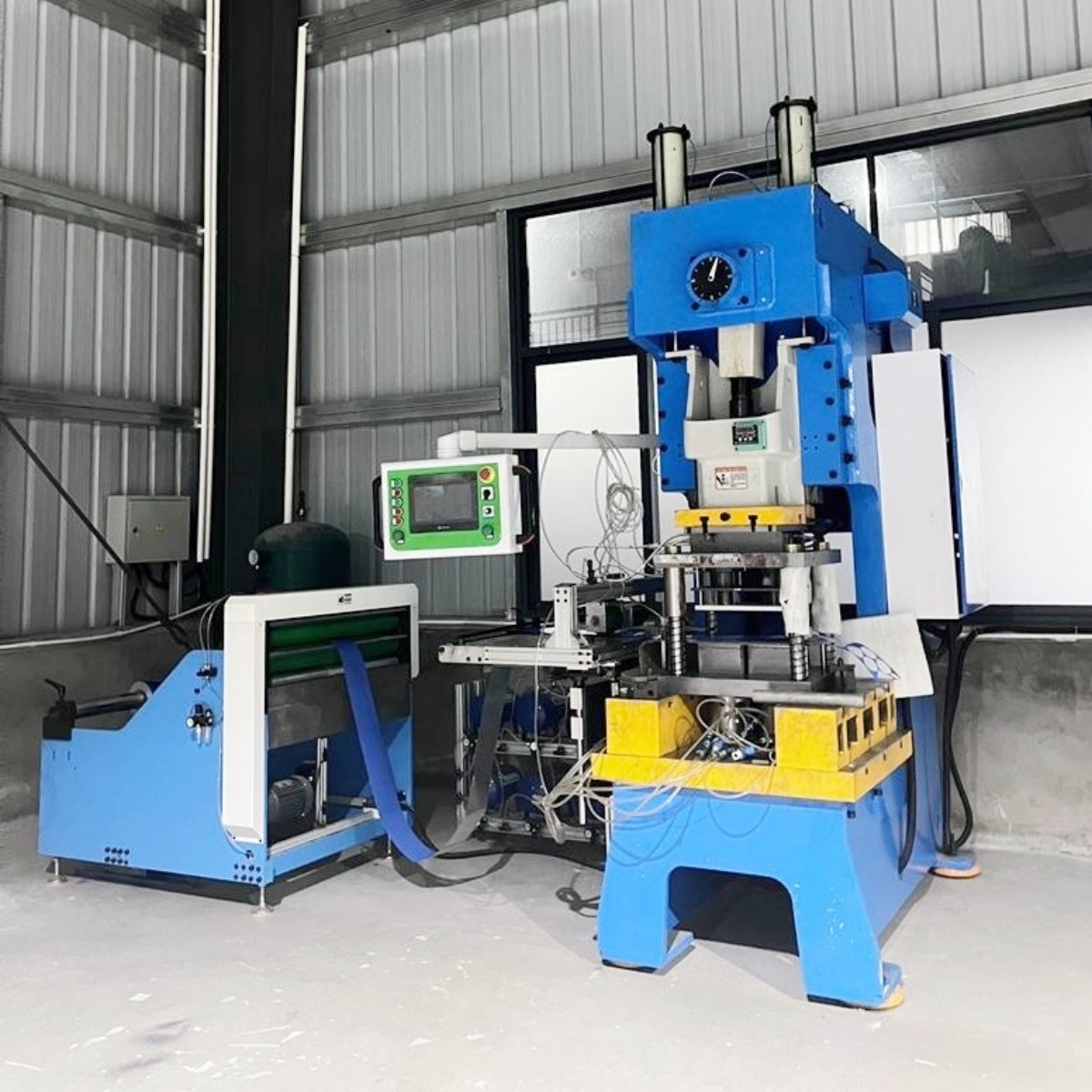

Aluminum Foil Container Production Line with 45T Press and 2 cavities foil container mould.

We are the manufacturer, supplier and exporter of Double Cavity Fully Automatic Aluminium Foil Container Making Machine. Our machine consists of: 1) 45 Ton Pneumatic Press2) Auto Oil Lubrication Unit

Lubrication tank material SUS304
Nominal Capacity 450KN
Slide strokes per minute     45-70
Stroke of Slide 220mm
Max die set height 450mm
Die height adjustment  90mm
Distance from slider center to fuselage 225mm
Motor power     5.5KW
Press pressure     0.5Mpa
Blanking hole diameter     300*200mm
Distance between workbench and ground     900mm
Bolster Size 810*440mm
Bolster Thickness 110mm
Bolster Surface Height 800mm
Slider bottom size 410*340
Overall dimensions 1435*1075*2400mm
Weigh 4000kg
