Aluminium Strip for Transformer

Description

Aluminum strip for transformer is used in transformers for electrical engineering and in power distribution, which means in power plants and substations, in local distribution networks, in wind power, industrial plant and the power adaptors belonging to electronic devices.
● Technical Specifications:
♦Alloy: 1050/1060/1080/1100/1350
♦Temper: O H12,H14,H16,H18
♦Thickness: 0.2mm–2.0mm
♦Width: 50–1200mm

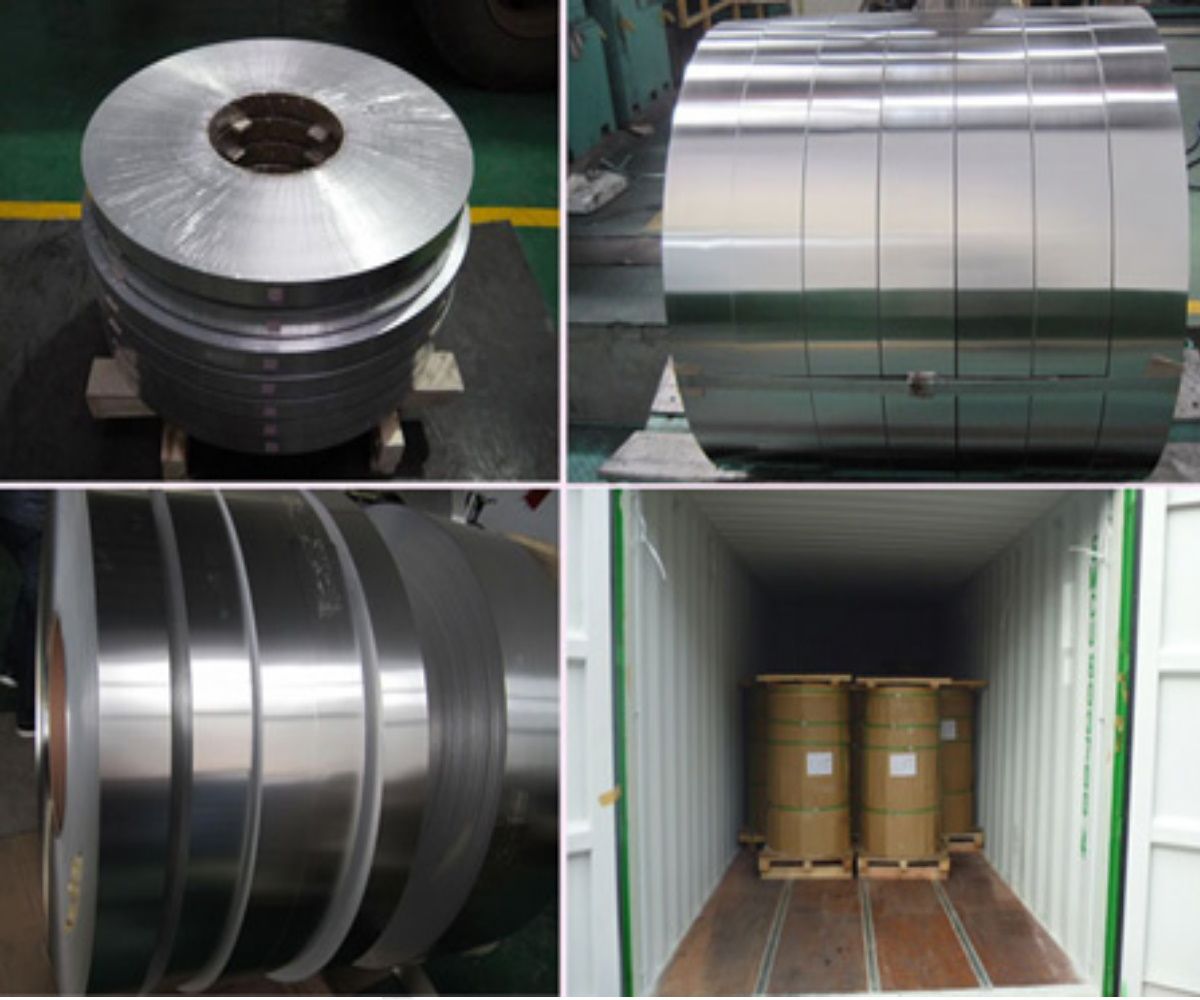

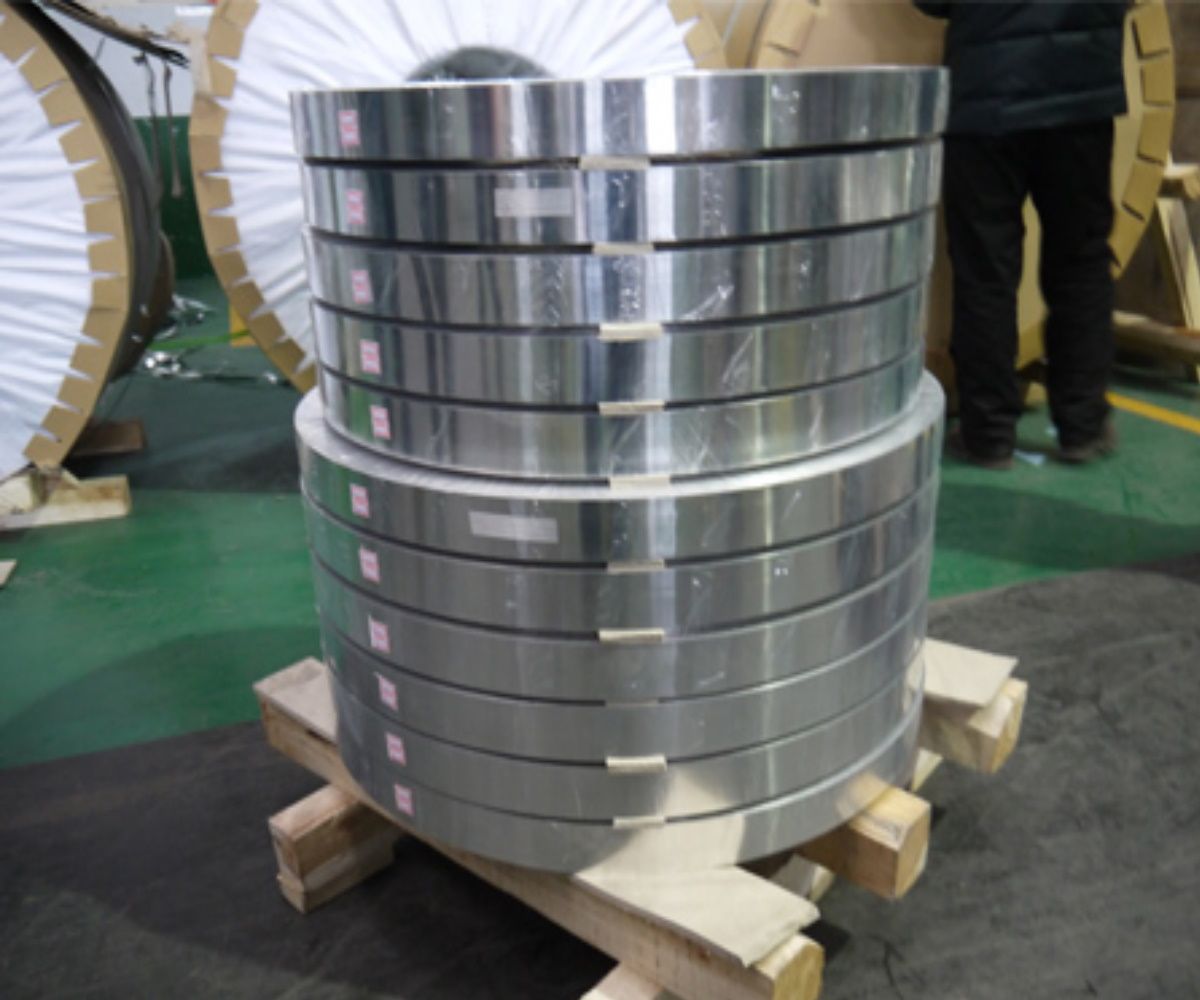

♦Packing: Eye to wall and eye to sky, wooden pallet and wooden case
♦U. T. S: 60-95N/mm2
♦Elongation: >25%
♦Max. Resistance in 20 degree: ≤ 0.02825Ω Mm2/m
♦Density in 20 degree: 2.703kg/dm3
♦Burr’s height: 0.01–0.03mm vary with thickness of the strip
♦Collapsed side’s height: 0.05–0.1mm
♦Surface: Free of oil,free of scratches
● Typical areas of use:

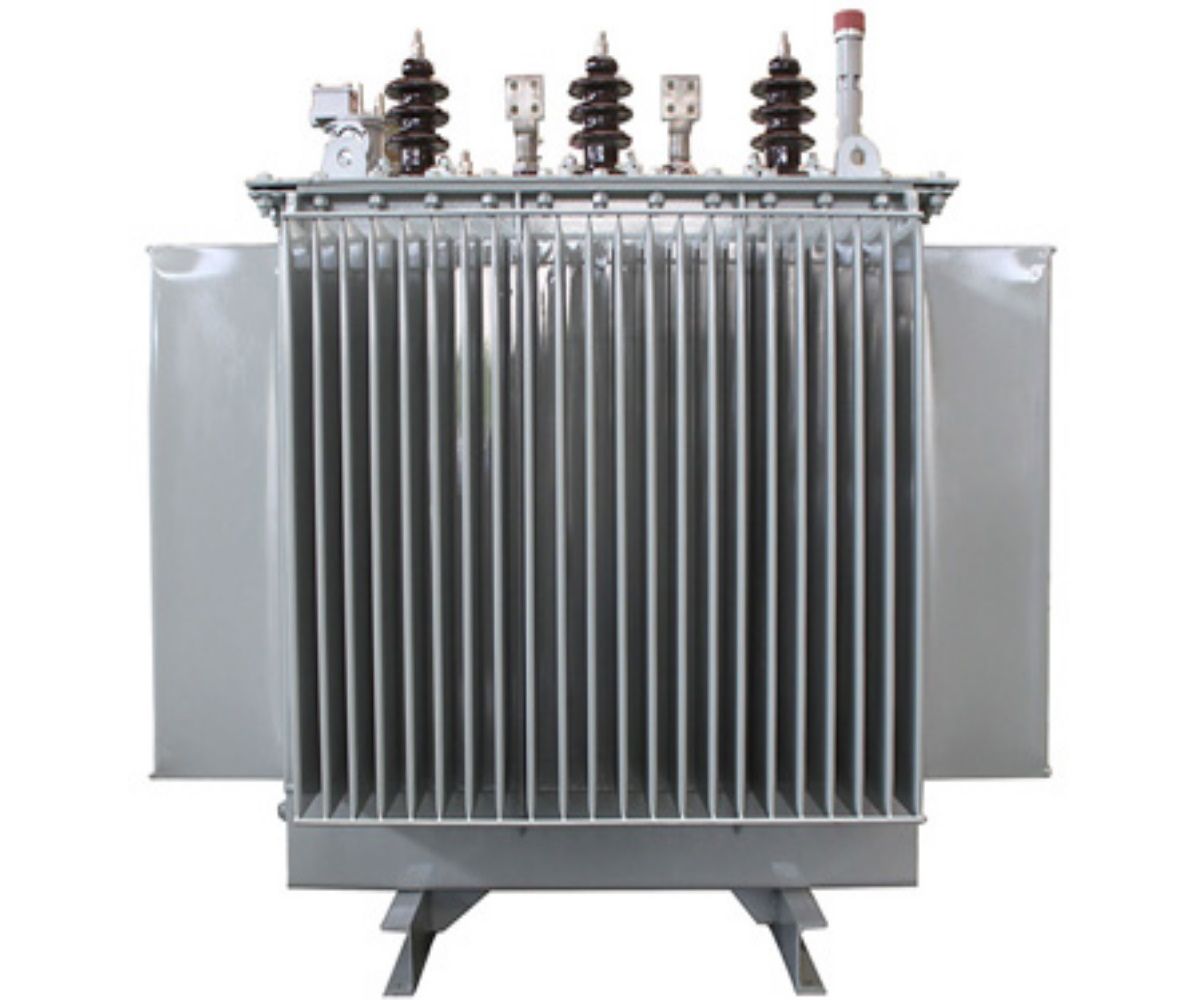

Aluminum Strip for transformer winding can be used for variable transformer like low or high voltage transformer winding, high frequency transformer,step up or down voltage transformer, distribution transformers, reactor and etc. Here are some of the areas in which transformer strip is used: Power and electrical engineering Industrial systems Wind farms
● Refer attachment for product specification
