Aluminium Formwork System

Description

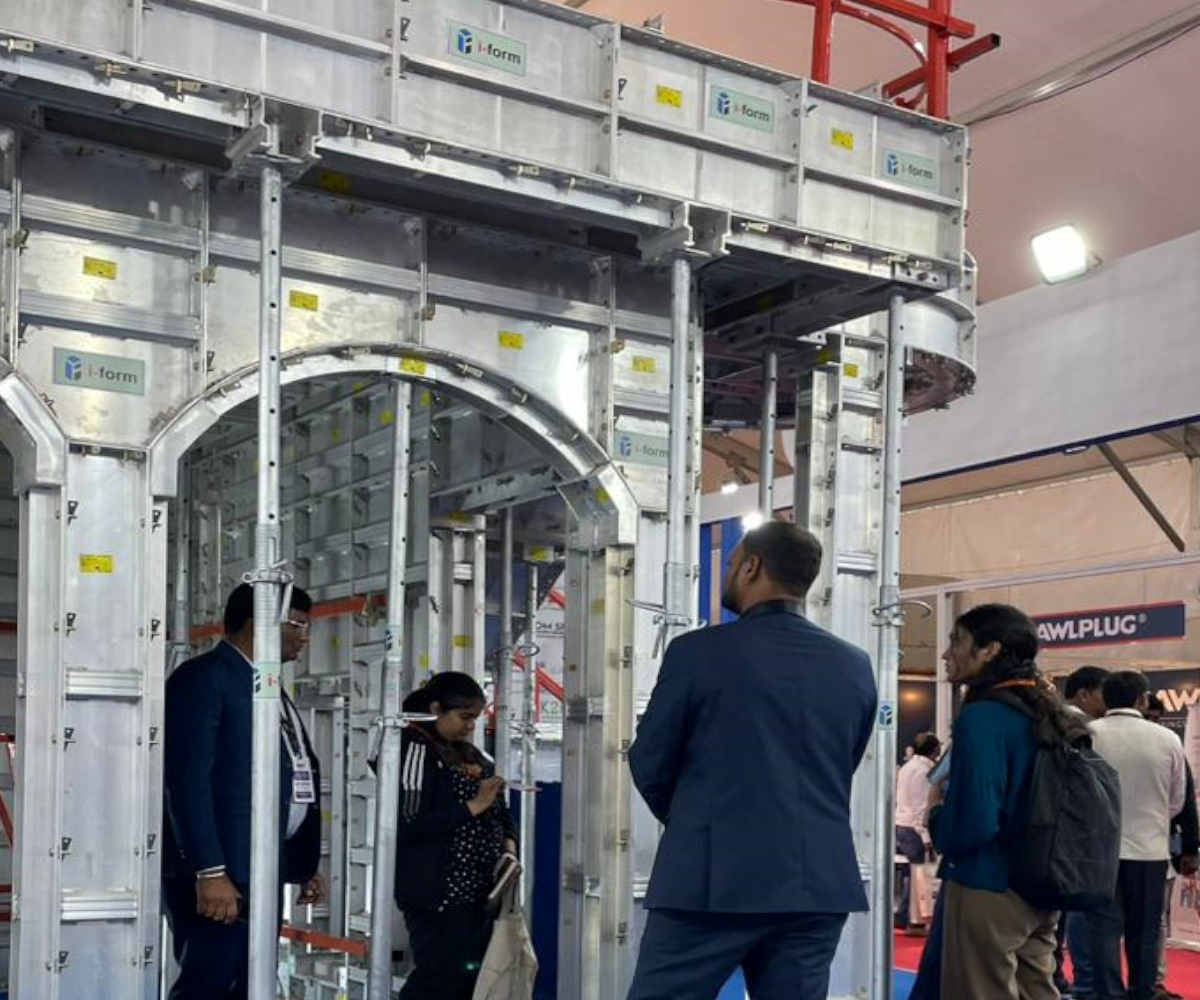

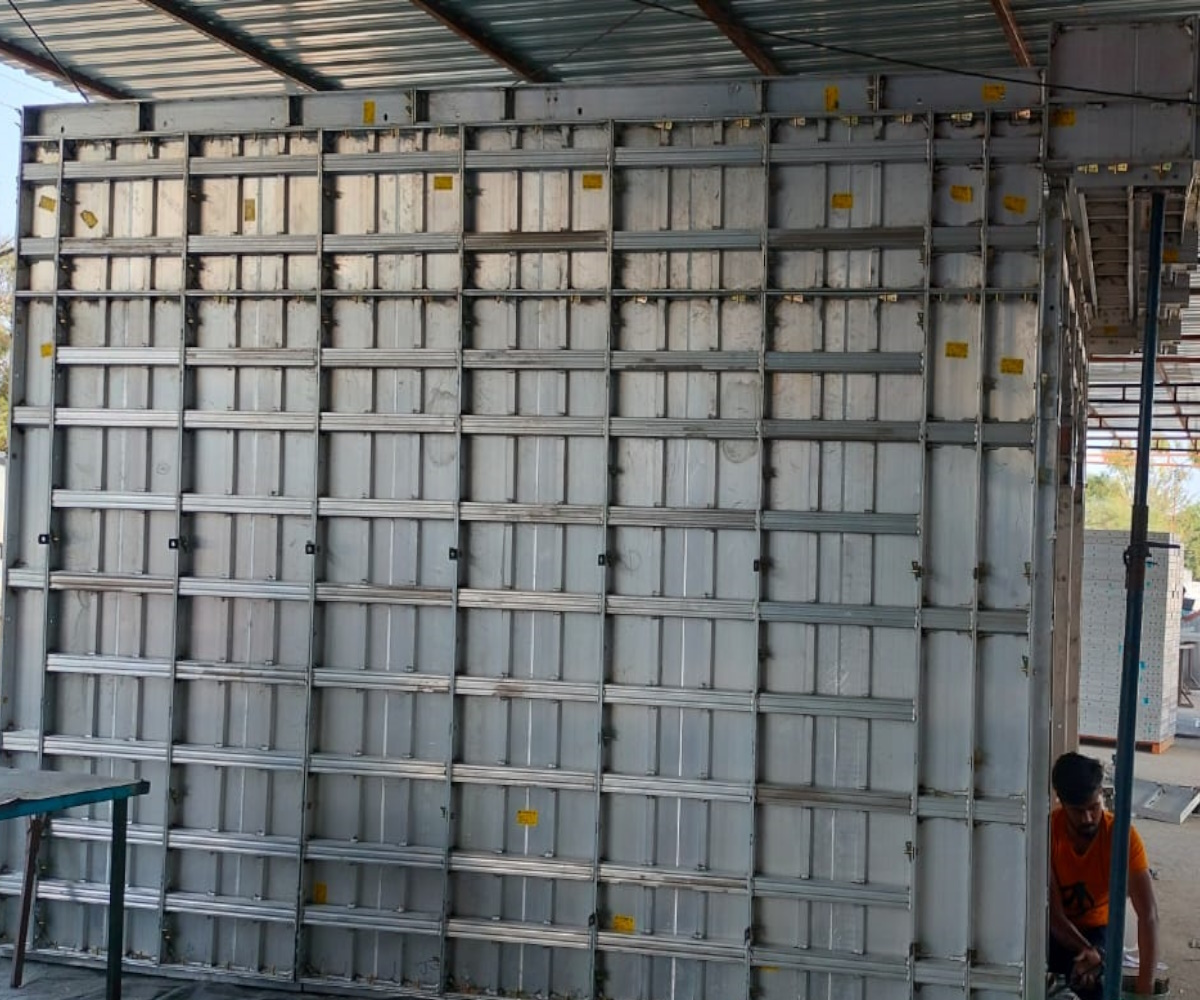

Wall Panels

• Maximum Length 2450 mm X 600  / 500 / 450 / 400 / 300 mm

• Thickness of Rail is 65 mm

• 8 Nos stiffeners supporting the panel

• Two L sections are welded together to form wall panel

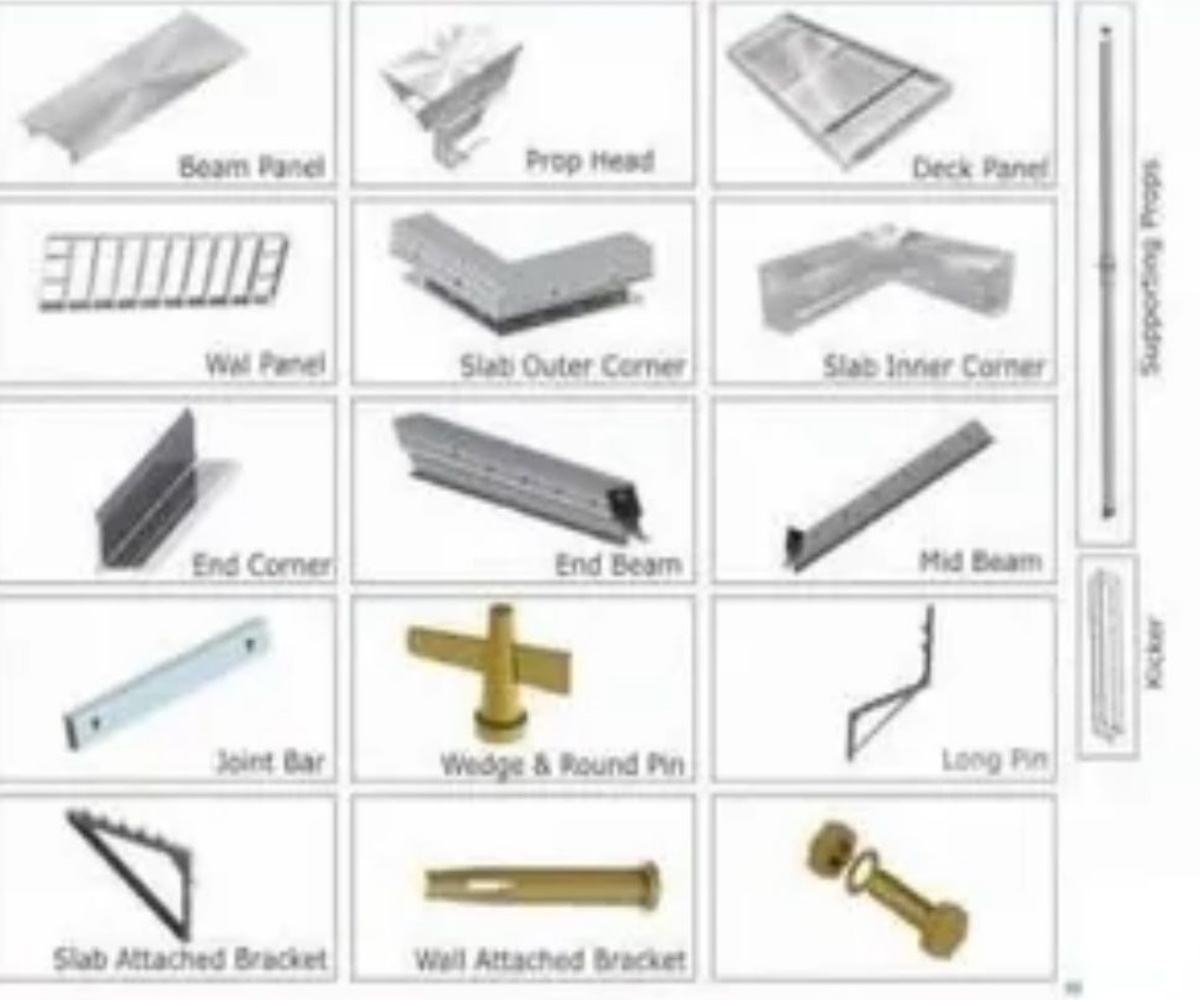

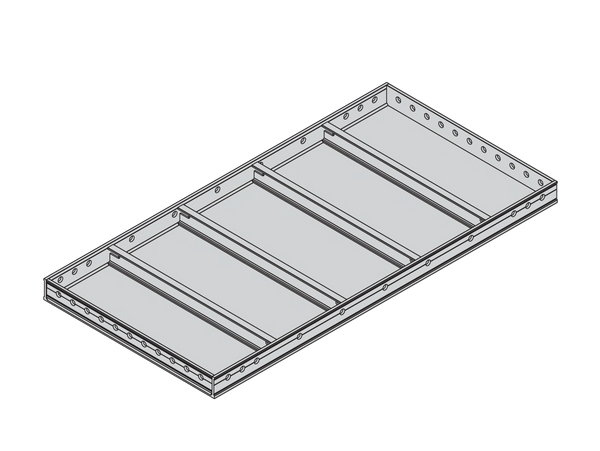

Slab Panels

· Maximum Length 1200 mm X 600  / 500 / 450 / 400 / 300 mm

· Thickness of Rail is 65 mm

· 3 Nos stiffeners supporting the panel

· Two L Sections are welded together to form the slab panel

Slab Soffit Length

· Depth 150 mm X Width 100 mm

· Length of SL varies from 600 to 1800 mm

· SL with Lip will help slab deck panel to rest on SL which acts as an extra support

Mid Beam ( MB) & End Beam ( EB)

· Depth 150 mm X Width 150 mm

· Length of MB is 1050 mm

· Length of EB varies as per Design

· EB / MB will be coupled with PH and can be deshuttered without disturbing Prop head

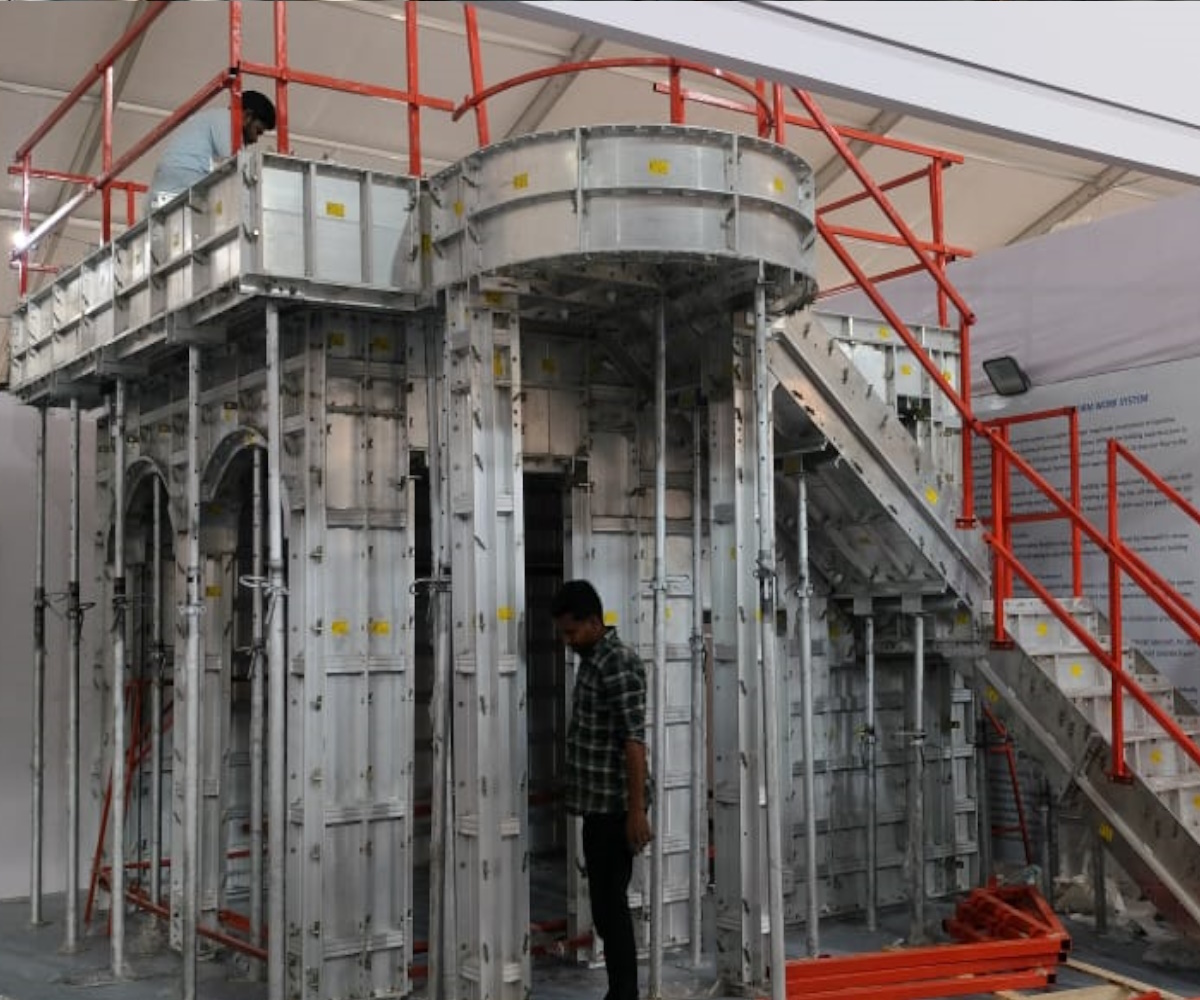

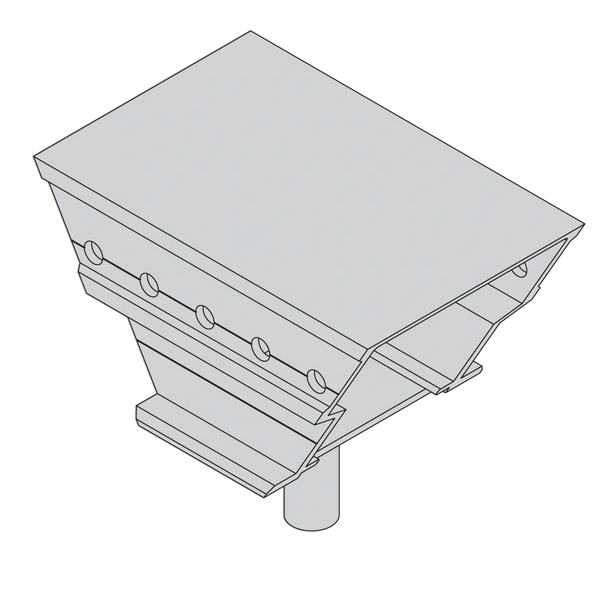

Prop Head ( PH)

• PH is interlocked with EB & MB

• PH is 300 mm length X 150 mm width

• Two sets of PH are supplied along with two sets of props for repropping arrangement as per structural requirements of IS : 456
