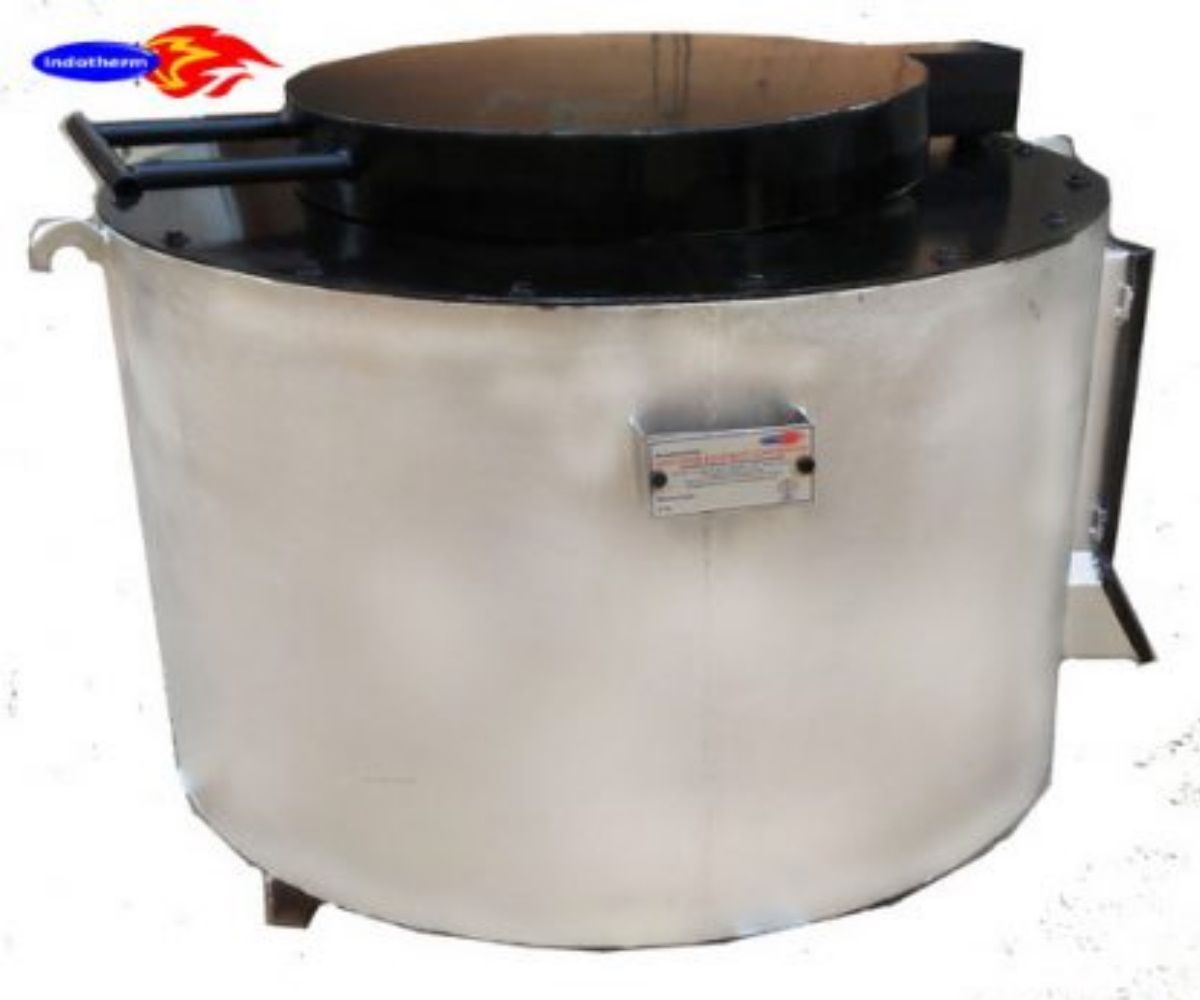

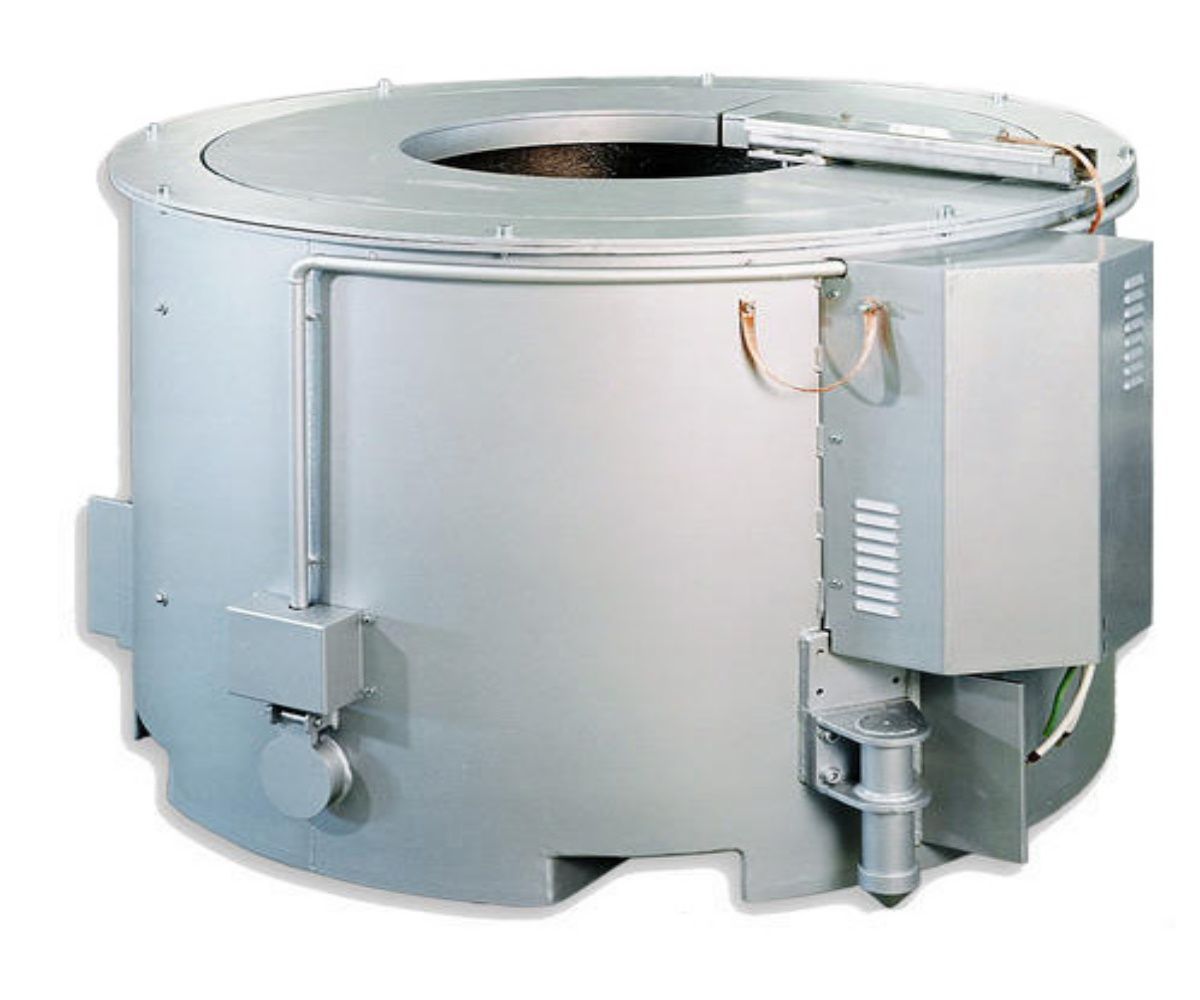

Electrical Aluminium Melting Furnace

By: Indotherm Equipment Corporation
Price Available on request
Category Equipment
Manufacturer Indotherm Equipment Corporation
Min Order Quantity 1.00 Unit
Delivery Lead Time 20 Days
Place of Origin Haryana,India
Supply Ability Customization on Requirement
Packaging Details Wooden Box Packing
Transportation Details Road / Ship

03.05.2024

Description

We are highly appreciated in the international market for our exquisite collection of Electrical Aluminium Melting Furnace. The furnace we offer is considered for holding and preserve of molten metal. It is suitable for transport between molten aluminum to the workstation. This type of furnace is used in pressure die and gravity die casting foundry. These furnaces are used to hold and maintain the molten metal at specific temperature inside the crucible.

Indotherm Equipment Corporation manufactures High Grade insulation furnace with optimized connected loads used for both Melting and Holding Operation. Our Furnace feature good melting output together with outstanding temperature uniform in melt.

Our Manufactured Electric Resistance furnace can attain temperatures ranging from 1100 °C up to 1300°C to melt Aluminum, Brass as well Bronze.

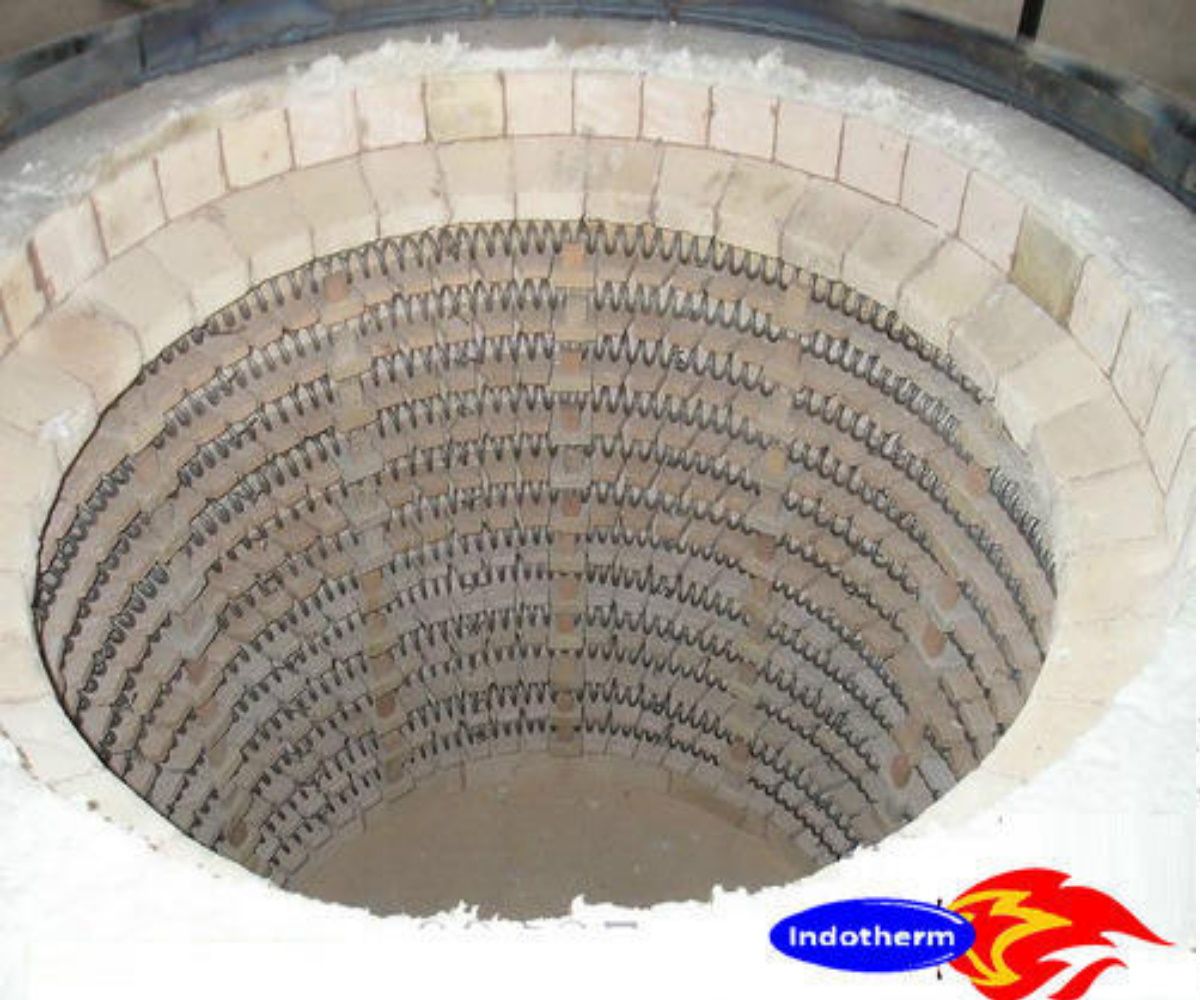

Multilayer Insulation of High Grade Ceramic Fiber to withstand temperature up to 1600 °C. The furnace chamber insulation with high-quality lightweight refractory bricks is recommended for holding operation for rapid heat-up times in non-continuous operation.

Our manufactured Resistance furnace for melting non ferrous metals comes with High Temperature heating elements a rigid construction of 8 mm thick shell and Silicon Carbide Crucible furnace along with control panel with an Automatic Temperature Set control system.

Uniform heating using electric heating elements, Simple replacement of individual heating elements. In case of crucible breakage, only the defective heating elements on each level need to be replaced.

Our Furnace comes with a unique technology where it can be operated in reduced power in case of any trouble in the inside portion of the thermocouple, in order to prevent the freezing of the material.

Over-temperature limiter in furnace chamber for protection against overheating. The limiter switches the heating off when the set limit temperature is reached, and only switches it back on after the temperature has fallen again
Ranges available for 100 Kgs to 1000 Kgs per Batch.
