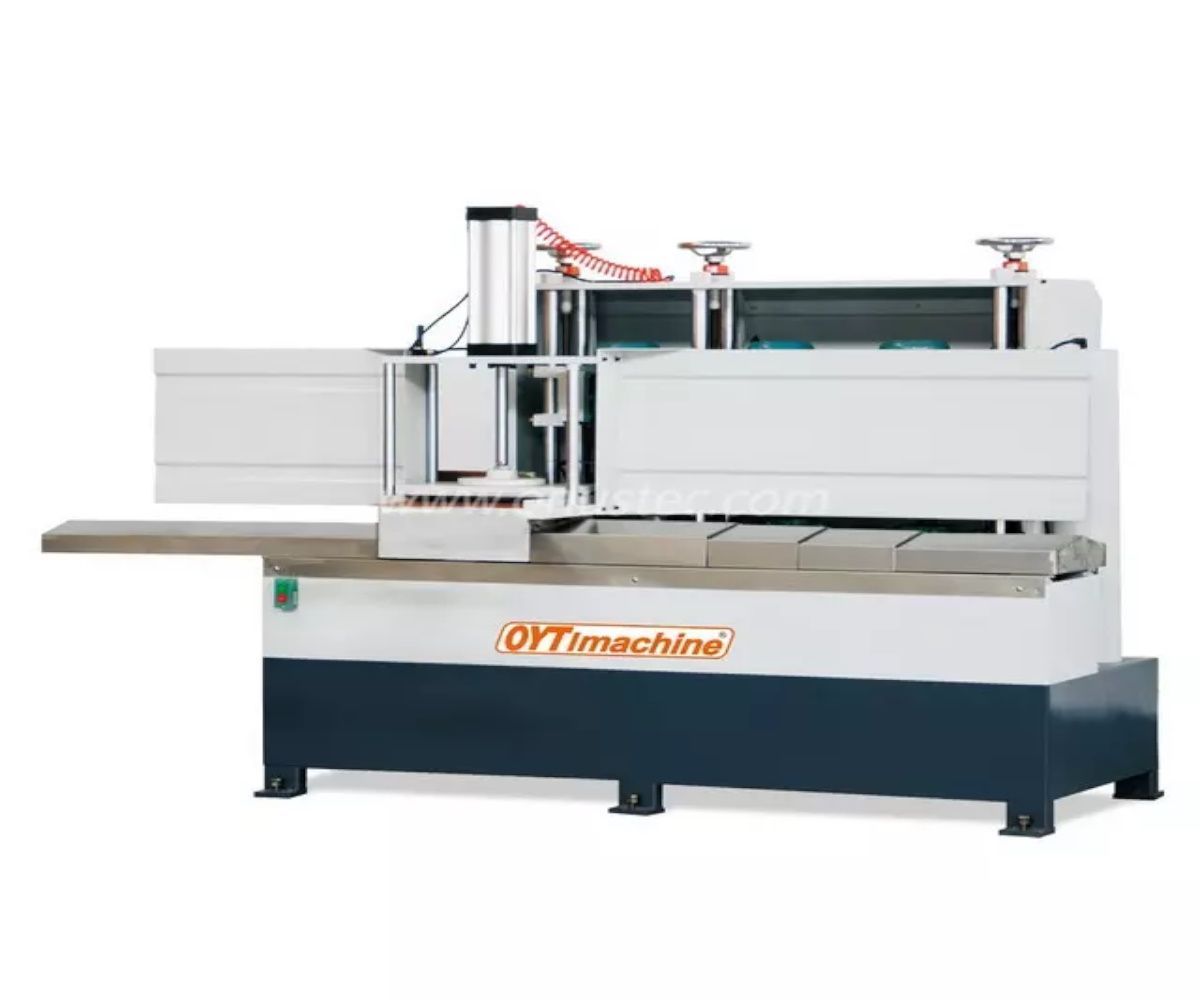

6 Blades Aluminium Curtain Wall End Milling Machine
By: OYT Machine | Onustec GroupPrice | Available on request |
Category | Profile Cutting Equipment |
Manufacturer | OYT Machine| Onustec Group |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | As per Order |
Place of Origin | China |
Supply Ability | Customization as required |
Packaging Details | Standard export packing |
Transportation Details | Road / Ship |
Description
This 6 Blades aluminium curtain wall end milling machine is applicable for milling of aluminium mullion and tenon with simple operation, it adopts creative German design concepts and production technics in accordance with European high standards and continuous optimization. It adopts high precision linear guide and 6 Blades driven by 6 motors, all 6 blades are adjustable in vertical, horizontal and Left & Right directions, it also has adjustable milling angle blades for complicated cutting,it’s easy to operate and maintain. It adopts creative German design and a casting machine base, as well as famous high-precision components, specially the powerful professional assembly engineering technics that well trained by German engineers, which ensures a wide processing range for large and complicated profiles and High Accuracy for High-End processing requirements.
Features:
- End Milling Machine
- Applicable for machining aluminium transoms and door & facade profiles
- Auto pneumatic material feeding system
- Large cutting width ups to 400 mm
- Large cutting height ups to 300 mm
- All adjustable 5 horizontal and 1 vertical blades for variable mullion and tenon milling
- Blades diameter ups to 355mm ensures max. 80mm milling depth
- Adjustable material stops for convenient milling depth adjustment
- Precise, smooth-action and low-wear recirculating ball guides
- Large vertical pneumatic material clamping provides flexibility and convenience
- Rotate handles for milling height and depth adjustment
- 800mm long roller conveyor for long profile support while machining
- Mist diffuser coolant system
- Automatic safety curtain
