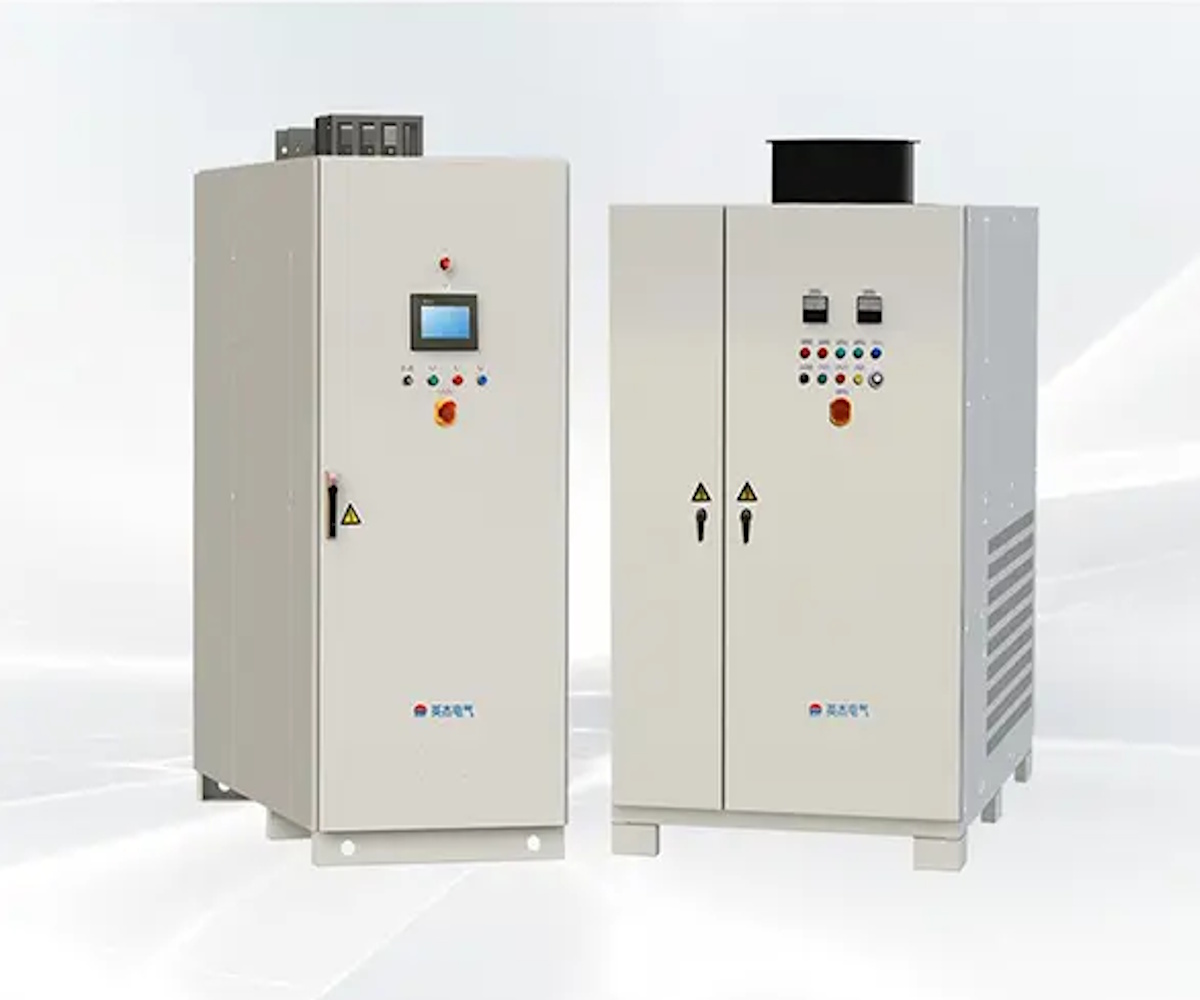

DS Series SCR DC Power Supply

By: Sichuan Injet Electric Co., Ltd.
Price Available on request
Category Utilities
Manufacturer Sichuan Injet Electric Co., Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Road / Ship

Details

13.05.2026
Description

The DS series DC power supply is the culmination of Injet Electric's years of expertise in SCR DC power supply technology. Known for its outstanding performance and reliable stability, it is widely used in industries such as electrolysis, electroplating, metallurgy, surface treatment, industrial electric furnaces, crystal growth, metal anti-corrosion, and charging applications.


Features
● Full digital design, 32-bit high-speed DSP as the control core, fast response and high stability
● Supports various operation modes such as constant voltage, constant current and constant power, which can be freely selected and used
● Adopt multi-pulse rectification technology, low ripple, low harmonic, high power factor
● Using patented transformer technology, the power supply has high efficiency
● With output polarity manual / automatic switching function
● Optional air cooling, water cooling, water-water circulation and other cooling methods
● It has complete fault protection functions such as overcurrent, overheating, short circuit, cooling system failure, etc.
● Support a variety of communication protocols, MODBUS RTU, MODBUS TCP, PROFIBUS, PROFINET etc.

Product Detail:

Input Input voltage: 3ΦAC360V~460V(Special specifications can be customized), 47Hz~63Hz
Output Output voltage: DC24V~100V(Special specifications can be customized) Output current: DC500A~20000A(Special specifications can be customized)
Performance index Control accuracy: 1% Stability: ≤0.5%
Control characteristic Setting mode: analog and communication Control characteristics: constant voltage, constant current, constant power, manual / automatic switching of output polarity, local / remote control
Protection functions: overcurrent protection, overheating protection, abnormal power supply, thyristor fault and cooling system fault Communication: Standard RS485 communication
Expandable Modbus, Profibus-DP and Profinet communication
Others Cooling mode: air cooling, water cooling and water-water circulation Dimension: customized according to customer requirements
