Continuous Aluminium melting furnace No.2

By: TDH Viet Nam Trade And Manufacture Industrial Equipment JSC
Price Available on request
Category Equipment
Manufacturer TDH Viet Nam Trade And Manufacture Industrial Equipment JSC
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin Vietnam
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

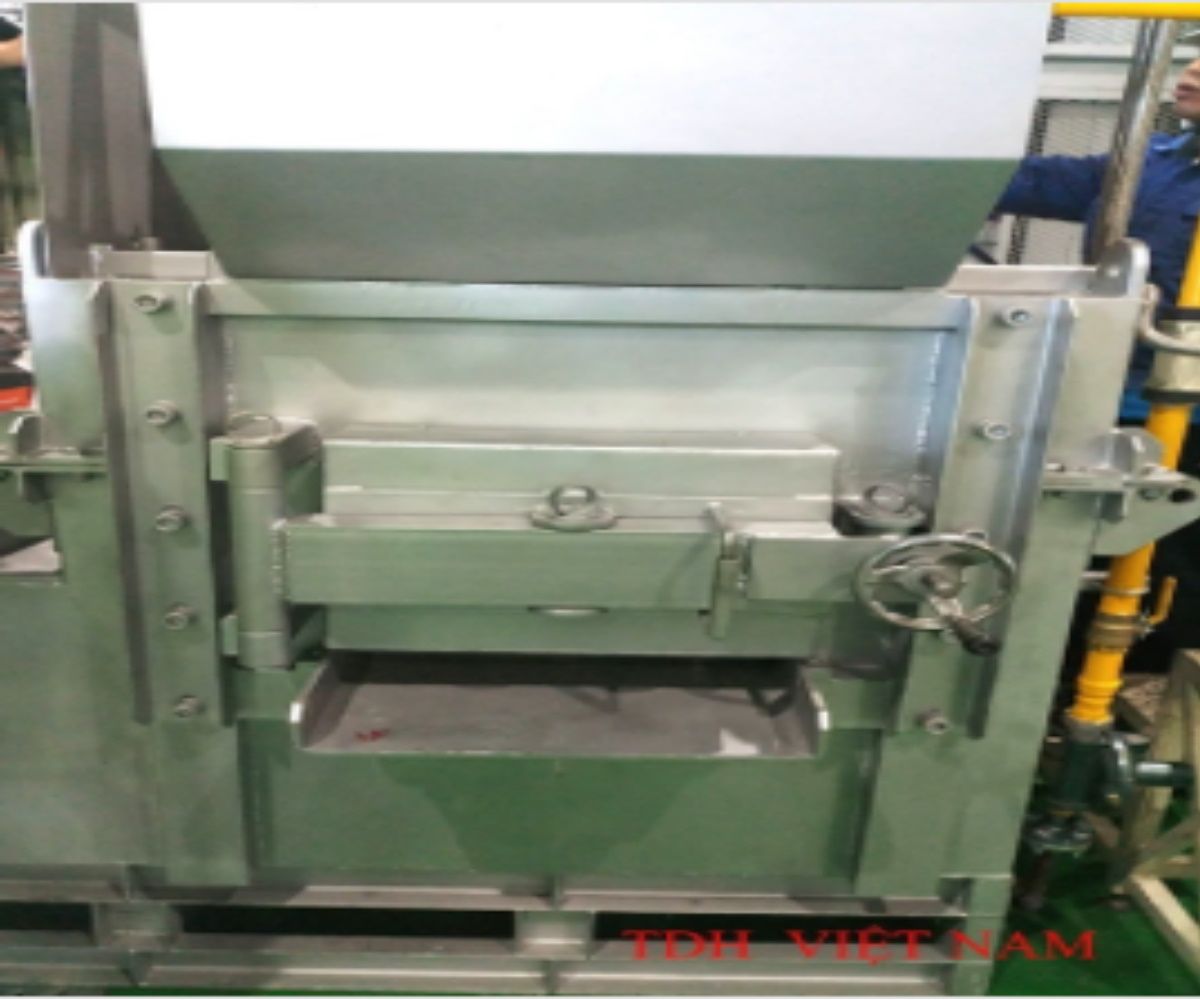

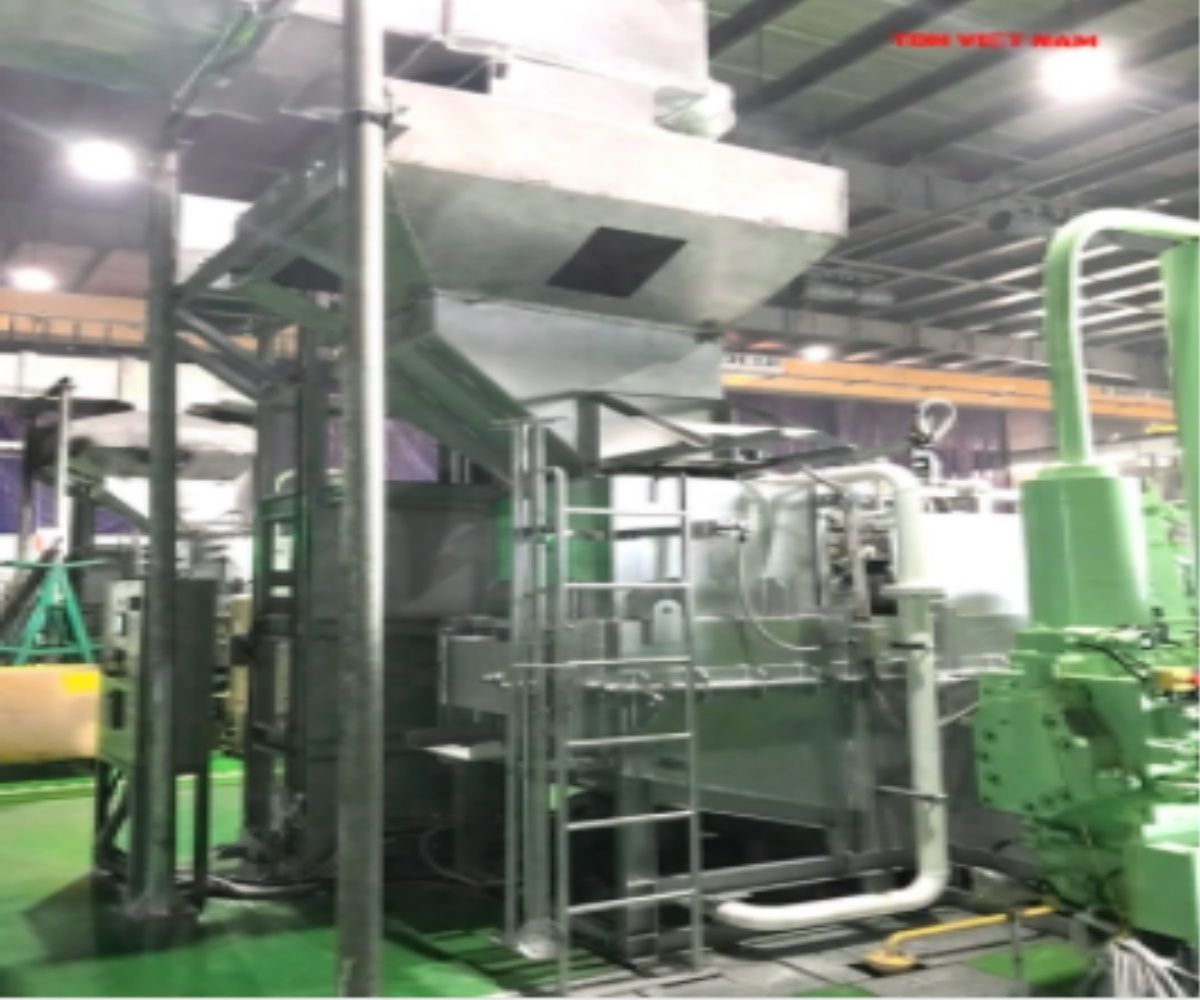

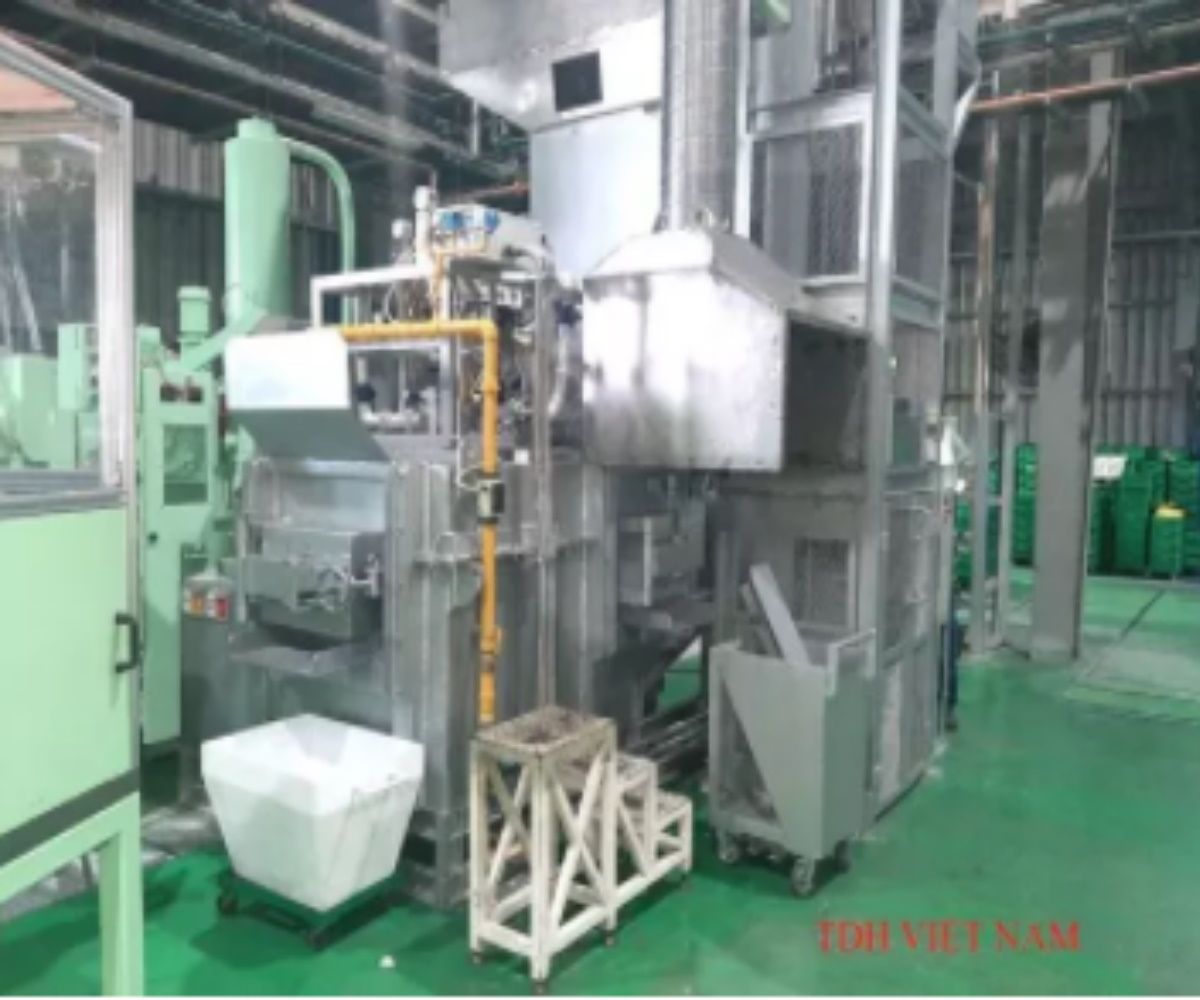

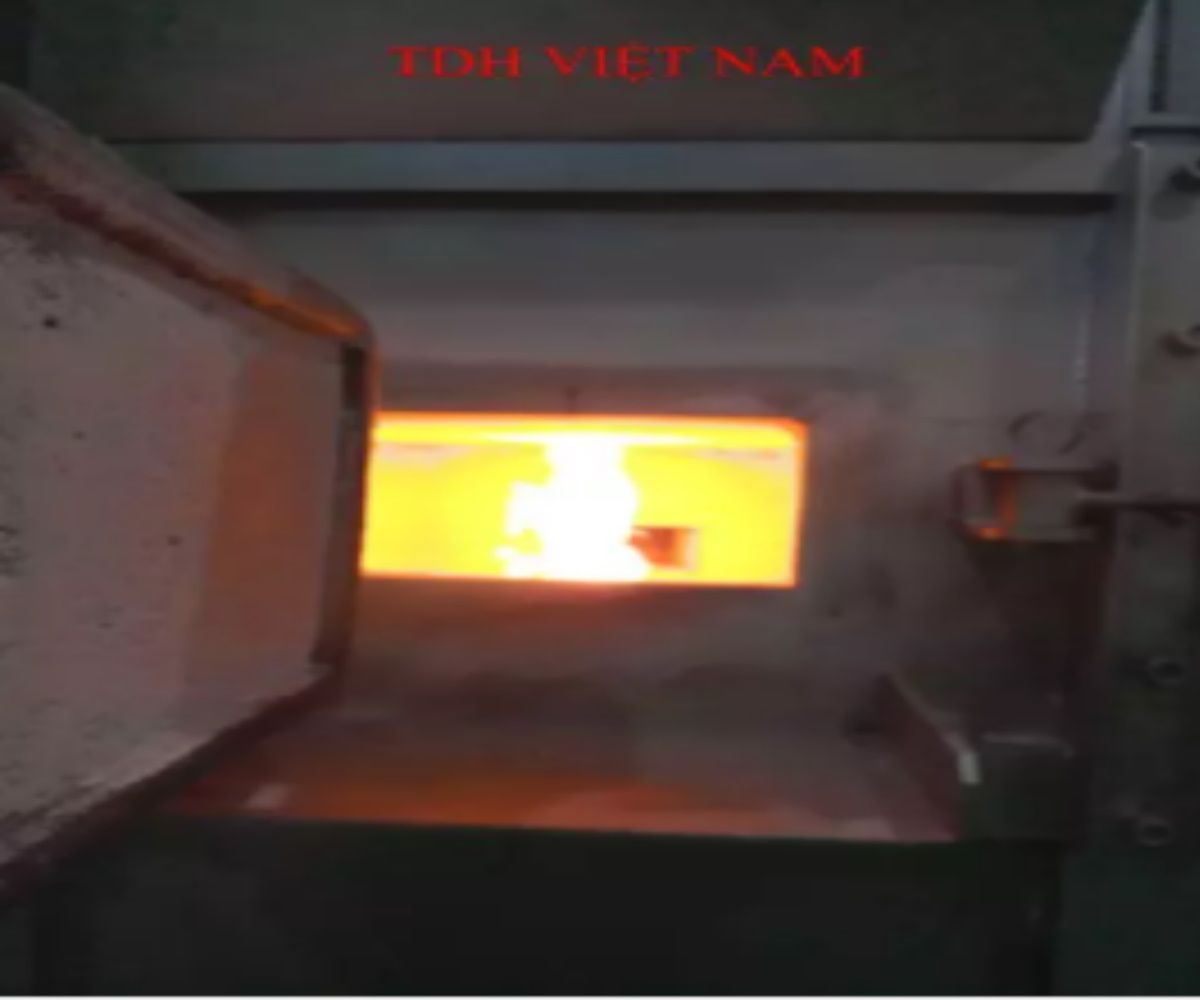

The aluminum melting furnace system uses new insulation materials to withstand high temperature requirements. Using molten aluminum ingots to keep liquid aluminum in combination with the casting machine system with aluminum water will be kept at the best temperature.
Device specs :

Equipment name: Aluminum furnace
Heating object : Aluminum ingot
Use temperature: 800 C ~ 900ºC
Heat source : Burner
Fuel used: Gas
Capacity of cooking chamber burner : 174 Kw (150 x 1,000 kcal/h)
Incubation capacity: 93 Kw (80 x 1,000 kcal/h)
Thermostat : measure the temperature of the cooking chamber, the annealing chamber, and the temperature of liquid aluminum
1 liquid aluminum temperature gauge
PLC control system with operating screen, HMI monitoring makes it easy for the operator to observe parameters and warnings when operating the furnace.
