Aluminium Sheet 5052

Description

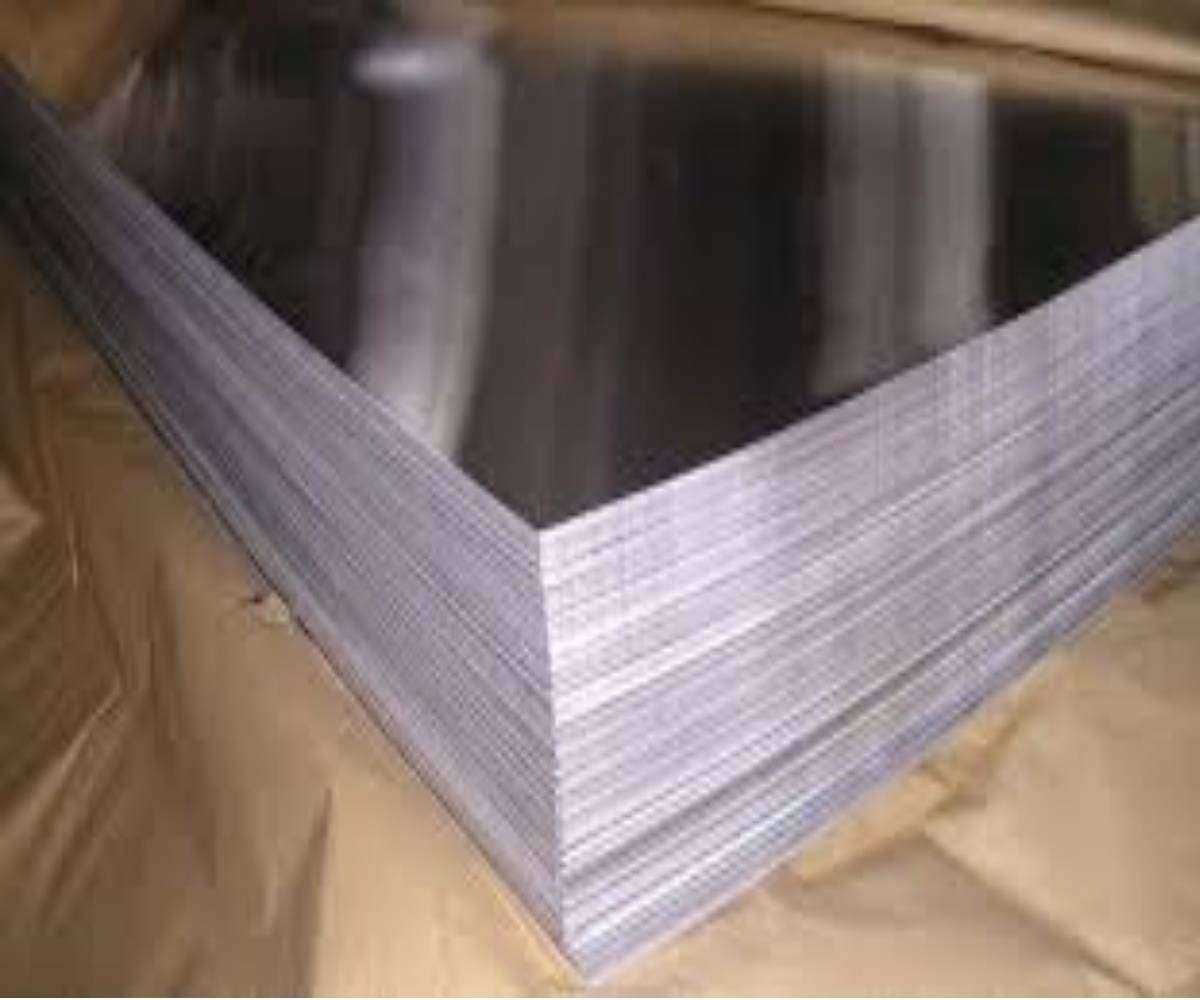

Aluminum Sheet 5052.
This is a non-heat treatable alloy that is weldable. It is hardened by cold work. It has good forming characteristics and good corrosion resistance, including resistance to salt water. Machinability This alloy has relatively fair machinability. It is easier to machine in the hard temper than as annealed and the quality of finish is better if machined in the hard condition. Oil lubricants should be used for machining, except that very light cuts may AL 5052 cannot be hardened by means of heat treatment. It does harden due to cold working. Forging The alloy may be forged in the temperature range of 950 F down to 500 F. Hot Working Hot working, as with forging, may be done in the range of 500 F to 950 F. Cold Working The alloy cold works readily and may be formed by drawing or spinning. However the amount of cold work imparted by spinning makes intermediate annealing necessary. Annealing Anneal at 650 F and air cool. Hardening Hardens only from cold working. Other Physical Props Electrical conductivity 33% of copper. Other Mechanical Props Shear strength is 145 MPa. Applications Commonly used in the manufacture of hydraulic tubes, kitchen cabinets, small boats, home freezers, milk crates, aircraft tube, fencing, and appliances. Commonly used in sheet metal work and in sheet metal parts. Typical Chemical Analysis Chromium (CR) 0.15-0.35% ,Magnesium (Mg) 2.2-2.8%
●Refer attachment for product specification
