Aluminium Profile

By: Vimetco Extrusion

Price	Available on request
MOQ	1 Ton per profile at 7-inch press
	3 Tons at 10-inch press
Category	Industrial Extrusion
Manufacturer	Vimetco Extrusion
Delivery Lead Time	As per order
Place of Origin	Romania
Supply Ability	Customization as required
Packaging Details	Standard export packing
Transportation Details	Road / Ship

Send response to similar sellers

Details

Valid Upto

11.05.2025

Description

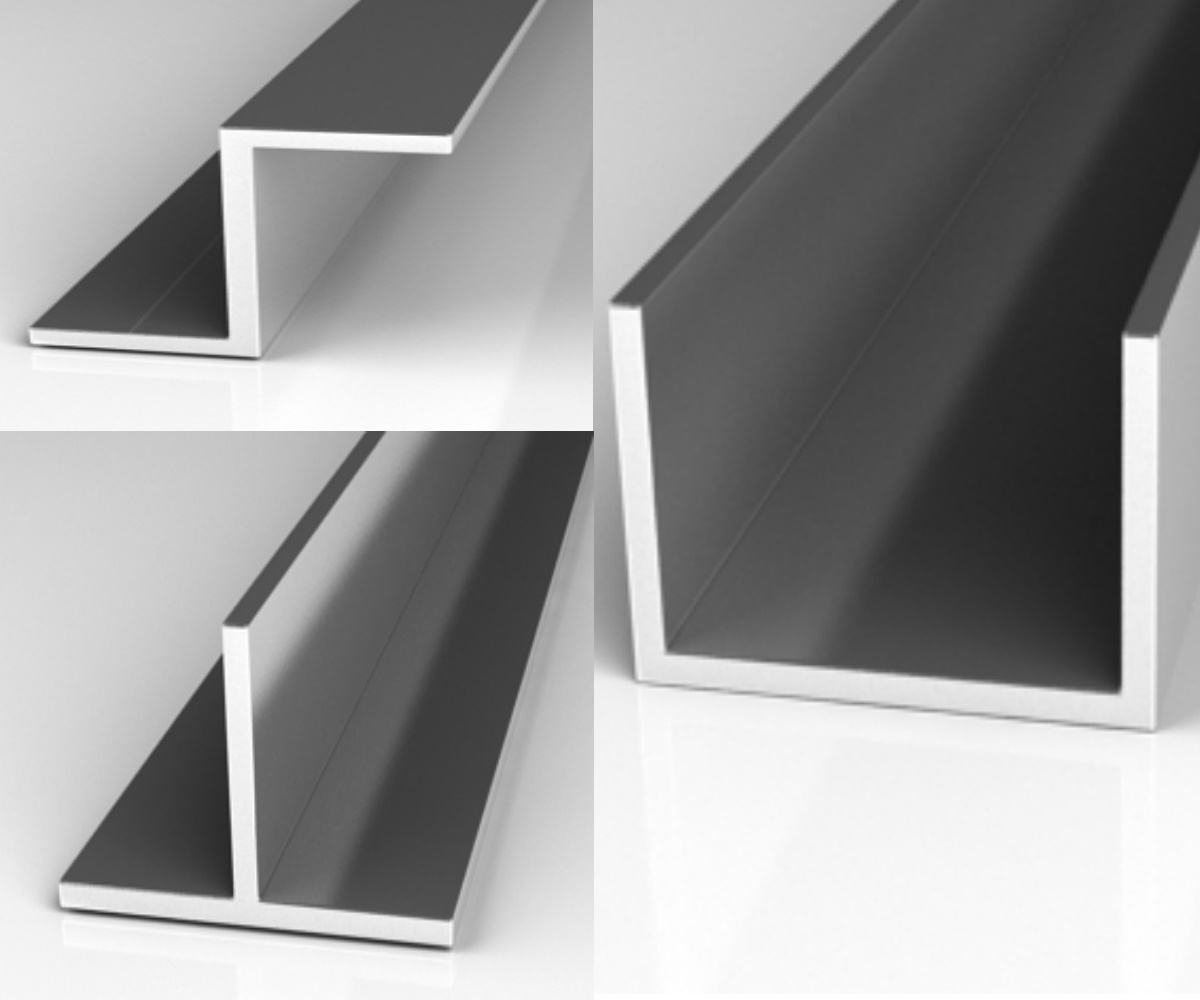

T-profiles

Standard EN 755-9

Maximum allowable corner and fillet radius
Wall thickness A, B or C (mm)	6060, 6063, 6005 (mm)	6082 (mm)
≤ 5	0,6	0,8
> 5	1,0	1,5

U-profiles

Standard EN 755-9

Maximum allowable corner and fillet radius
Wall thickness A, B or C (mm)	6060, 6063, 6005 (mm)	6082 (mm)
≤ 5	0,6	0,8
> 5	1,0	1,5

Z-profiles

Standard EN 755-9

Maximum allowable corner and fillet radius
Wall thickness A, B or C (mm)	6060, 6063, 6005 (mm)	6082 (mm)
≤ 5	0,6	0,8
> 5	1,0	1,5

Profile code	Dimensions in mm				Weight
Profile code	L1	H	L2	t	Kg/m

17004	15	6	15	1,5	133
17001	20	20	20	2	302
17002	30	30	30	3	680
17003	40	40	40	3	923

Special profiles

The limitless applications of aluminium makes it impossible to imagine modern world without it. From building to automotive industry, extrusions are key elements in achieving final product. Vimetco Extrusion produces a large array of shapes and dimensions requested by customers, for different industries and the most demanding purposes. We take each inquiry as a challenge and as a new step towards our goal to have satisfied customers.

Technical Office readily provides support and also design services to help customers achieve the most cost-effective design solutions for their products. Using the latest IT technology for Production Planning and Control, efficient quality control and assurance methods, our team makes sure that everything suits customer’s needs.

Consistent investments have been regularly made in press maintenance and upgrades, a fact that significantly increased productivity, efficiency of our process but most of all our products quality. We are looking forward to receive your inquiries, and together with our specialists bring to life your ideas and projects
