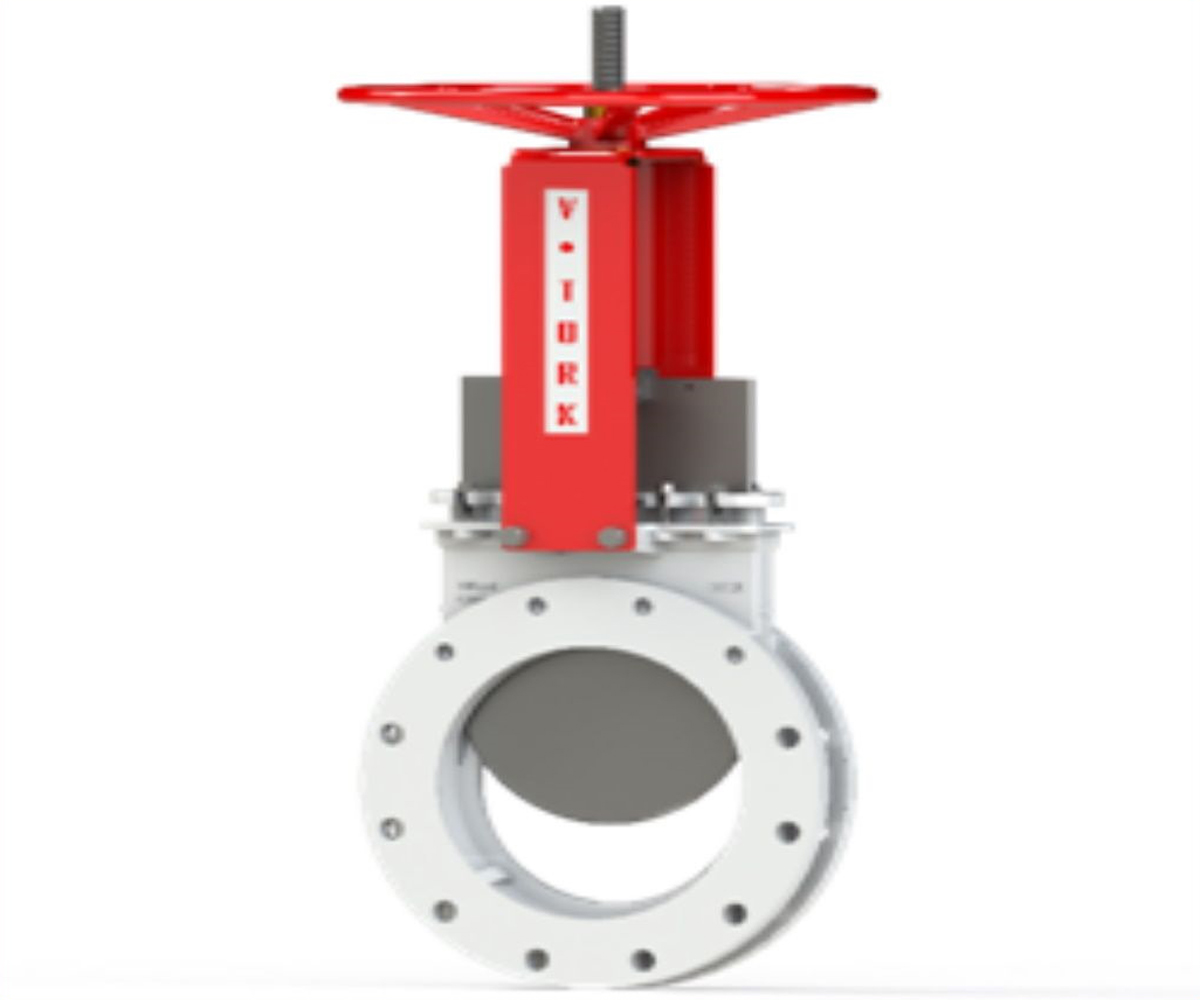

U-340 - Uni-Directional Flanged type Knife gate valves

Description

●Liquid/Slurry Application:
Abrasive Slurries in Mineral Industries, Pulp Slurry, Chemical Slurry, Molasses, Raw Water Intake, Ash Slurries in Thermal Power Plant, Chemical Slurries in Chemical Process Industries, Sugar Juice in Sugar Industries

●Bulk Handling (Solids & Powders):
Pneumatic Conveying systems, Detergent Powders/Cake, Boiler bed ash, Carbon Black, Coal handling, Lime powder handling applications.

Gas Application: Blast Furnace Gas in Steel industries, Pulverized coal fired lines in Thermal Power Plants, Hot gas handling.

●Powder Applications:
Lime powder, Silica/ Magnesium Oxide/ Calcium Oxide/ Al Oxide/ Zyconium Oxide.

●Range of Material of Construction:
CI / DI / WCB / CF8 / CF8M / CF3M / CG8M / SMO254 / Duplex 2205 & Special Materials on Request

●Range of Seat Materials :
EPDM / Viton / Natural Rubber / Nitrile/ PTFE/ CFT/GFT

●Range of Actuators
Hand Wheel, Lever Operated, Chain Wheel, Bevel Gear, Pneumatic Double Acting/Single Acting Cylinder, Hydraulic Cylinder, Electro-Pneumatic Operation, Motorized

●Range of Accessories :
Solenoid Valve, Limit Switch, Proximity Switch, Junction Box, Positioner, Accumulator for Emergency Shut Off, Wear Rings, AFR, Speed Control Valves

●Range of Addl. Features
Deflection cone, V-Orifice, Purge Port, Stem Extension, Fail Safe System, Locking Arrangement, Renewable seats, Non raising Stem arrangement.
