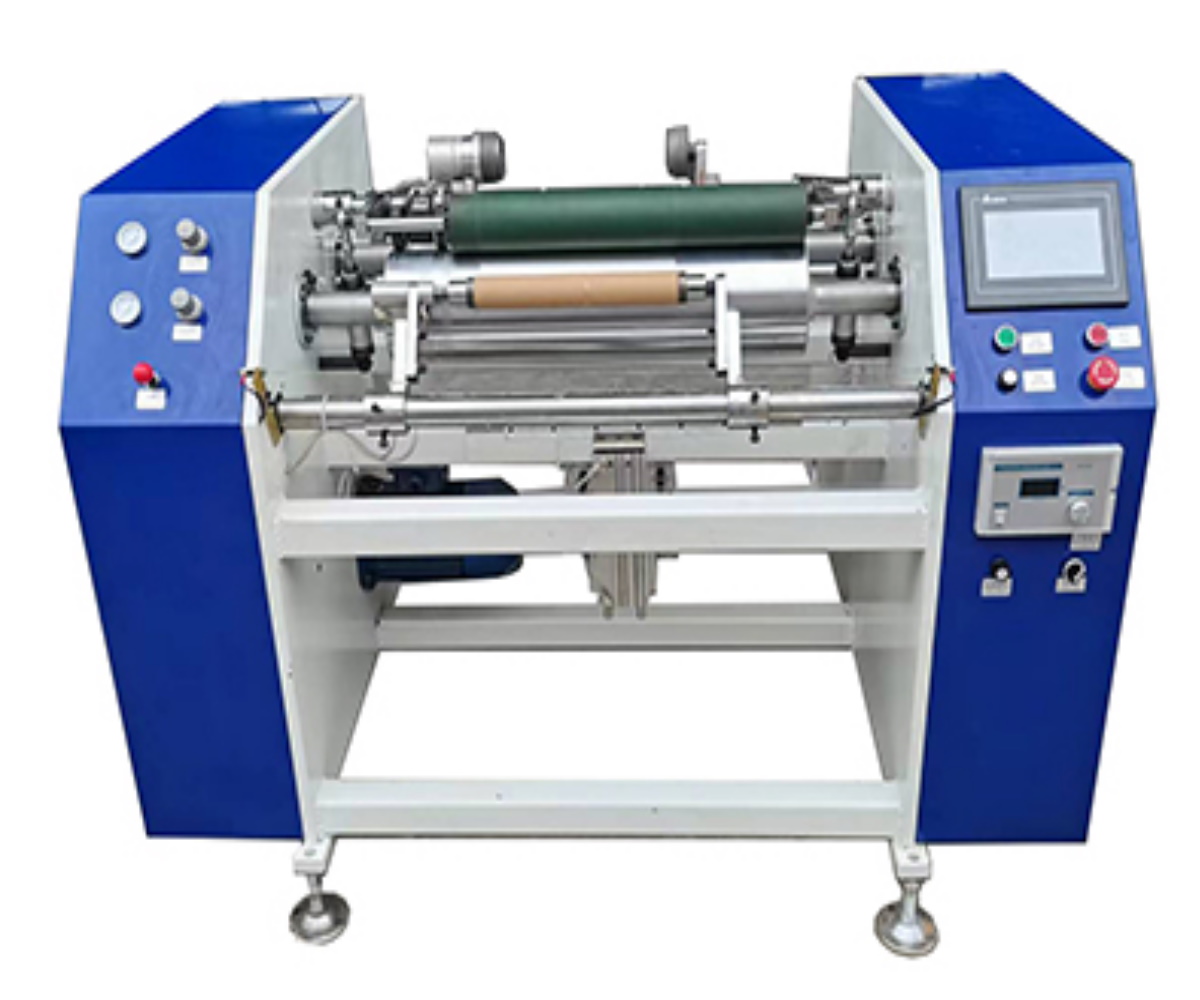

Aluminium Foil And Cling Film Rewinder

Aluminium Foil And Cling Film Rewinder

By: Wenzhou Jieze Packaging Machinery Co. Ltd.
Price Available on request
Category Equipment
Manufacturer Wenzhou Jieze Packaging Machinery Co. Ltd.
Min Order Quantity 1.00 Unit
Delivery Lead Time As per order
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

26.10.2024

Description

Electronic part for the machine :

Motor

Siemens, Baide

Inverter

Delta, Taiwan

PLC

Omron, Japan

Meter counter

Omron, Japan

Relay

Schneider, Japan

Touch screen

Delta, Taiwan

Parameter :



Model

JZ-500L-I

Material

Aluminum foil , cling film

Width of material

100-500mm

Max. Diameter of Jumbo roll

800mm

Max. Diameter of rewinded roll

260mm

Rewind length

2.5-3000m/roll

Thickness of material

0.008-0.05mm

Rewinding speed

0-600m/min

Unwinding diameter

3 inch

Rewind clamp holder

According to paper core size(one set free charge)

Power of main motor

1.5Kw

Installation dimension

1520 x 1250 x 1200mm

Weight

700kg
