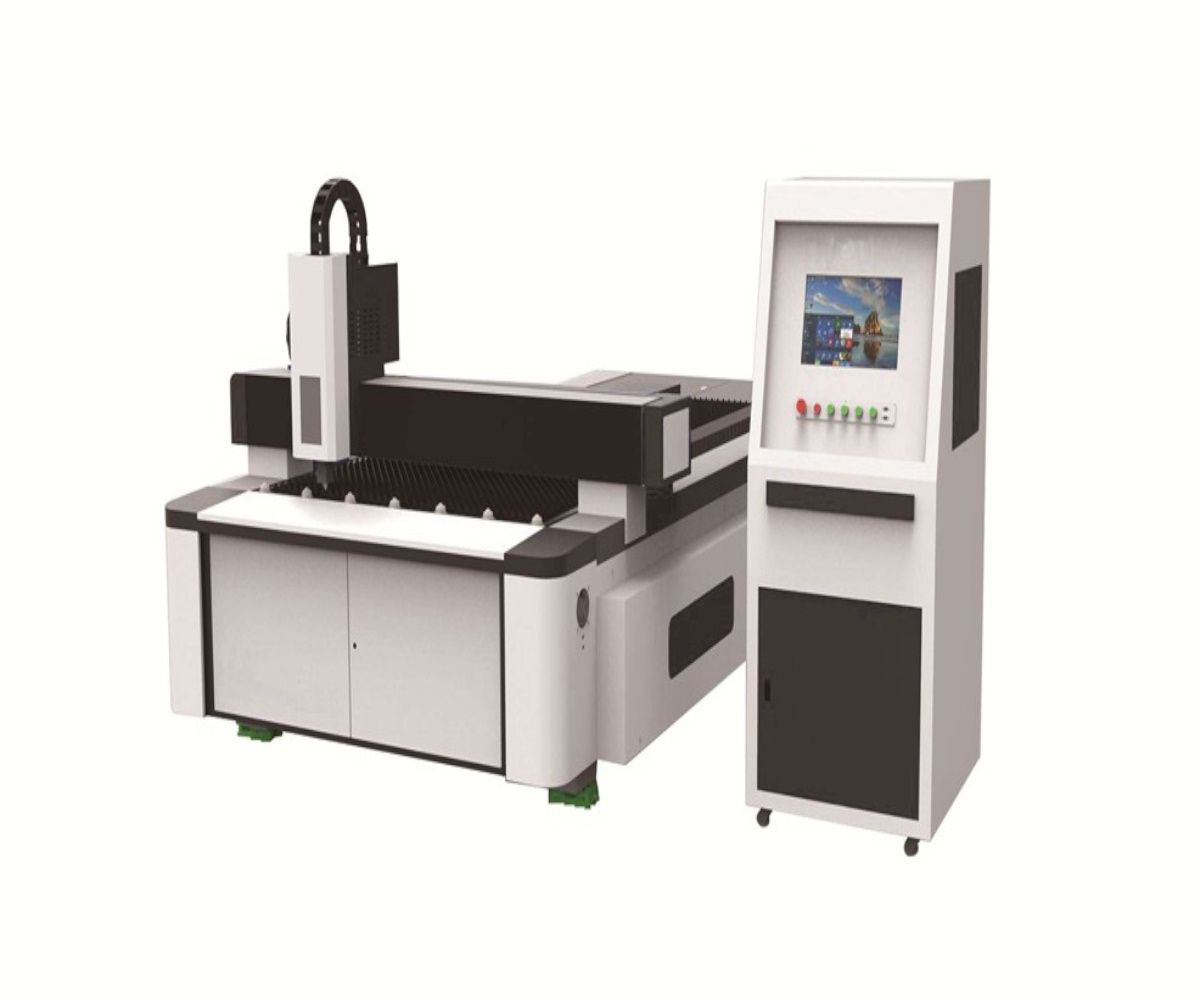

Fiber Laser Cutting Machine

Description

Fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Advantage:

1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2. Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
3. High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
4. High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
5. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
6. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
7. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
8. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
