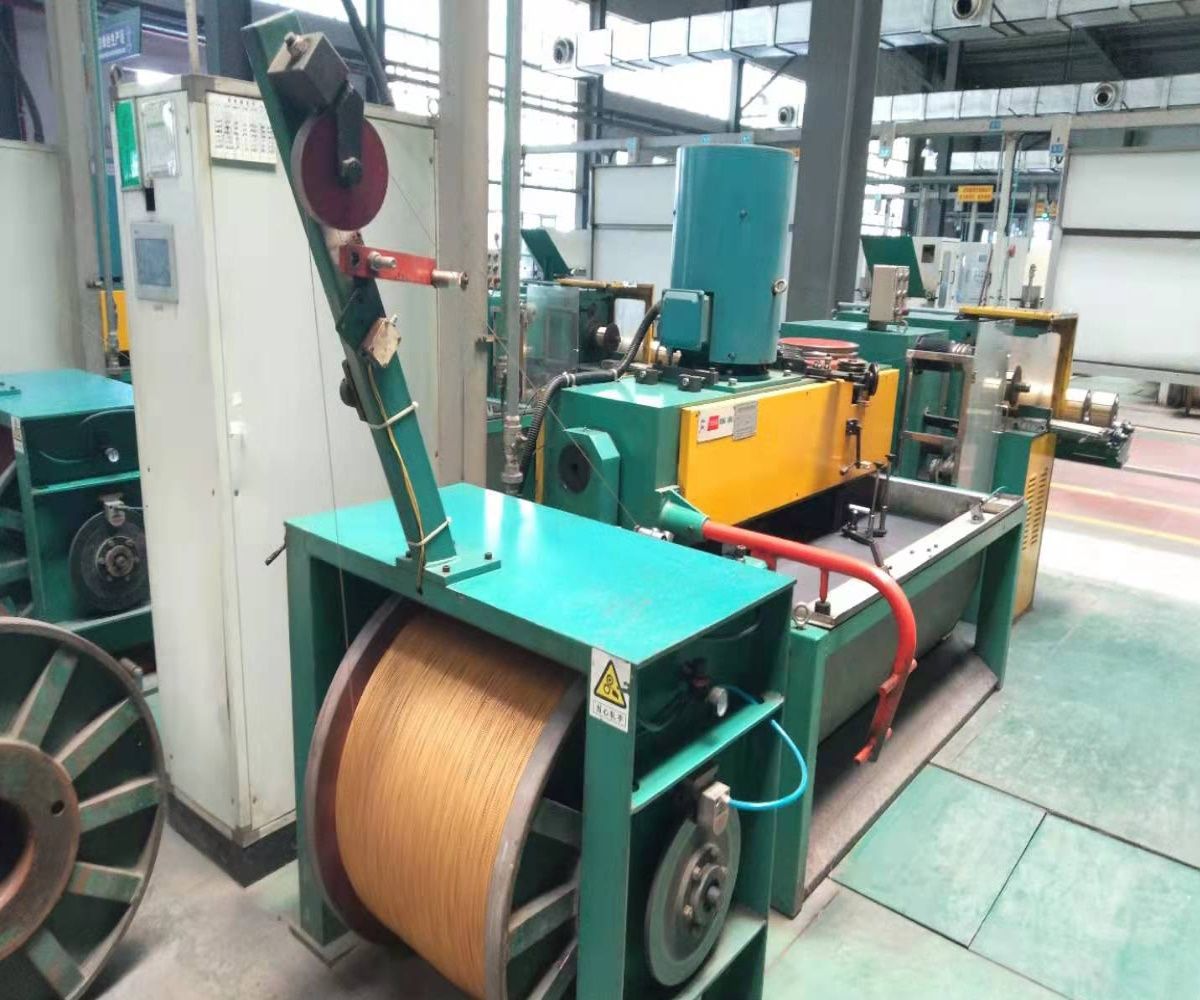

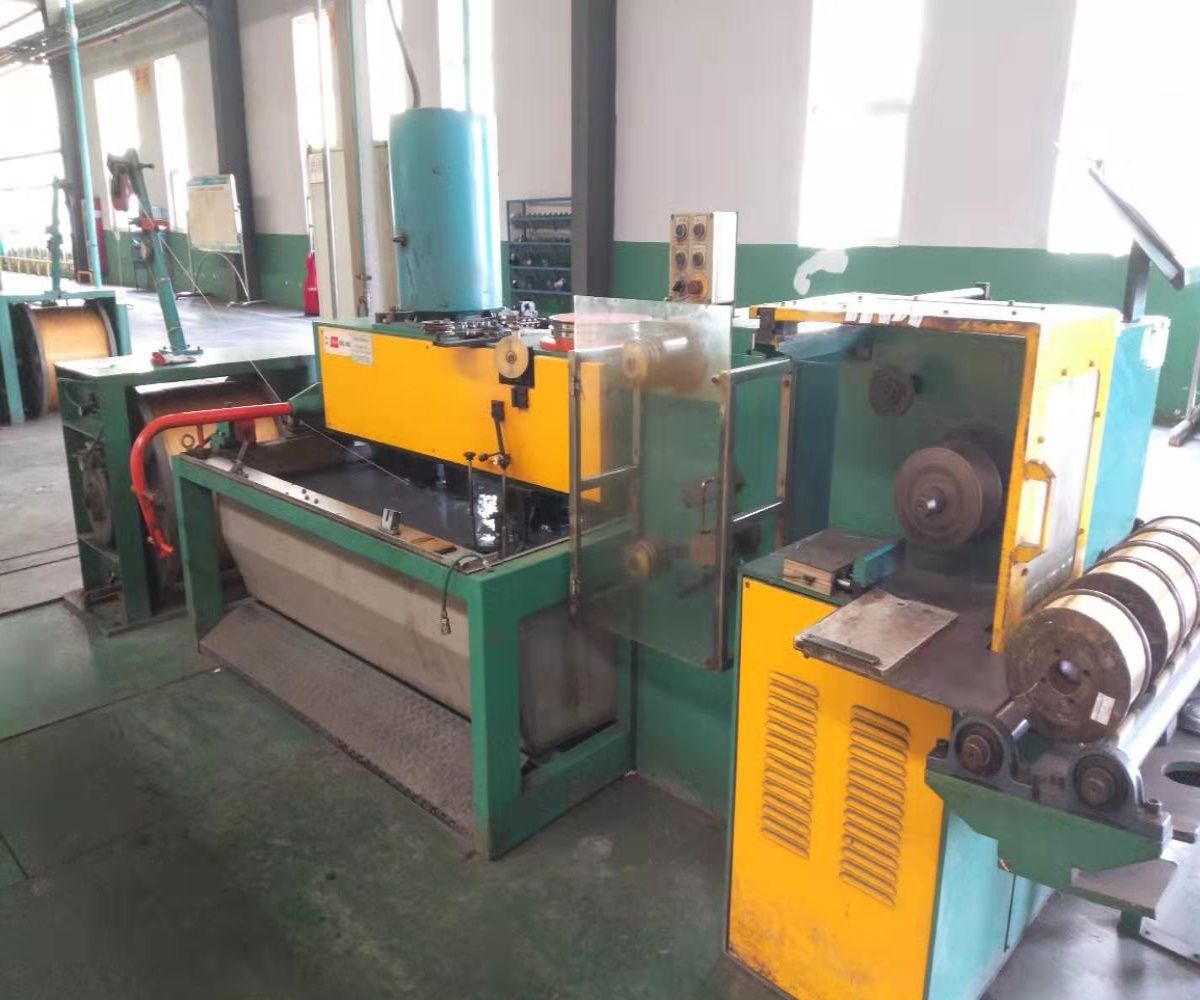

Turn Over Wet Drawing Machine
By: YFmetalwiredrawingmachine| Price | Available on request |
| Inlet wire dia & Oslash | 1.8 mm -3.0 mm |
| Oulet wire dia & Oslash | 0.15 mm-0.45 mm |
| Speed | 1080m /min |
| Category | Aluminium Auxiliary Equipment |
| Manufacturer | YFmetalwiredrawingmachine |
| Min Order Quantity | 1.00 Unit |
| Delivery Lead Time | As per order |
| Place of Origin | China |
| Supply Ability | Customization as required |
| Packaging Details | Standard export packing |
| Transportation Details | Road / Ship |
16.01.2026
Description
Features:
- Automatic correction control system ,capstan hardness & HRC60
- Drawing speed: 20m/s at maximum operating speed, configure motor power
- And Drawing pass number according to different drawing material
Application :
Owing to the structure restriction of this wire drawing machine, it is more suitable for drawing wires of smaller diameters. Wet wire drawing machine is available for drawing mild steel, carbon steel, stainless steel, copper and aluminium alloys.
|
Sl No
|
Detail Content | Technical Data |
| 1 | Max Dies Quantity | 17~21~23 Dies |
| 2 | Main motor power | 30~37~55 KW |
| 3 | Take-up motor power | 4~5.5 KW |
| 4 | Take-up method | SG200~SG255~SG300 |
| 8 | Max speed | Max. 1200m/min |
| 9 | Lubrication type | Intrusive |
| 10 | Dimensions(L*W*H) | 1950 mm & times 1500 mm & times 1650 mm |
| 11 | Weight | 2.6~2.7 T |
