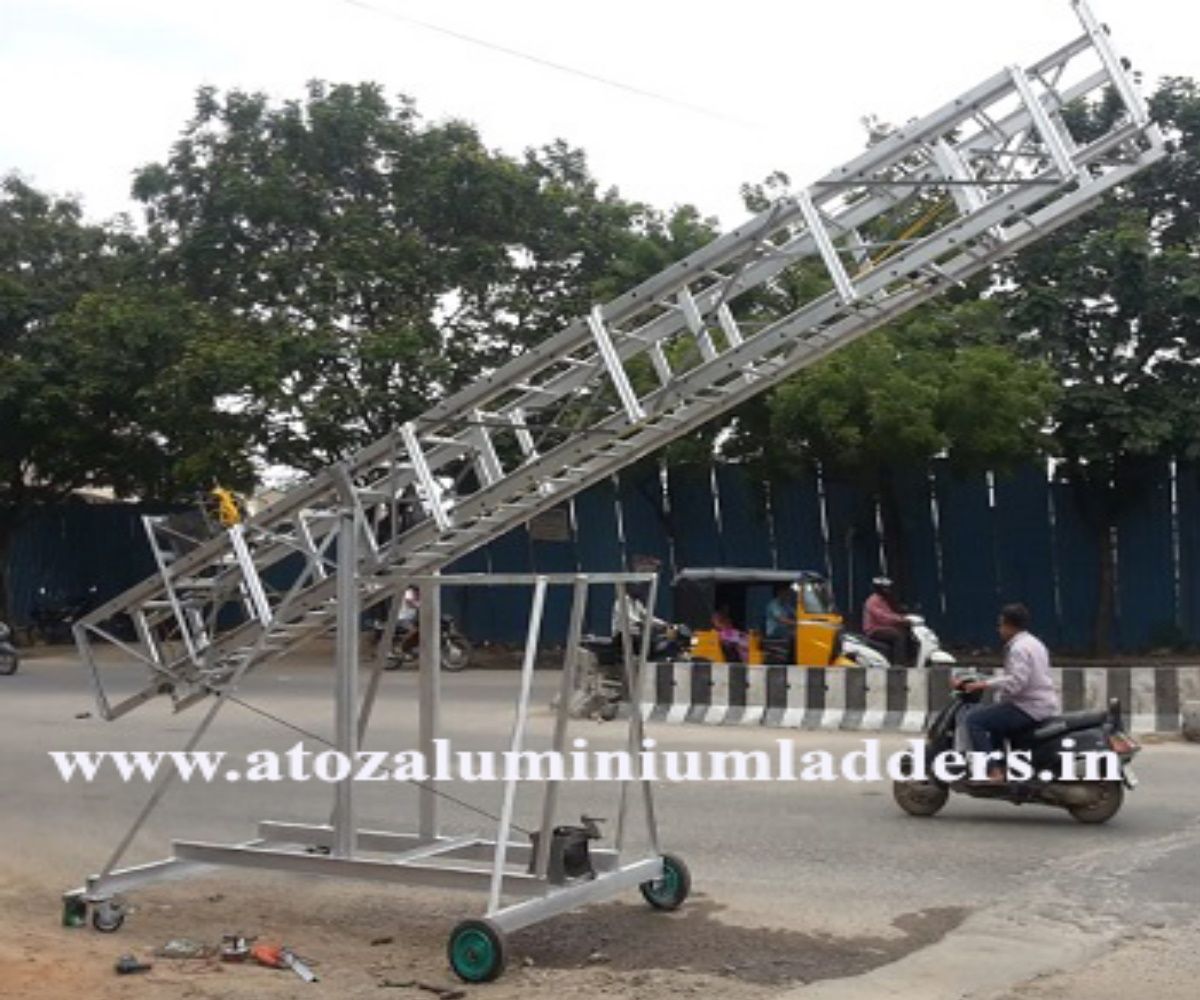

Tiltable Aluminium Telescopic Tower Ladders

Description

Model No : 008

We are listed at the apex in the list of the most reliable telescopic ladders suppliers from India. the use of optimum quality aluminium in the manufacturing of aluminum telescopic ladders ensure notable features like high durability, strength and resistivity to various adverse conditions. Additionally, customers are eased with the availability of the telescopic tower ladders in varied lengths, sizes and dimensions to meet the requisites.

• The telescopic tiltable tower ladder is made out of high tensile aluminium ‘C’ Section 66.66mm X 31.25mm X 3mm in thick.(approx).
• The steps are made out of non-slip Aluminium corrugated flooted pipe 25.4mm dia and 3mm in thick .The pipes are riveted at a distance of one foot between two steps.
• This ladder are made in single and double extension.
• Two nos of Winch Gear box are fixed to the ladder one for tilting ladder from horizontal to vertical position and one for extension of the ladder.
• M/S wire rope and pulleys are provided for easy movment of the ladder.
• A plat form is fixed at 3 ft from top of the ladder with tooltary.
• This whole ladder is mounted on MS base Made of ‘U’Channel and ‘L’angle with 4nos of rubber bonded wheels with jacks. Available in sizes from 6’ft to 60’ft

● Refer attachment for product specification
