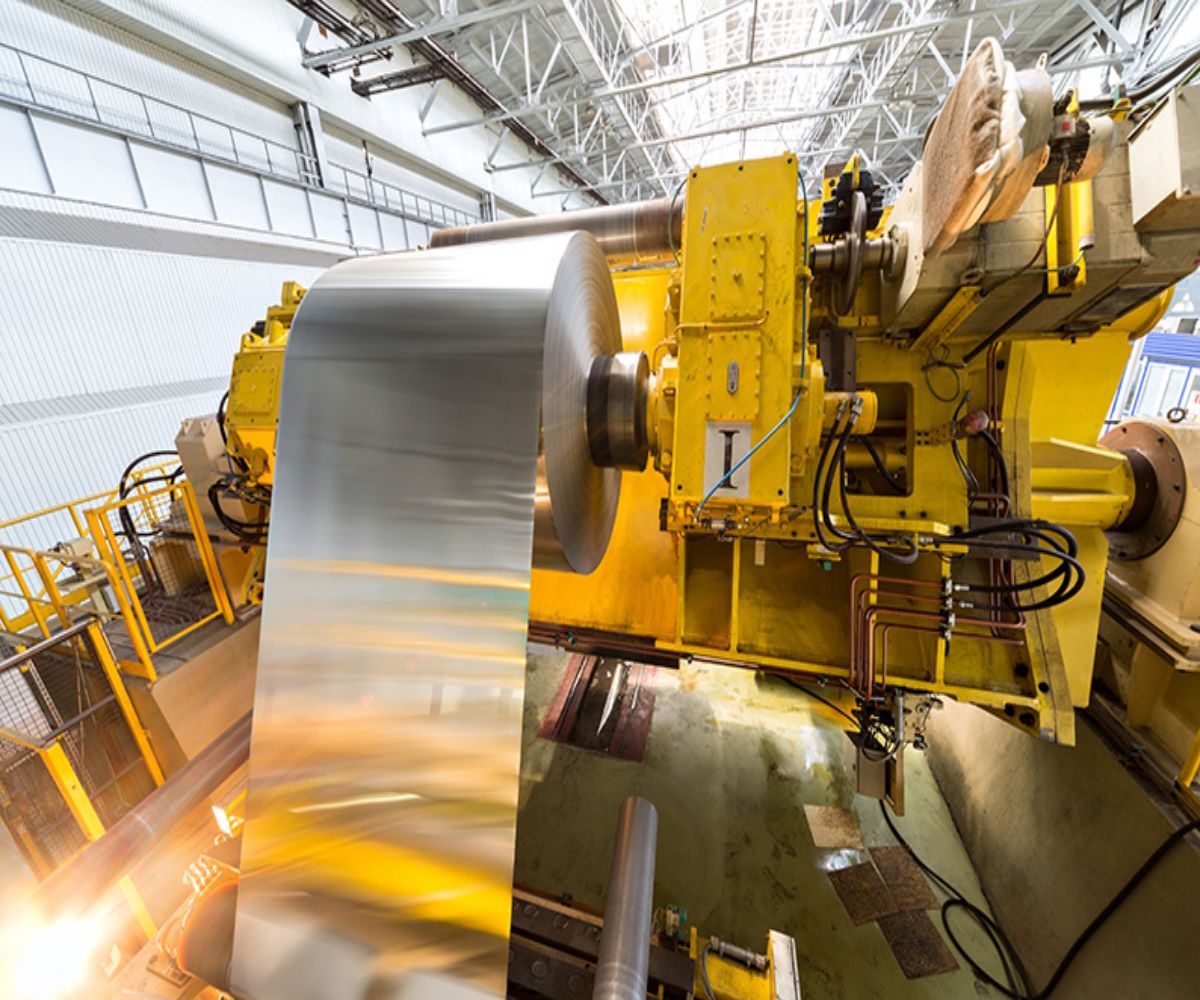

Second Hand Aluminium Foil Rolling Mill

By: Alcircle Pte Ltd
Price USD 705993.71
Built 1966
Revamped 1990
Stopped 1/2009
Type Four high double uncoiler non-reversing mill
Width 700 - 1400 mm
Thickness Entry: max. 100 µ
Power 890 Kw
Speed 1500 m/min
Coil OD 1350 mm
Coil weight 5.0 t - 3.6 kg/mm
Category Equipment
Manufacturer Achenbach
Min Order Quantity 1.00 Unit
Place of Origin Germany

18.05.2024

Description

We have a sale offer of a second-hand aluminium foil rolling mill that is dismantled and in storage

Hydraulics Load 5970 kN
Bending jacks 250 to +400 kN/side
Tilt 950 kN/side
Coolant consumption Average  21 kg/ton approx
Work rolls Diameter 254 mm  max
Back-up rolls Diameter 670 mm
Control (revamped) AGC    Mfc : Measurex
  AFC - Mfc  : Broner
Main Motors Power: 650 Kw, 497/1600 RPM
Torque 3.3 - 10.6 kN
Uncoiler Power: 2 x 40 kW,  400 - 1600  RPM
Speed 1125 m/min
Strip tension 1. 1125 - 4355 N
  2. 1125 - 2175 N
Coiler  Power:
2 x 40 Kw,
400 - 1600 RPM
Speed 1800 m/min
Strip tension 1875 - 2485 N
Electrical Transformer:
Main motor 1600 kVA
Coiler & uncoiler 1250 kVA
Auxiliary 1250 kVA
Cooling Oil base type
Flow rate 1200 L/min
Pressure 6 bar
Work rolls Diameter 254 mm max
Back-up rolls Diameter 670 mm max
Spare rolls available as Buck-up rolls:  2 + 2
  Work rolls:  2 +8
  Buck-up chocks:  4 + 4
  Work chocks: 4 + 8
  1 Ironing roll
  1 Bridle roll
  2 Spindles
