Aluminium Extrusion Press

By: Alcircle Pte Ltd
Price $ 160,000
Equipment Location Bangalore, India
Material Code Aluminium HE9 6063
Total Force of Press 750 U.S.T (680 M.T.)
Extrusion Pressure 210 Bar
Billet Diameter 121 mm
Dummy Block Diameter 127 mm
Category Extrusion Press
Manufacturer Jindal (indigenous) india
Min Order Quantity 1.00 Unit
Place of Origin Bangalore, India
30.06.2026
Description

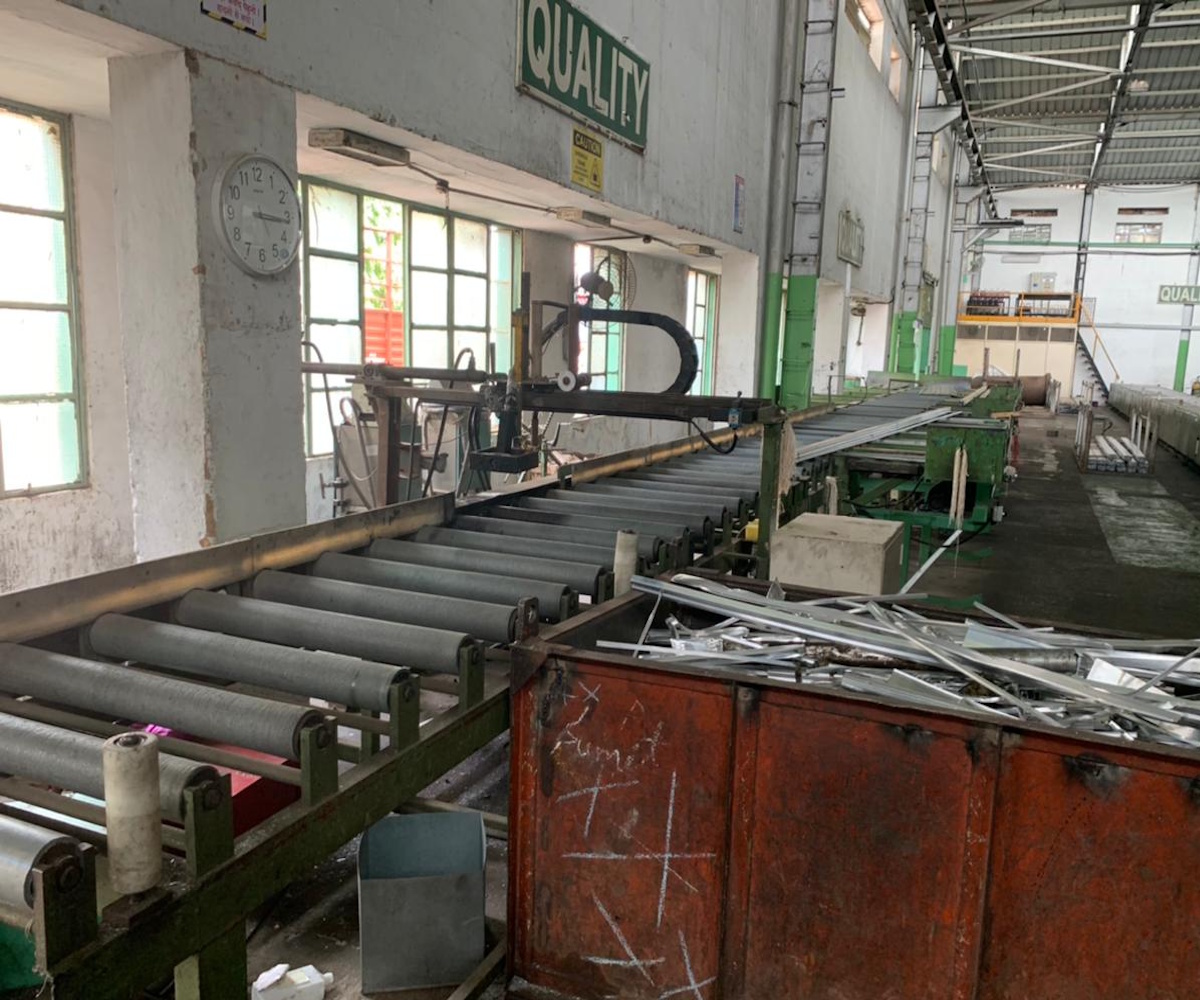

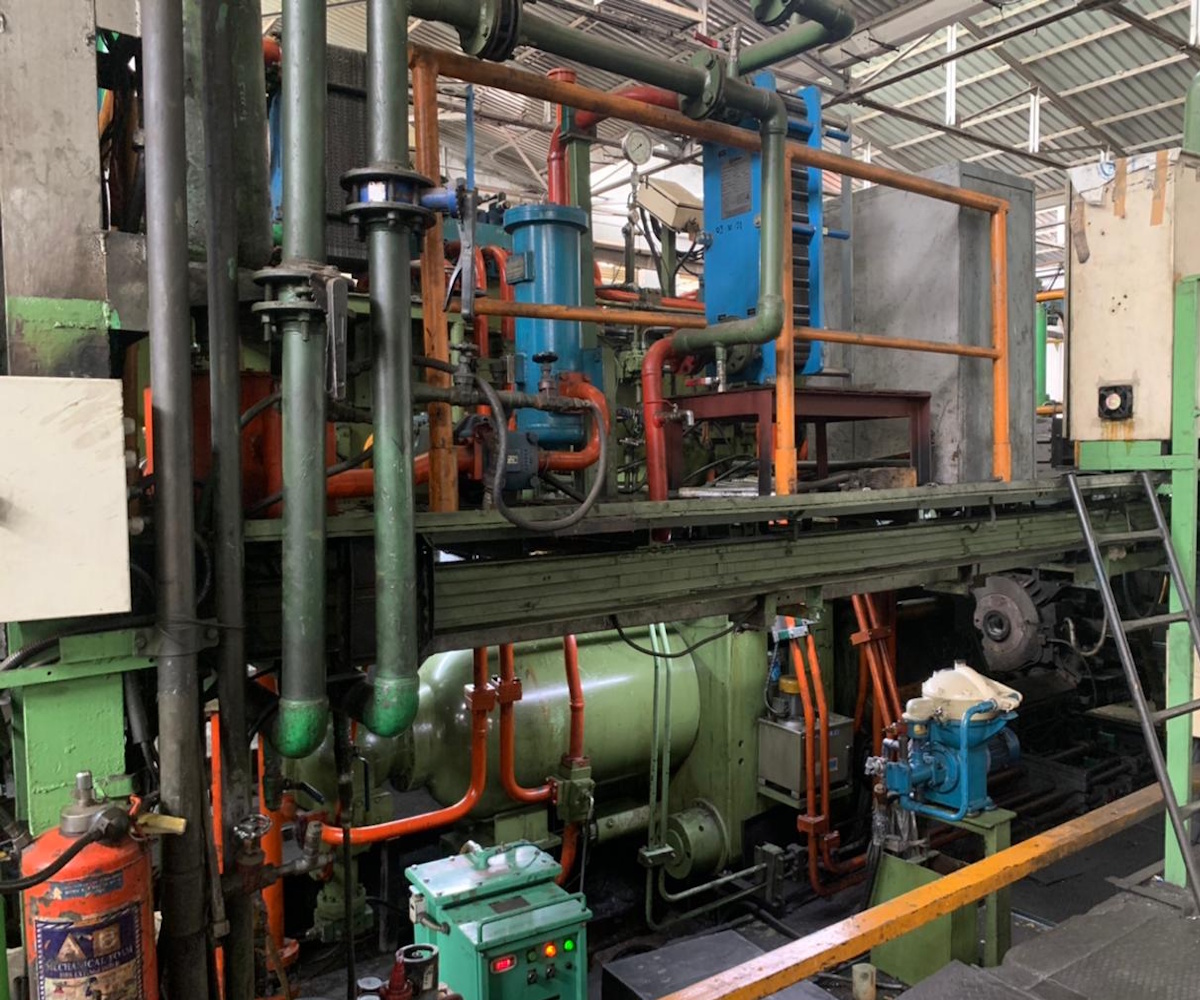

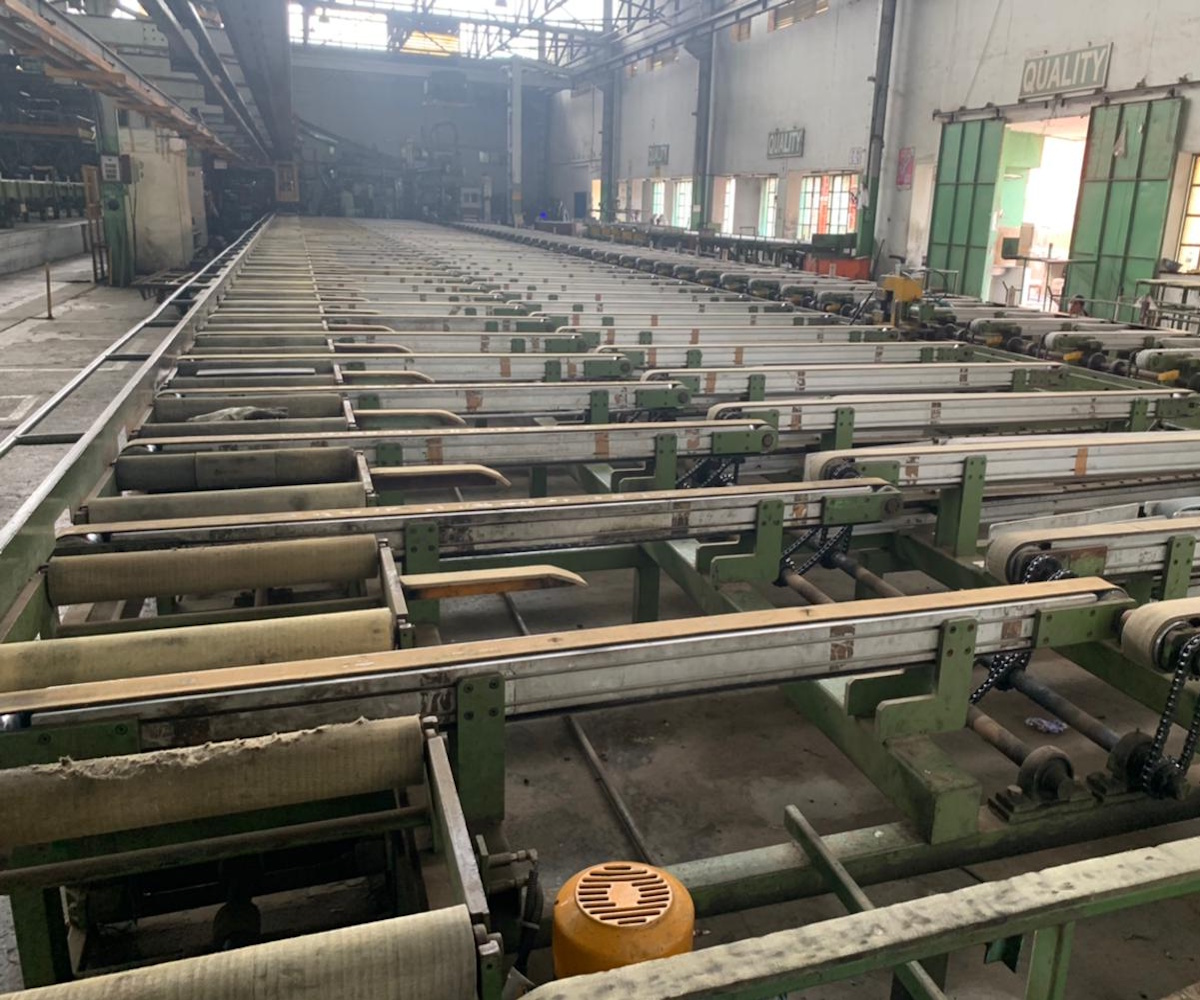

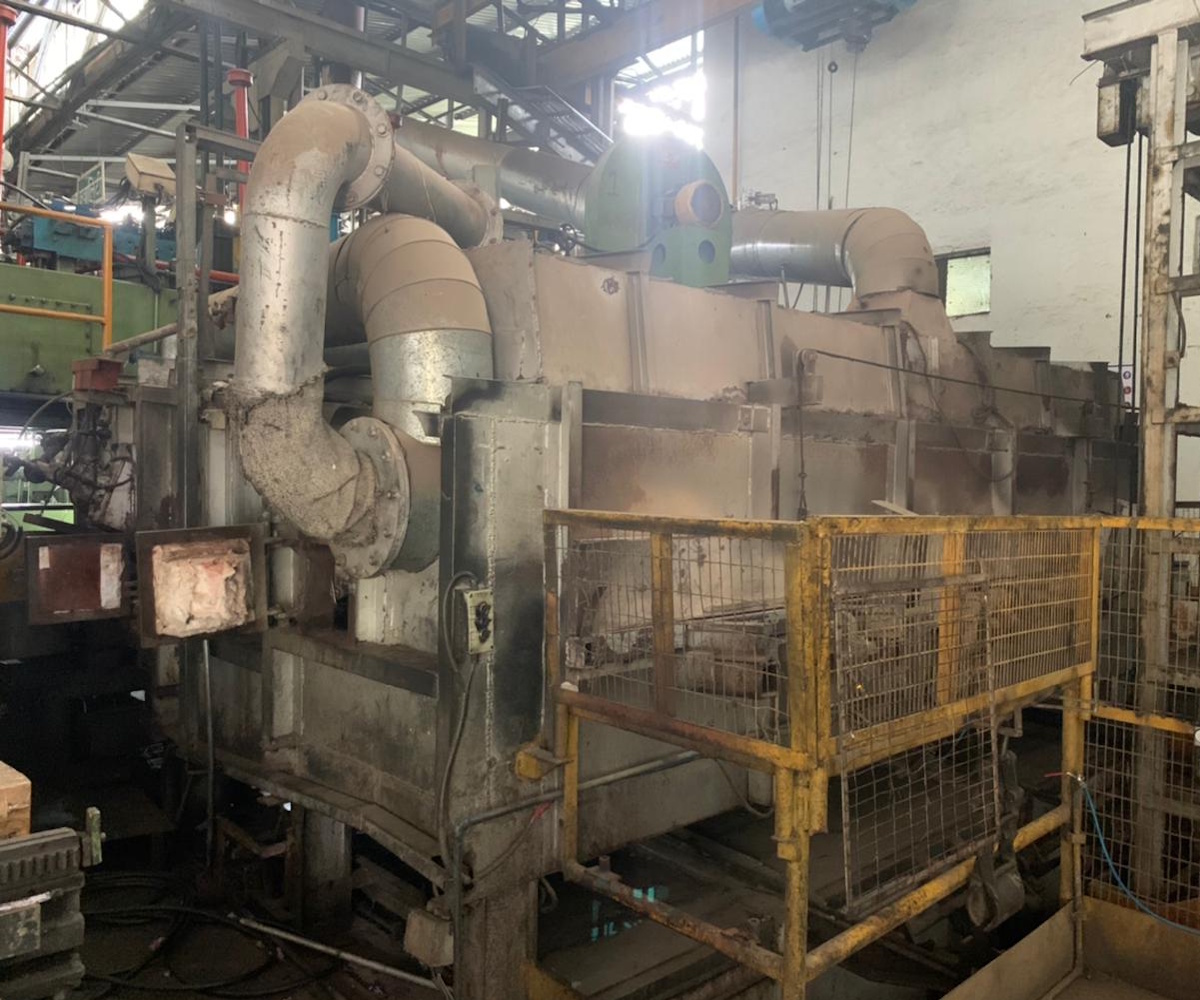

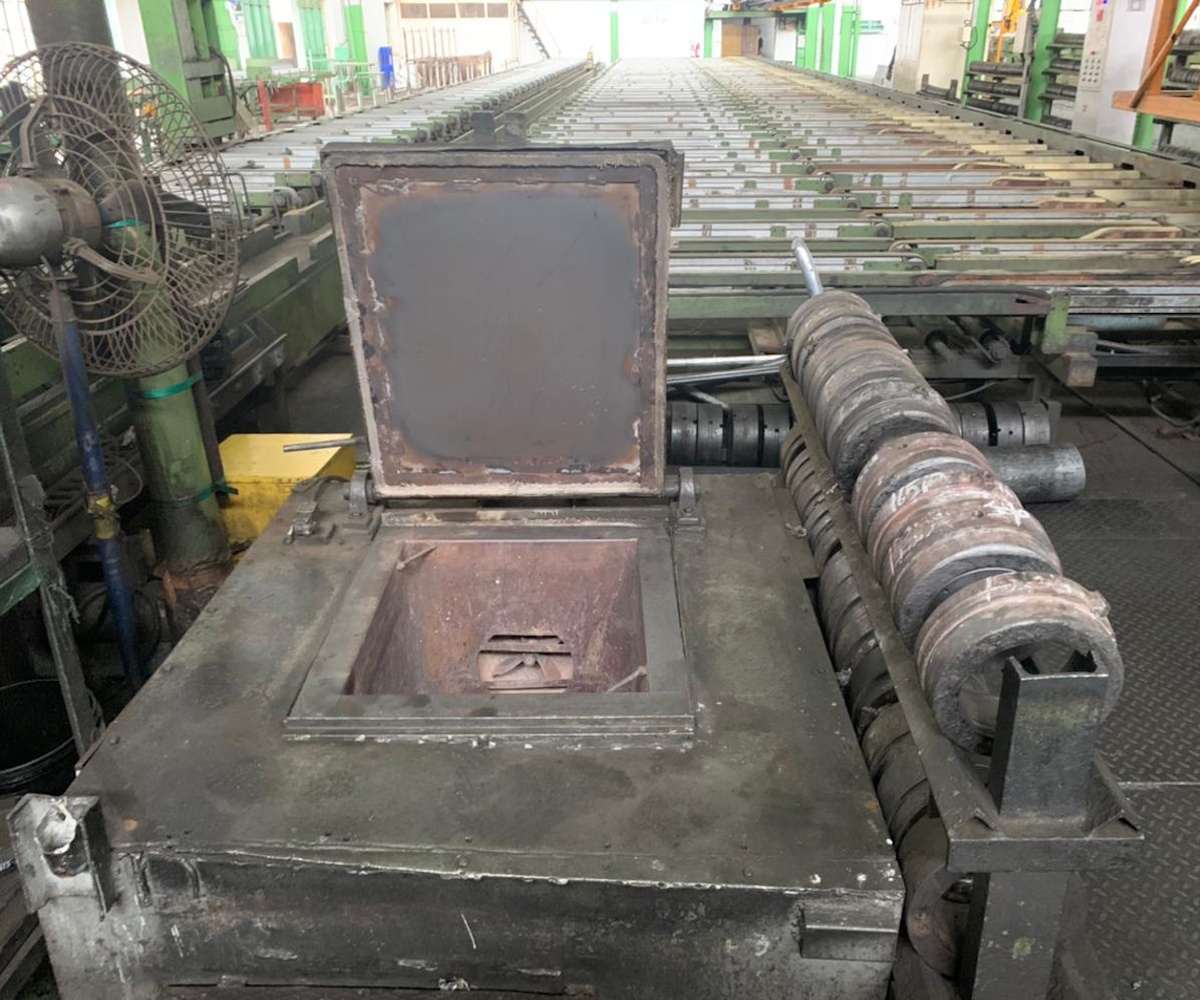

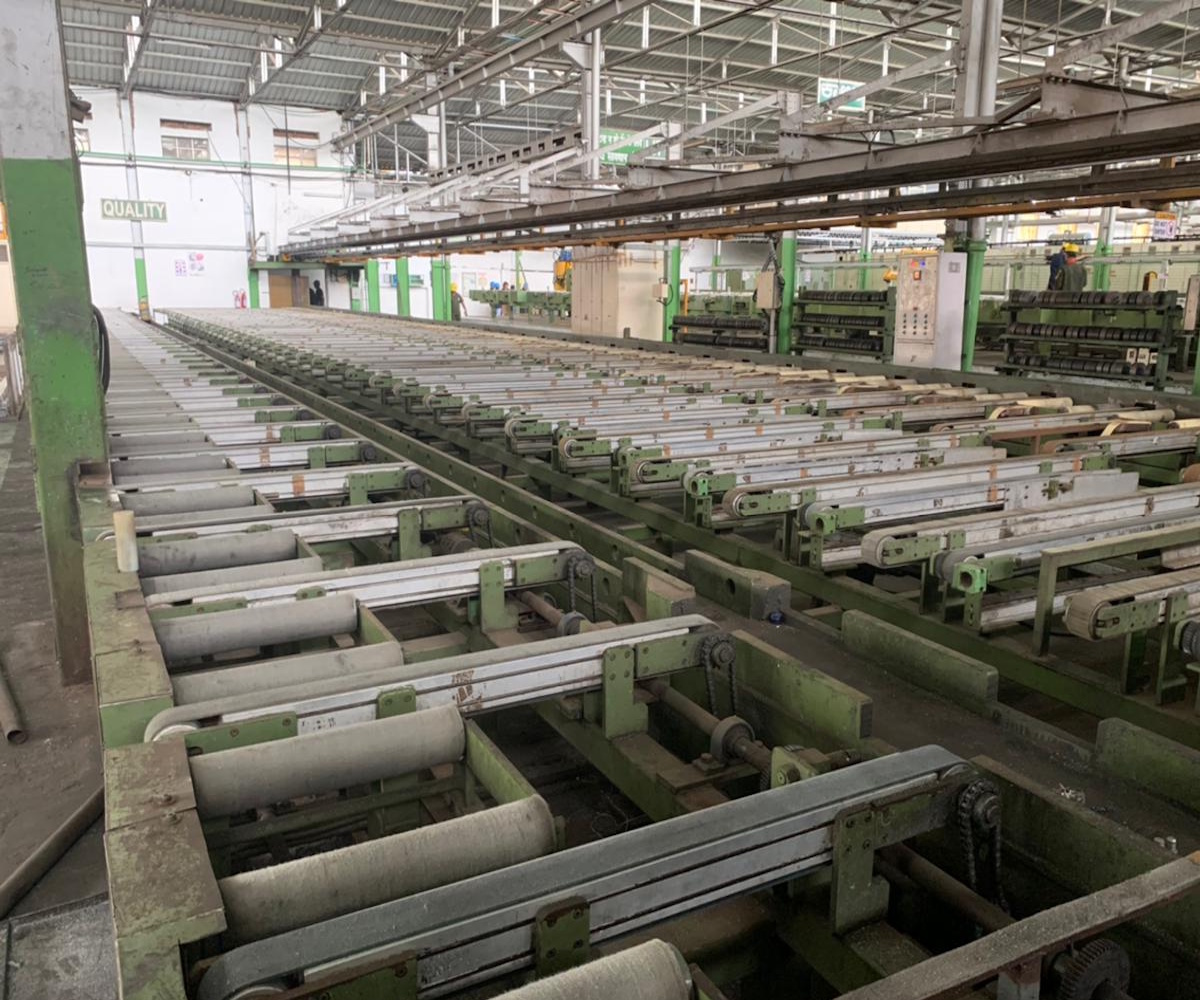

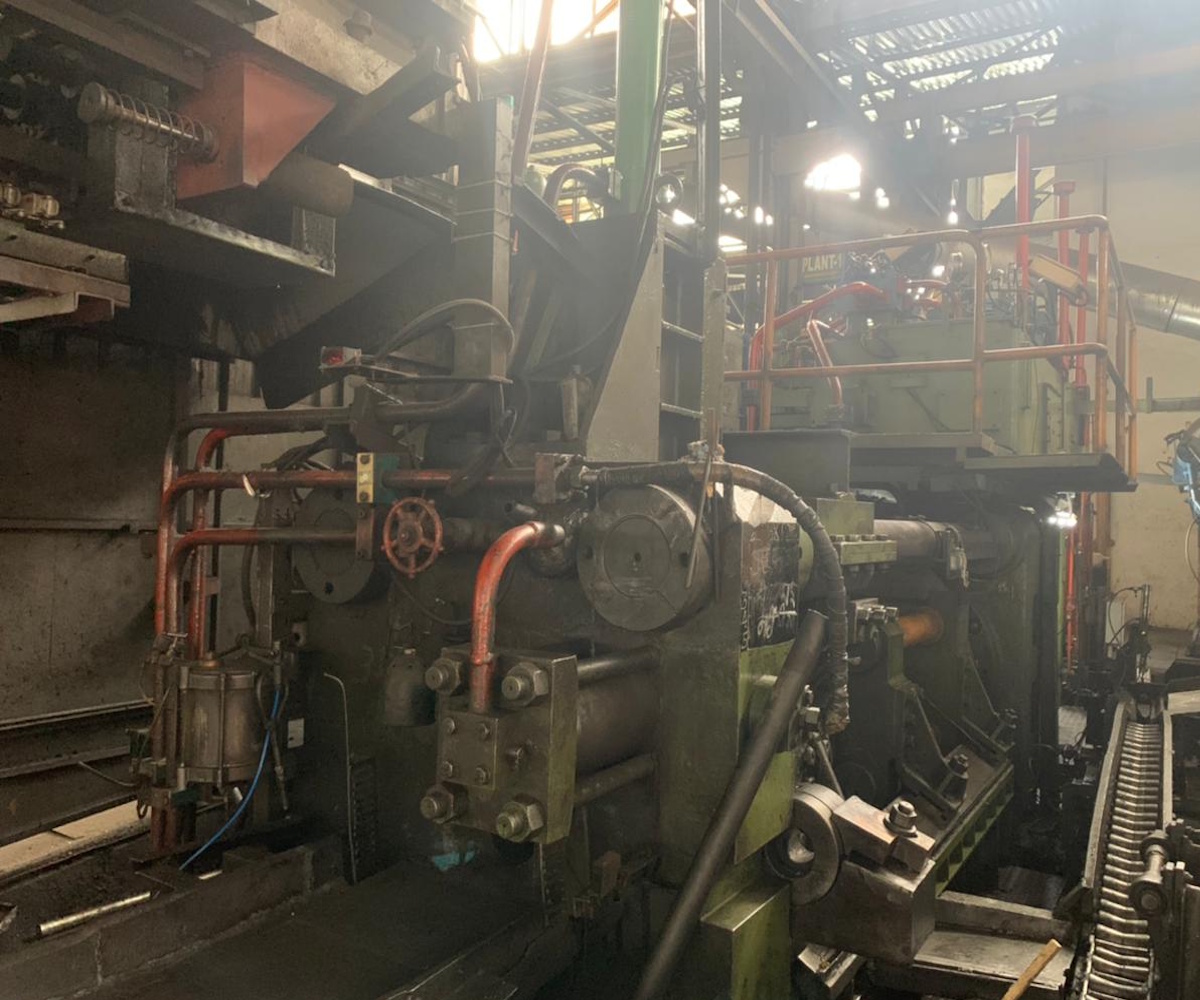

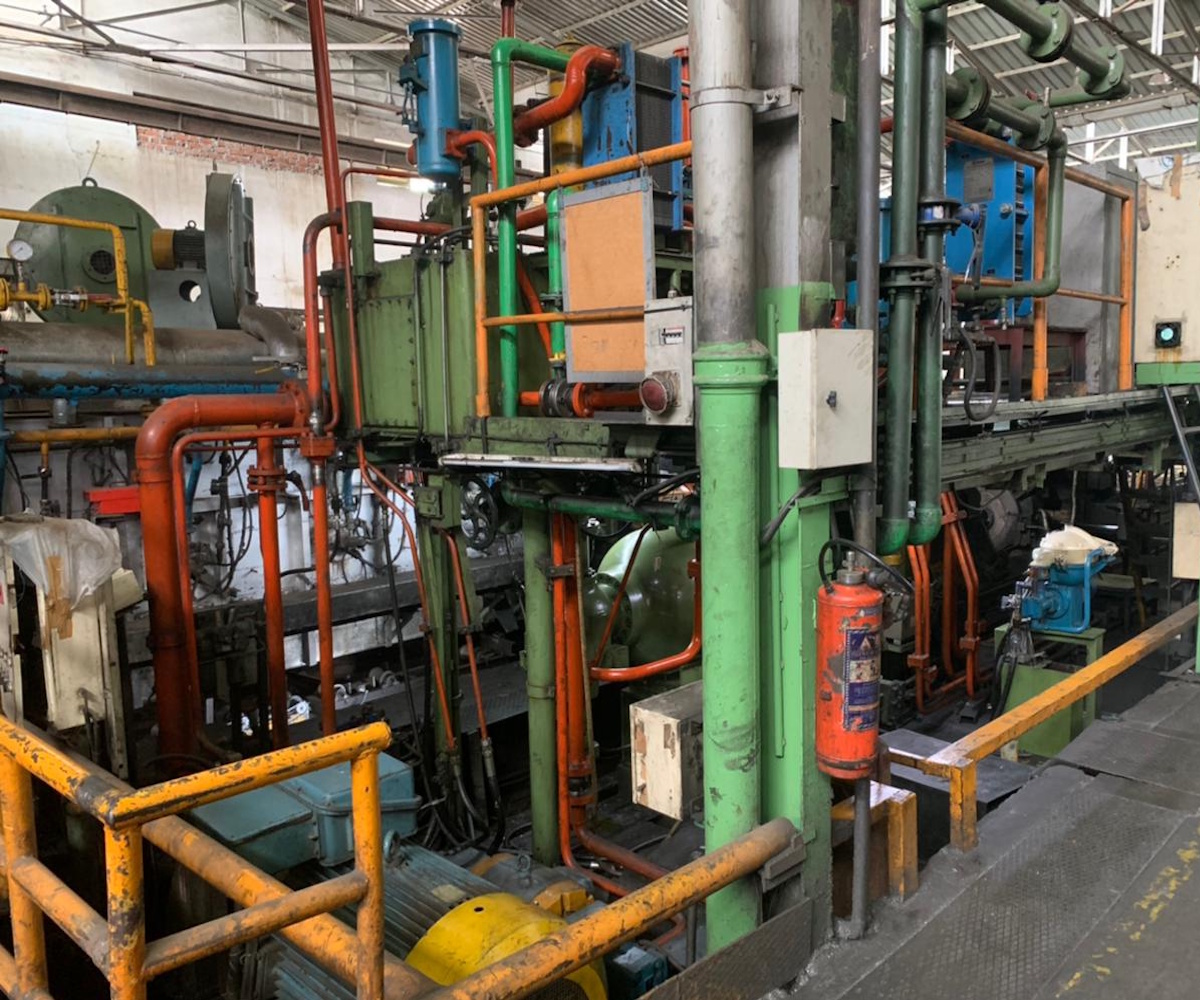

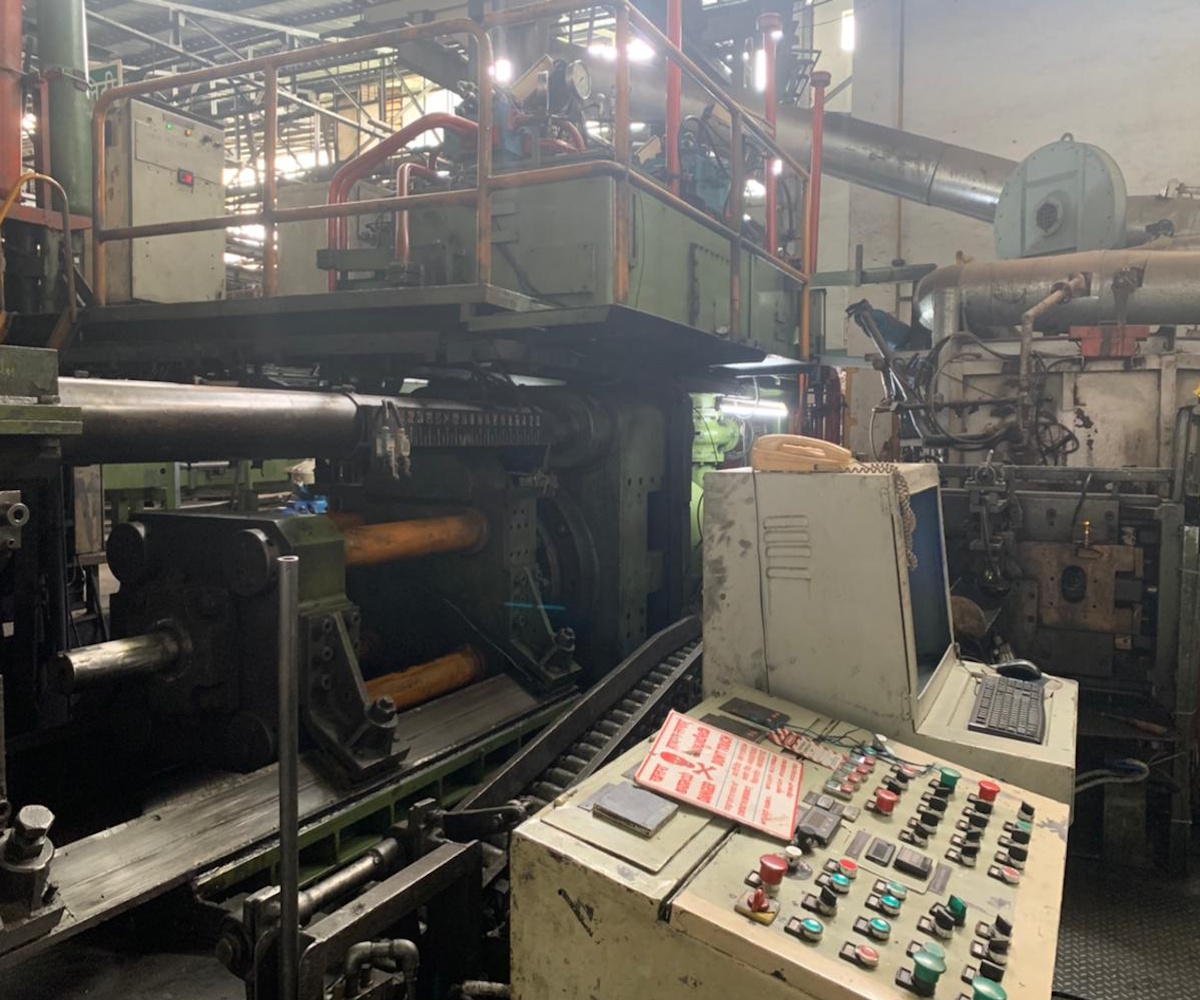

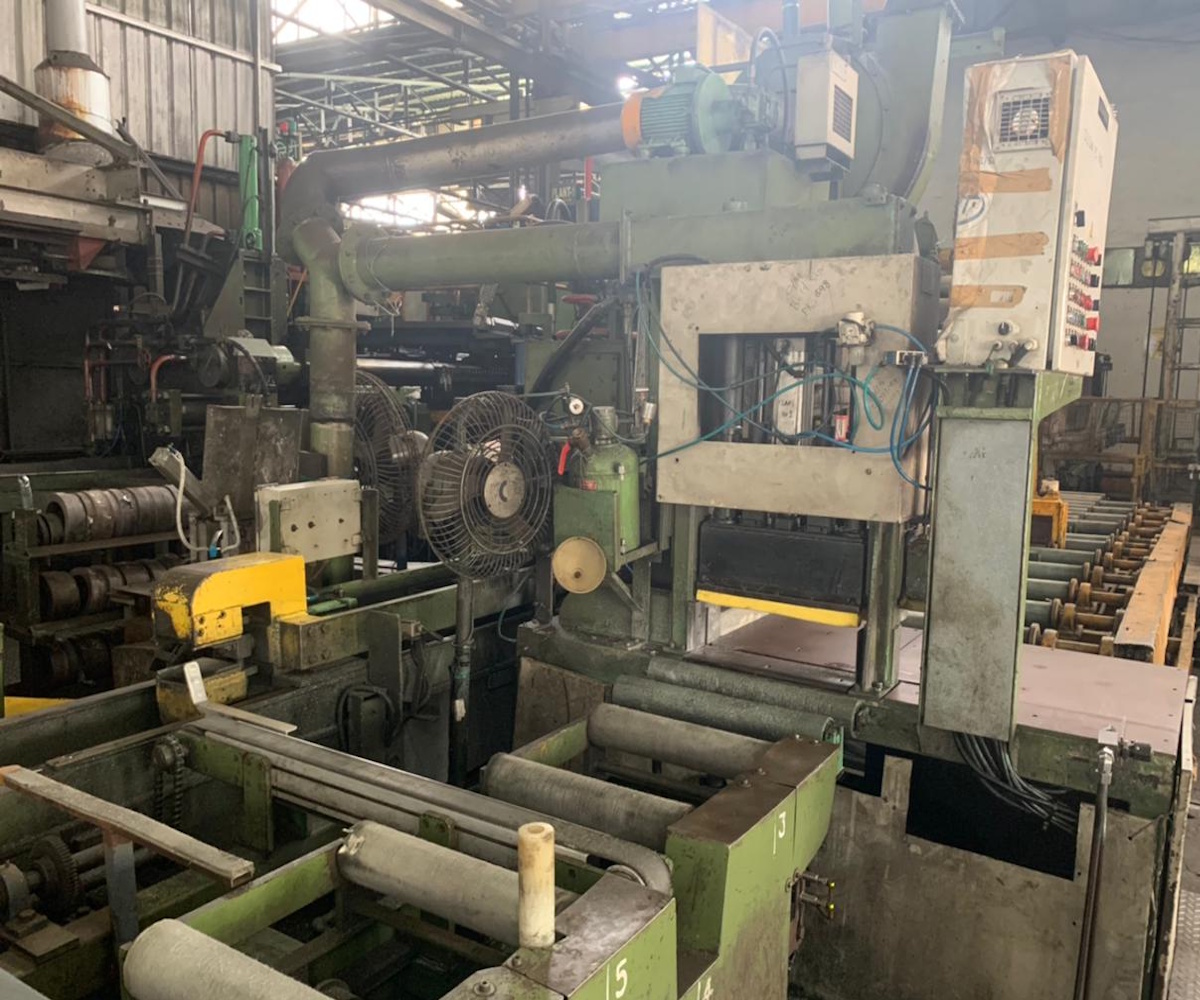

We have one Indian Jindal (1978) make 750 UST capacity aluminium extrusion press  along with complete accessories right from log heating furnace, hot shear, overhead puller, under-bed cooling system, run-out cooling bed, belt conveyor, stretcher, cutting machine, die oven including in feed and out feed roller conveyor table and gauge stopper.  In addition to this, we have a conveyor for moving the material for final packaging by the side of the press. Please note that the said press is in a very good working condition with the latest PLC Hydraulic (Up-gradation done in the year 2005) working continuously round the clock for about 10 to 15 days in a month.

Specification:

PRESS PARAMETERS: P1 (JINDAL - INDIA)
Weight per Inch of Billet 0.76 kg/inch
Container Diameter & Area 128mm.  12873 Sq.mm
Container length 410mm
Maximum Billet Lenght 420 mm. (16.5")
Minimum Billet Lenght 203 mm. (8")
Maximum Ram Speed 30mm/sec
Maximum Runout Length 33.8 Meters (111')
Dead cycle Time 14 Seconds
Tool Stack ø250x250mm long
Die Sizes mm. ø175mm
Unit Pressure 52.82 kg/Sq.mm
Stem Dia. ø122
HLS Bore ø 124
Sealing Pressure & Force 180 bar, 57MT
Main Pump Detail  500LPM.x1No.
Motor Detail (Rexroth make) 160Kw,1000RPMx1No.
Main Ram Dia 609.6mm
Main Ram stroke 970mm
Side Cylinder tonnage 90 MT.
Main Ram tonnage 640 MT.
Total lead-out table 10'-0"
Total cooling Bed length x Width 117' x 20'
PLC  Siemens make
