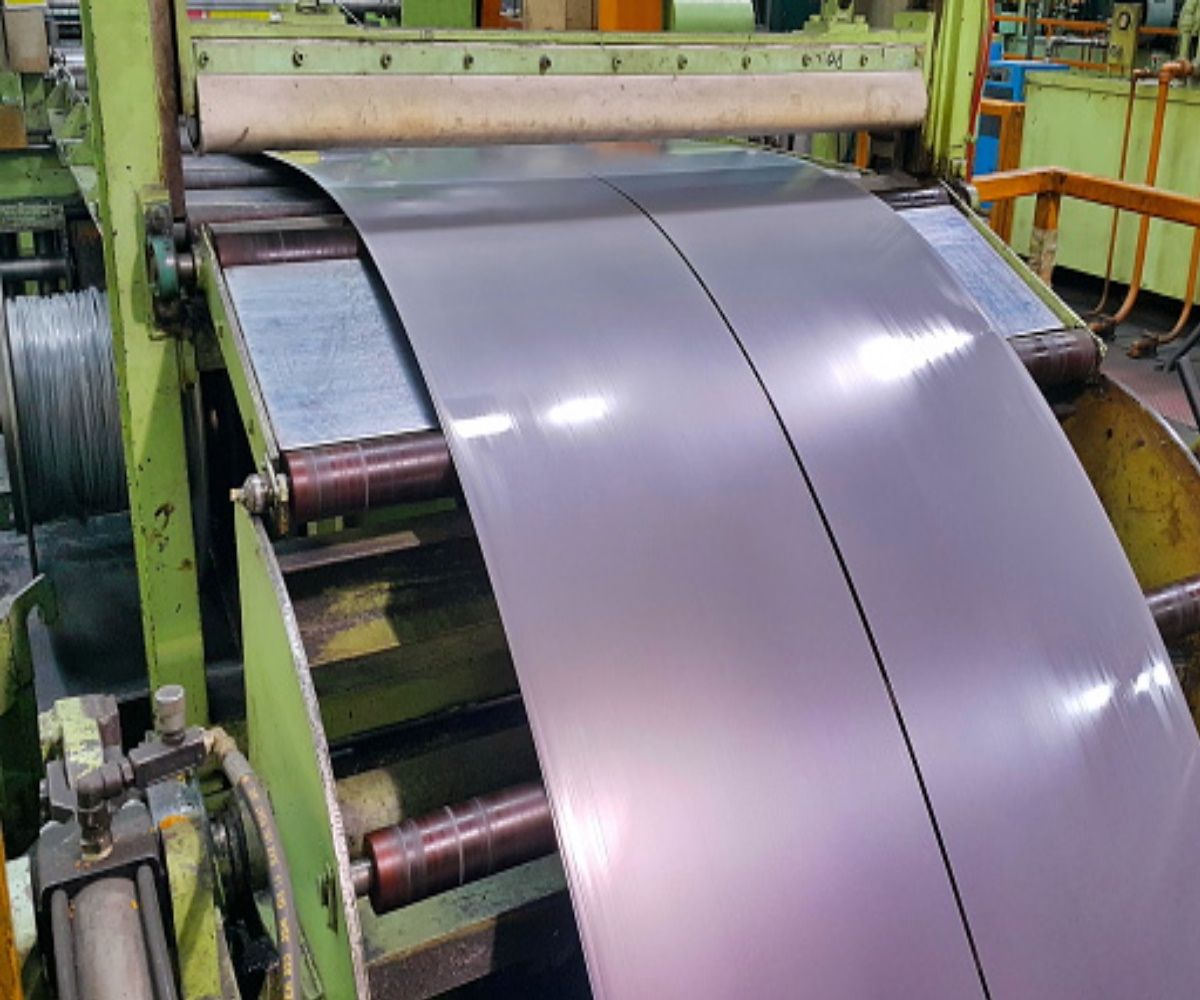

Second Hand Steel Strip Slitter

By: Alcircle Pte Ltd
Price USD 895,000.00
Built 2005
Status Still in operation
Material to slit Cold rolled steel coil, hot deep galvanized steel, carbon steel
Strip width 600 - 1680 mm
Thickness 0.3 - 3.2 mm
Coil weight (max) 20 MT
Line direction Left to right
Coil inner diameter 508 mm, 610 mm (rubber sleeve)
Coil outer diameter 800 mm - 2000 mm
Slitting speed 10 - 250 m/min

Details

Category Equipment
Manufacturer Daehyun Tech Co
Min Order Quantity 1.00 Unit
Place of Origin Germany

18.05.2024

Description

We have a sale offer of a second hand steel strip slitter.

Other Features:

Threading speed 20 m/min
Cutting system Pull & drive cutting system
Electric Power Input voltage:  AC 440 V, 60 Hz, 3 Ph
Control System DC power control
Slitting capacity :
Minimum slitting width 31 mm
Cut number max. 25 cuts x 24 strands



Standard of Threading :

Line centre strip thickness cutting system (mm) No of Cuts Line Speed
m/min
0.3 -0.5 drive cutting 25 250
0.6 -1.0 drive cutting 25 250
1.1 -1.5 drive cutting 15 200
1.6 -2.0 drive cutting 10 150
2.1 -2.5 pull cutting 6 135
2.6 -3.0 pull cutting 5 120
3.1 -3.2 pull cutting 5 100



Consist of:

  • Entry coil car with coil skid de-coiler with snubber roll
  • Drum support coil opener
  • Three bending roll side
  • Guide slitter spare slitter
  • Changing car
  • Scrap winder
  • Threading table with end pad
  • Loop table
  • Tension pad with separator
  • Pinch roll with table
  • Exit shear
  • Bridle roll with guide table
  • Recoiler with coil pusher & separator
  • Drum support
  • Recoiler coil car with coil skid
  • Hydraulic equipment
  • Pneumatic equipment
  • Slitting tools
