  • Second-hand In-Operations Aluminium Extrusion Press 8''- 2200 MT
Magic Zoom small image

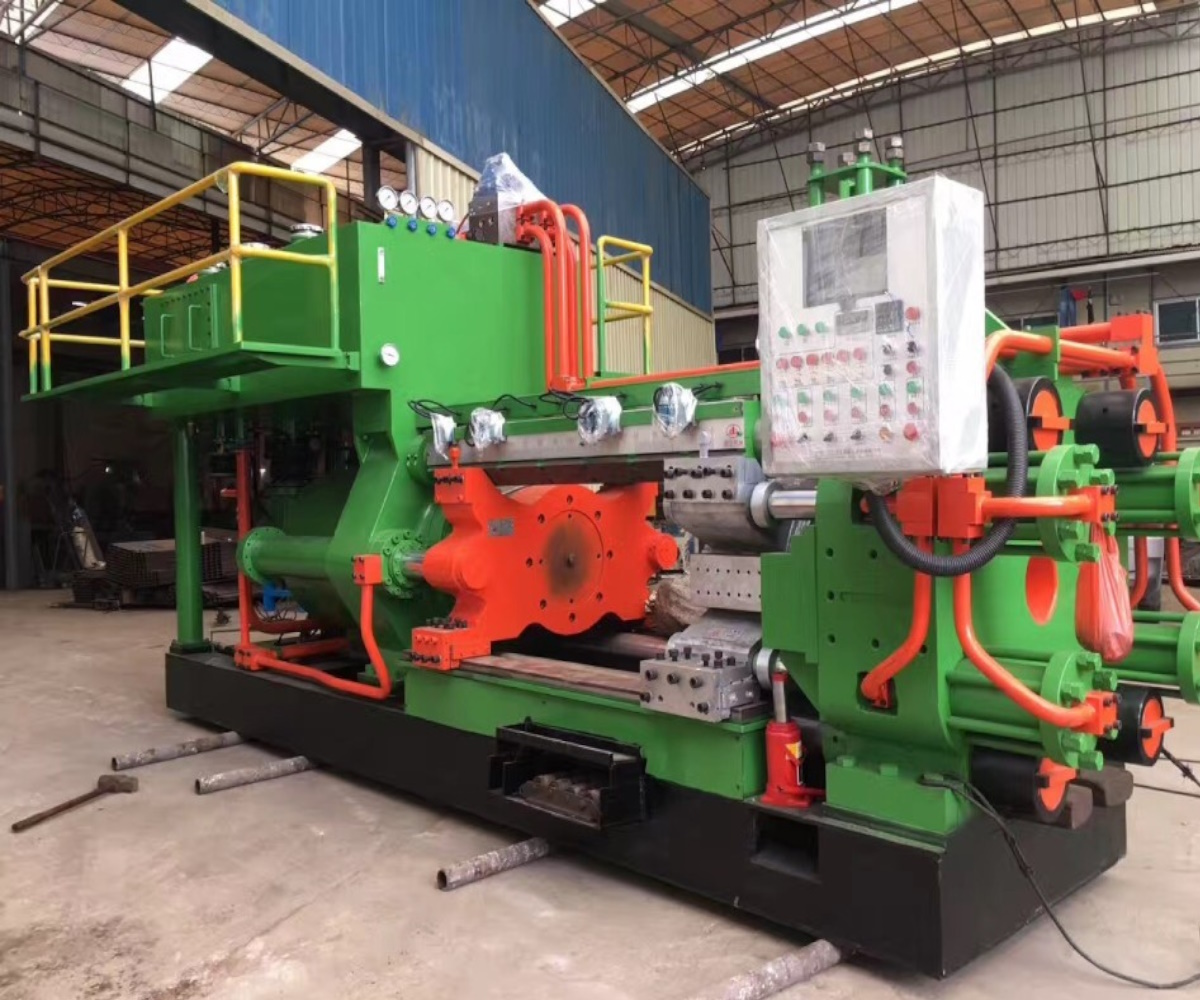

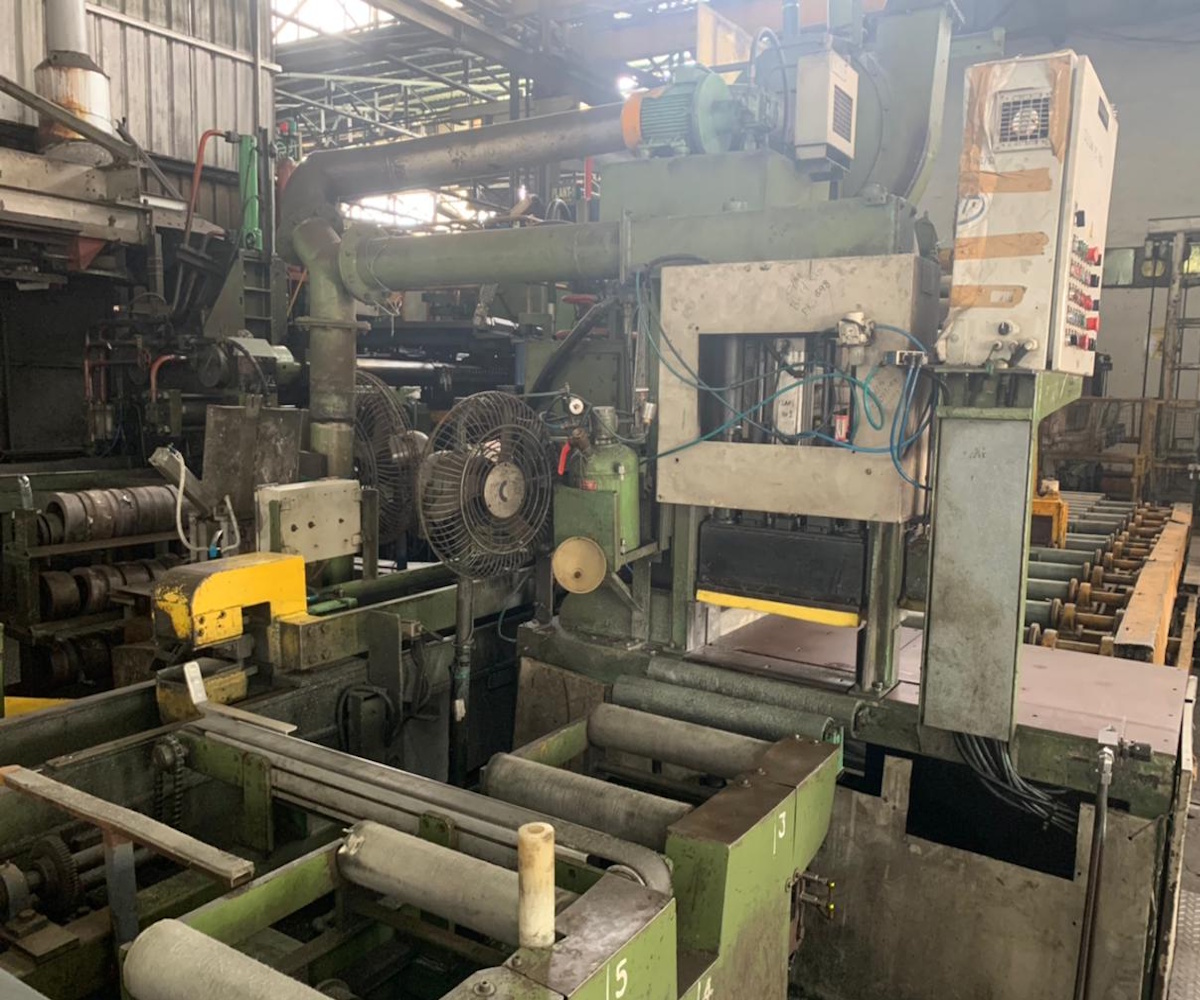

Second-hand In-Operations Aluminium Extrusion Press 8''- 2200 MT

By: Alcircle Pte Ltd
Price Available on request
Start of Dismantling 21.05.2024
Built 2016
Status Still in production until 01/2024
Max. Extrusion Force 21,9 MN at 300 bar
Max. Working Pressure 310 bar
Type of Press Back loading with 2 containers
Billet length 300 - 1,200 mm
Scope of Supply Complete extrusion press in working order with hydraulic and electric system
Main Piston diameter 930 mm
Side Cylinders diameter 180 mm

Details

Category Equipment
Manufacturer Breda Danieli
Min Order Quantity 1.00 Unit
Place of Origin France

13.03.2025

Description

We have a sale offer for an second hand aluminium extrusion 8'' - 2200 MT.

Other Sepecification:



Out of the Scope of Supply Floor frame mounted in the concrete floor all dies and tooling bolsters
Extrusion Speed ( Max) from 0 to 180 bar: 25 mm/s -
from 180 bar to 315 bar: 25 to 13 mm/s
Dead Cycle Time with short burp = 18 sec
with long burb =16 sec
Container Cylinders 4 x 160 x s300 mm
Butt Shear Cylinder 150 x 110 x s600 mm
Die Change 2 cassettes 2 positions roto station
Vertical butt shear with butt ejector
Hydraulic System Tank Assembly Type
