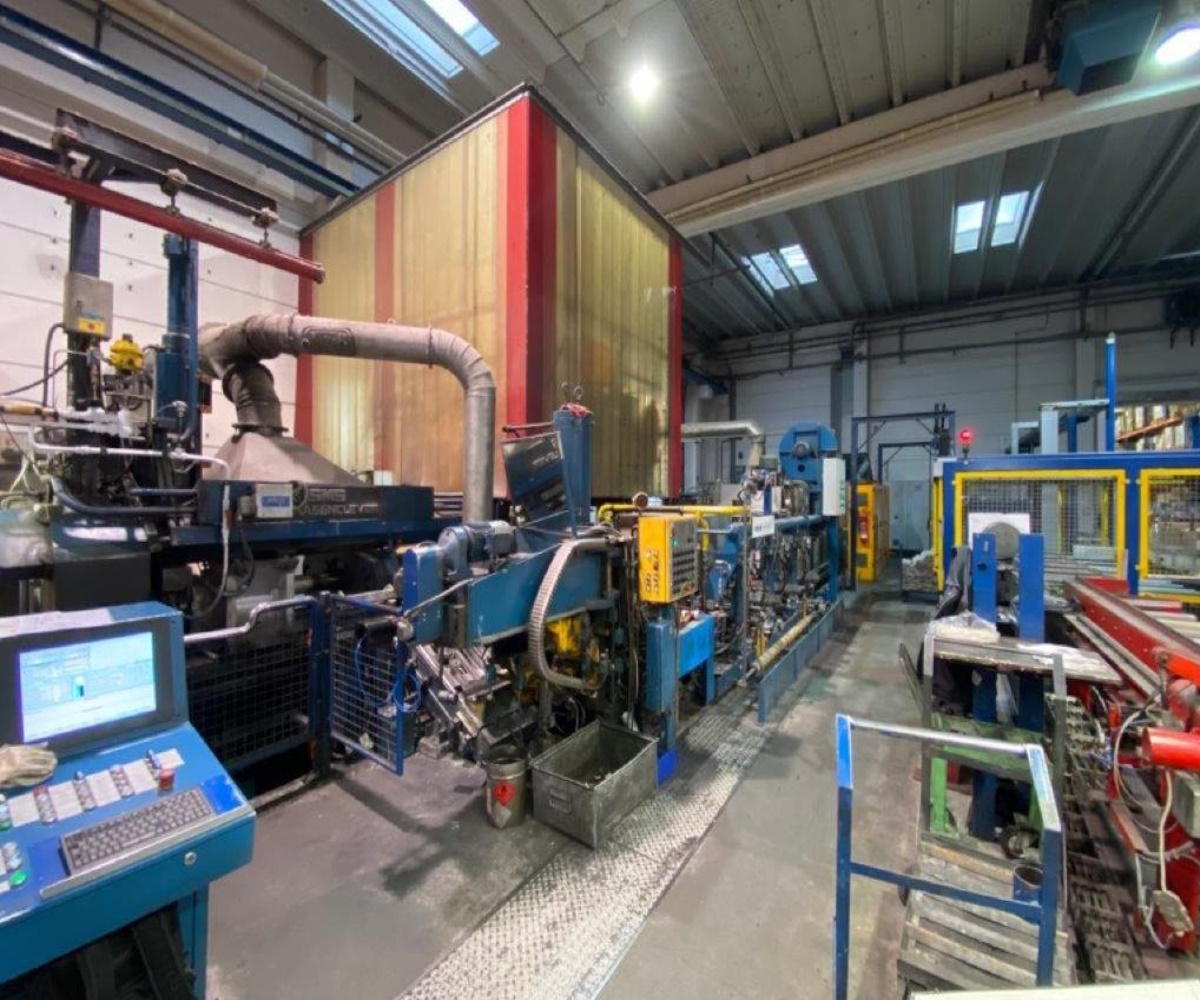

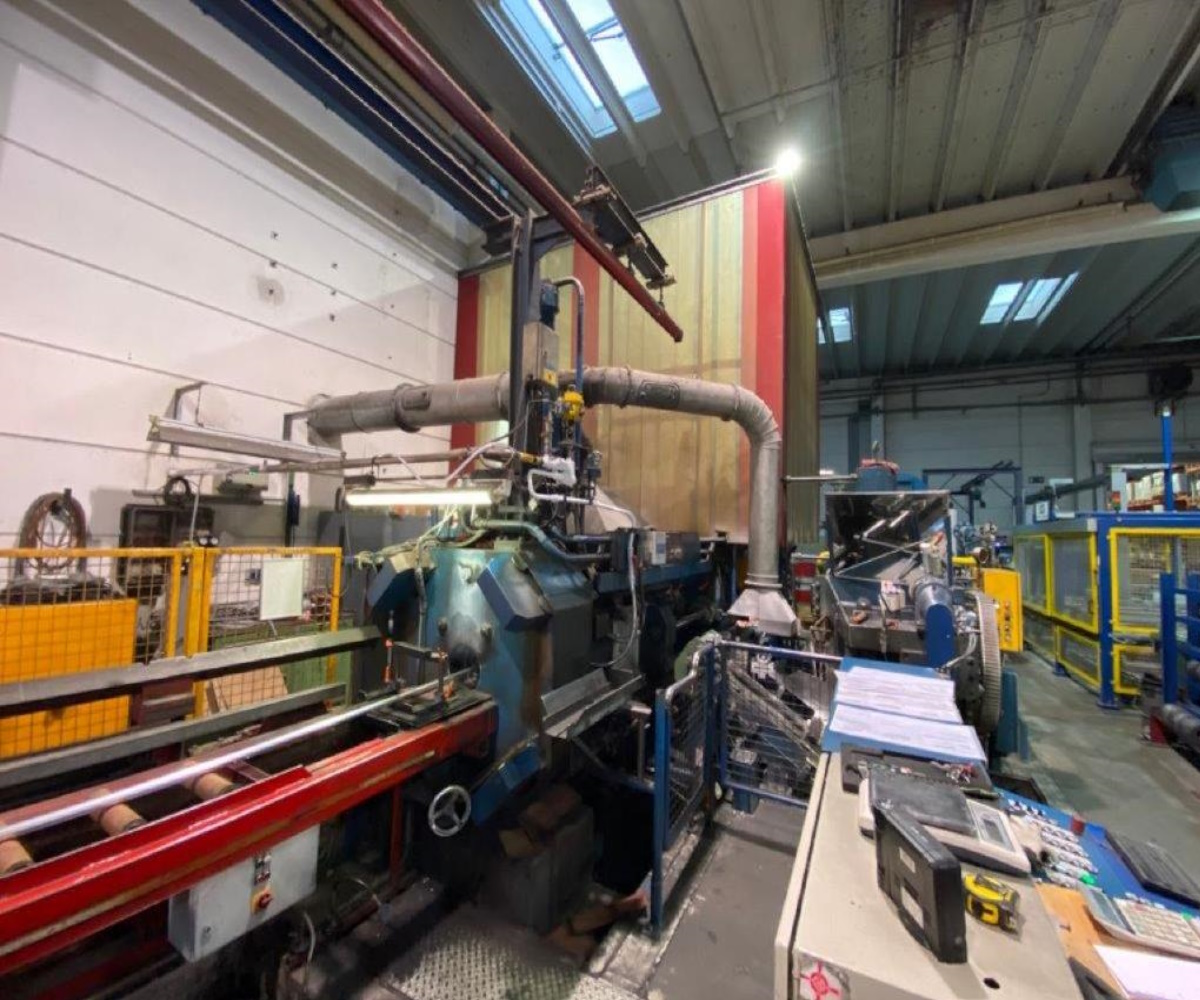

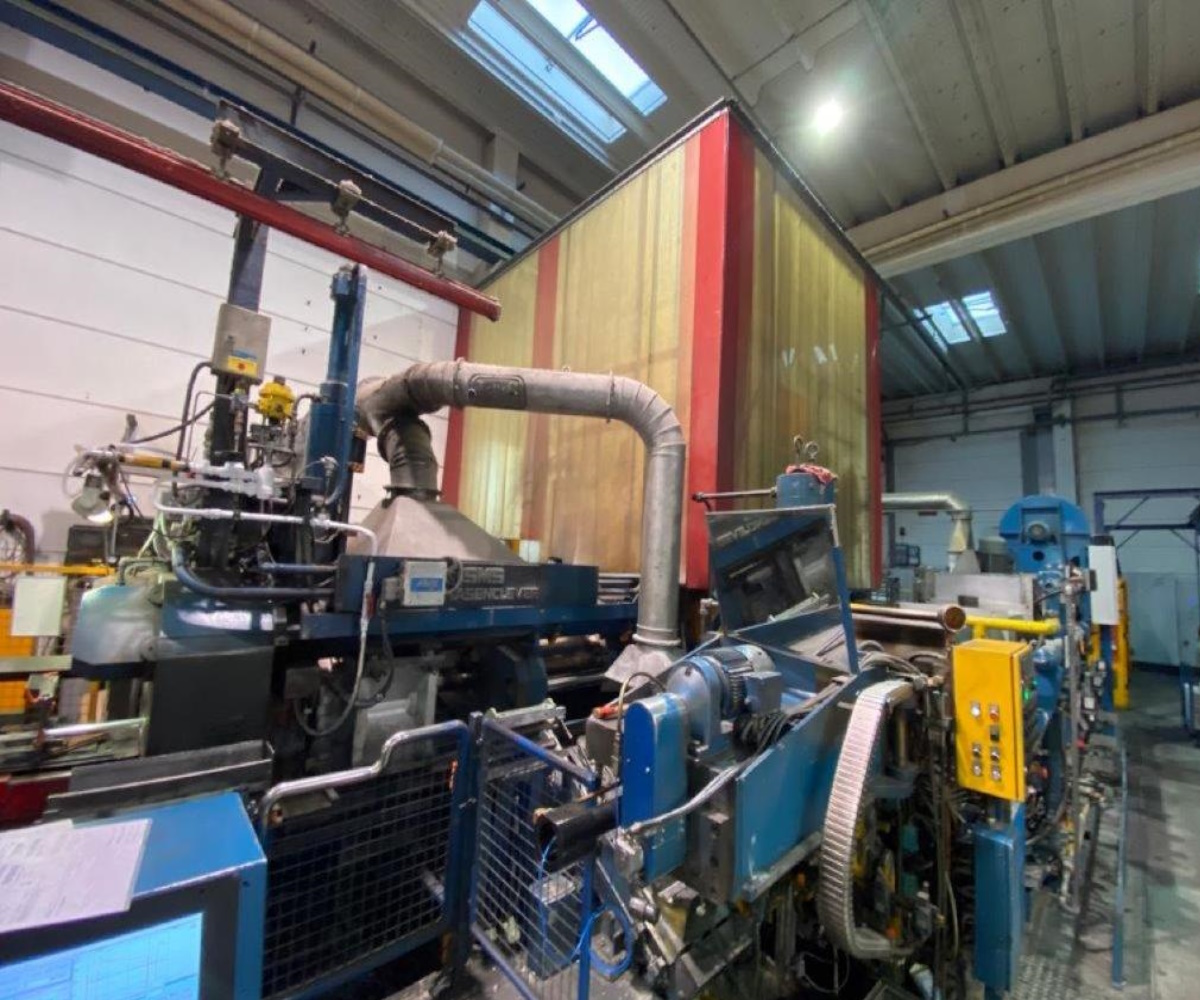

Second-hand Extrusion Press including Log Furnace

By: Alcircle Pte Ltd
Built 1986
Force 960 MT (9.3 MN)
Press Jaw
Wide 155 mm
Height 140 mm
Max.inlet 130 mm (144 mm block, 5 mm protection per side)
Recipient 149,9 mm
Extras Heatable tool cassette from Marx (installed 2016)
Category Equipment
Manufacturer SMS
Min Order Quantity 1.00 Unit
Place of Origin Europe
05.06.2025
Description

We have a sale offer of a second-hand extrusion press including log furnace that is immediately for sale.



Other features :

Punch press disc 149,2 mm
Broaching disc 150 mm
Billet Ø 144 mm
Length 265 – 540 mm
Log length 3000-4800 mm

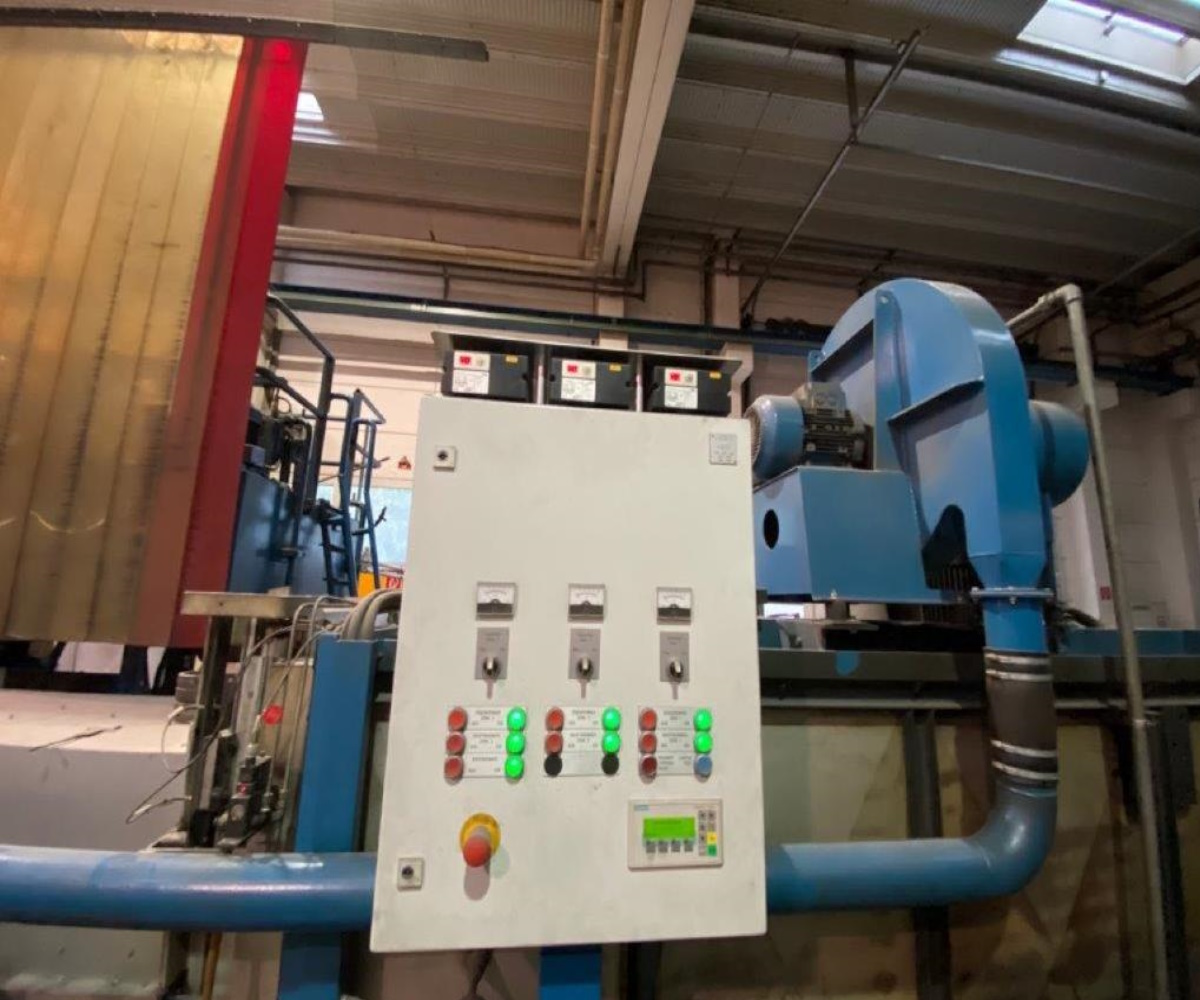

Log Furnace
Mfc. Extrutec GmbH
Temperature 480-520 °C
Zone 1 460-490 °C
Zone 2 440-470 °C
Zone 3 400-450 °C
Table Weight Max. 1350 g/m
Min. 80 g/m

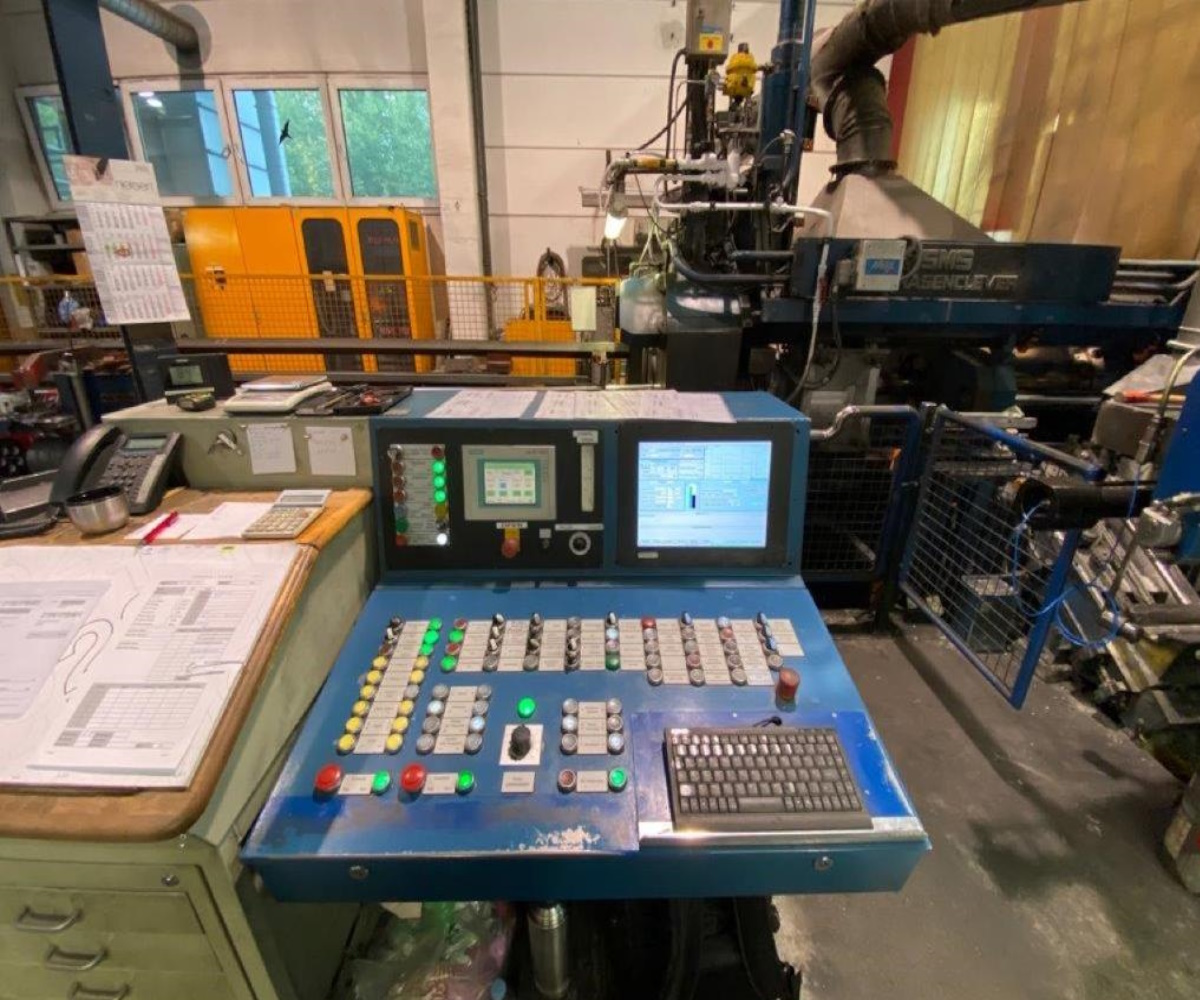

  • Electrical control cabinet
  • Puller
  • Exhausting System
  • Cooling Device
  • Spare parts for furnace combustion air
  • Spare parts head burner
  • Spare parts oven stove bowls
  • Spare parts press and furnace electrical
  • Tool holder 20 pieces
  • Broaching disc 4 pieces
  • Pressing discs 3 pieces
  • Second Container
