Used Hot Rolling Mill (800 mm x 1500 mm)

By: Alcircle Pte Ltd

Rolling Material	Aluminium and aluminium alloy: 1000, 3000, 5000, 6000, 8000 series
Rolling Speed	0/40/120
Maximum Opening of Rolling Mill	400 mm
Rolling Force	Maximum 12000kn
Main Motor	z710-3p 1450 kw
Power Supply	AC380V, 50Hz, three-phase: AC220V, 50Hz, single phase
Category	Equipment
Manufacturer	Shaanxi Calendering Equipment Factory
Min Order Quantity	1.00 Unit
Place of Origin	India

Send response to similar sellers

Details

Valid Upto

02.07.2025

Description

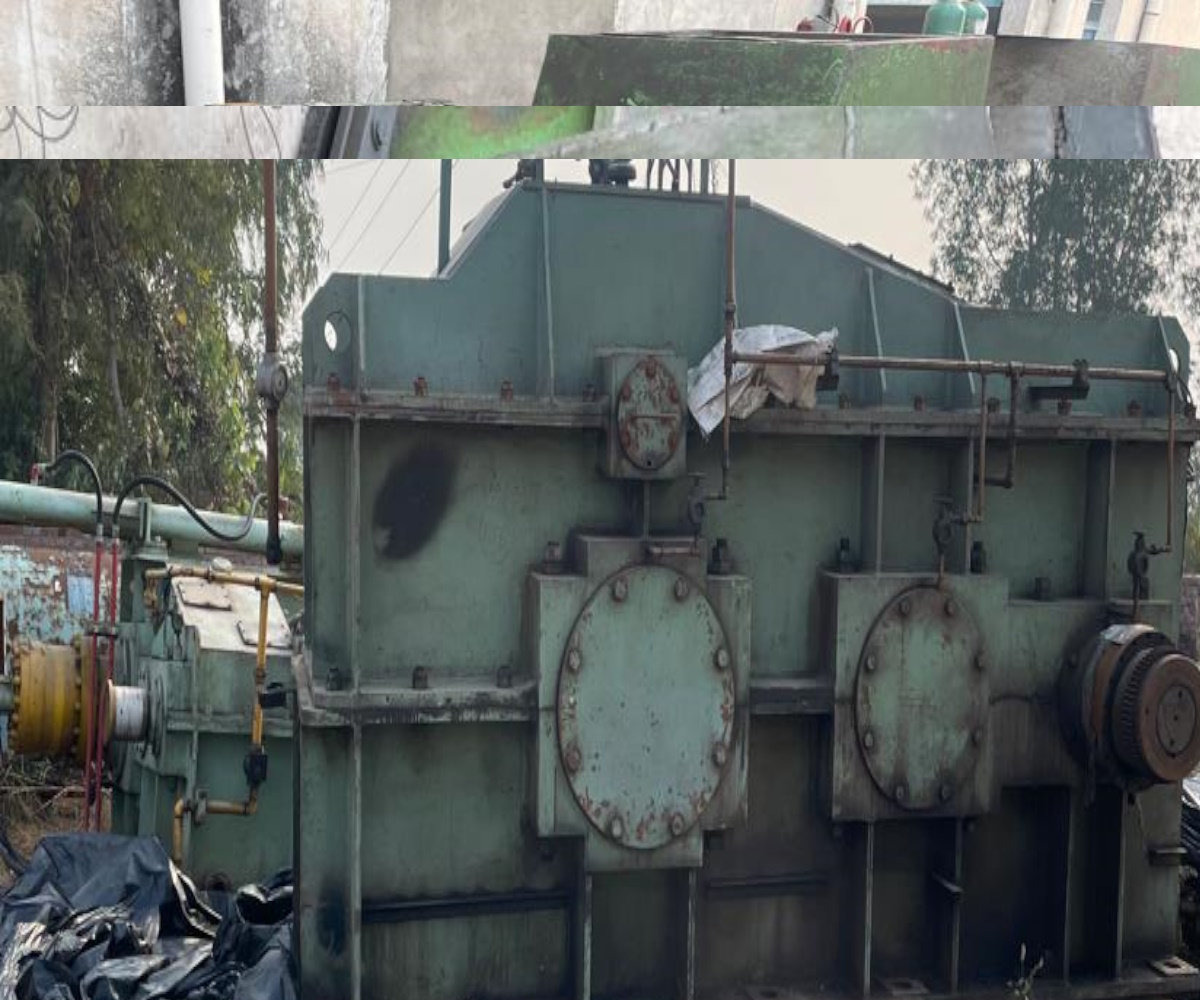

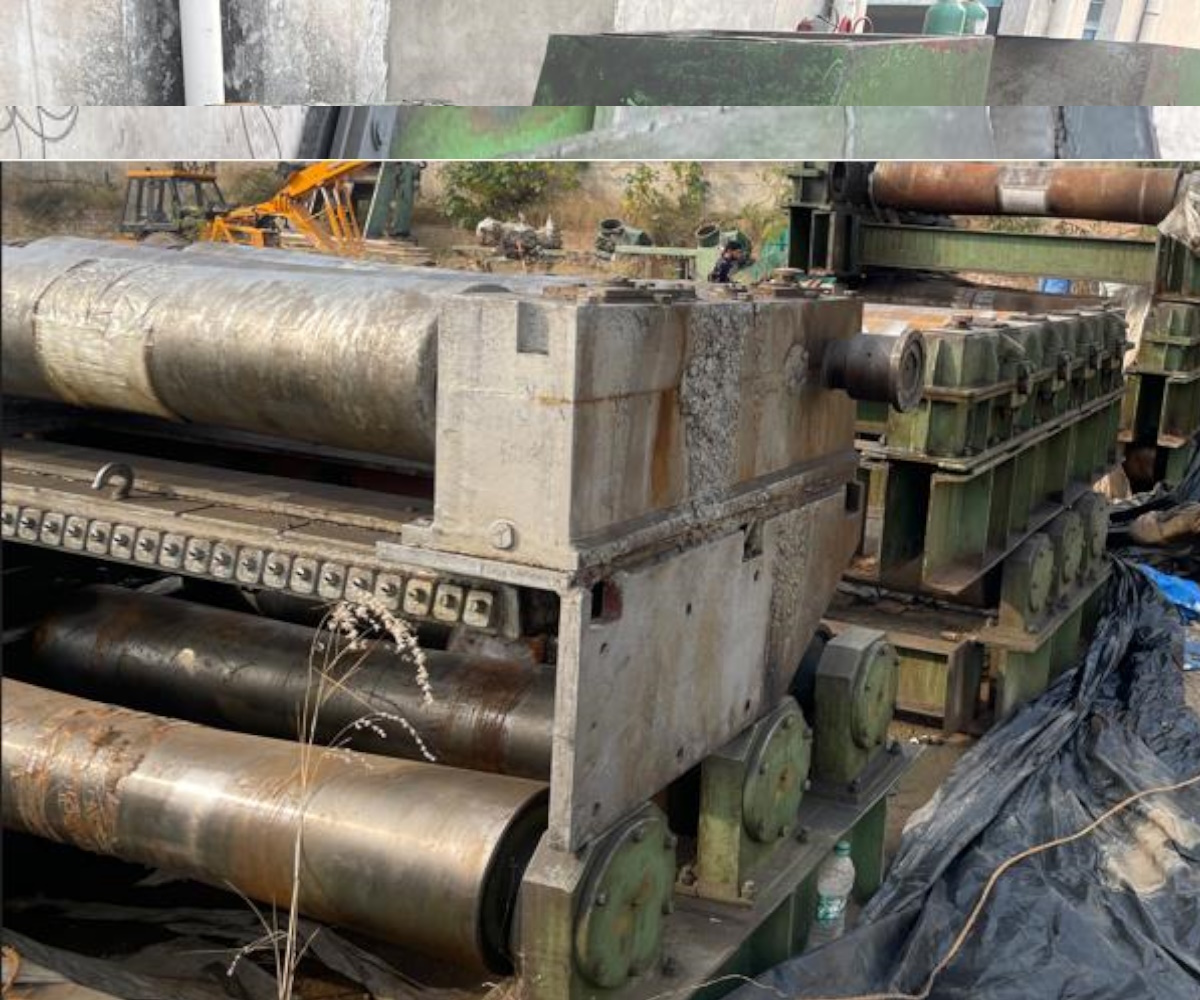

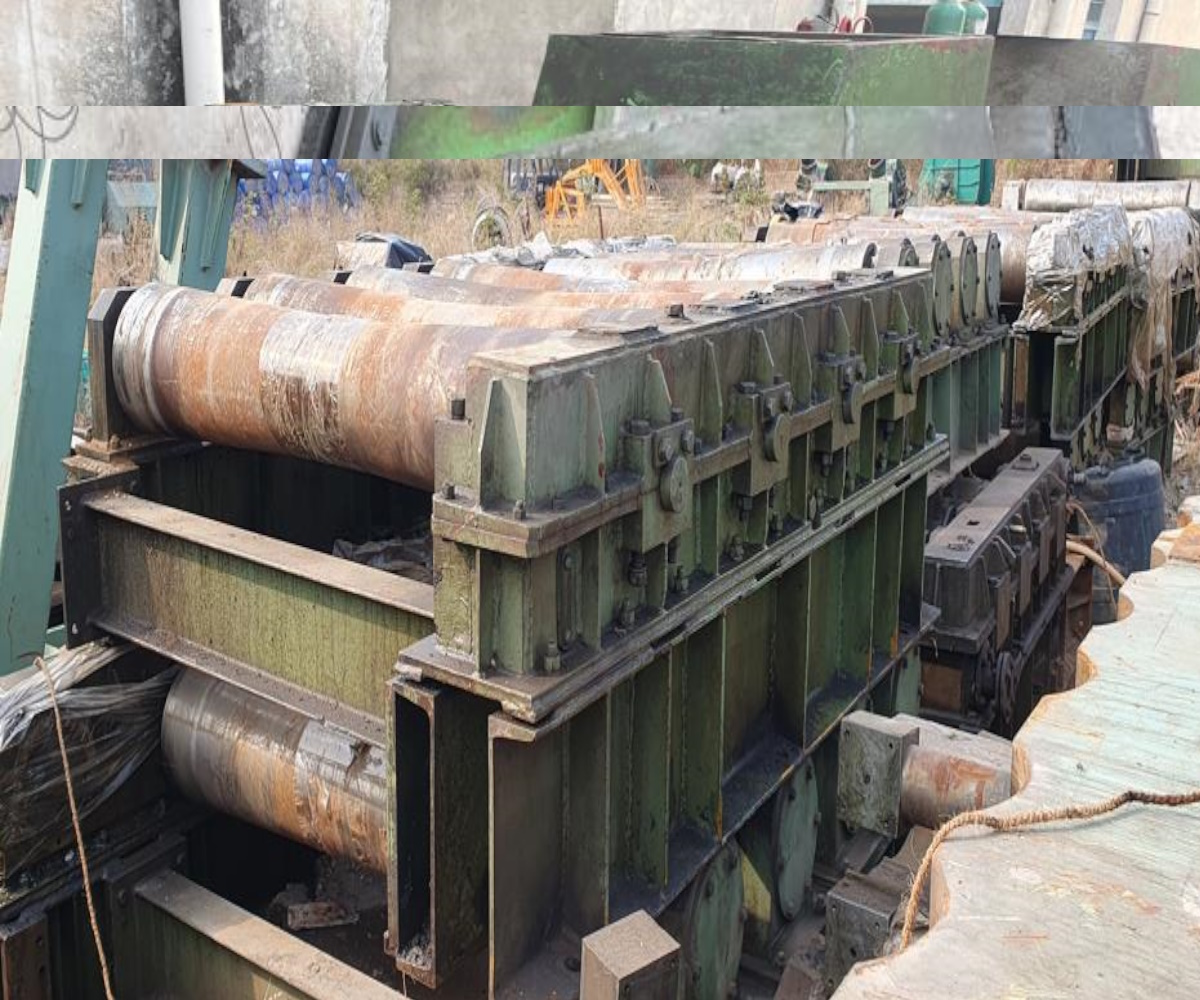

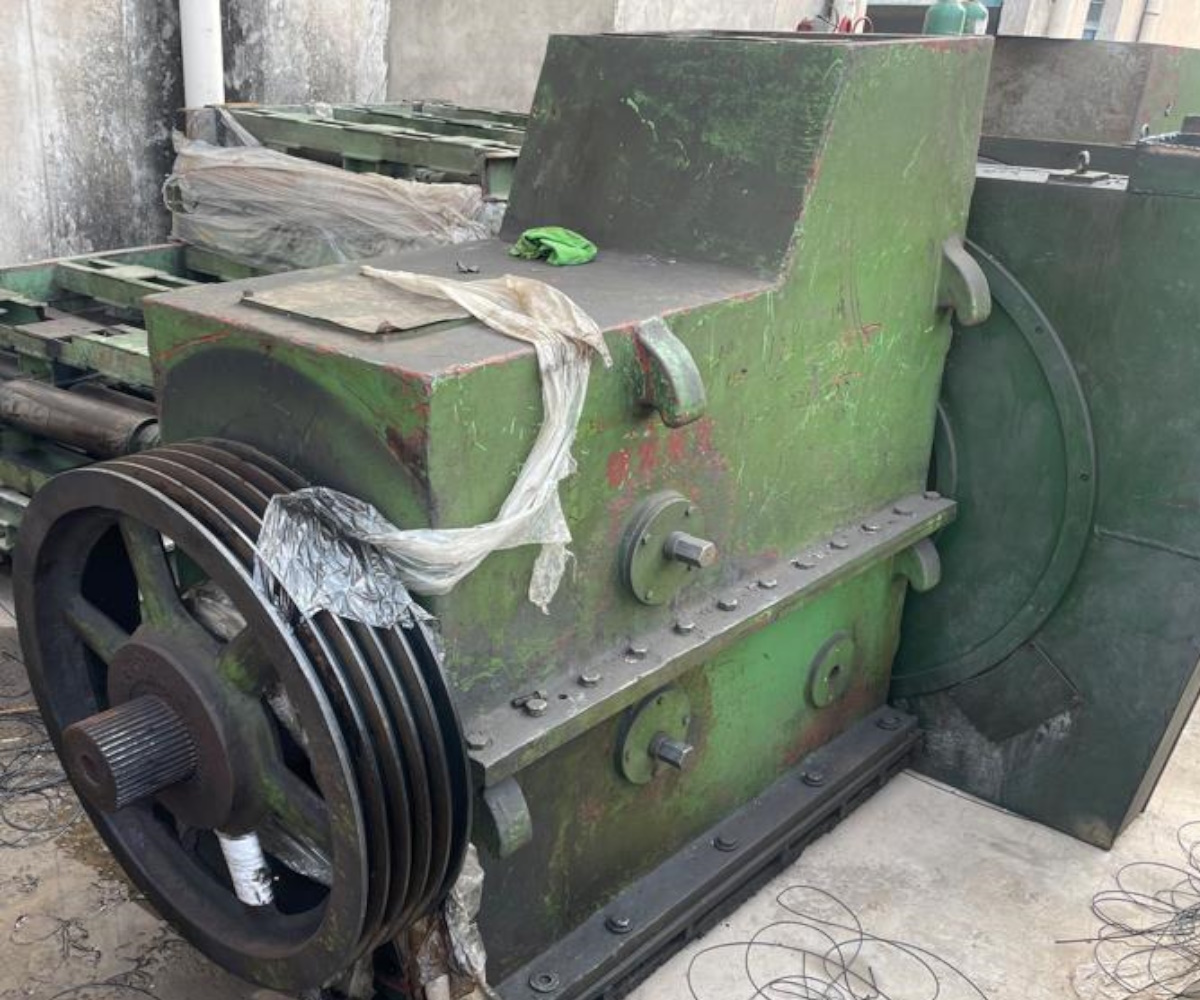

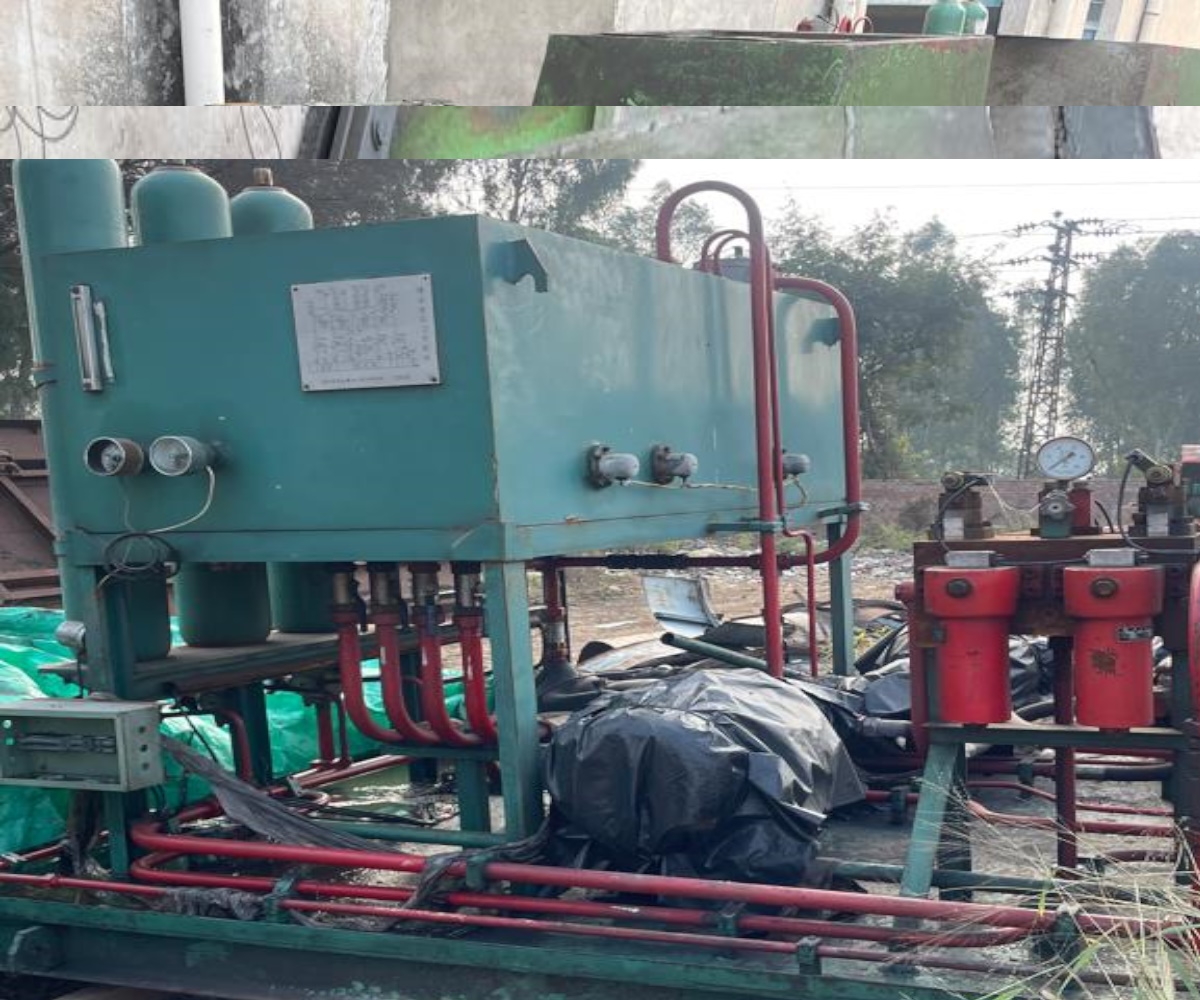

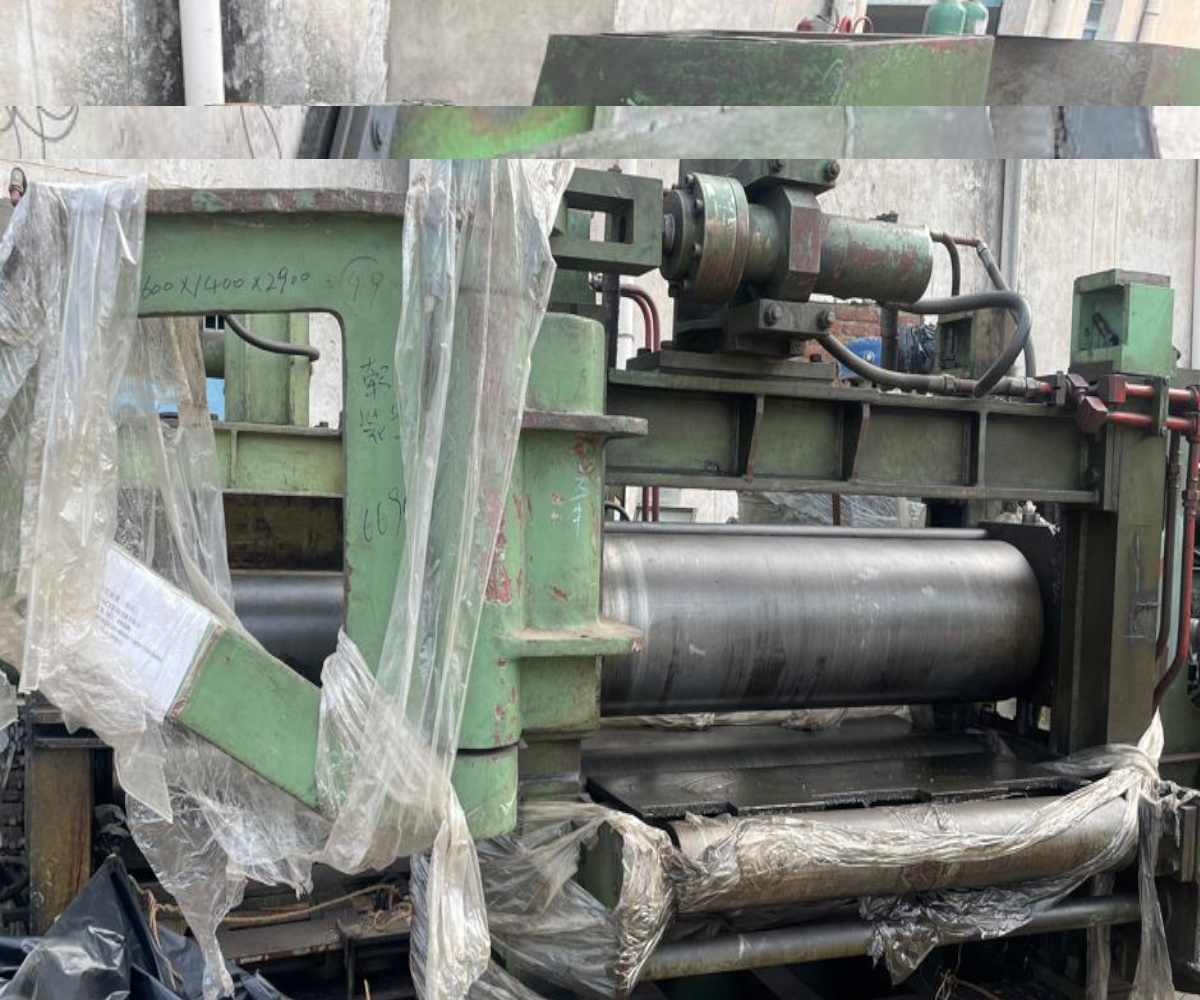

We have sale offer of Used 800 mm x 1500 mm Hot Rolling Mill.

Purpose of the Equipment :

It is used to mill both sides of aluminium ingot/slab. For hot rolled aluminium and aluminum alloy plates, the maximum thickness is 300mm and the minimum thickness is 5.5mm.

Main Technical Parameter
Ingot Thickness	250 mm - 400 mm
Ingot Width	700 mm - 1250 mm
Ingot Length	4000 mm - 5000 mm
Weight	7000 Kg


Hot Rolled Plate
Thickness	6 mm -20 mm
Width	600 mm - 1380 mm
Length	500 mm - 2000 mm
Height	Upto 800 mm
Weight	7 MT max


Hot Rolled Coil
Thickness	6 mm -12 mm
Width	600 mm - 1380 mm
Inner Diameter	510 mm
Outer Diameter	ф1500 mm (max)
Weight	7000 Kg
