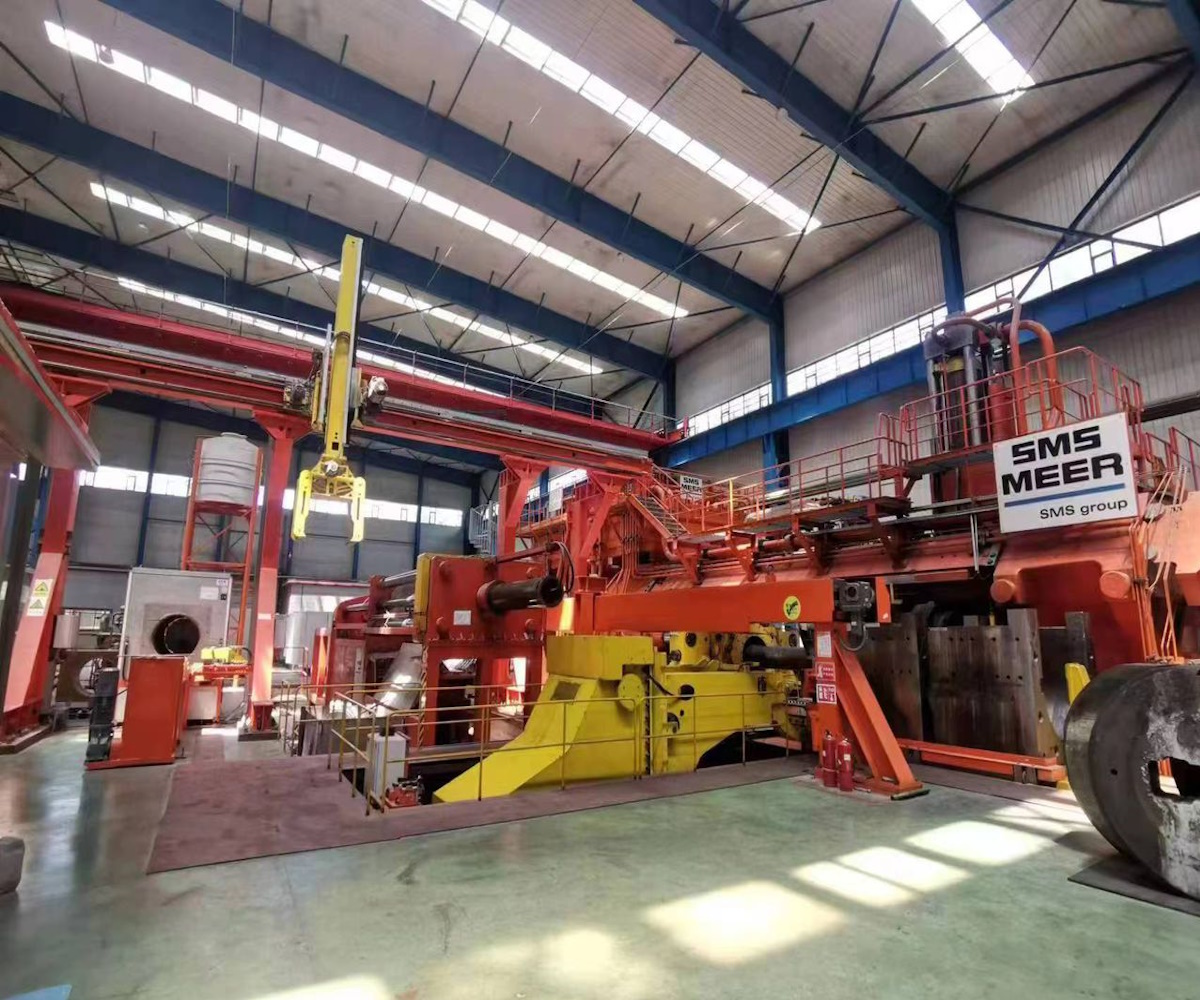

Second-hand 160 MN Horizontal Direct Single Action Extrusion Press

By: Alcircle Pte Ltd
Price Available on request
Force 16000 MT
Built 2015/2016
Billet diameter 610/720 x 750 - 2500 mm
Scope of supply Induction Billet Furnace, Quenching System, Die- oven Billet Peeling Machine, Profile Stacker, Finishing Saw
Category Equipment
Manufacturer SMS
Min Order Quantity 1.00 Unit
Place of Origin Germany
10.11.2025
Description

We have a sale offer of Second-hand 160 MN Horizontal Direct Single Action Extrusion Press.

Technical Specification :

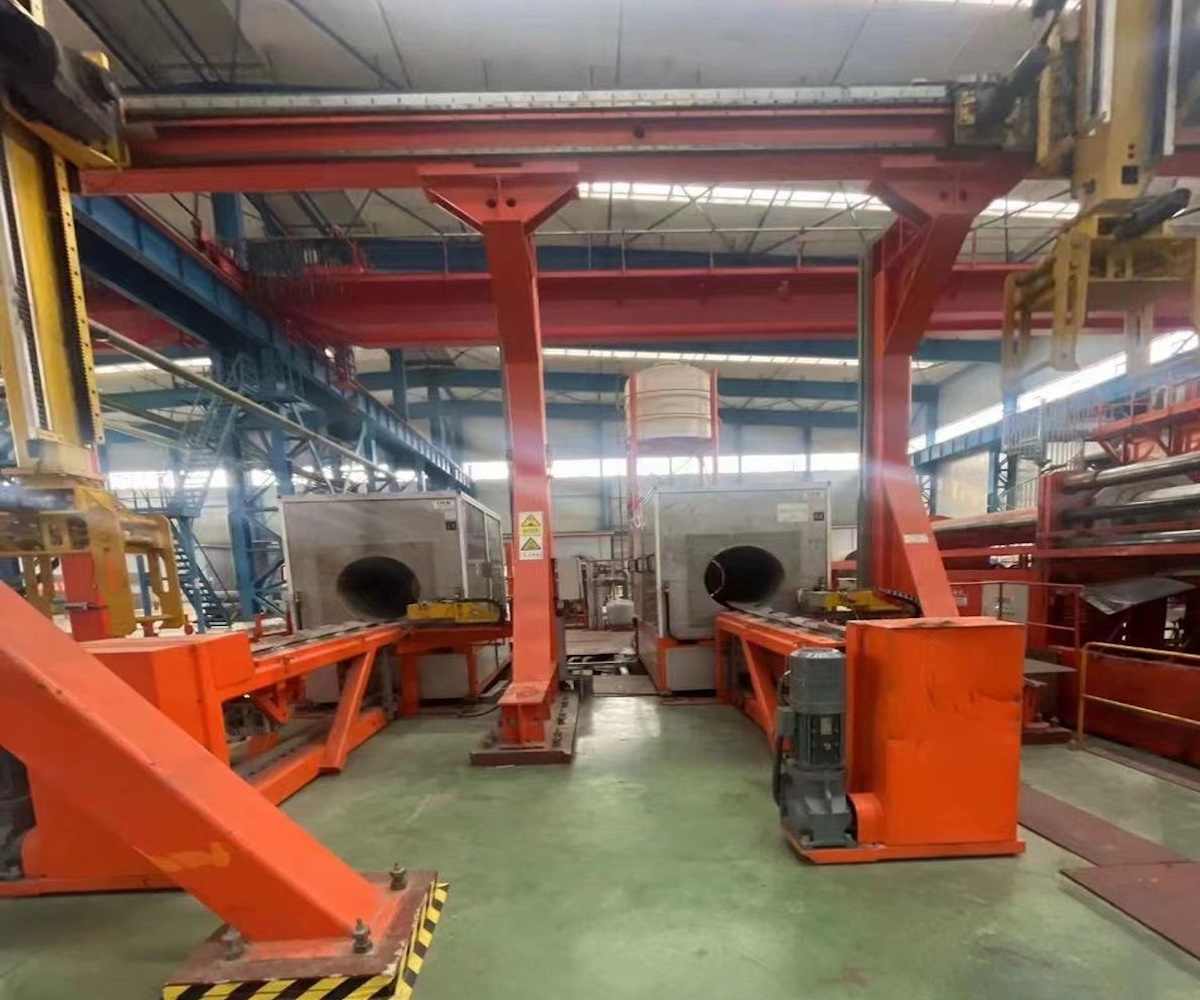

Induction Billet Heater
Manufacturer IAS
Billet Diameter 610  / 720 x 750 - 2500 mm
Heating Temperature (max) 570 °C
Extrusion Press
Manufacturer SMS
Extrusion Force 16000 MT
Main Cylinder 13560 MT
Side Cylinder 2440 MT
Working pressure 31 MPa
Main Cylinder Diameter 2360 mm
Side Cylinder Diameter 360 mm x 4 pcs
Return Force 10.8 MN (10800 MT)
Extrusion Stroke 3700 mm
Billet length 900- 2500 mm
Container Inner Diameter 615 / 735 mm
Extrusion Speed 19.5 mm/sec

Quenching System
Manufacturer OMAV
Profile Height ( max) 750 mm
Profile Width( max) 1150 mm
Roller Width 1300 mm
Roller Gap 400 mm

Run-Out Table
Manufacturer SINO-HEAVY MACH
Total Dimension 140 x 31 m
Initial Table Length 58 m
Stepping Speed 20 m/min

Stretcher
Manufacturer SINO-HEAVY MACH
Stretching Force( max) 12 MN
Stroke ( max) 2500 mm
Profile Length 8 - 58 m

Finishing Saw
Manufacturer SINO-HEAVY MACH
Saw Blade Diameter 2100 mm
Infeed Speed 20-200 mm
Cutting Range ø750/200 * 1150 mm

Profile Stacker
Manufacturer SINO-HEAVY MACH

       Die Oven Billet Peeling Machine
Manufacturer Zhujiang
