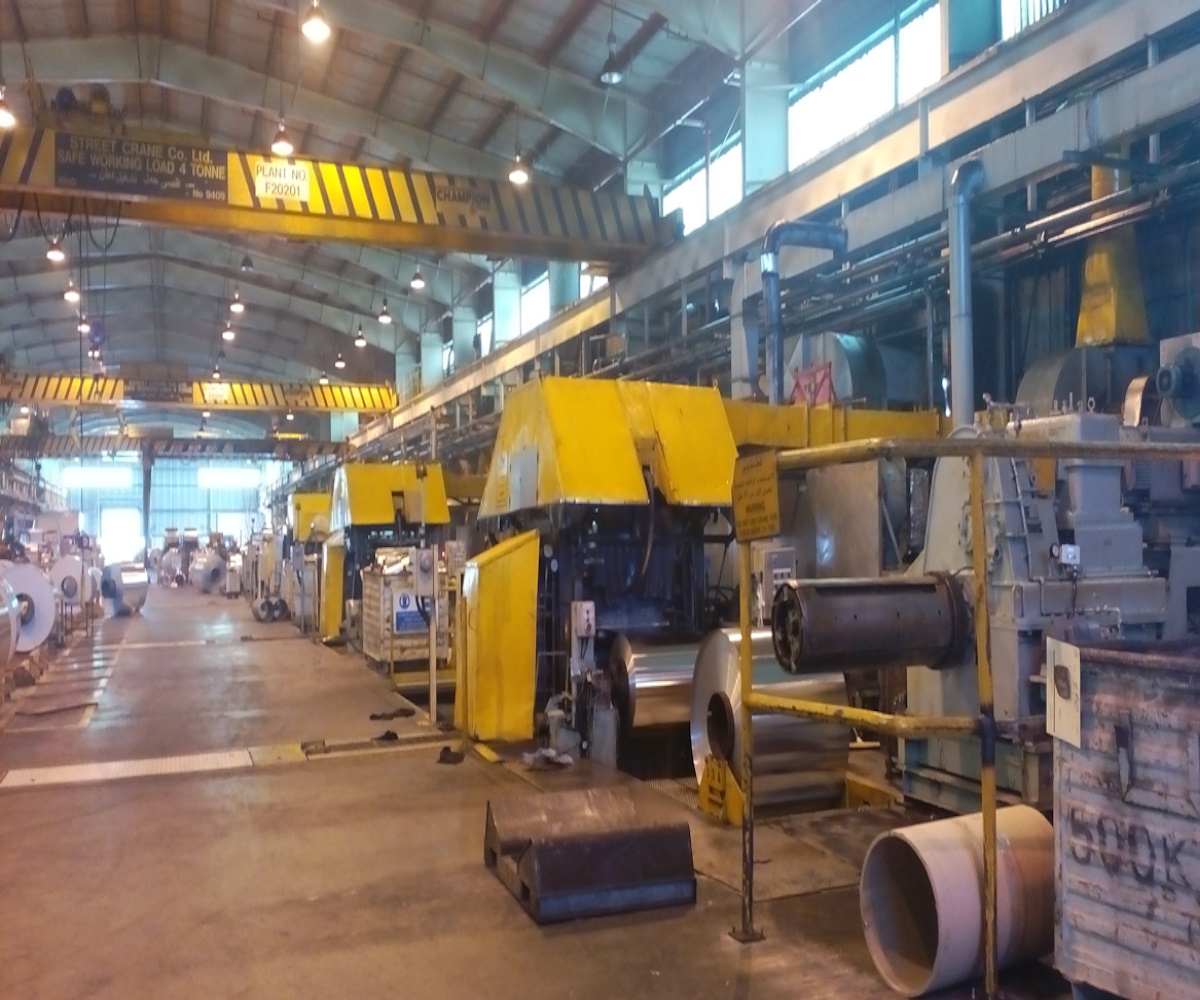

Second-hand Aluminium Foil Rolling Mill Plant
By: Alcircle Pte Ltd| Built | 1962-1989 |
| Foil Width | 850 mm |
| Entry Thickness | 0.4 mm |
| Exit | 2 x 7 microns |
| Scope of Supply | |

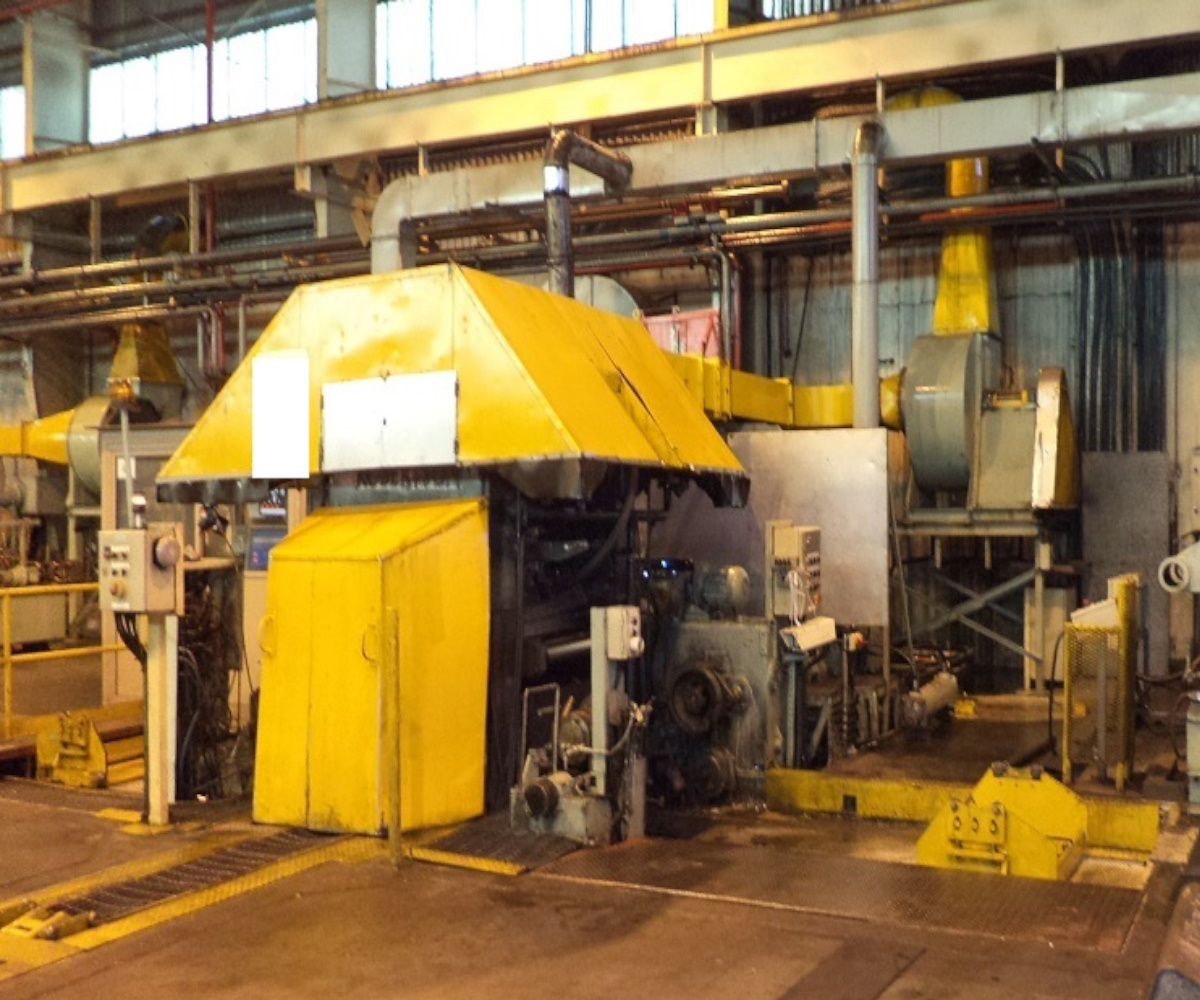

| Roughing Foil rolling mill: 4-Hi | |
| Intermediate foil mill 4-Hi | |
| Finishing foil mill 4-Hi | |
| Slitters - Qty. 4 | |

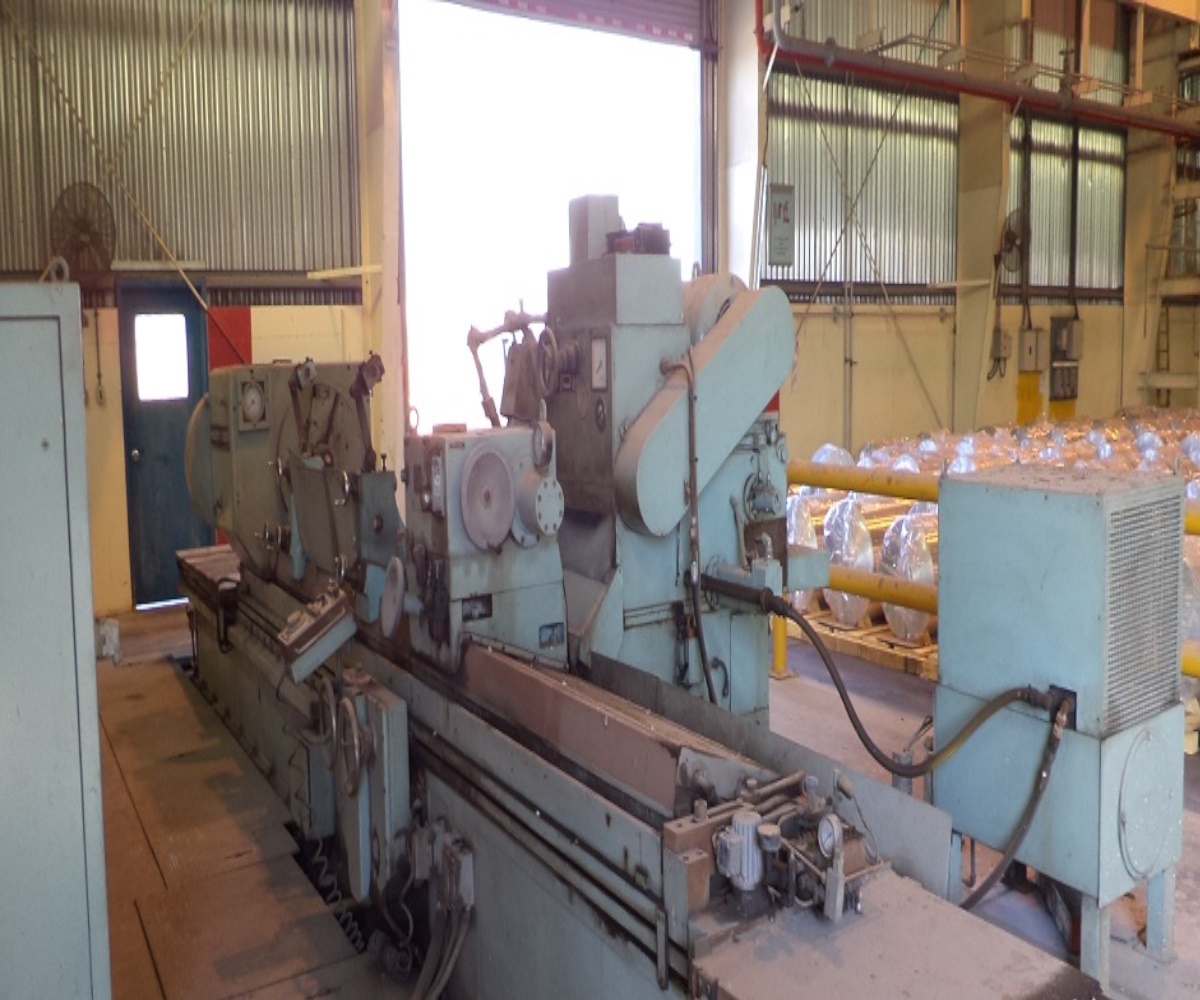

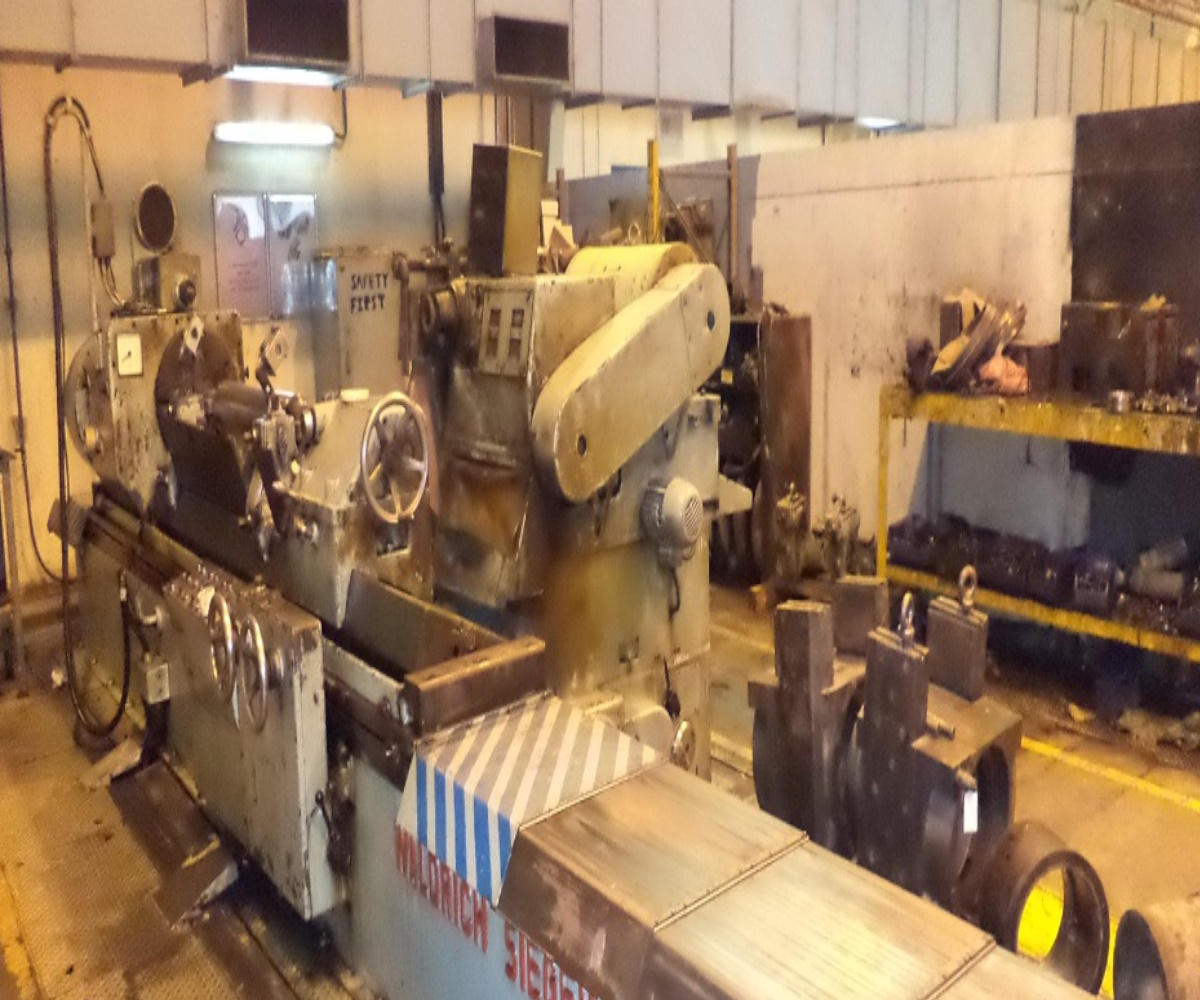

| Roll grinders - Qty. 2 | |
| Annealing furnaces - Qty. 4 | |
| Category | Rolling Mill |
| Manufacturer | Robertson, Kampf, Schmutz, Nishimura, Waldrich-Siegen, Otto-Junker |
| Min Order Quantity | 1.00 Unit |
| Place of Origin | Germany |
10.11.2025
Description
We have a sale offer for Second-hand Aluminium Foil Rolling Mill Plant.
| AGC System | |
| Manufacturer | Thermofaher |
| Installation Year | 2014 |
| Coil Weight ( max) | 1700 Kg |
| Coil Diameter ( min / max) | 1040 / 415 mm |
| Mill Speed | 500 m/min(max) |
| Mill Motor | 165 kW |
| Recoiler Motor | 14.7 kW |
| Decoiler Motors | |
| Qty | 2 ( 10 kW each) |
| PLC System Manufacturer | Allen Bradley |

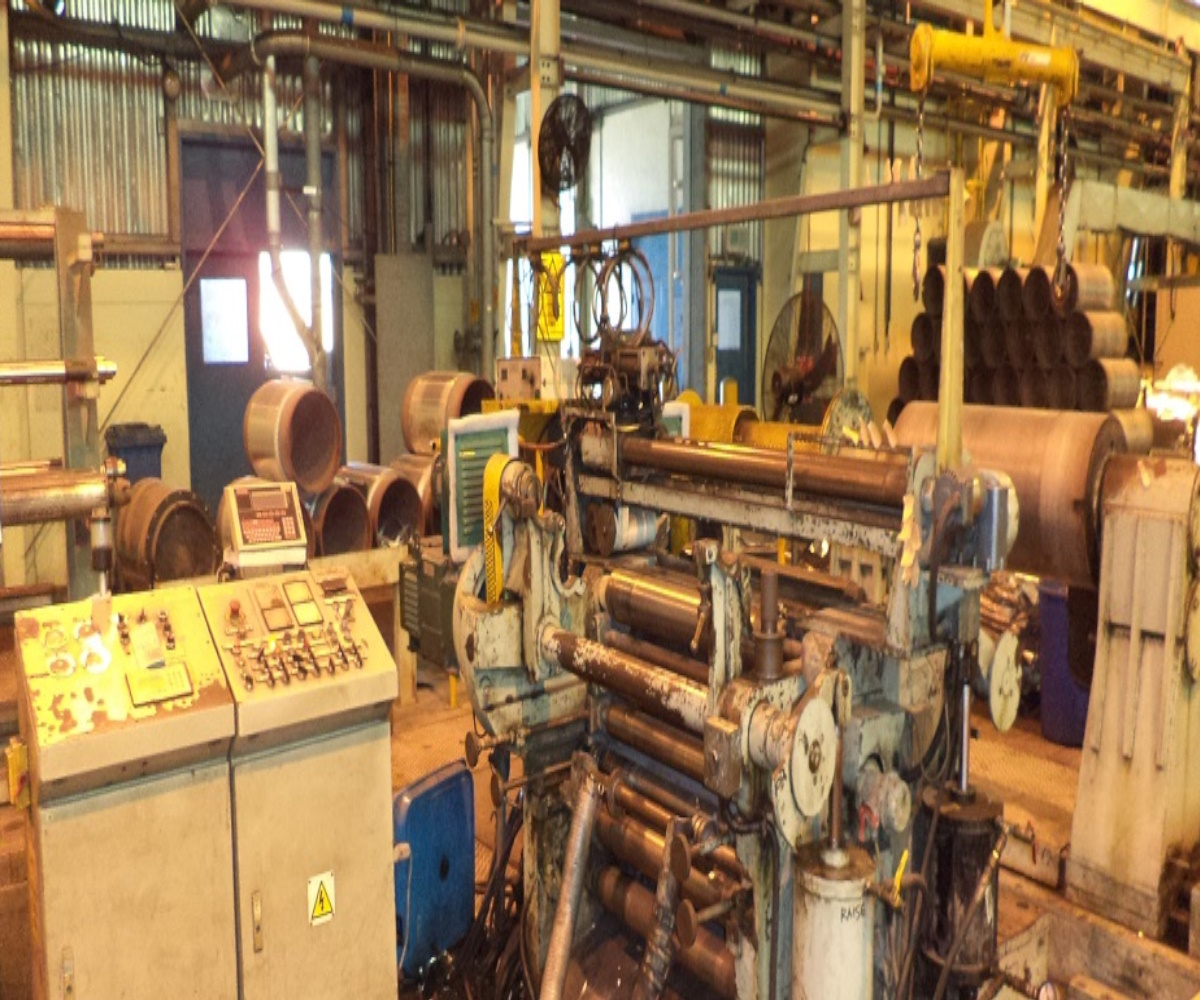

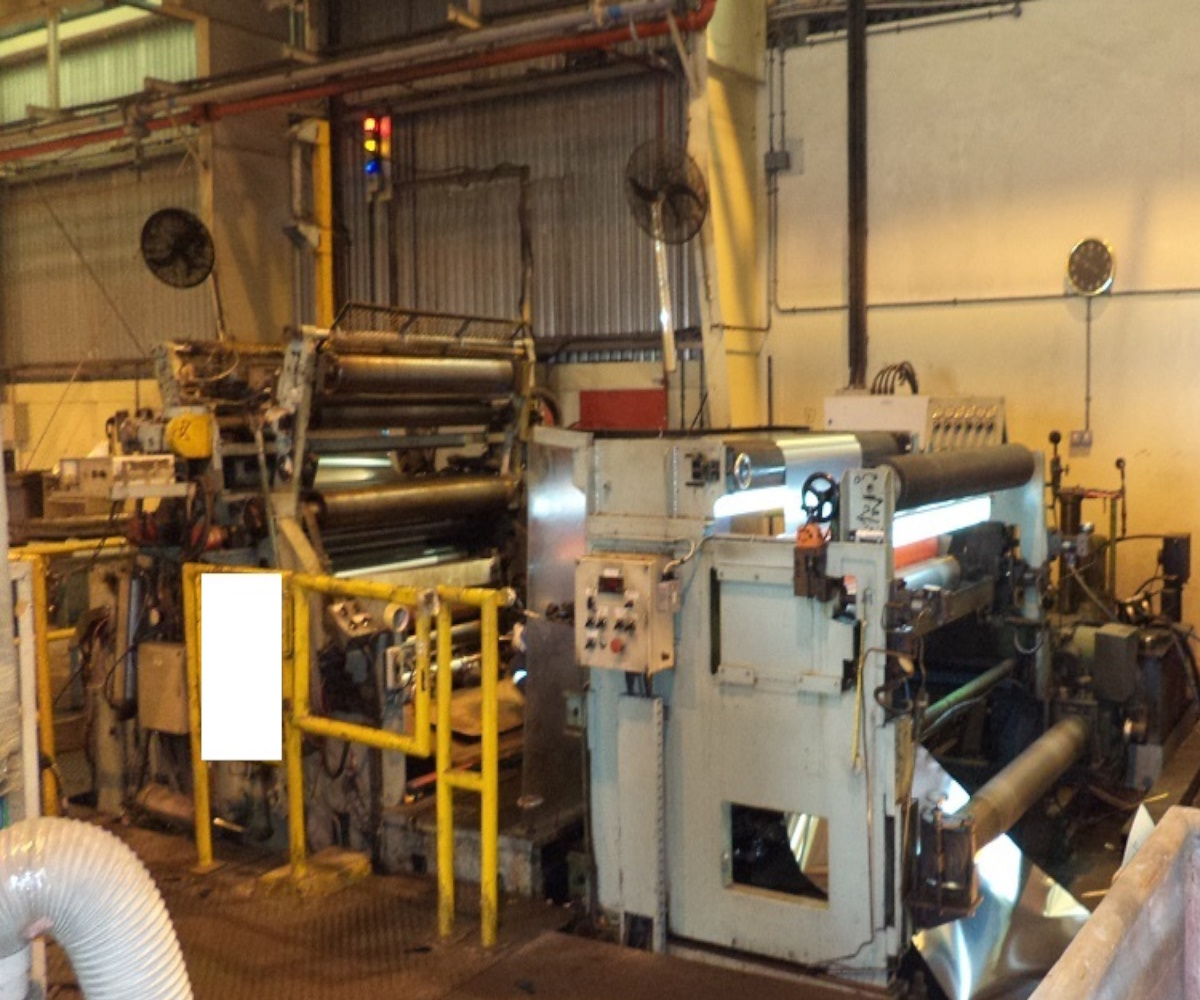

| Second-hand Slitter (LGS1) | |
| Manufacturer | Kampf |
| Type | RKW6 |
| Built | 1962 |
| Thickness | 11 - 50 microns |
| Second-hand Slitter (LGS2) | |
| Manufacturer | Kampf |
| Type | 1100 |
| Built | 1968 |
| Speed | 600 m/min |
| Foil Width | 1100 mm |
| Thickness | 30 - 200 microns |
| Second-hand Annealing Furnaces | |
| Manufacturer | Mechatherm |
| Type | Electrical heated chamber furnace |
| Second-hand Charging Car | |
| Manufacturer | Bey Machinery Comp. Ltd. |
| Capacity | 21 ton |
| Type | 2 fork charging system |
