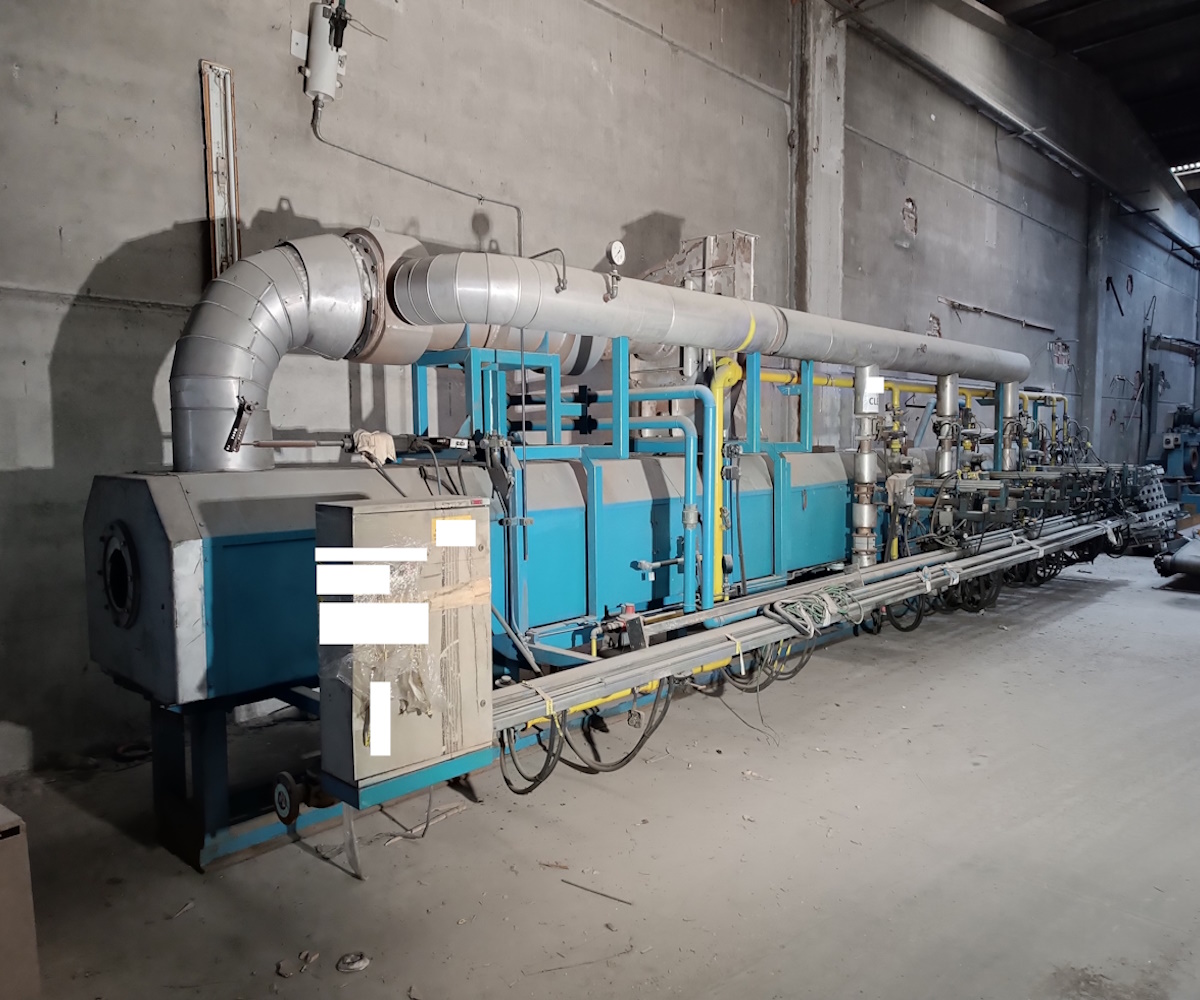

Second-hand Aluminium Extrusion Press and Log Furnace
By: Alcircle Pte Ltd| Type | Compact Front Loading Direct Extrusion Press |
| Built | 1995 |
| Press Force | 2500 MT at 295 bar |
| Billet Size | 8'' max length 950 mm |
| Status | Press stopped in 2010, dismounted and in storage press is complete |
| Category | Extrusion Press |
| Manufacturer | Clecim |
| Min Order Quantity | 1.00 Unit |
| Place of Origin | Germany |
10.11.2025
Description

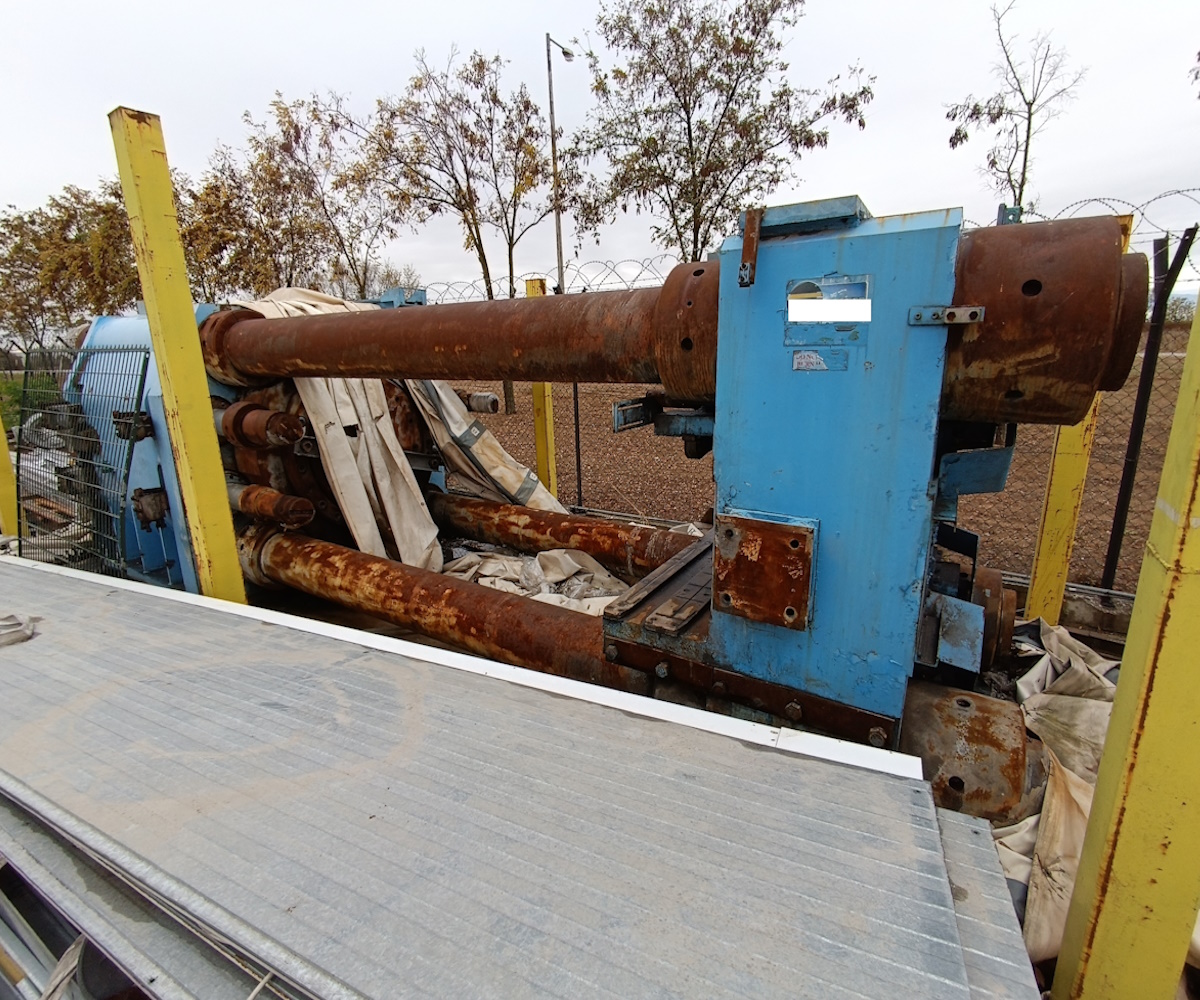

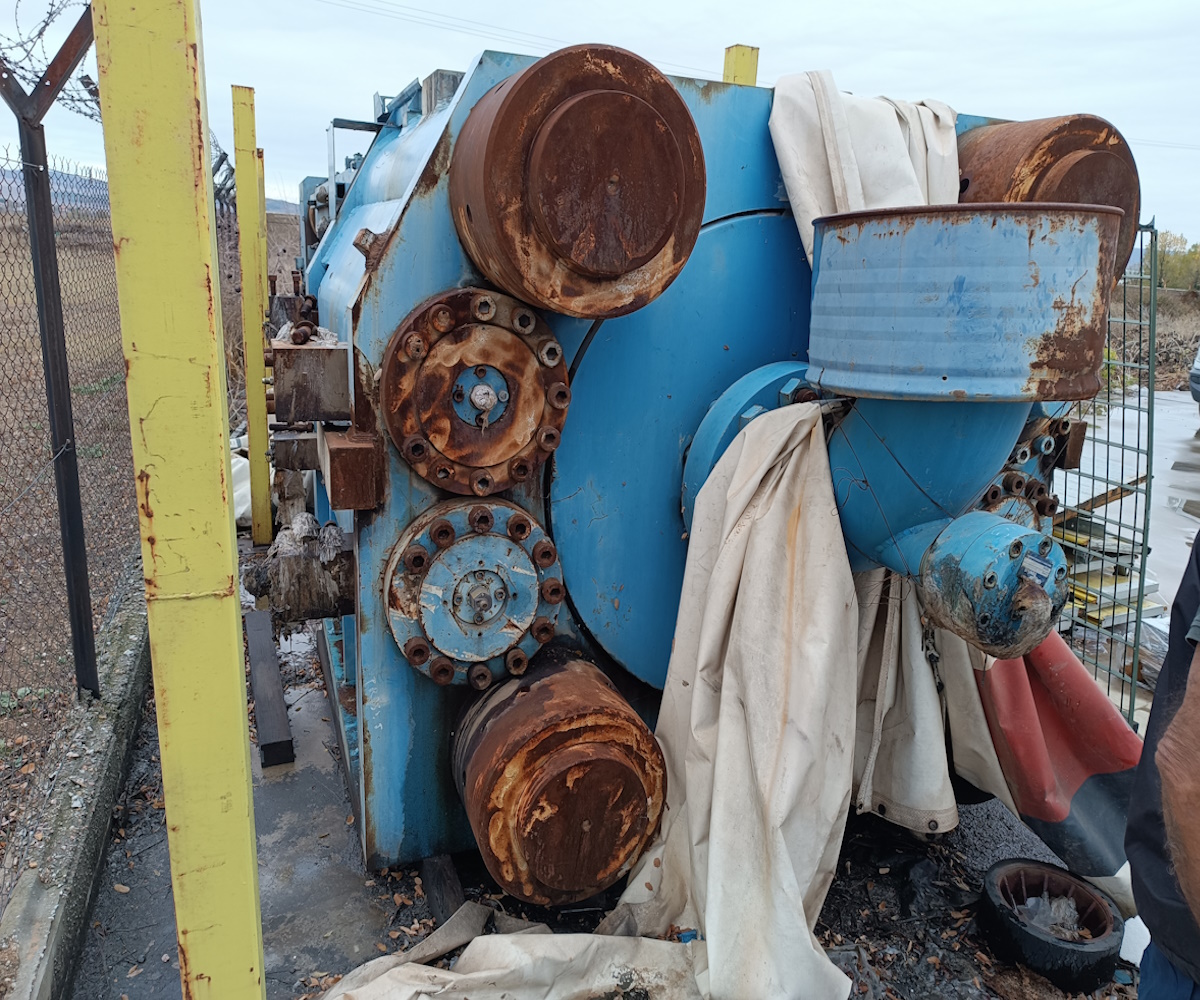

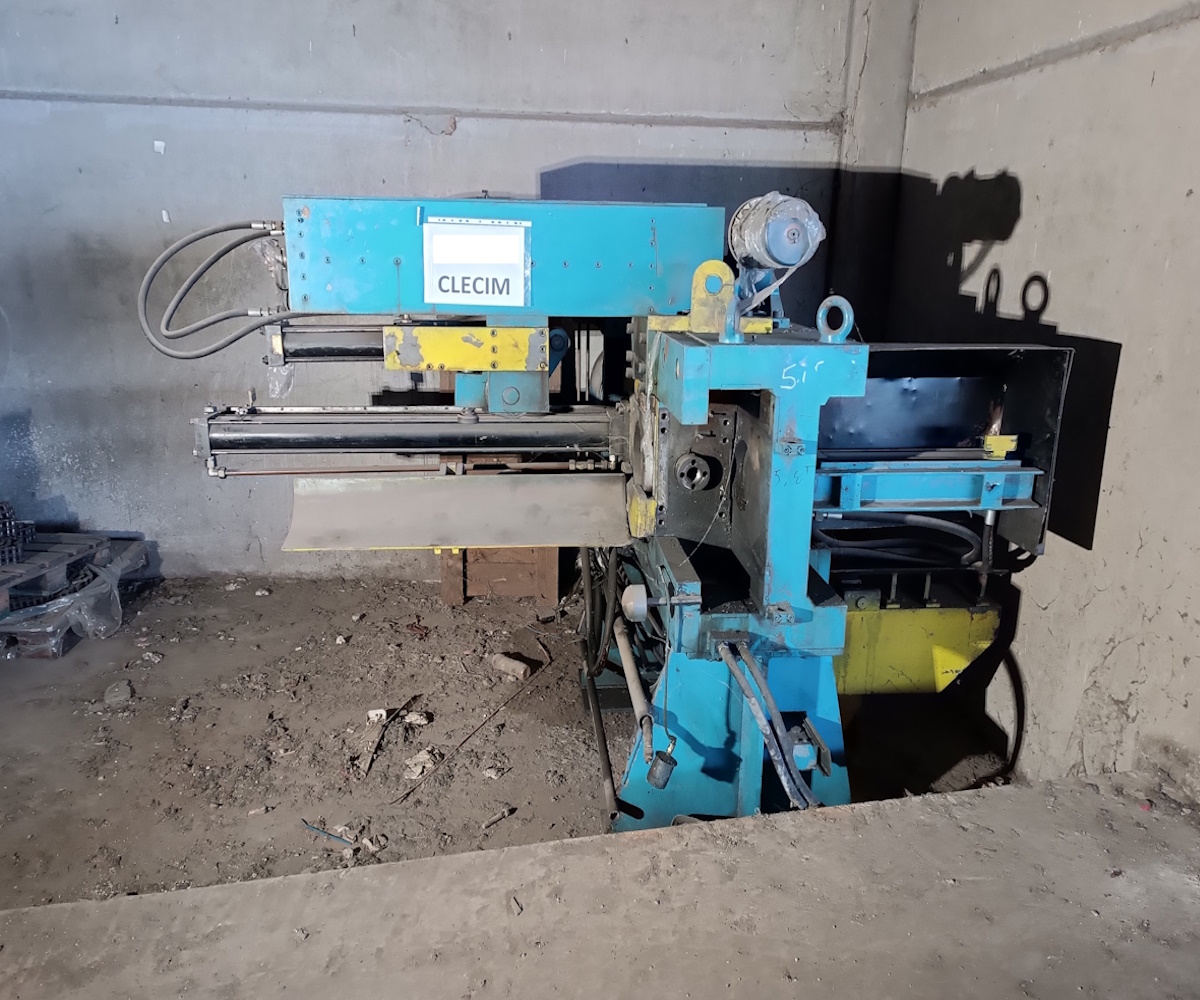

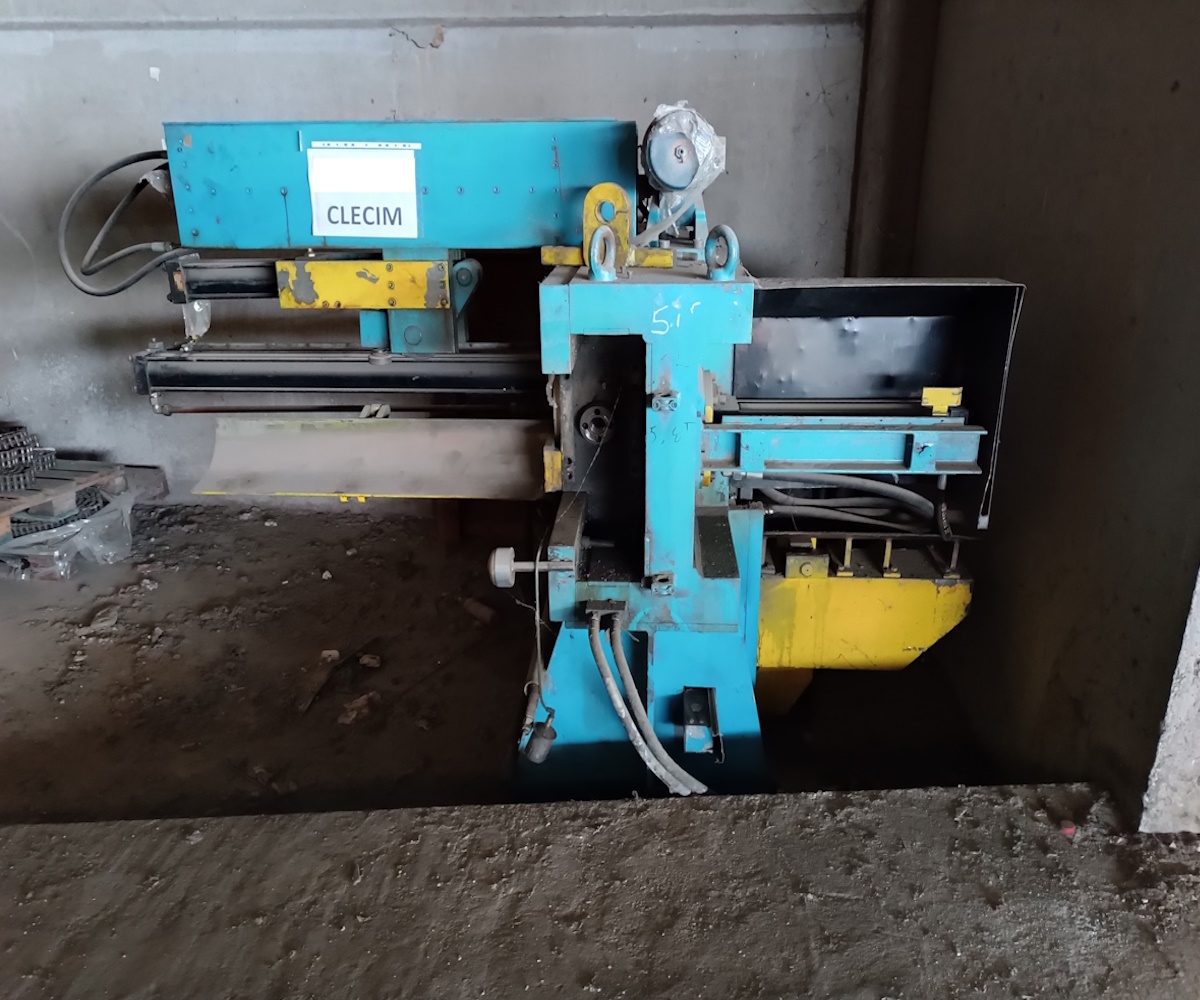

We have a sale offer for a dismantled second-hand extrusion press - 2500 MT, manufactured by CLECIM.
Technical Data:
| Force | |
Nominal Extrusion Press Force (continuous service) |
25 MN |
| Container sealing load | 3 MN |
| Butt shear force | 0.6 MN |
| Die slide shear force | 0.36 MN |
| Die clamping force | 0.3 MN |
| Billet | |
| Billet Length maxi (in one or two parts) | 950 mm |
| Billet Diameter | 203 mm |
| Container Diameter | 210 mm |
| Performance | |
| Dead time without burp cycle at max length billet | 15 sec |
| Dead time with normal burp cycle at max billet length | 16.5 sec |
| Maximum extrusion stem speed at 260/300 bar | 25/22 mm/sec |
| Tool | |
| Tool stack diameter/length | 484/444 mm |
| Platen hole diameter | 260 mm |
| Platen hole maximum width | 340 mm |

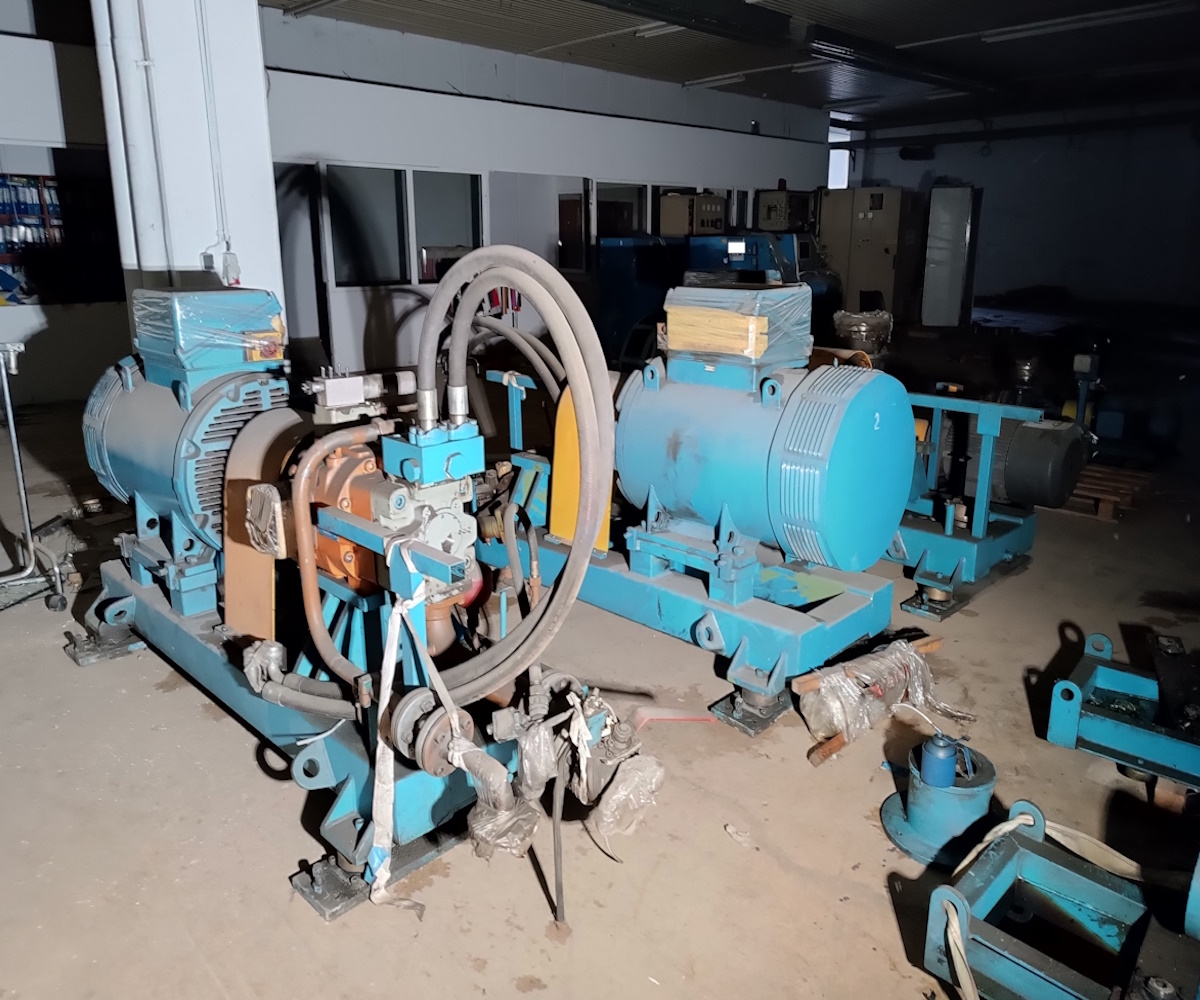

| Hydraulic Characteristics Pumps | Oil Gear |
