Price | Available on request |
Model | OLK802/13008 |
Serial No | 7954 |
Year of Manufacturer | 2010 |
Category | Equipment |
Min Order Quantity | 1.00 Unit |
Place of Origin | Poland |

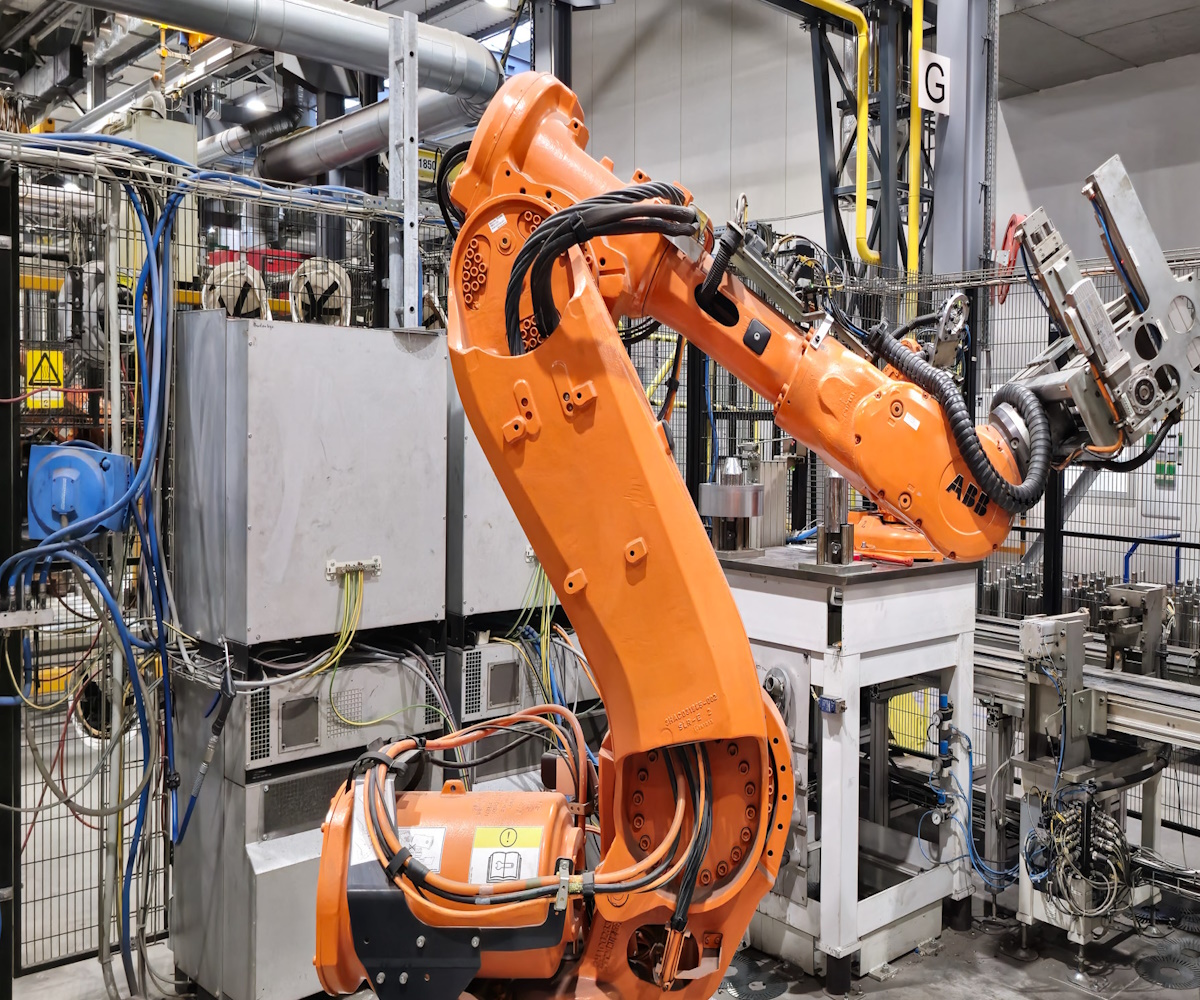

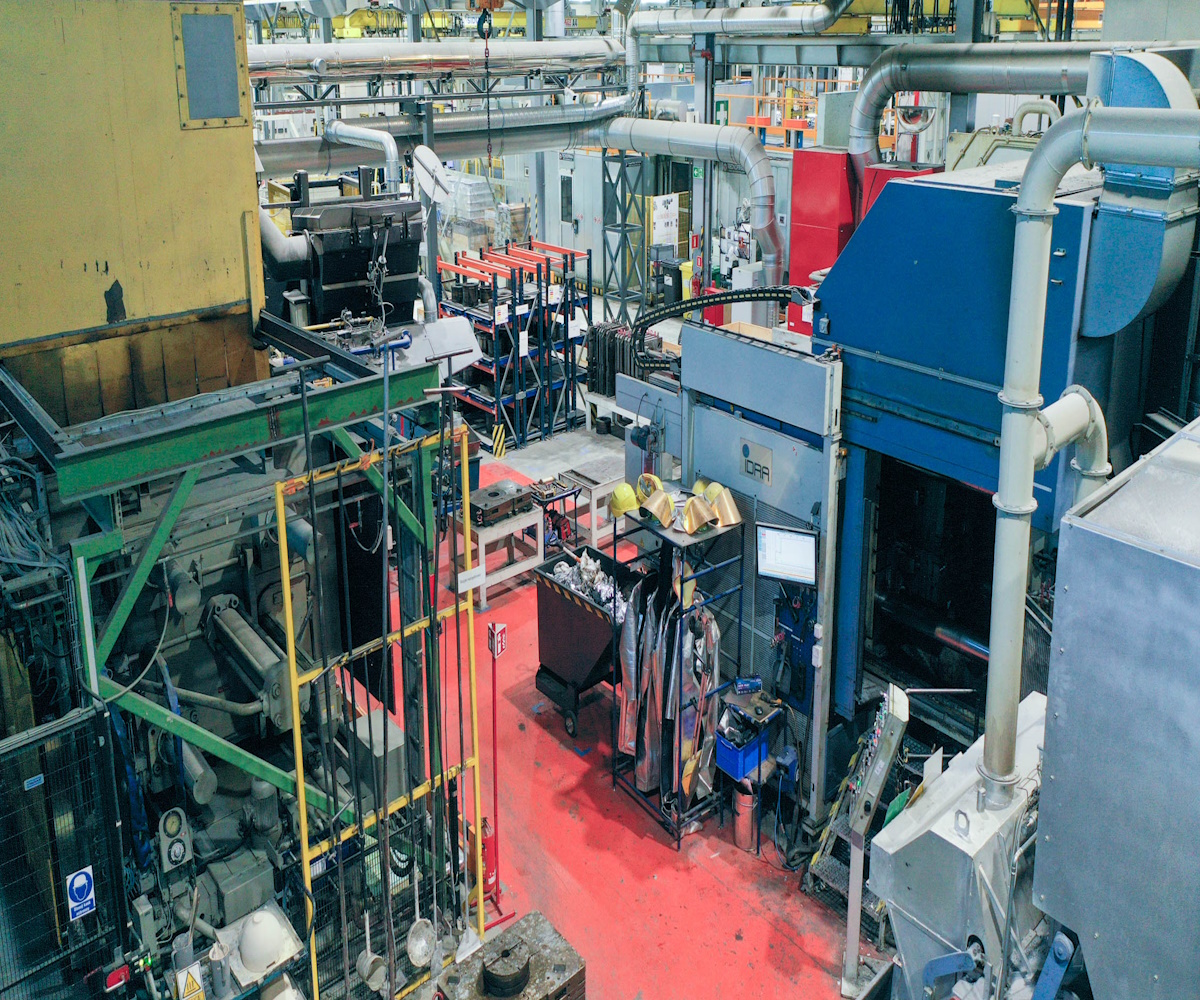

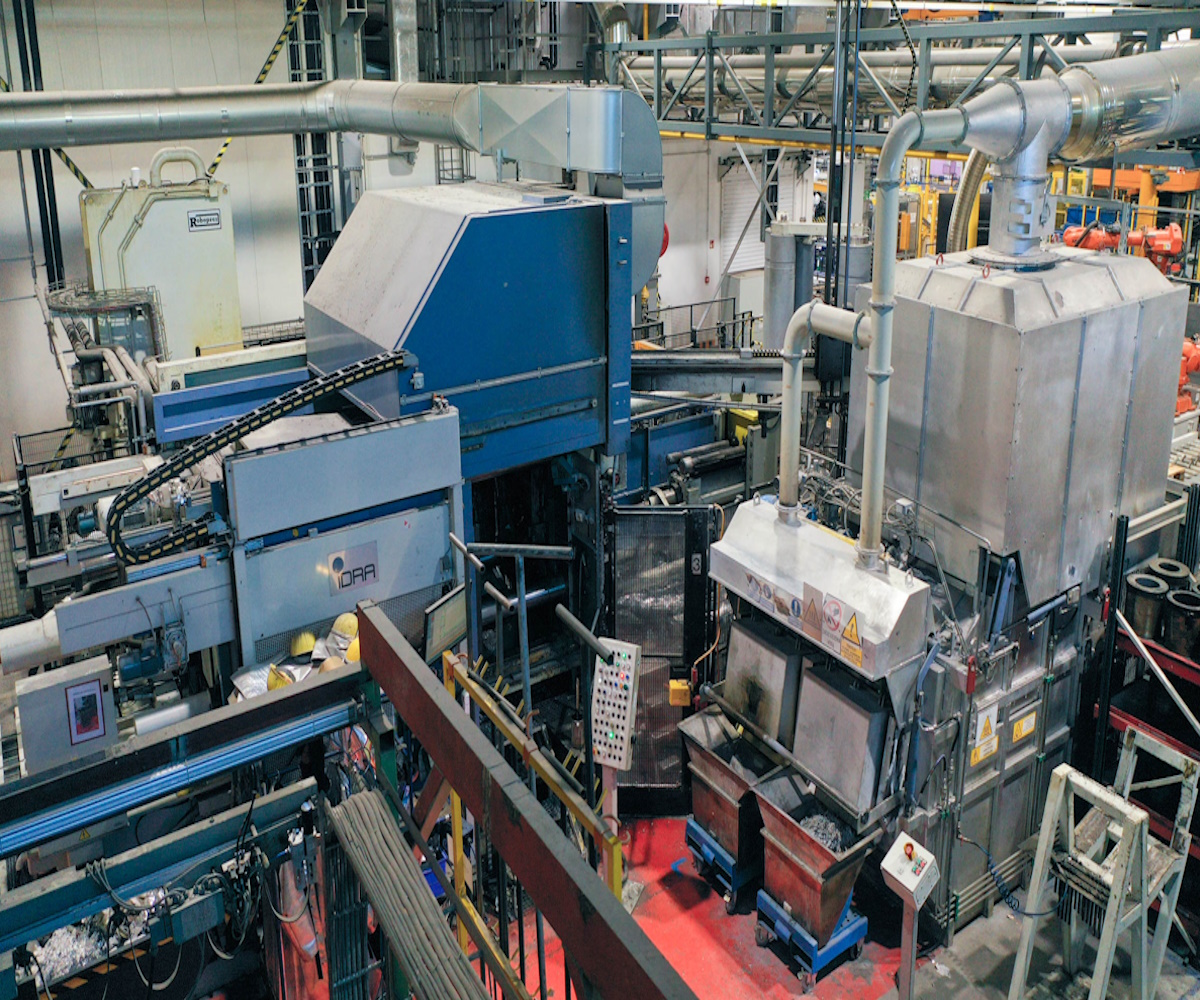

We have a sale offer for (2010) IDRA Aluminium Die Casting Cell.

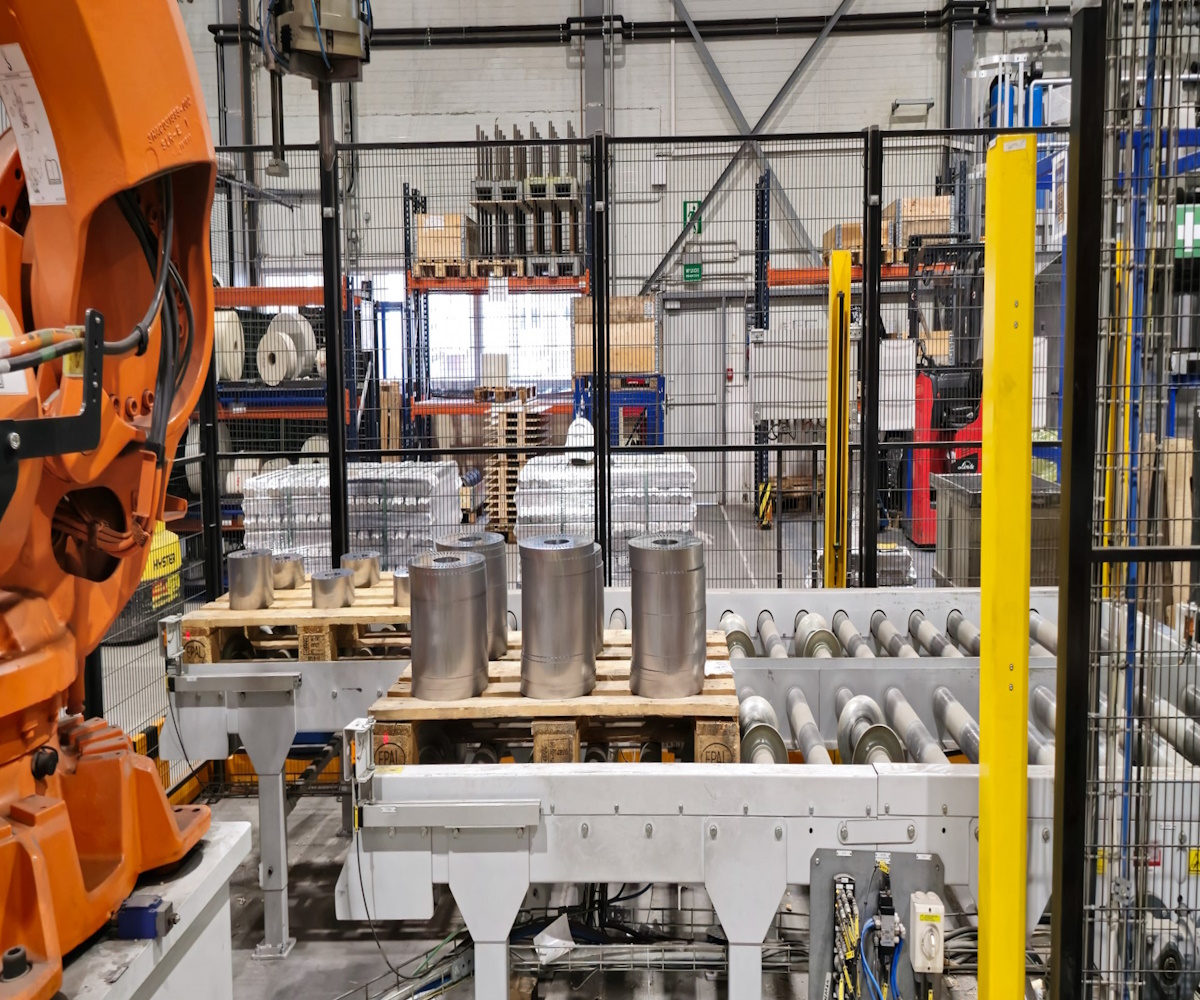

Rotor and Stator Production Line: Frame Sizes 160-250 mm for 11-55kW Motors
The complete line consists of the following machines:
Technical Details | |
Width ( max) | 3120 mm |
Height | 3770 mm |
Total Length | 9441 mm |
Space for Bar Insertion during Assembly ( max) | 12200 mm |
Pillar Retraction Height | 10600 mm |
Casting Height ( max) | 900 mm |
Casting Height ( mini) | 400 mm |
Press Plate Dimensions LxH | 1315 mm x 1315 mm |
Bar Spacing LxH | 830 mm x 830 mm |
Bar Diameter | 175 mm |
Movable Press Plate Movement | 850 mm |
Injection Movement | 890 mm( max) , 650 mm(min) |
Movable Press Plate Movement | 420 mm |
Machine Operating Data | |
Closing force | 8840 kN |
Opening force | 1780 kN |
Injection Force (max) | 976 kN |
Injection Pressure ( max) | 424 bar |
Central Ejection Force | 360 kN |
Electrical installation | |
Installed power | 59 kW |
Voltage | 400 V |
Frequency | 50 Hx |
Extra Voltage | 24 VDC |
Voltage LS SV | 24 VDC |
