(1995) BÜHLER Aluminium Die Casting Cell
By: Alcircle Pte Ltd| Price | Available on request |
| Model | H-800 B |
| Year of Manufacturing | 1995 |
| Category | Aluminium Casthouse Equipment |
| Min Order Quantity | 1.00 Unit |
| Place of Origin | Poland |
26.03.2026
Description
We have a sale offer for(1995) BÜHLER Aluminium Die Casting Cell.
Rotor and Stator Production Line: Frame Sizes 160-250 mm for 11-55kW Motors

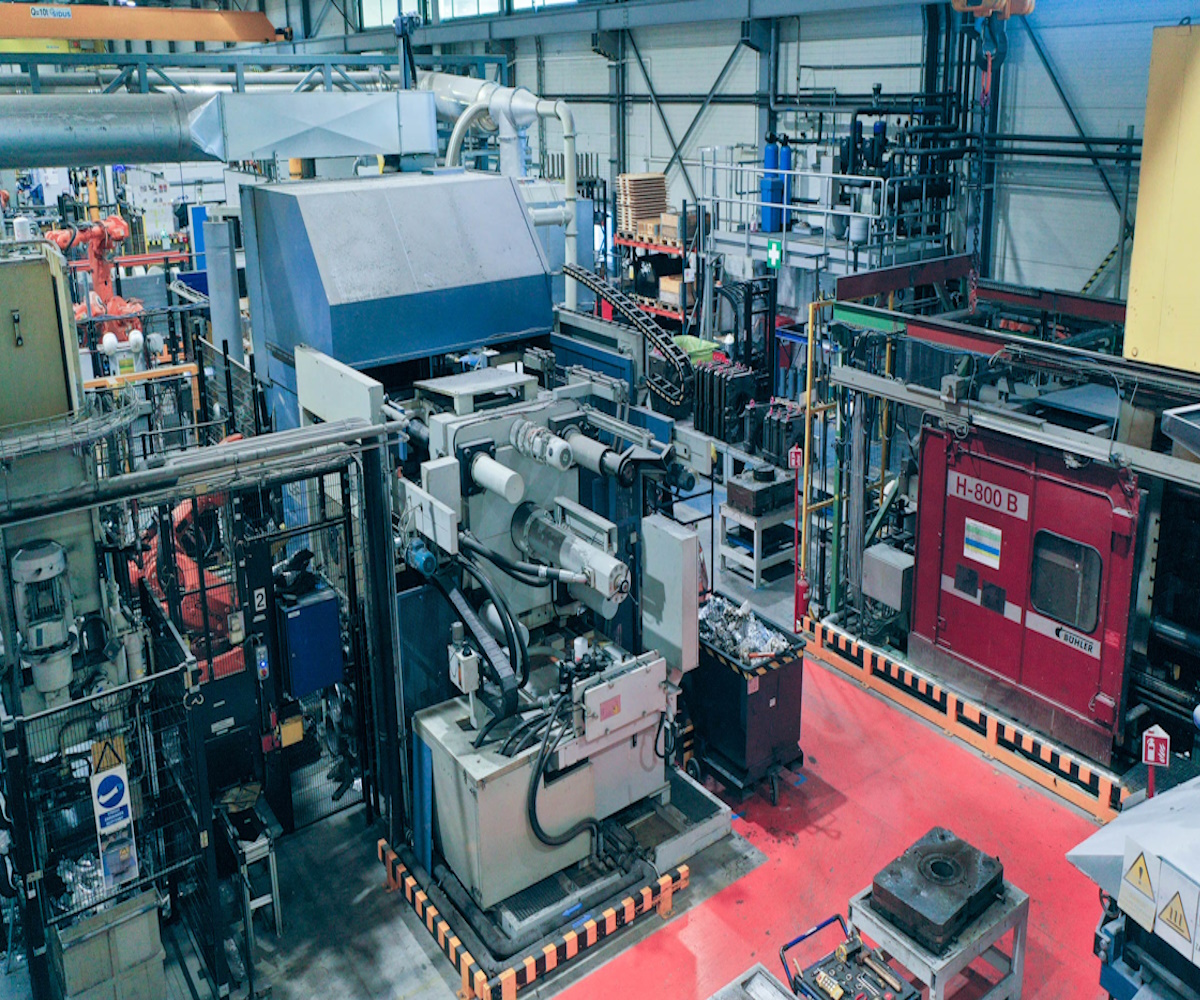

The complete line consists of the following machines:

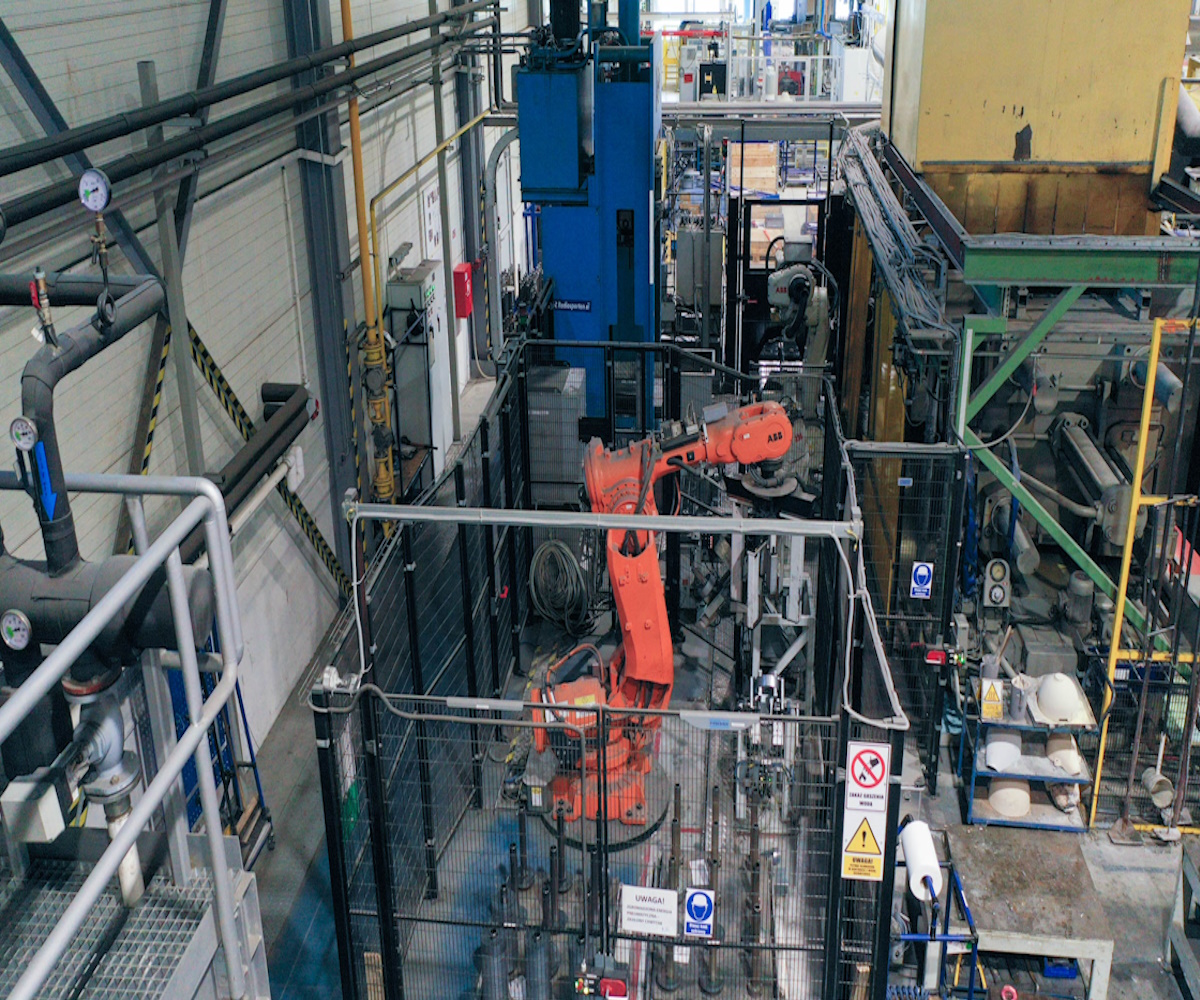

- (2015) ABB IRB 4600 M2004 Robot Cell
- (2014) ABB IRB 6640 M2004 Robot Cell
- (2015) STOTEK SMGS05-1.5 Melting Furnace
- (2005) ITALPRESSE CAM3 Casting Ladle

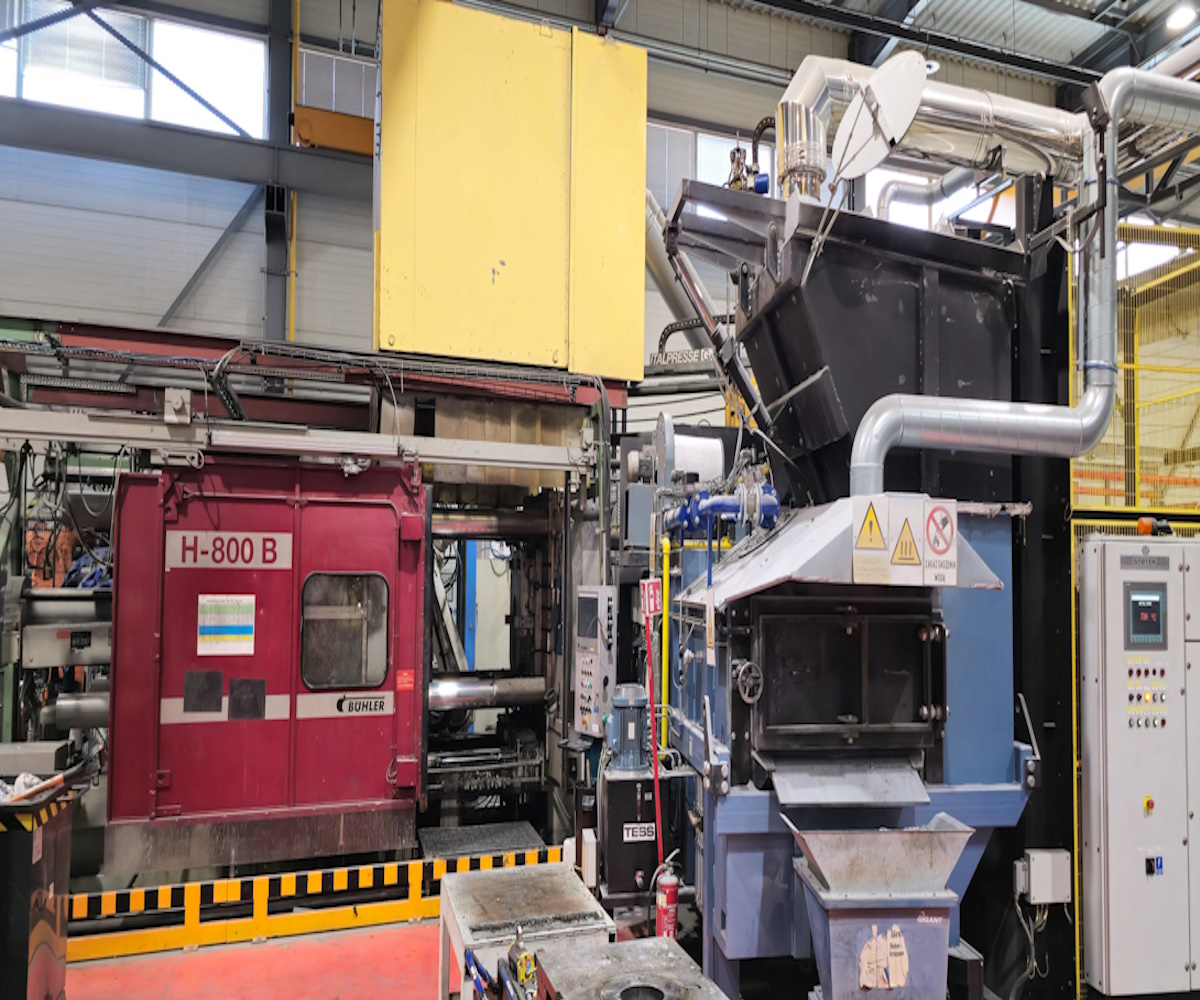

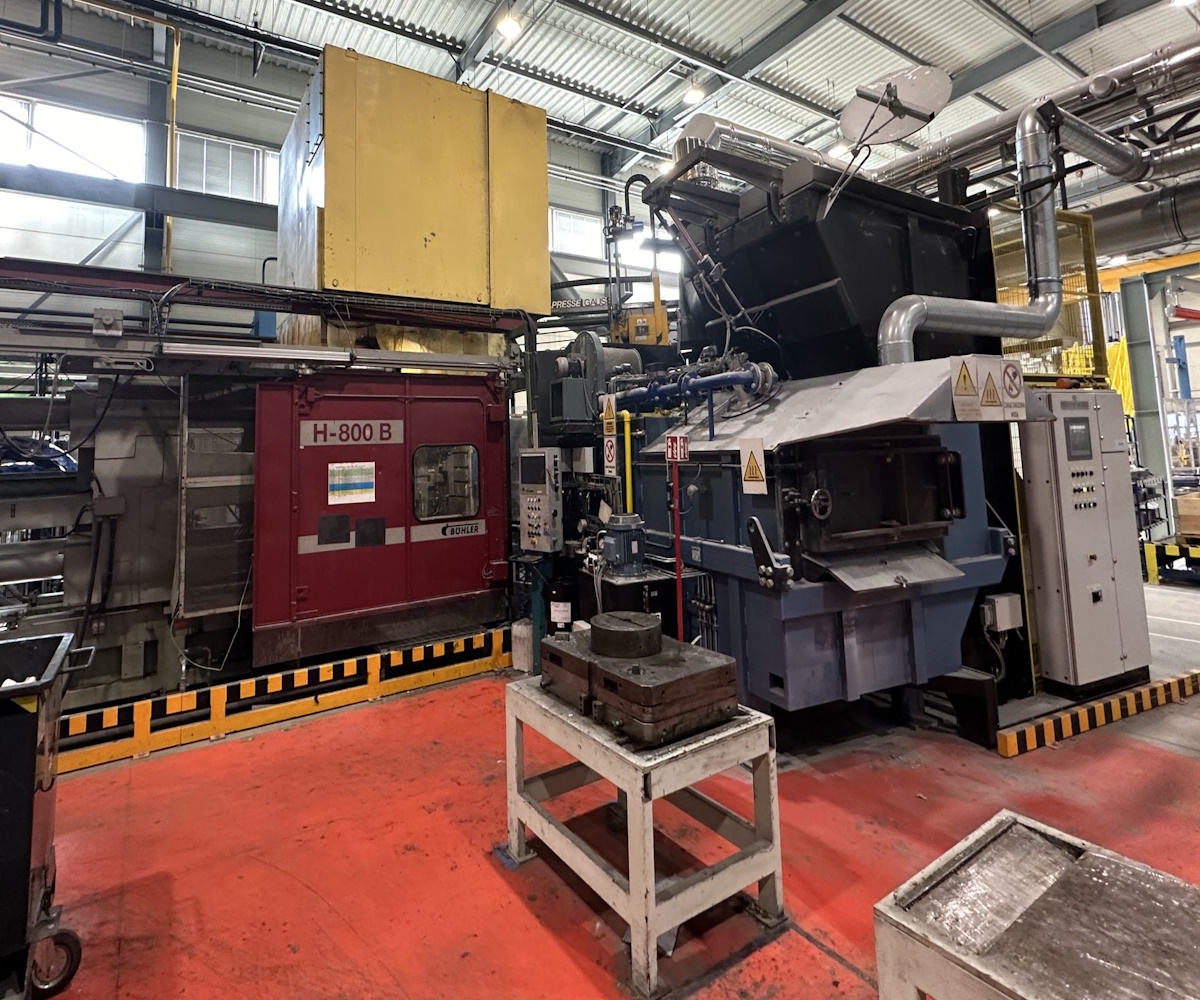

- (1995/2019) BÜHLER H-800 B Aluminium Die Casting Press
- (2015) ABB IRB 6700 M2004 Handling Robot
- (1995) FJELLMAN Trimpress
Technical Details :
| Pressure and Flow Specifications | |
| Metal Pressure (min) | 150 bar |
| Metal Pressure (max) | 820 bar |
| Metal Flow Rate (min) | 22 dm³/s |
| Metal Flow Rate (max) | 123 dm³/s |
| Clamping Unit | |
| Clamping Force (max) | 9,200 kN |
| Mold Height | 330 – 1,050 mm |
| Mold Opening Stroke | 900 mm |
| Clamping Pressure (max) | 100 N/mm² |
| Mounting Dimensions ( min) | 720 x 720 mm |
| Ejector Stroke | 175 mm |
| Ejector Force | 340 kN |
| Column Spacing | 900 x 900 mm |
| Column Diameter | 180 mm |
| Column Extraction | 7,900 mm |
| Casting Unit | |
| Dynamic Casting Force | 265 kN |
| Pressing Force | 650 kN |
| Piston Stroke | 580 mm |
| Piston Speed ( max) | 6.81 m/s |
| Lubrication System Capacity | GED-2: 5 dm³, GED-3: 10 dm³ |
| Nitrogen System Capacity | 175 dm³ |
| Nitrogen Pressure ( max) | 135 bar |
| Fully Charged Pressure | 200 bar |
| Drive System | |
| Drive Motor Power | 55 kW |
| Motor Speed | 1,500 RPM |
| Pump Flow Rates | 1,181 l/min and 92 l/min |
| Filtration Accuracy | 10 µm |
| Heat Exchanger Pressure | 3 – 10 bar |
| Cooling Water Temperature | 5 – 30°C |
| Pump Block Pressure | 0 – 160 bar |
