(2019) WEINGARTEN Lamination Press Line

By: Alcircle Pte Ltd

Price	Available on request
Category	Equipment
Manufacturer	Weingarten
Min Order Quantity	1.00 Unit
Place of Origin	Poland

Send response to similar sellers

Details

Valid Upto

19.03.2025

Description

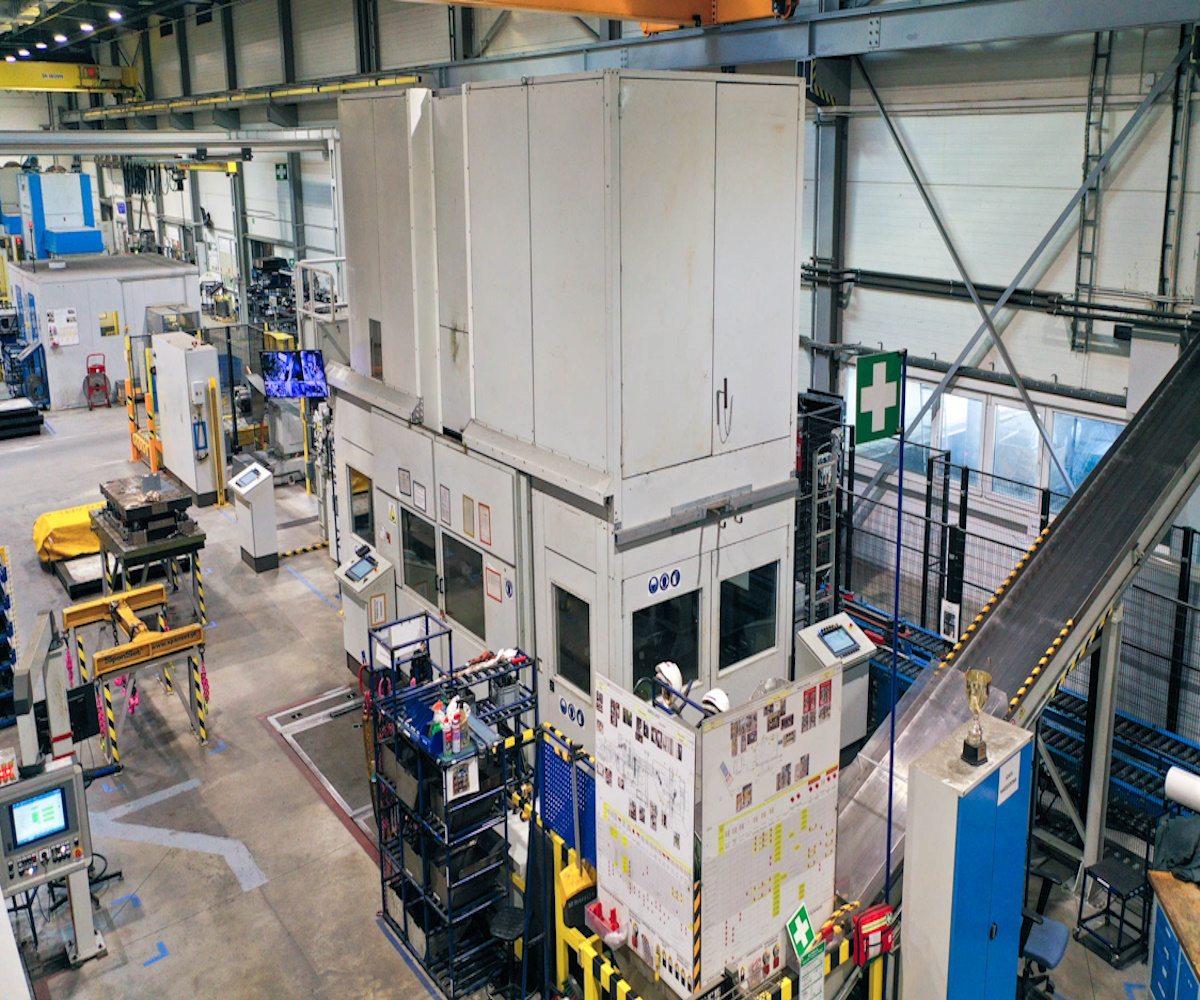

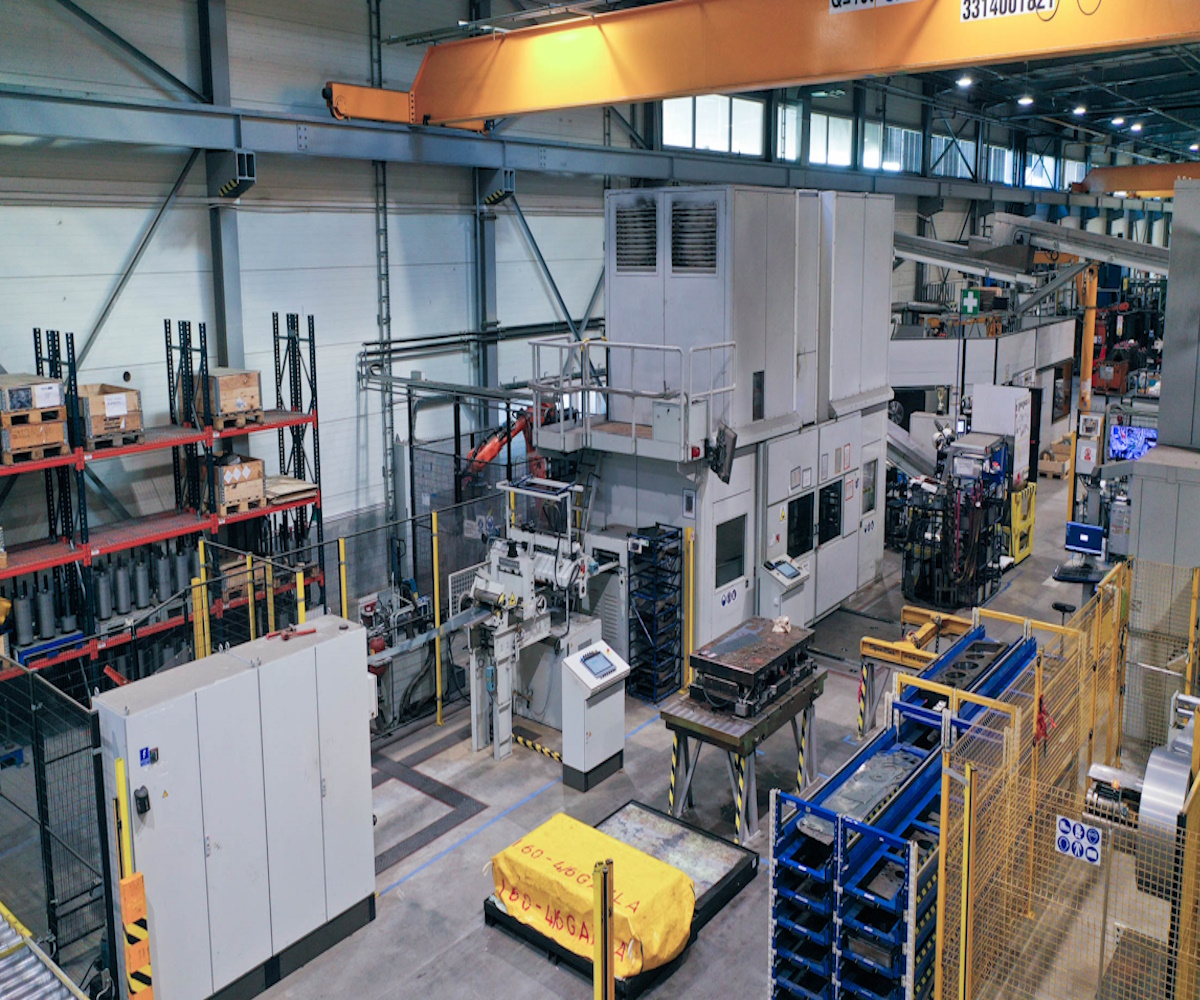

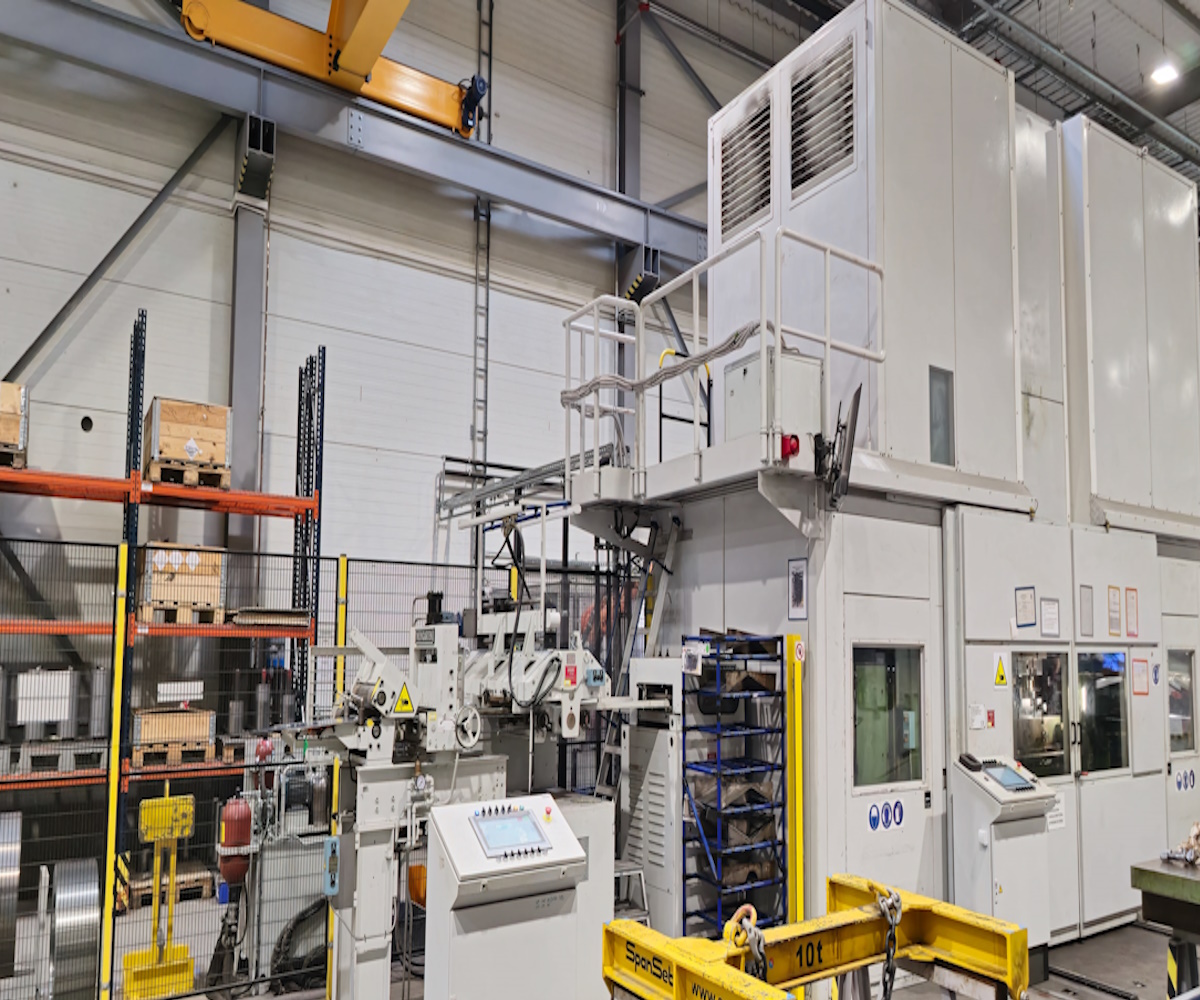

We have a sale offer for (2019) WEINGARTEN Lamination Press Line.

The complete line consists of the following machines:

(1977/2019 refurb.) Weingarten HS 315 Lamination Press
(1977/2019 refurb.) Weingarten Mechanical Feeder (Integrated with Press)
(1977/2019 refurb.) Weingarten RAS 40 Straightener
(1977/2019 refurb.) Weingarten Welding / Scissors Unit: LSRB2
(1977/2019 refurb.) ServoPresse SMD 400 T5 5 Uncoiler

Technical Details :

Press Specifications
Force Exerted by the Press
Capacity	315 t
Notch Gap at 50 kg/mm² Force	6300 mm²
Maximum Sheet Thickness	1 mm
Free Space Between Columns	2400 mm
Maximum Distance Between the Table and the Slider (Bottom Jump)	630 mm


Press Table Dimensions
Width	2200 mm
Depth	950 mm
Hole in Table
Width	1800 mm
Depth	400 mm


Slider Dimensions
Width	2200 mm
Depth	800 mm
Slot in Slider
Diameter	65 mm
Depth	120 mm
Normal Jump	40 mm


Operating Mechanism
Slider Adjustment	80 mm
Number of Strokes (Depends on the Input Material)	60-280/min
Maximum Feed Speed	60 m/min


Drive System
Drive System Engine	45 kW
Engine Speed	2400 RPM
Motor to Adjust the Slider
Output Power	2.2 kW
Speed	1000 RPM
