(2009) INVERNIZZI Lamination Press Line (APT1)

By: Alcircle Pte Ltd

Price	Available on request
Model	T320 DM2
Year of Manufacturing	2009
Capacity	320 Tons
Category	Equipment
Manufacturer	Invernizzi
Min Order Quantity	1.00 Unit
Place of Origin	Poland

Send response to similar sellers

Details

Valid Upto

26.03.2026

Description

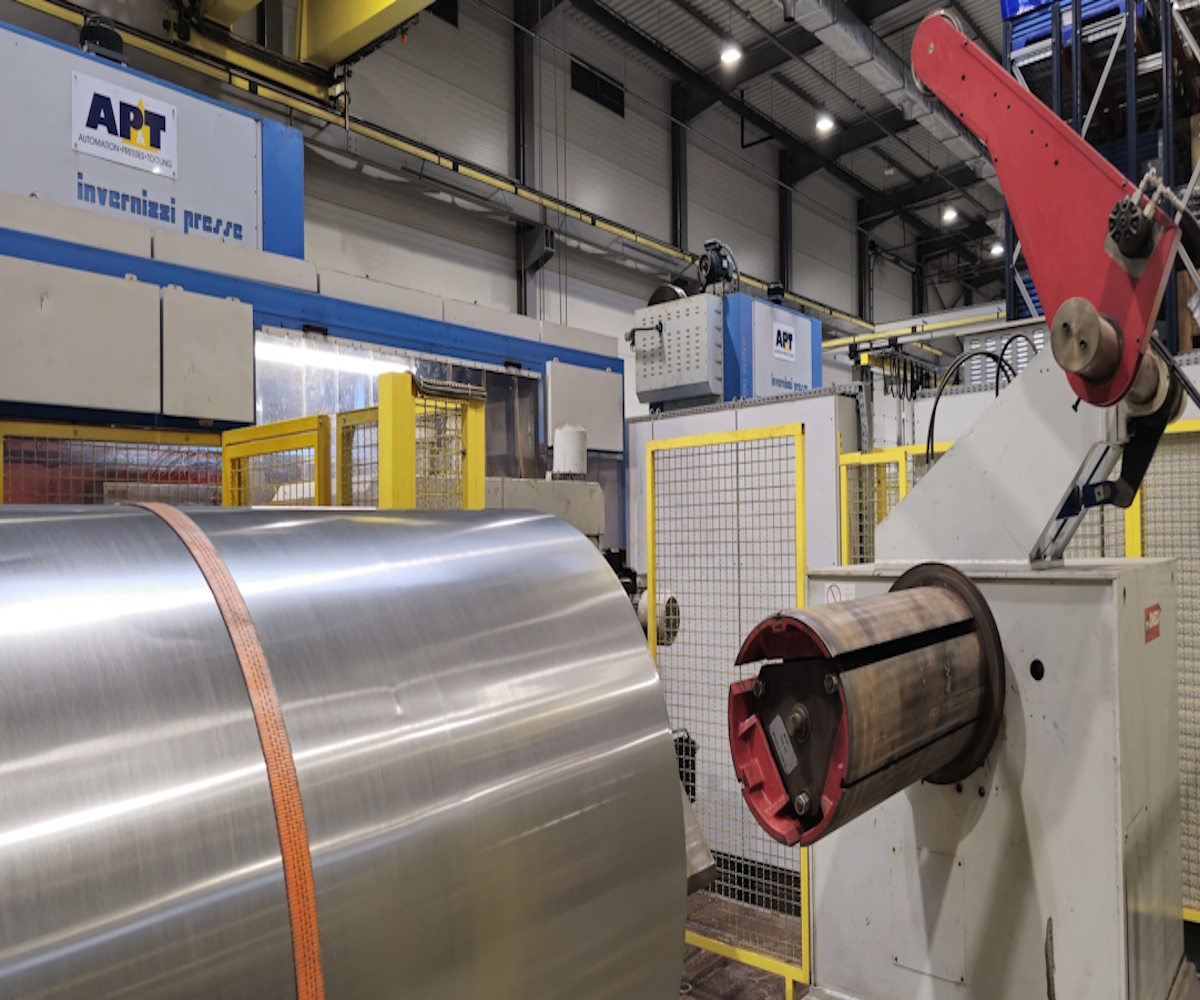

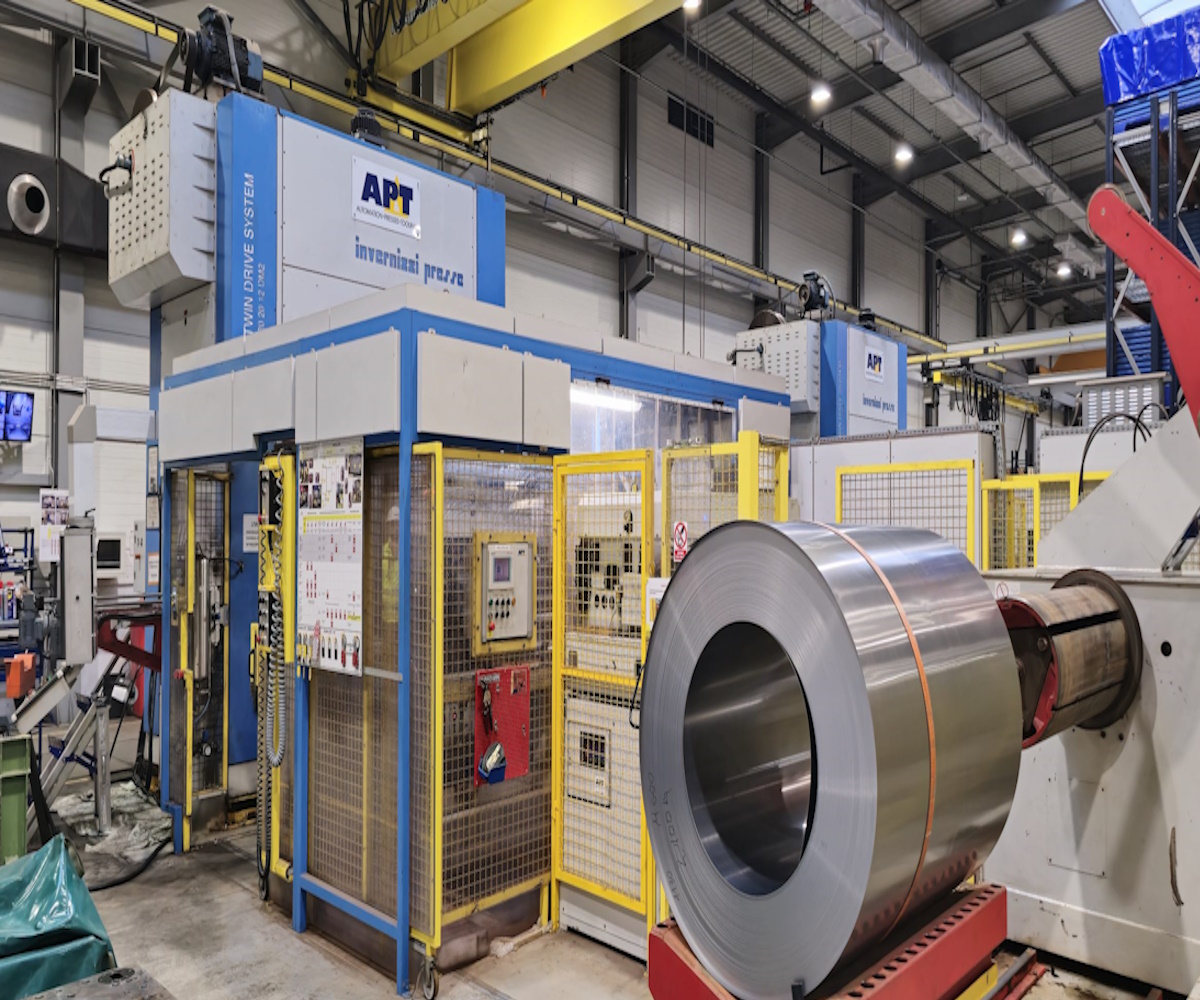

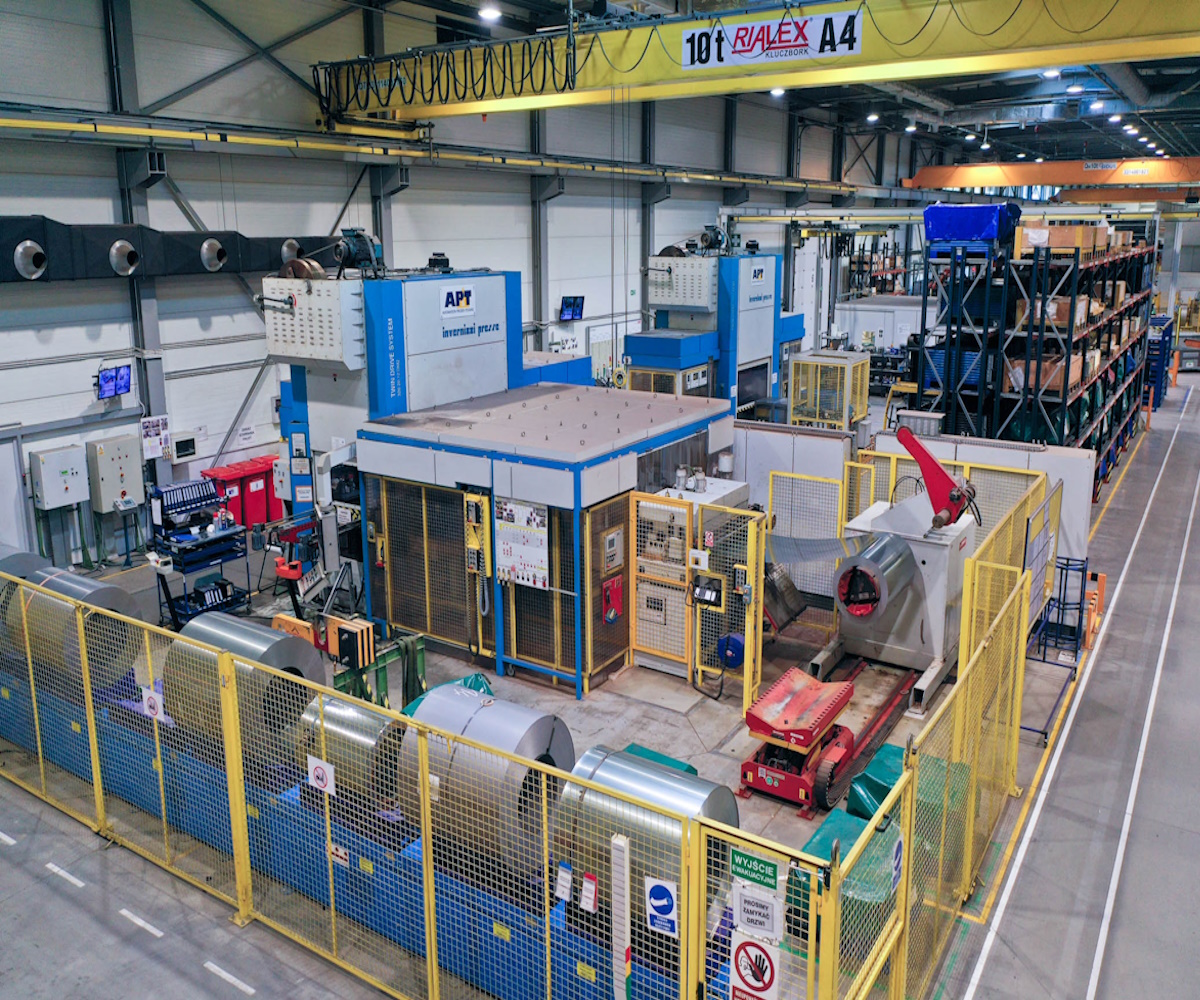

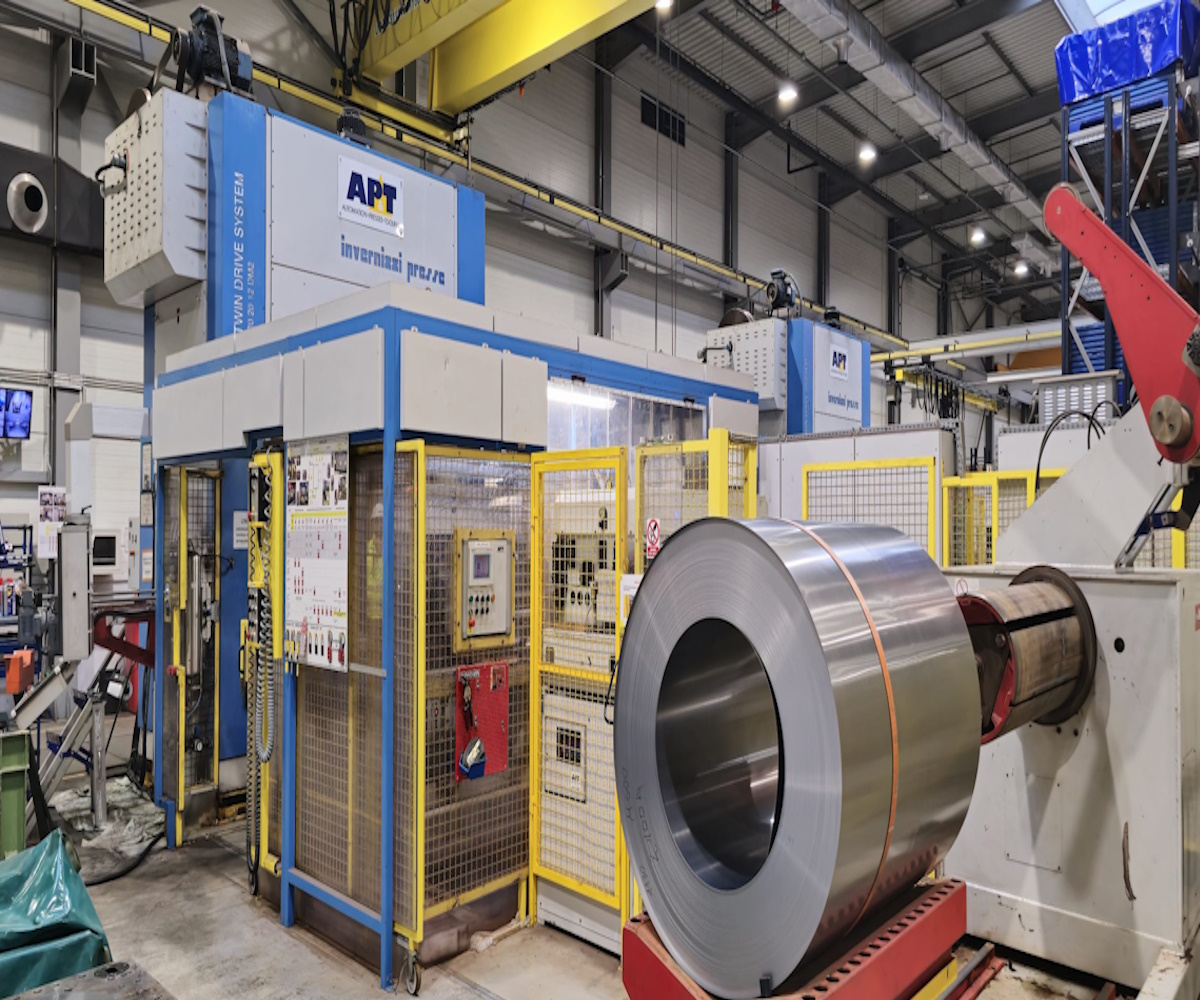

We have a sale offer for (2009) INVERNIZZI Lamination Press Line (APT1).

The complete line consists of the following machines:

(2009) DIMECO ETC 80 Coil Loading Truck
(2009) DIMECO 2386 Heavy Duty Decoiler
(2009) DIMECO Coil Straightener
(2009) DIMECO 1125H SIMO STAR Zig Zag Feeder
(2009) INVERNIZZI T320 DM2 Lamination Press
(2009) APT Stacker Unit

Technical Details:

General Press Information
Press Force	3200 kN
Drive Power	22 kW
Stroke Rate	15-50 strokes per minute


Structural and Mechanical Dimensions
Slide Dimensions (Length x Width)	2000 mm x 1200 mm
Bed Dimensions (Length x Width)	2000 mm x 1200 mm
Opening in the Bed	600 mm
Openings in the Press Upright
Downward	410 mm
Backward	500 mm
Bed Plate Thickness	150 mm



Adjustments and Control Mechanisms
Slide Adjustment	90 mm
Stroke Adjustment Range	20-40 mm
Fixed Stroke	17 mm



Machine Physical Parameters
Lateral Useful Opening	1100 mm
Frontal Useful Opening	2100 mm
Maximum Distance Between Bolster and Slide
Stroke Down, Adjustment Up (S.D.A.U.)	500 mm
Stroke Down, Adjustment Down (S.D.A.D.)	450 mm
