(2009) INVERNIZZI Lamination Press Line (APT2)
By: Alcircle Pte Ltd| Price | Available on request |
| Model | DM2 250 |
| Year of Manufacturing | 2009 |
| Category | Finishing Line |
| Manufacturer | Invernizzi |
| Min Order Quantity | 1.00 Unit |
| Place of Origin | Poland |
26.03.2026
Description

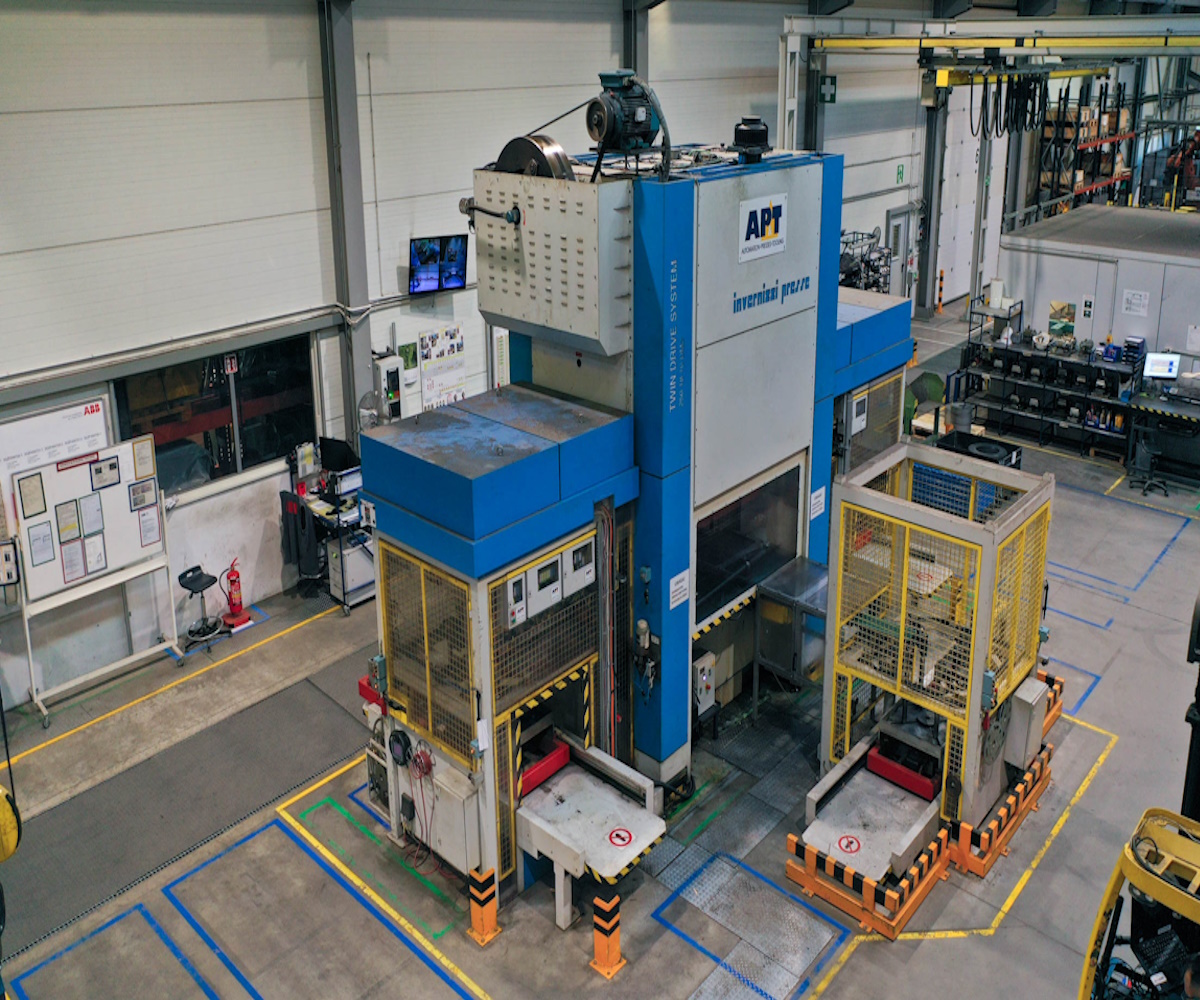

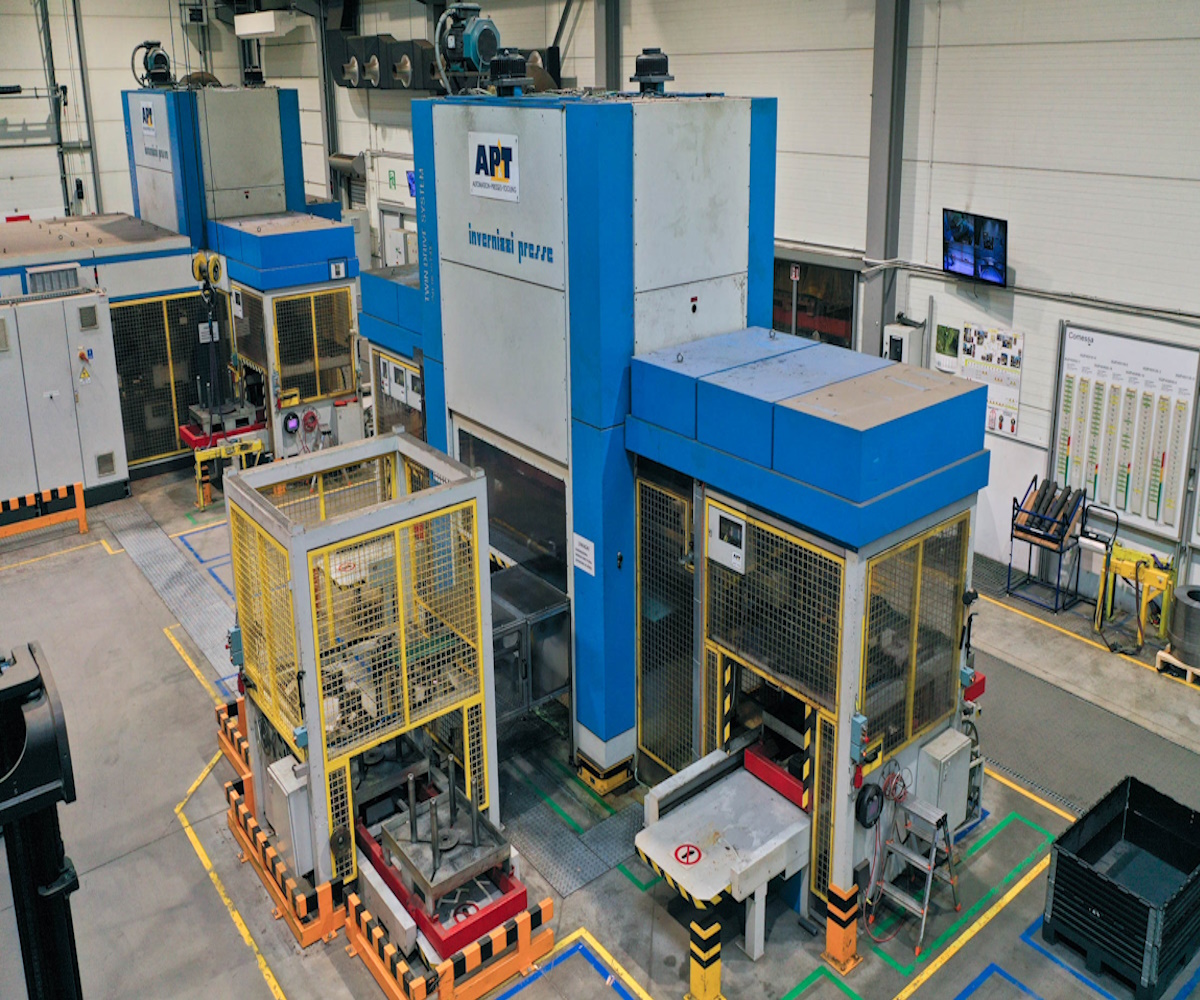

We have a sale offer for (2009) INVERNIZZI Lamination Press Line (APT2).
The complete line consists of the following machines:
- (2009) APT Destacking Unit
- (2009) Invernizzi Presse T250 DM2 Lamination Press
- (2009) APT Restacking Unit for Rotor Sheet
- (2009) APT Restacking Unit for Stator Sheet
Technical Details:
| Press Performance Specifications | |
| Capacity Force | 2500 kN |
| Nominal Force at 1% Elongation | 20 kN |
| Kinetic Energy | 7.3575 kJ |
| Structural and Mechanical Dimensions | |
| Work Metal Thickness with Constant Speed | 3 mm |
| Thrust Units | 2 |
| Lateral Useful Opening | 1100 mm |
| Frontal Useful Opening | 1200 mm |
| Maximum Distance Between Bolster and Slide | |
| Stroke Down, Adjustment Up (S.D.A.U.) | 700 mm |
| Stroke Down, Adjustment Down (S.D.A.D.) | 650 mm |
| Adjustments and Control Mechanisms | |
| Slide Positioning with Automatic Adjustment | 50 mm |
| Fixed Stroke | 250 mm |
| Adjustable Cycles | 15-60 |
| Die Mounting Areas | |
| Max Area for Die Mounting on Bolster (Width x Depth) | 1200 mm x 1000 mm |
| Max Area for Die Mounting on Slide (Width x Depth) | 1200 mm x 1000 mm |
| Drive and Operational Speed | |
| Main Drive Motor Rating | 20 kW |
| Speed | 2500 RPM |
