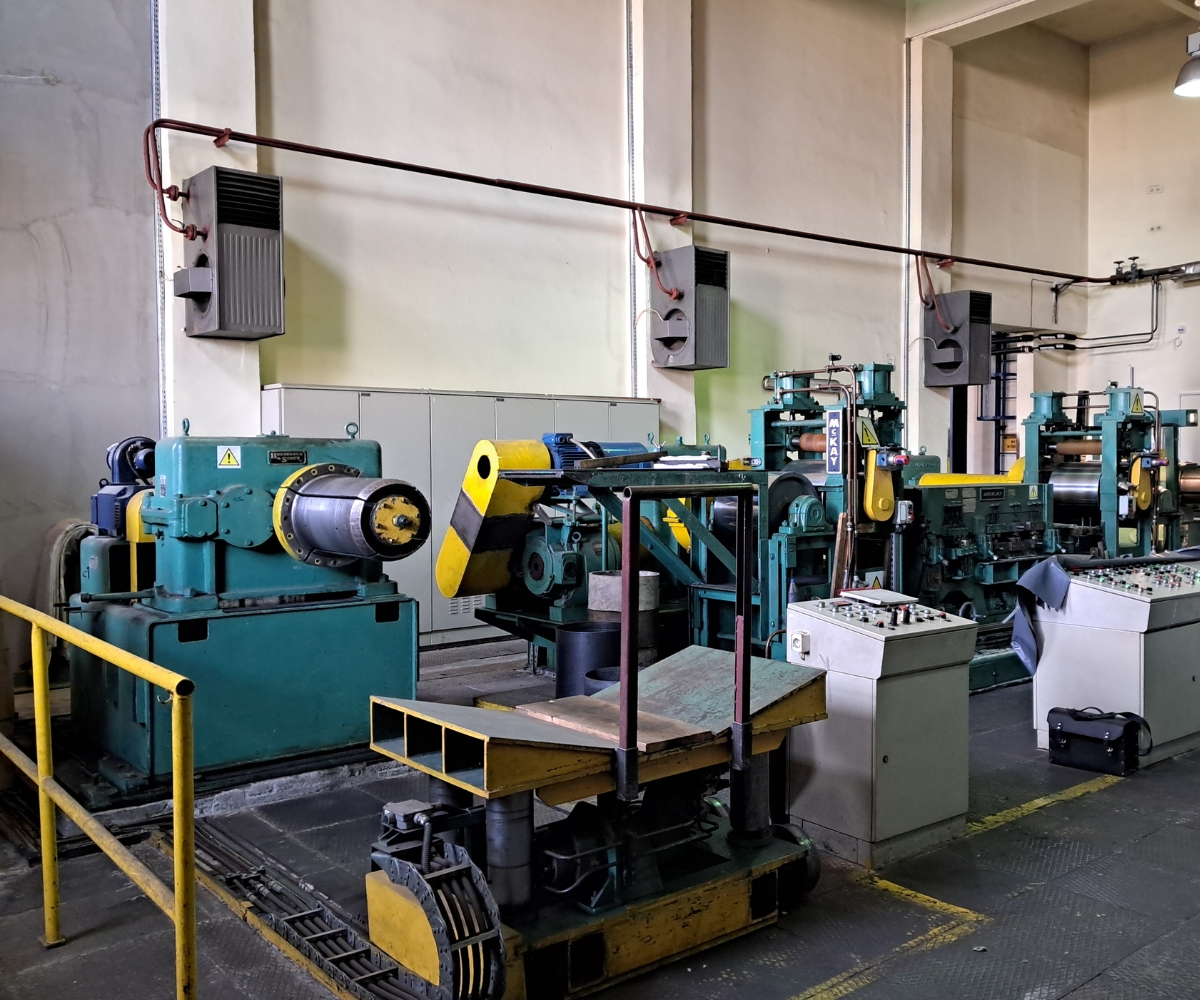

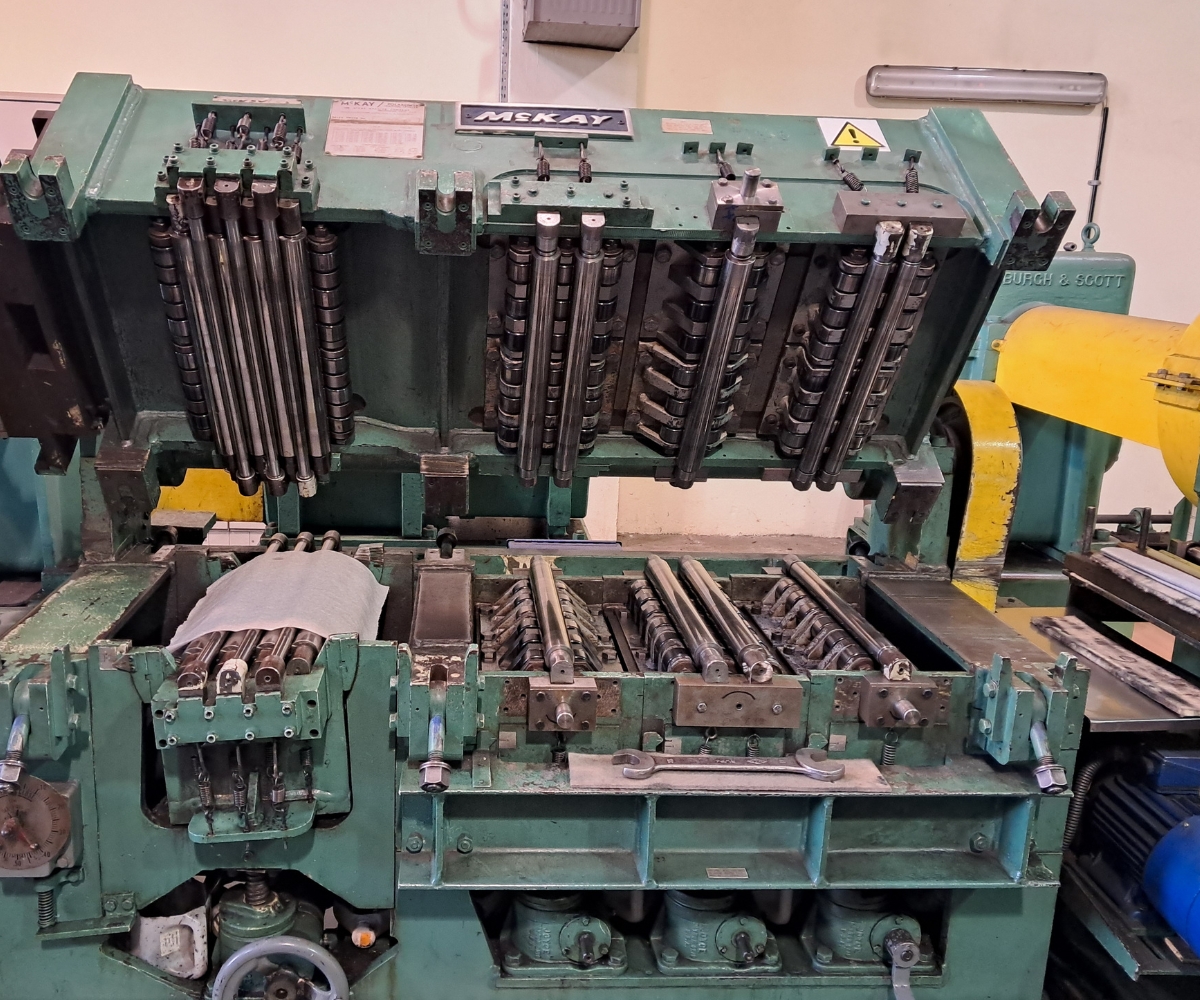

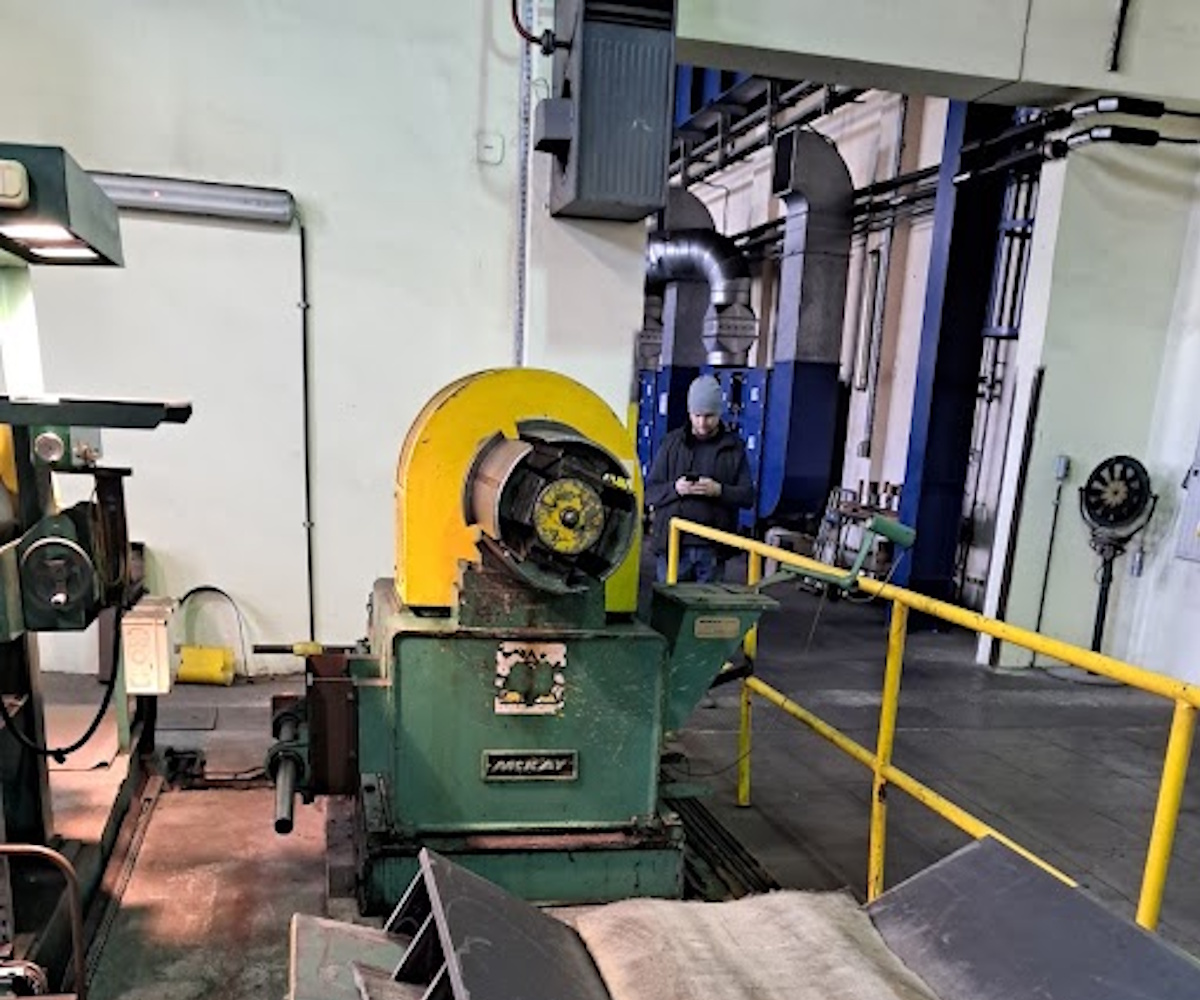

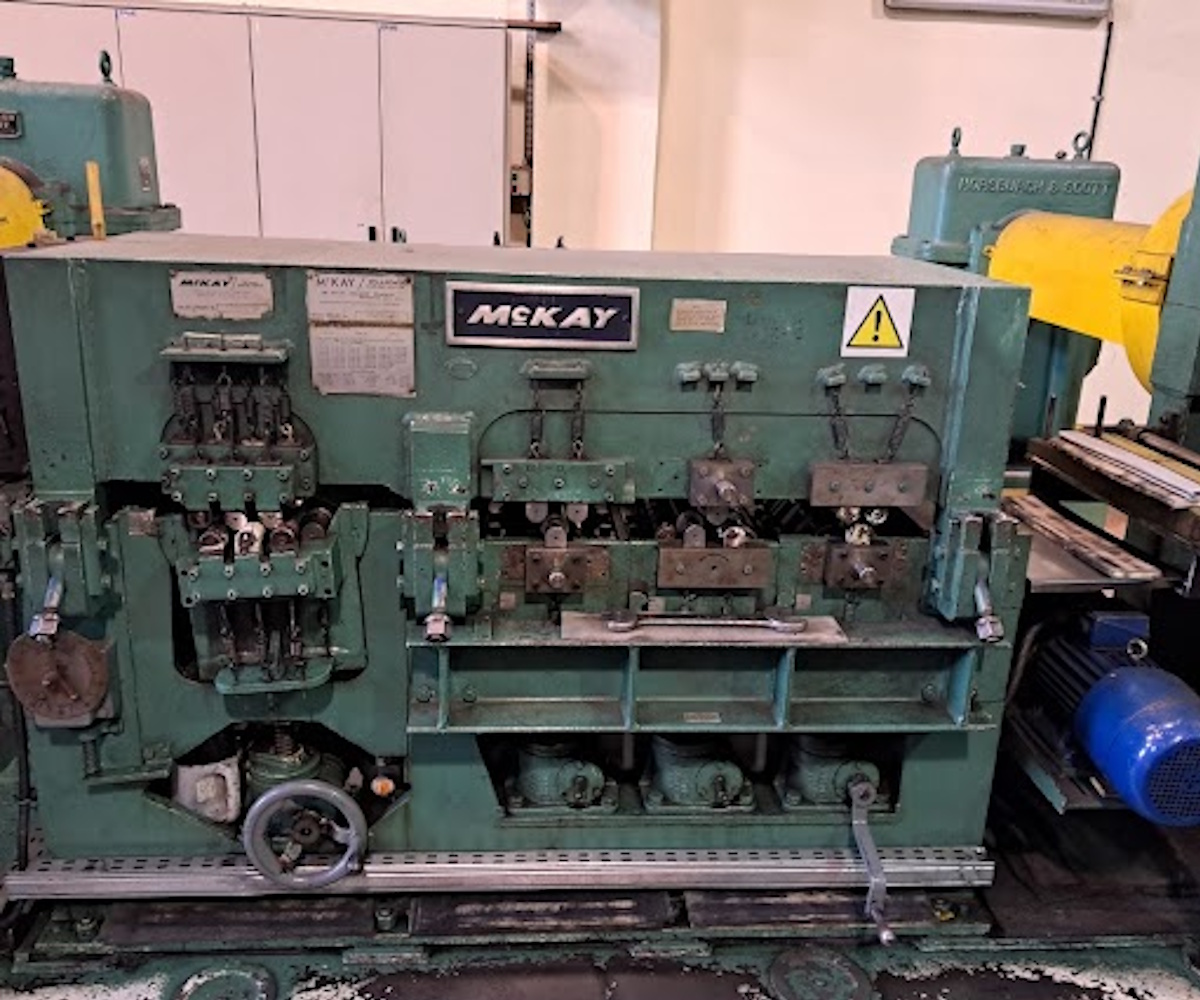

Second-hand Strip Tension Leveller

By: Alcircle Pte Ltd
Price € 295,000.00
Installed at Present Location 2000
Stopped 09/2022
Material Used for Copper / Brass
Strip width 20 - 400 mm
Thickness 0.05 - 1.0 mm
Roller Diameter - Bending ø 19.0, ø 17.0, ø 9.5 mm
Diameter of Straightening Rollers ø 22, ø 19 mm
Diameter of Tensioning Drums ø 510 mm
Diameter of Unwinding and Winding Drums ø 400 mm
Category Equipment
Manufacturer McKay
Min Order Quantity 1.00 Unit
Place of Origin USA

Details

23.03.2026
Description

We have a sale offer for a Second-Hand Strip Tension Leveller.



Other Specification:



Maximum Elongation                 ø 3%
Coil Weight                       3,000 kg
Line Speed                             50 m/min
Winder Motor            22 kW/DC, 22 kW/AC Stringing Drum Motor
Voltage Supply           400 V, Main Fuse 100 A
Control System          Siemens Simatic S5-95U - main controller
Siemens Simatic       S7-U22 - belt guiding
PC Visualization
