Aluminium Honeycomb Panel
By: Eurora İç ve Dış Ticaret Ltd. Şti.| Price | Available on request |
| Category | ACP and Cladding Products |
| Manufacturer | Eurora İç ve Dış Ticaret Ltd. Şti. |
| Min Order Quantity | 10.00 MT |
| Delivery Lead Time | As per order |
| Place of Origin | Turkey |
| Supply Ability | Customization as required |
| Packaging Details | Standard export packing |
| Transportation Details | Road / Ship |
Description

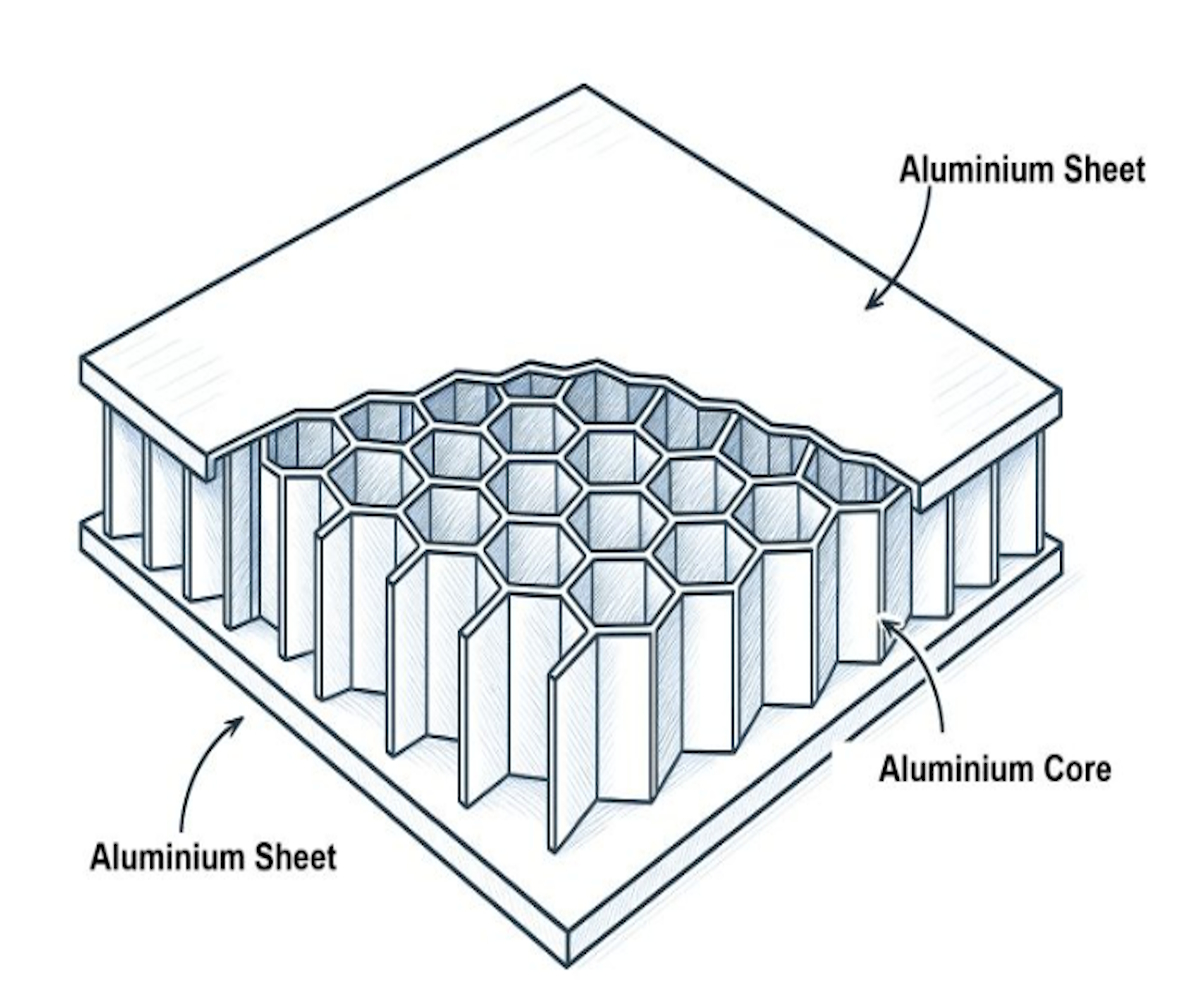

Aluminium honeycomb panel are high-strength, lightweight, rigid structural composite products that provide optimum mechanical performance. Because they offer strength and lightness together, they are used in many industries.
ADVANTAGES:
Lightweight: Aluminium honeycomb panel are significantly lighter than traditional materials. Therefore, transportation costs and installation costs are reduced. Their aluminium honeycomb panel are ideal for applications where weight is a critical factor.
Thermal Performance: Excellent insulation properties due to the air-filled honeycomb structure and enhanced energy efficiency and reduced heating or cooling costs.
Corrosion Resistance: Their aluminium honeycomb panel offers resistance to corrosion, ensuring longevity and minimal maintenance. They are suitable for exterior applications in various climates.
Structural Rigidity: Exceptional stiffness and strength, providing excellent support in diverse structural applications and minimizing deflection, ensuring long-term structural integrity.
Acoustic Control: Natural sound-dampening properties, making it an ideal choice for noise-sensitive environments. Also, customizable configurations for specific acoustic requirements are available.
Ease of Assembly: With minimal tools and labor requirements, their aluminium honeycomb panel contributes to significant time savings on your project timeline. The efficiency of assembly minimizes disruptions.
Fireproof Feature: Their aluminium honeycomb panel are fire-resistant due to the noncombustible nature of aluminium. Complies with fire safety standards.
Core Characteristics:
| Material of Foil | Aluminium (3000 Series) | ||||||
| Standard Foil Thickness | µm | 50 | |||||
| On request foil thickness | µm | 30 to 100 | |||||
| Cell Size | mm | 5.2 | 6.5 | 8.66 | 10.39 | 14.17 | 22.27 |
| Density | kg/m³ | 73 | 58 | 44 | 36 | 27 | 16 |
Panel Characteristics:
| Material of Skin | Aluminium (5000 series) | ||||||
| Aluminium Anodized (5000 series) | |||||||
| FRP | |||||||
| Galvanized Steel | |||||||
| Stainless Steel | |||||||
| Wood | |||||||
| HPL | |||||||
| Skin Thickness | mm | 0.2 to 4 for Aluminium | |||||
| 0.4 mm to 1 mm for Galvanized steel | |||||||
| 0.5 mm to 2 mm for FRP and Stainless Steel | |||||||
| 1 mm to 10mm for wood | |||||||
| 0.5 mm to 1 mm HPL | |||||||
| Standard Thickness | mm | 5-10-15-20-25-30 | |||||
| Special Thickness | mm | 4 to 100 | |||||
| Standard Dimensions | mm | 1000×2000, 1250×2500, 1500×3000 | |||||
| Special Dimensions | mm | Any size smaller than 1600×3300 (max) | |||||
