Aluminium Honeycomb Panel

By: Viva Composite Panel Pvt. Ltd.
Price Available on requeest
Category Finished Products
Manufacturer Viva Composite Panel Pvt. Ltd.
Min Order Quantity 50.00 Tons
Delivery Lead Time As per order
Place of Origin India
Supply Ability Customization as required
Packaging Details Standard export packing
Transportation Details Road / Ship
16.11.2025
Description

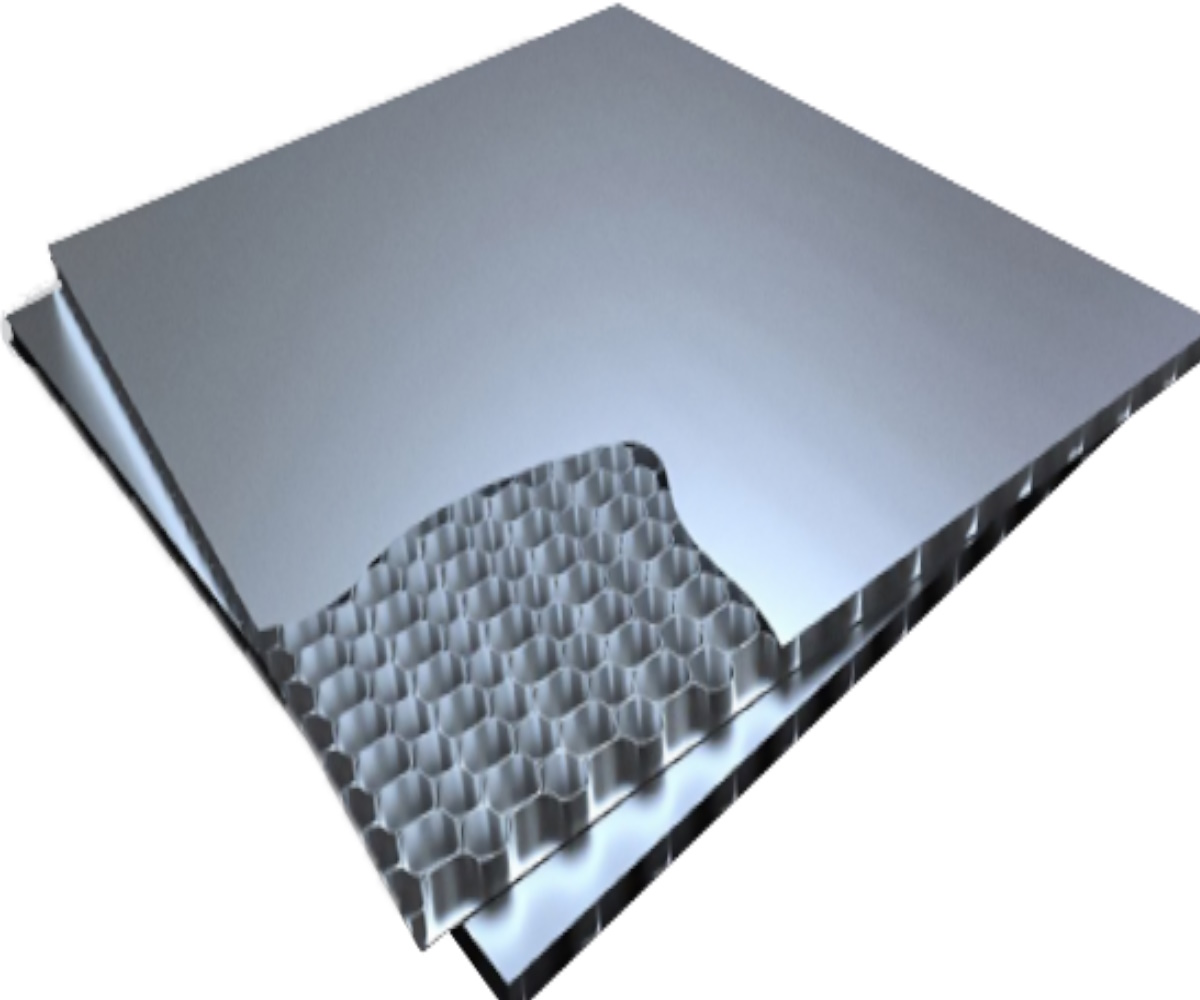

Composition of Honeycomb Panels

When honeycomb panels are compared to other materials of the same volume, the Viva honeycomb panel is known to have a unique structure and incredible strength.

Viva’s honeycomb composite panel is made of aluminium alloy AA3003/AA3105/ AA5005 / AA 3105, where the thickness of aluminium skin is 0.03mm~0.08mm, and the thickness of aluminium alloy in the honeycomb grid is 6mm, 7.5mm and 20mm. The overall thickness of the aluminium honeycomb panel is 20mm, and 12mm, and the length of the panel is 2440mm, 3050mm, and 3660 mm.

The honeycomb boards manufactured at the high-tech facility of Umbergaon conform to the national and international standards of manufacturing. The manufacturing facility has 6 Korean State-of-the-art machinery that presents innovation in the panel.

Benefits of Aluminium Honeycomb Panel

  • Fire Resistant:

    The panel is non-combustible and non-melting type. It has a fire rating of FR grade A2+. The hexagonal design of the honeycomb sheet in the core prevents the spreading of fire rapidly.

  • Lightweight:

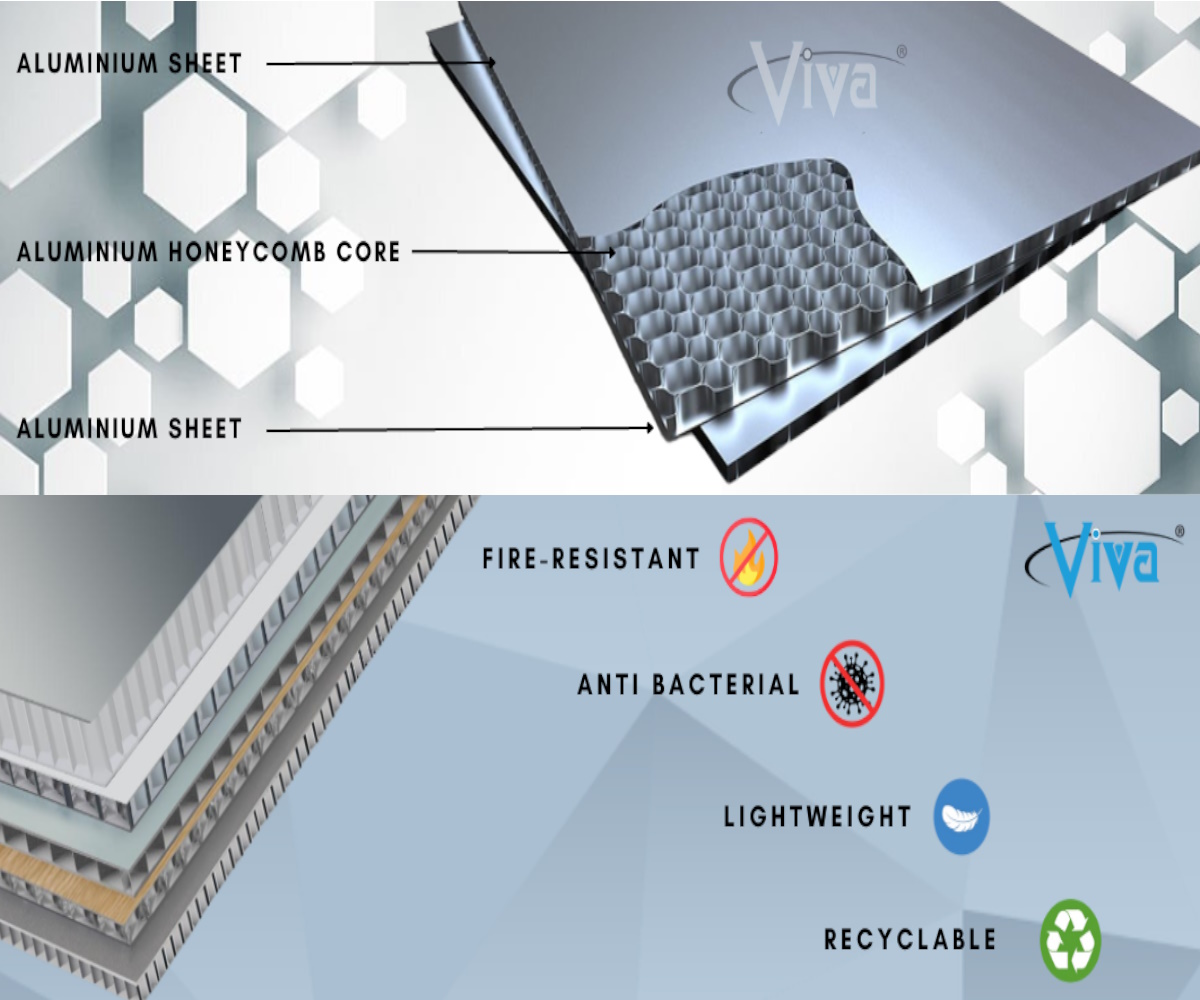

    The honeycomb sheet contains a hollow core where the aluminium skin is attached to the hexagonal structure of the core. With low density, the overall weight of the panel becomes light, making it useful in aerospace engineering, metro coaches, and theatres.

  • High Efficacy:

    The honeycomb core is hexagonal, so it connects with the aluminium skin on the top and bottom, making an I-beam structure. It makes the panel durable and able to resist high-impact stress.

  • 100% Recyclable:

    The aluminium alloy used in the honeycomb panel is 100% recyclable and reusable.

  • Ease of Installation:

    The lightweight and thin panels are easy to install as wall panels or in other applications, as the panels are installed with rivets and nuts.

Technical Properties

Alloy Top & Bottom Aluminium Sheet

AA3003/AA3105/ AA5005 / AA 3105

Elasticity Modulus N/mm2

70000

Tensile Strength N/mm2

Min. 115

Proof Stress N/mm2

Min. 70

Elongation A50

Min 2%

Coating

PVDF/FEVE

Top Skin

0.7mm/ 0.50 mm

Bottom Skin

0.5 mm

Core Alloy

AA3003 / AA5005

Compressive Strength N/mm2

1.22

Density Kg/m3

45



Physical Properties

Description

Properties

Cover Sheet

Alloy

3003/3105/5005

Thickness

12mm/25mm

Honey Comb

Thickness

23.8mm/ 11mm/ 10.8mm

Cell Size

9.5mm/12.7mm

Foil Thickness

0.05mm/ 0.07mm

Alloy

3003/5005/ 3105

Total Panel Thickness

12mm/25mm

Panel Dimensions

Width

1220mm / 1250mm/1500mm

Length

2000mm-6000mm



Why Choose Honeycomb Aluminium Panels?

  • Viva’s honeycomb aluminium panel is the best in class and offers an excellent sturdy shape with resilient properties.

  • The surfaces of honeycomb panels have self-cleaning properties and have an extensive shade range hence transforming dull walls with aesthetic looks.

  • The panels come with 15 years of warranty.

  • The panel has superior thermal and sound insulation.

VIVA offers an affordable, stronger, and durable metal composite range. It has become the go-to brand for high-quality and affordable prices of aluminium composite panels, ACP panels, and honeycomb aluminium panels. Explore our website to learn about 300+ surface designs and 21 product series.
