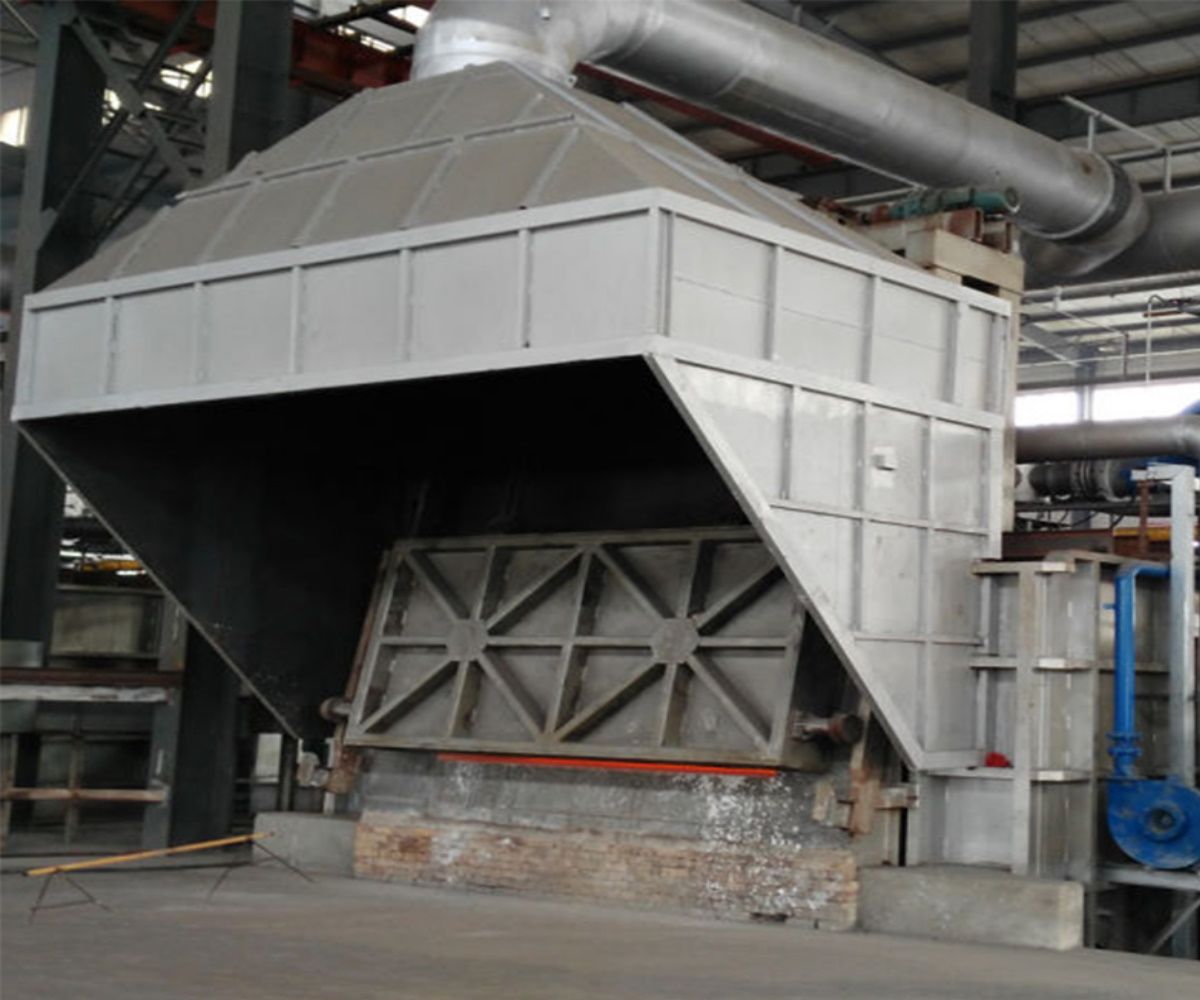

Aluminium Melting Furnace for Billet Casting

Description

Fixed melting and holding furnace can perform combustion with four types of fuel such as natural gas, liquefied petroleum gas, heavy oil and diesel.

The furnace body is fixed and non-movable. It has straight furnace door indicating the door can be moved vertically which is convenient and easy to use.

Slanting furnace door indicates the door does not lift or lower vertically but it is shut tightly sorely by the weight of the furnace door. This helps to reduce the heat energy lost.

Fixed melting and holding furnace mainly consists of steel external shell, refractory lining, furnace door, lifting and clamping mechanism of the furnace door and burner system. The fixed melting and holding furnace can be equipped with auxiliary equipment such as electromagnetic stirrer, molten aluminum pump, charging car, etc. This model of furnace uses regenerative burner system as burner which emits 90% and above of the waste gas after heat exchanges through the regenerative bed. Other waste gas emitted via conventional exhaust channel which saves energy.

Specification:

• Melting rate: 2-8 tons of aluminum per hour
• Air pressure: 65-100kPa
• Temperature accuracy: ±5℃
• Fuel consumption: 52meter cube/ tons*aluminum
• Highest working temperature: 1050℃
• Highest control temperature: 1100℃

Application:

Fixed melting and holding furnace mainly used in smelting of aluminum alloy or heat preservation for molten aluminum as it has good sealing property.
