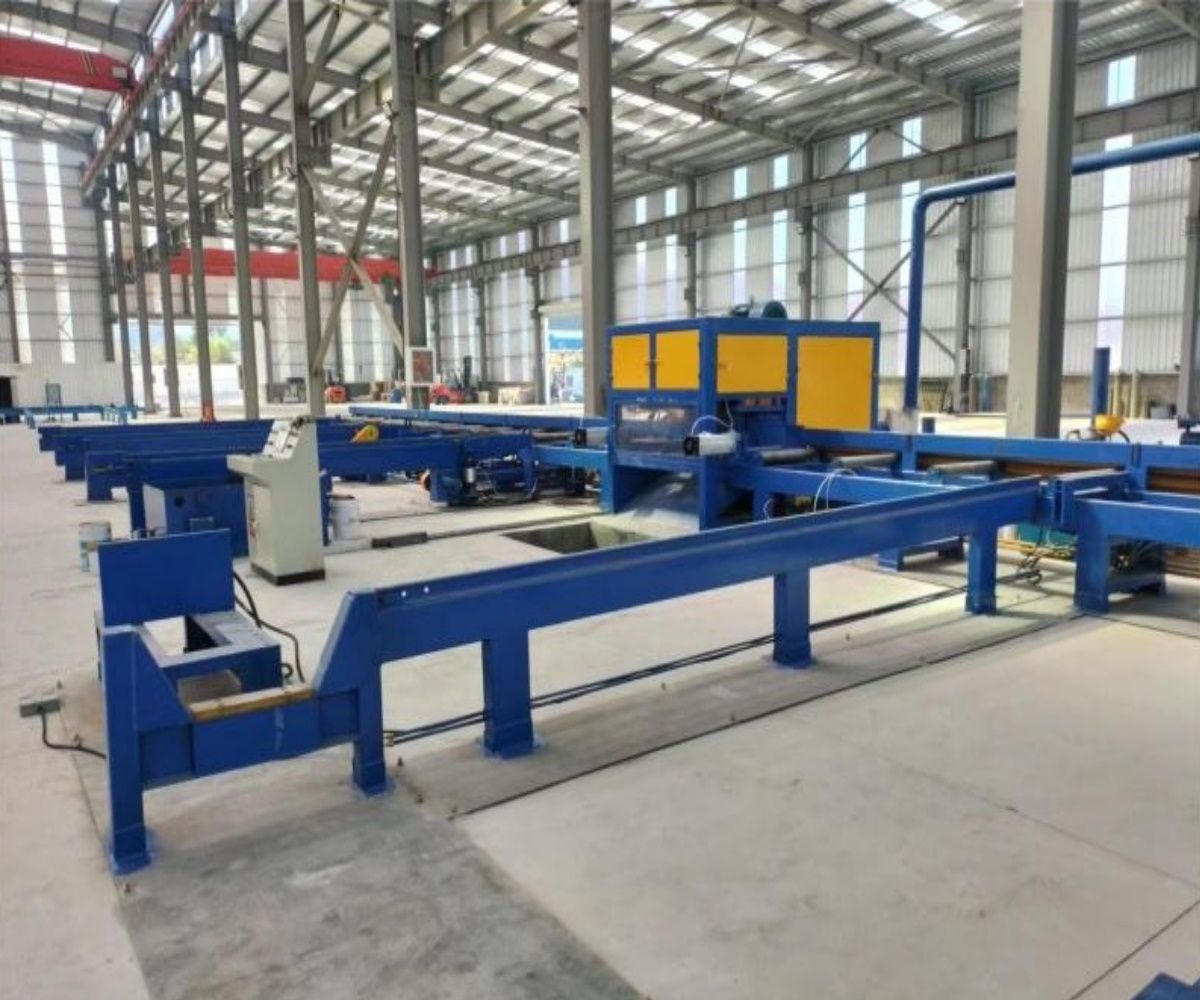

Aluminium Billet Cutting Machine

Description

Product Technical Parameter:

• Sawing material: a full range of aluminum alloy round bars.
• Sawing specification: 2 pieces of φ230mm, 3 pieces of φ178mm, 4 pieces of φ127mm
• Effective Sawing Stroke: 550mm, total stroke 600mm
• Length after sawing: 6000mm
• Feed roller length: 6500mm
• Length of head and tail: 100 - 250mm
• Discharge roller length: 6000mm
• Storage rack: 6000mm
• Storage rack: 6000mm including packaging
• Feeding and discharging method: electric
• Sawing method: hydraulic horizontal push
• Roughness of cutting surface: ≤25μm (related to sawing feed rate)
• Saw width: ≤ saw blade thickness +0.5
• Conveying speed of aluminum rod: ～10m/min
• Power of sawing main motor: 37kw
• Sawing feed rate: 0～20mm/s
• Sawing cooling method: common coolant
• Saw blade specification: Φ650/Φ30-5
• Aluminum rod clamping method: hydraulic pressure
• Noise: ≤80 decibels measured at 1m away from the host
• Saw blade type, woodworking saw blade/alloy saw blade

Application:

Designed for performing head and foot cuts of aluminum billets, this automatic aluminum saw is a type of aluminum billet saw used for sawing aluminum extrusion billets quickly and precisely during the aluminum extrusion process. The billet saw is mainly used in the casting workshop for sawing aluminum logs, both long and short aluminum rods can be cut independently or at the same time. This billet sawing machine is characterized by implementing fully automatic processes including feeding, cut-to-length operation, billet marking, aluminum scrap collecting, aluminum chips recycling, short billets stacking & strapping, long billets strapping, weighing.
