Price | Available on request |
Category | Equipment |
Manufacturer | Jiangyin Royal Machinery Equipment Co.,Ltd. |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | As per order |
Place of Origin | China |
Supply Ability | Customization as required |
Packaging Details | Standard export packing |
Transportation Details | Ship |

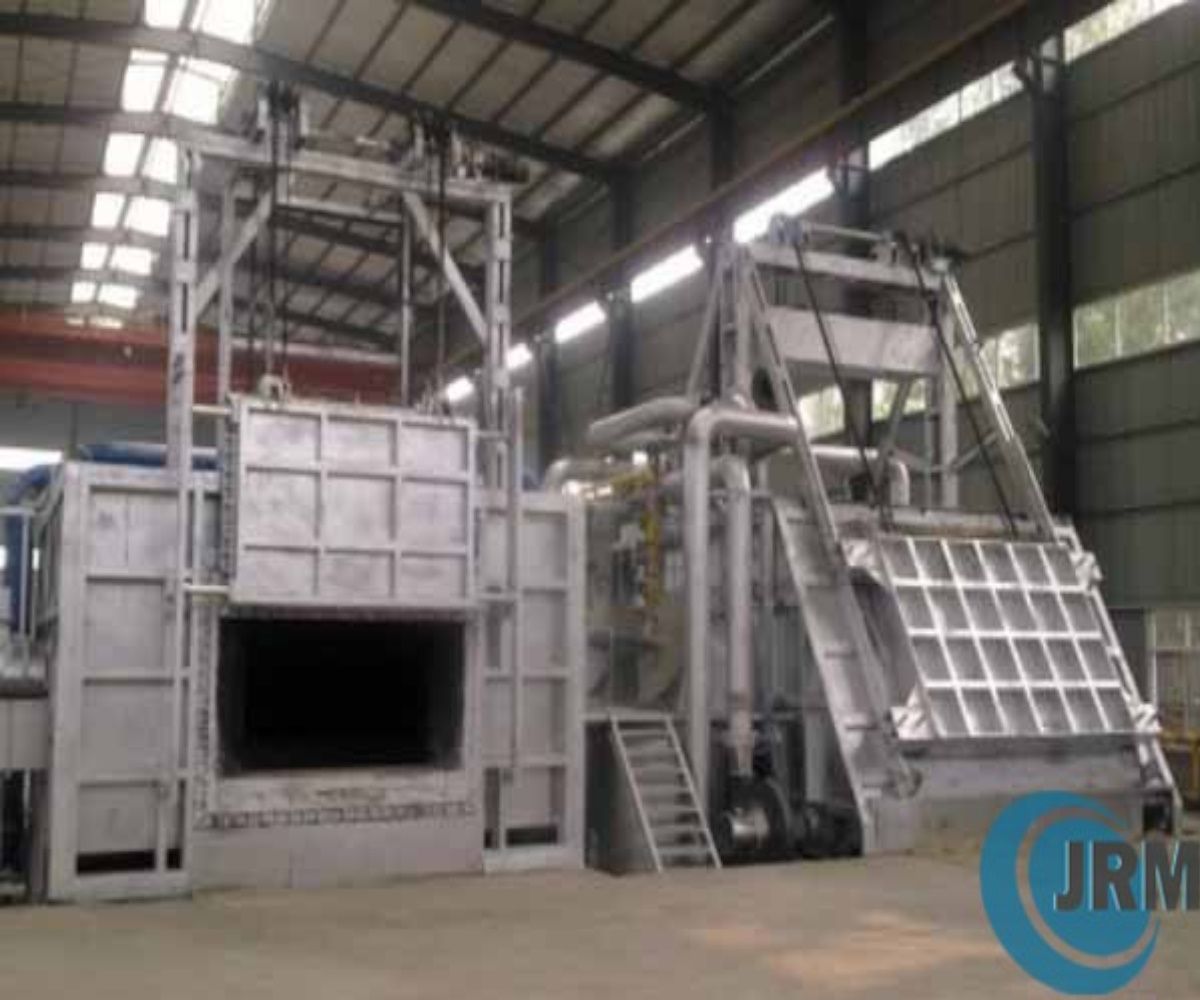

Melting Furnace Door
Lifting device of furnace door adapt chain transmission device,heat resisting cast iron door asbestos fiber rope seal, pneumatic clamping.Door body durable, good insulation properties, good sealing. Furnace door frame materials, high temperature resistant, long service life.
Working principle of door drive and clamping structure ensure door drive precision, stable and reliable, low failure rate.
Furnace door lifting device is driven by the motor, realized by a motor driven chain wheel, chain, smooth operation. The door is flanked by guiding device with clamping guide groove; the door to press the sealing, clamping cylinder driving.
This melting furnace has one furnace door in the front side,to feed aluminum into furnace.2.5 Furnace door operation adapt industrial remote control device, remote remote control operation, convenient feeding and opening door control operation.
