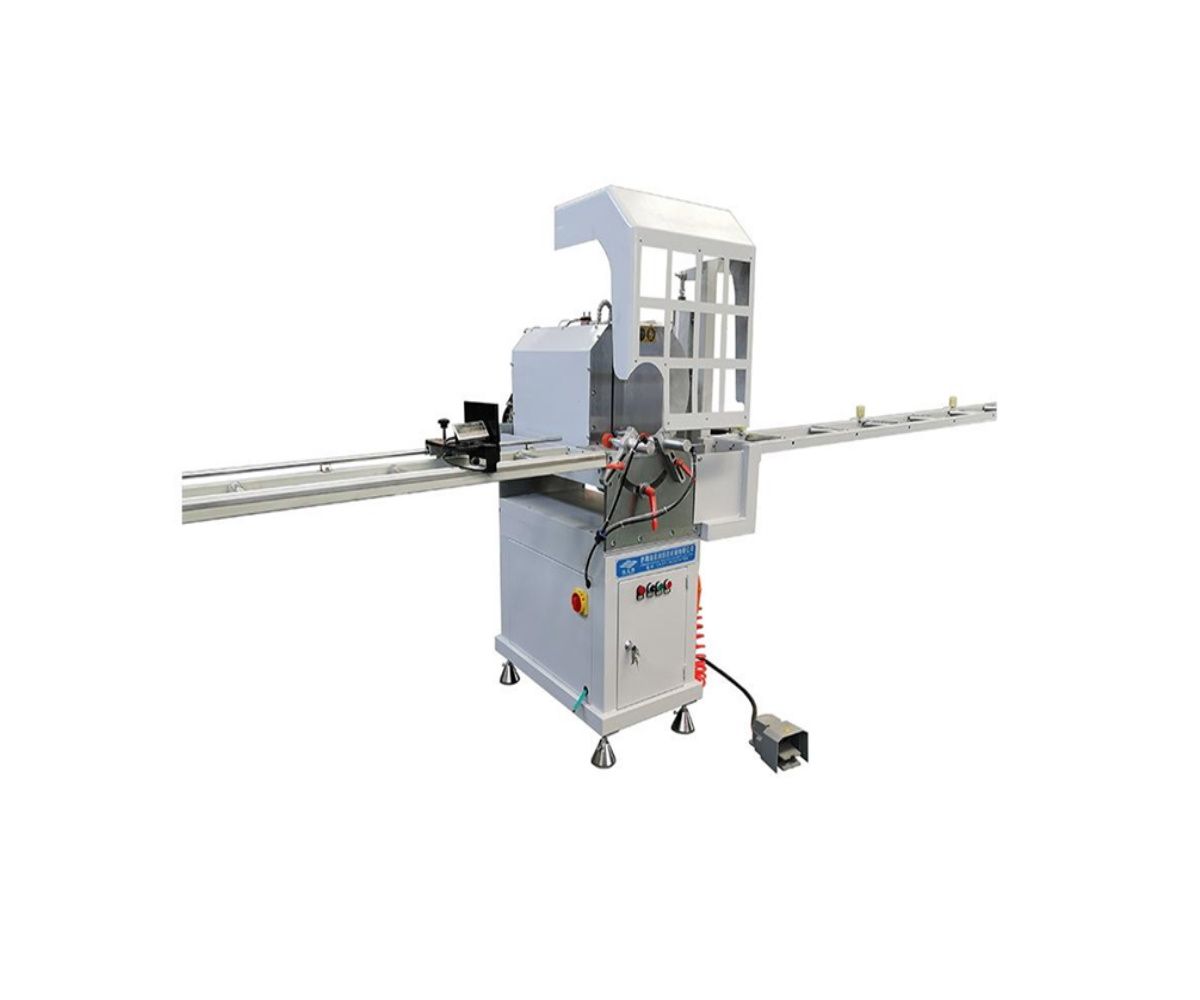

Single Head Mitre Saw (LSJ-450)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD

Model	LSJ-450
Power supply	380 V/50Hz
Motor power	1.5 Kw
Spindle speed	2840 r/min
Air pressure	0.5-0.8 Mpa
Air consumption	60 L/min
Blade size	Φ450×Φ30×δ4mm Z=120
Cutting angle	45°/90°/135°
Max. cutting width	120 mm
Angle cutting tolerance	±5′
Planeness	≤0.10

Details

Machine dimension

1000x1100x1400 mm

Weight

300Kg

Feeding rack length

2500mm(L&R)

Category	Equipment
Manufacturer	JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity	1.00 Unit
Delivery Lead Time]	60 Days
Place of Origin	China
Supply Ability	Customization on Requirement
Packaging Details	Standard Export Packing

Transportation Details

Road/Ship

Valid Upto

23.11.2024

Description

1. Used for aluminum ,upvc profile and curtain wall profile cutting .
2.Sawblade feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. 90°and 45° cutting is available. Saw blade rotate smoothly due to high accuracy main spindle.
4. Imported carbide saw blade give accurate processing and high endurance.
5. Auto-opening guard shield ensured safety operation.
6. Spraying cooling system, make sure carbide saw blade long service life .
