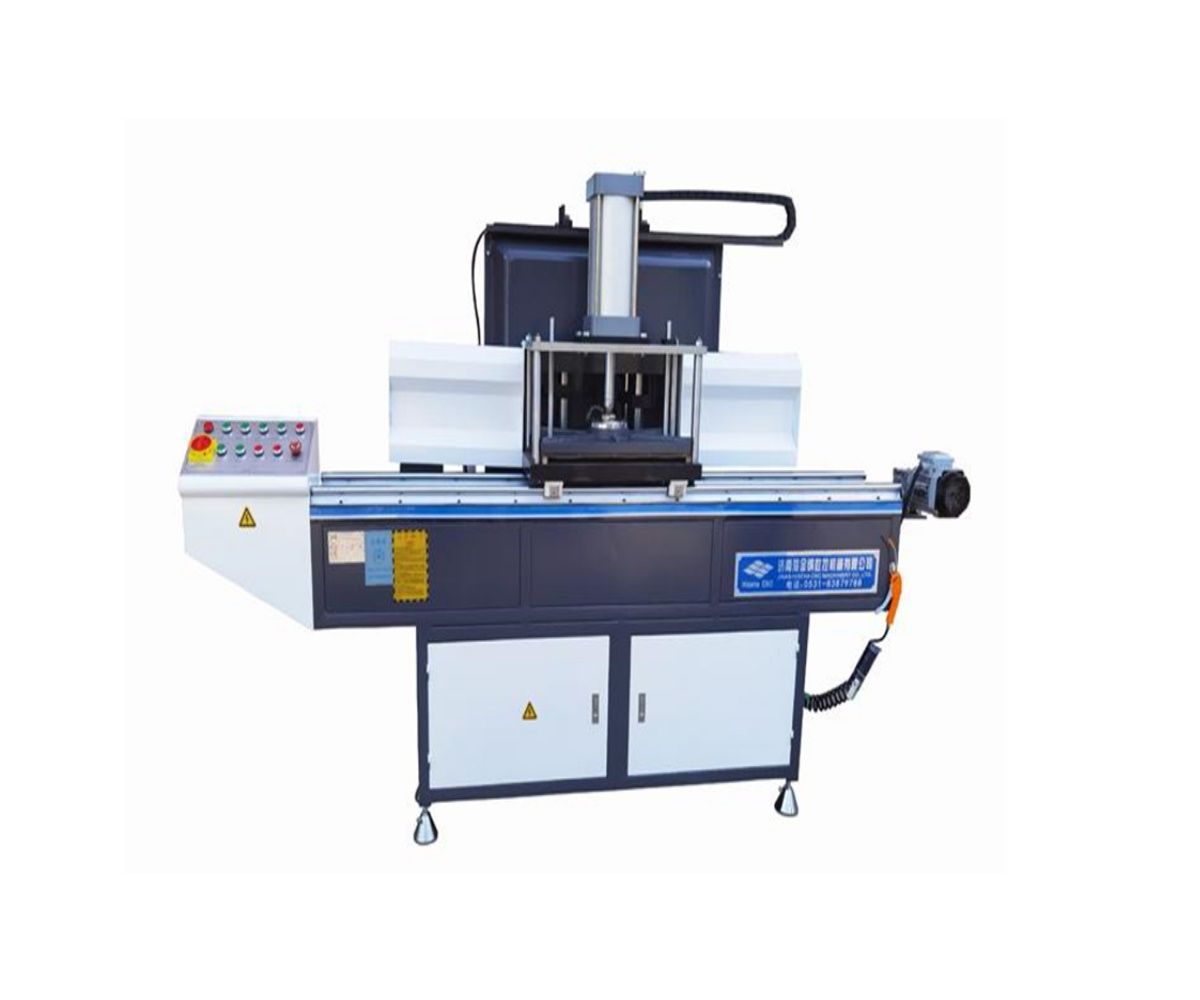

End Milling Machine (LDXW-250)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LDXW-250
Power supply 380V/50Hz
Motor power 8.8 Kw
Air pressure 0.5-0.8 Mpa
Air consumption 50 L/min
Main spindle speed 2800 rpm
Disc mills Ø250mm,Ø300mm
Machine dimension 2680x1020x1600 mm
Weight 700KG
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time 60 Days
Place of Origin China
Supply Ability Customization on Requirement
Packaging Details Standard Export Packing
Transportation Details Road/Ship

Details

23.11.2025
Description

1.This machine is used for aluminum profile end face processing and suitable for various profiles.
2.It can process multi-piece profiles at one time, with high efficiency.
3.Convenient tool adjustment to meet different processing requirements.
4.No necessary to order tools when processing various profiles, saving cost and time.
5.Large tool diameter, high milling speed and good processing result.
6.According to user's requirement, this machine is installed safety cover which can keep safe operation.
7.Adopt electrical motor protect device to improve the safety.
8.Adopt lead screw feeding device, more smoothly.
