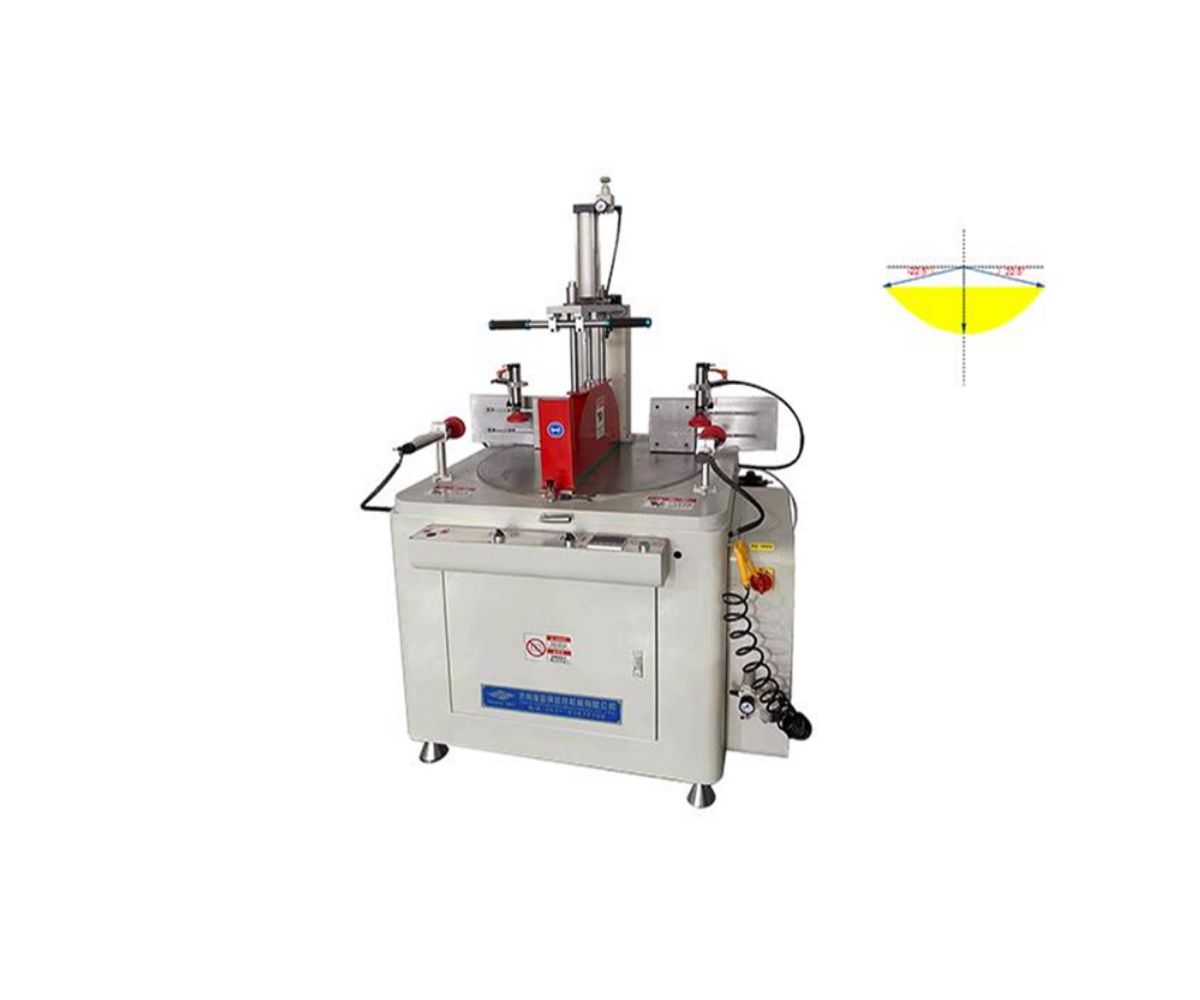

Arbitrary Angle Up Cut Saw (LSJA-600)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LSJA-600
Power supply 380V/50Hz
Motor power 3.3 Kw
Spindle speed 2840 r/min
Air pressure 0.5-0.8 Mpa
Air consumption 60 L/min
Blade size Φ600 mm
Cutting angle -22.5° to 22.5°
Max. cutting width*height 200*200 mm
Angle cutting tolerance ±5′
Planeness ≤0.10

Details

Machine dimension 1300x1400x2100 mm
Weight 600 KG
Feeding rack length 4000*880 mm
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO.LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2024

Description


The machine adopts mature German design concepts combined with the latest usage requirements and habits. It is mainly used for cutting aluminum, plastic profiles, arc profiles, windows and doors and curtain wall profiles, and can also be used for angle cutting. The machine base is made of casting, using hard alloy saw blades, imported guide rails, high linear speed, automatic oil injection cooling and lubrication, gas-liquid damping stepless speed regulation device, processing surface smoothness, high precision, stable feeding, and with high strength and stability.
The saw can be rotated and positioned at any angle of -22.5°-22.5° for meeting the cutting requirements of various angles.
