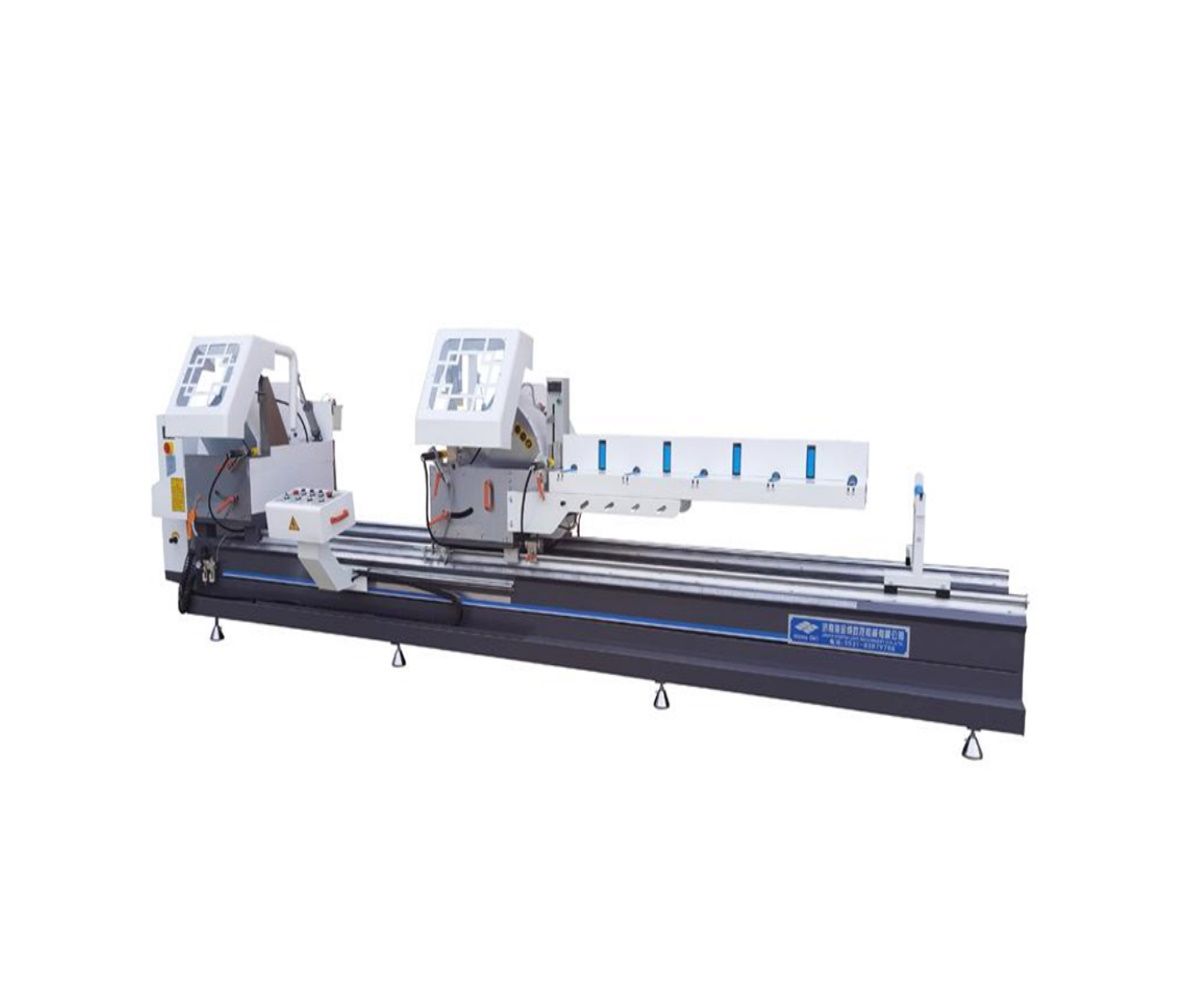

Double Head Mitre Saw (LJB1A--500x4200)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD

Model	LJB1A--500×4200
Power supply	380V/50Hz
Motor power	2*2.2 Kw
Spindle speed	2800 r/min
Air pressure	0.5-0.8 Mpa
Air consumption	200 L/min
Blade size	Φ500×Φ30×δ4.4mm,140T
Cutting angle	Auto outward 45°/90°
Cutting width*height	90 degree:140*240 mm
	45 degree:140*200 mm
Cutting length	370-4500 mm

Details

Planeness

≤0.10

Roughness

Ra12.5 um

Machine dimension

5900*1360*1720 mm

Weight

1400KG

Category	Equipment
Manufacturer	JINAN HAIJINNA CNC MACHINERY CO.LTD
Min Order Quantity	1.00 Unit
Delivery Lead Time]	60 Days
Place of Origin	China
Supply Ability	Customization on Requirement
Packaging Details	Standard Export Packing

Transportation Details

Road/Ship

Valid Upto

23.11.2024

Description

1.Used for aluminum profile high accurate cutting.
2.Imported Linear bearing system in moving and feeding device ensures the accurate the machine running and cutting, and stable performance.
3.Digital display system equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and easy operation .
4.Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
5.cutting angle change Automatic between 45° (outward)and 90°.
6.Imported carbide saw blade for a high quality cutting and long service life.
7.Automatic Safety system of shield can ensure the safe operation .
8.Spraying cooling system, make sure carbide saw blade long service life
