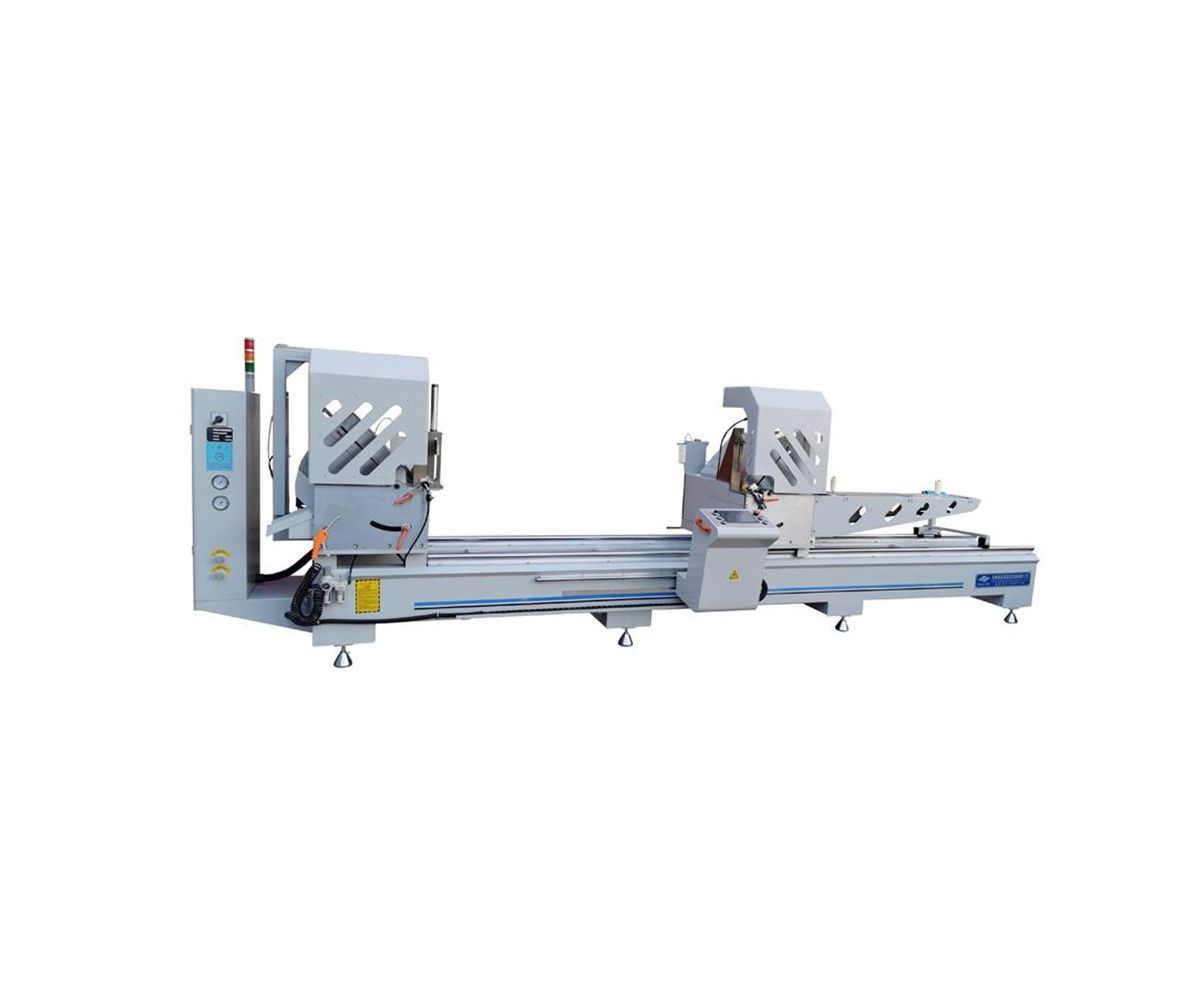

CNC Double Head Mitre Saw (LJB1A-CNC-500×4200)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model LJB1A-CNC-500×4200
Power supply 380V/50Hz
Motor power 2*2.2 Kw
Spindle speed 2800 r/min
Air pressure 0.5-0.8 Mpa
Air consumption 200 L/min
Blade size Φ500×Φ30×δ4.4mm,140T
Cutting angle Auto outward 45°/90°
Cutting width*height 90 degree:140*240 mm
45 degree:140*200 mm
Cutting length 370-4500 mm

Details

Planeness ≤0.10
Roughness Ra12.5 um
Machine dimension 5900*1360*1720mm
Weight 1600KG
PLC DELTA
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2024

Description


1. Used for aluminium extrusions and curtain wall profile cutting.
2. CNC control makes the cutting according to size requirements with high accuracy.
3. Feeding system adopts imported linear guide pair, insure the high accurate cutting and long service life.
4. Auto-measuring the material height,no need to select this data into the system.
5. Saw blade rotate smoothly due to high accuracy main spindle.
6. Imported carbide saw blade give accurate processing and high endurance.
7. Imported linear bearing motion pair ensured steady processing accuracy.
8. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
9. Auto-opening guard shield gives a safety operation condition for workers.
10. Adopts industry PLC system, the user can set parameters according profiles.
