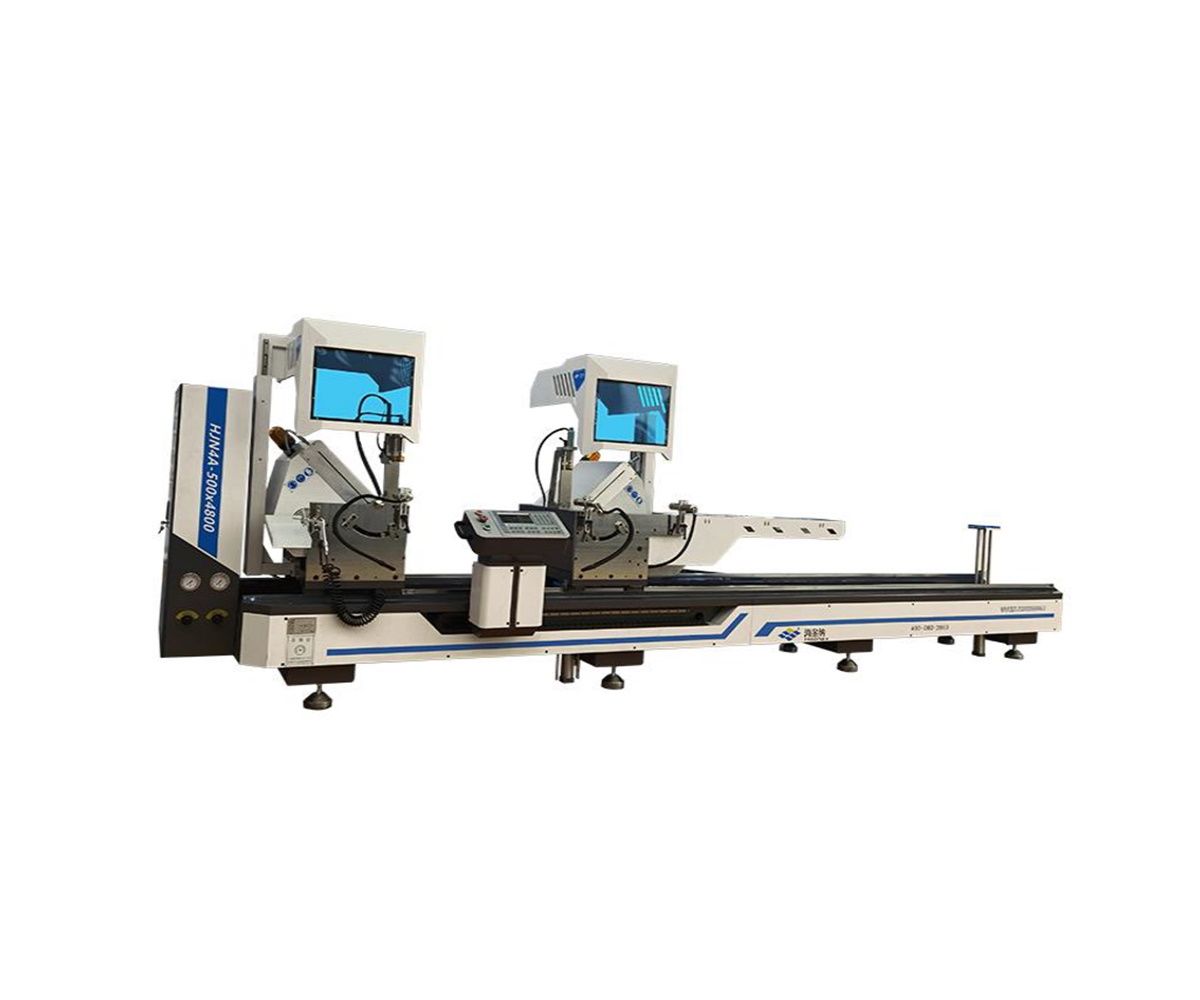

CNC Double Head Mitre Saw (HJN4A-500*4400)

CNC Double Head Mitre Saw (HJN4A-500*4400)

By: JINAN HAIJINNA CNC MACHINERY CO.LTD
Model HJN4A-500*4400
Power supply 380V/50Hz
Motor power 2*3 Kw
Spindle speed 2800 r/min
Air pressure 0.5-0.8 Mpa
Air consumption 200 L/min
Blade size Φ500×Φ30×δ4.4mm,140T
Cutting angle Auto outward 45°/90°
Cutting width 150 mm
Cutting length 249-8800 mm
Angle cutting tolerance ±5′
Roughness Ra12.5 um
Machine dimension 5800*1500*1800mm
Weight 2000KG
PLC Schneider
Category Equipment
Manufacturer JINAN HAIJINNA CNC MACHINERY CO. LTD
Min Order Quantity 1.00 Unit
Delivery Lead Time] 60 Days
Place of Origin China

Customization on Requirement

Standard Export Packing

Road/Ship

23.11.2024

Description

1.The swing angle shaft adopts one-piece casting and one-piece processing to reduce the error and not deform, and the stability of long-term use is high
2. The control system and electrical appliances adopt the French high-end brand Schneider, high-precision control, high stability.
3. With a fast feeding speed of 20000mm/min, low noise.
4. Curved sawing makes the cutting time shorter, the cutting surface is smooth and free of burrs, and the life of the saw blade is extended. Improve the surface finish of aluminum.
5. With ultra-short cut 249mm and ultra-long cut 8800mm.
6. The appearance design is exquisite and generous. The main material of the machine body adopts 8mm thick national standard rectangular tubes. The guide rail adopts the 30mm linear series of Taiwan HIWIN brand. The Taiwan YYC grinding rack ensures the precise size of the cutting length.
7. The machine body comes with automatic profile holders.
8. Auto-lubricating, rack and pinion gearing.
