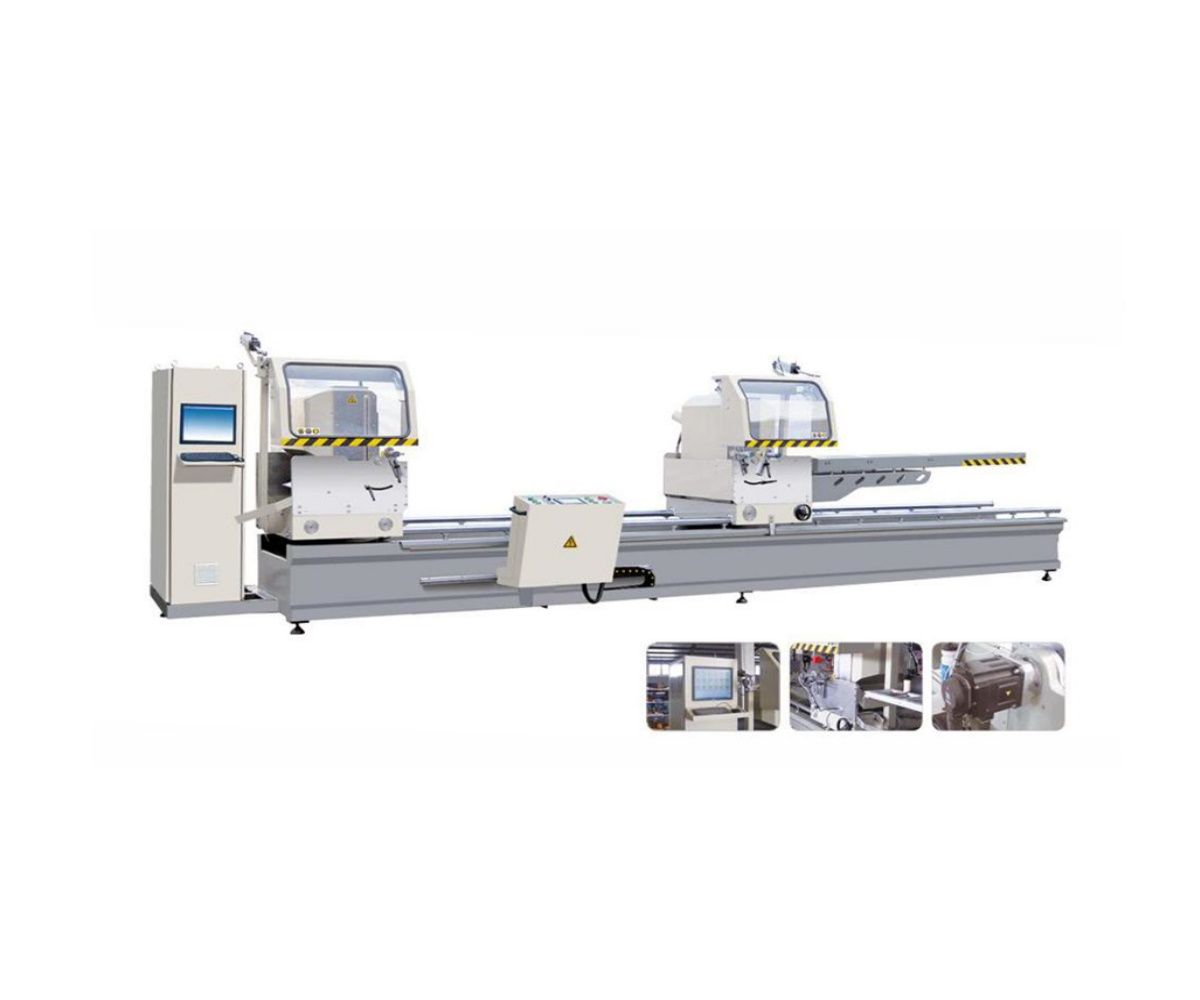

Model | HJN4A-500*4400A |
Power supply | 380V/50Hz |
Motor power | 2*4 Kw |
Spindle speed | 3200 r/min |
Air pressure | 0.6-0.8 Mpa |
Air consumption | 200 L/min |
Blade size | Φ500×Φ30×δ4.4mm,140T |
Cutting angle | 45°-157.5°/30°-150° |
Cutting width | 150 mm |
Cutting length | 550-4400 mm |
Repeatability | +-0.1mm |
Angle cutting tolerance | ±5′ |
Planeness | ≤0.10 |
Roughness | Ra12.5 um |
Machine dimension | 5800*1400*1600mm |
Weight | 2000KG |
Category | Equipment |
Manufacturer | JINAN HAIJINNA CNC MACHINERY CO. LTD |
Min Order Quantity | 1.00 Unit |
Delivery Lead Time | 60 Days |
Place of Origin | China |
Supply Ability | Customization on Requirement |
Packaging Details | Standard Export Packing |
Transportation Details | Road/Ship |
1. The machine adopts industrial control computer, and the whole machine adopts European models. The appearance is neat and elegant;
2. The head movement adopts servo drive and high-precision rack to ensure repeat positioning accuracy and speed to a greater extent;
3. The saw blade feed is driven by a gas-liquid damping cylinder, and the cutting is stable;
4. Equipped with high-precision diamond cutting saw blade, smooth cutting section;
5. Imported servo motor drives the reducer to realize the arbitrary adjustment of the sawing angle between 30° and 150°;
6. The control system can realize advanced functions such as optimized cutting of profiles;
7. It can realize continuous cutting of different lengths;
8. Realize the direct input of the processing size, and change the sawing length without returning to the reference point;
9. There is a saw blade sealing device under the worktable, which has a good chip removal effect;
10. With a follow-up opening and closing guard cover, it is safe and reliable, and the working environment is good;
11. Two cylinders for each head to clamp the profile.
