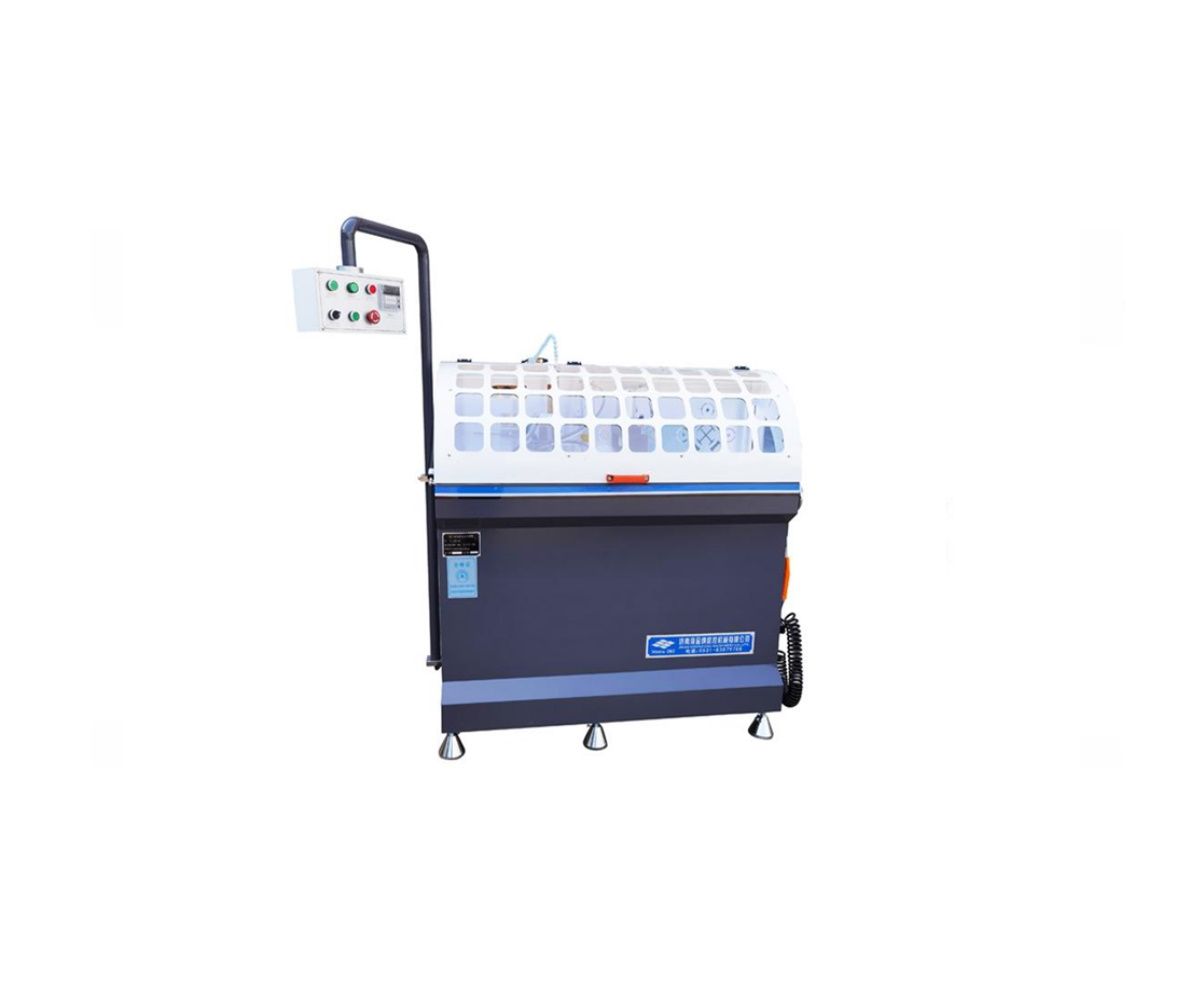

Corner Cleat Cutting Machine (LJZZ-100)
By: JINAN HAIJINNA CNC MACHINERY CO.LTD| Model | LJZZ-100 |
| Power supply | 380V/50Hz |
| Motor power | 2*2 Kw |
| Spindle speed | 2840 r/min |
| Air pressure | 0.5-0.8 Mpa |
| Air consumption | 60 L/min |
| Blade size | Φ450×Φ30×δ4mm Z=120 |
| Cutting angle | 90° |
| Max. Cutting width | 110 mm |
| Auto profile feeding length | 3-180 mm |
| Angle cutting tolerance | ±5′ |
| Planeness | ≤0.10 |
| Roughness | Ra12.5 um |
| Machine dimension | 1300x1400x1700mm |
| Weight | 300KG |
| Category | Profile Cutting Equipment |
| Manufacturer | JINAN HAIJINNA CNC MACHINERY CO. LTD |
| Min Order Quantity | 1.00 Unit |
| Delivery Lead Time | 60 Days |
| Place of Origin | China |
| Supply Ability | Customization on Requirement |
| Packaging Details | Standard Export Packing |
| Transportation Details | Road/Ship |
23.11.2025
Description
1.Used for aluminum corner cleat profile cutting.
2.Saw blade feeding speed and travel adjustable ,adopt imported linear guide pair, with high accuracy smaller resistance .
3. Automatic feeding profile, cutting one profile each time .
4.Carbide saw blade ,dimension Ø450 mm, with Spraying cooling system .
5. Auto-opening guard shield ensured safety operation.
